More Leveling Knobs

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 2.3k views
  • 7 likes
  • 133 downloads

3D model description

Custom make your knurled/sloted knobs with captured nut. Some assembly required.

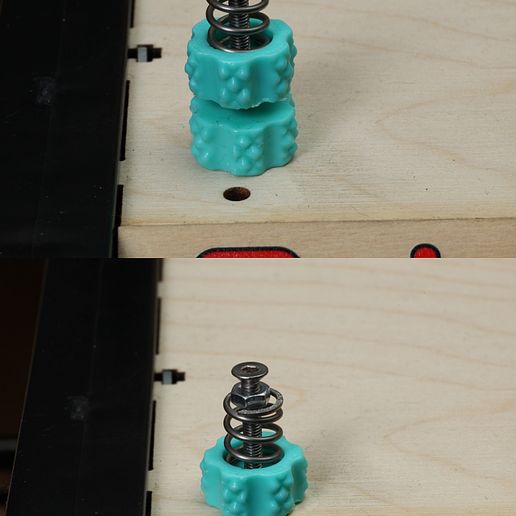

I was using them to keep my Replicator's Build plate tightly level until I have changed the entire Z stage (testing it now, coming soon...)


3D printing settings

The properties of the knurl cannot be modified :( well, you can change them if you download the OpenSCAd and change the values to taste.

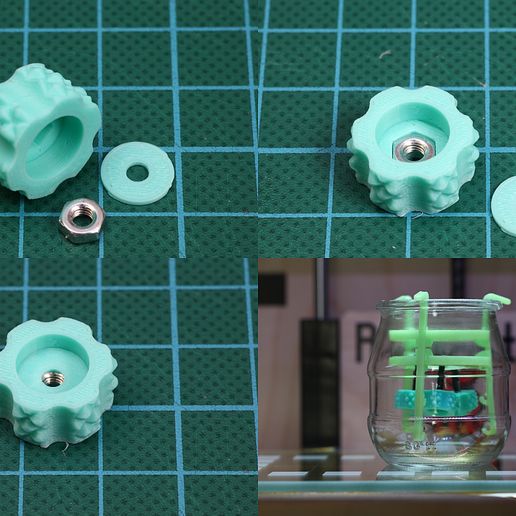

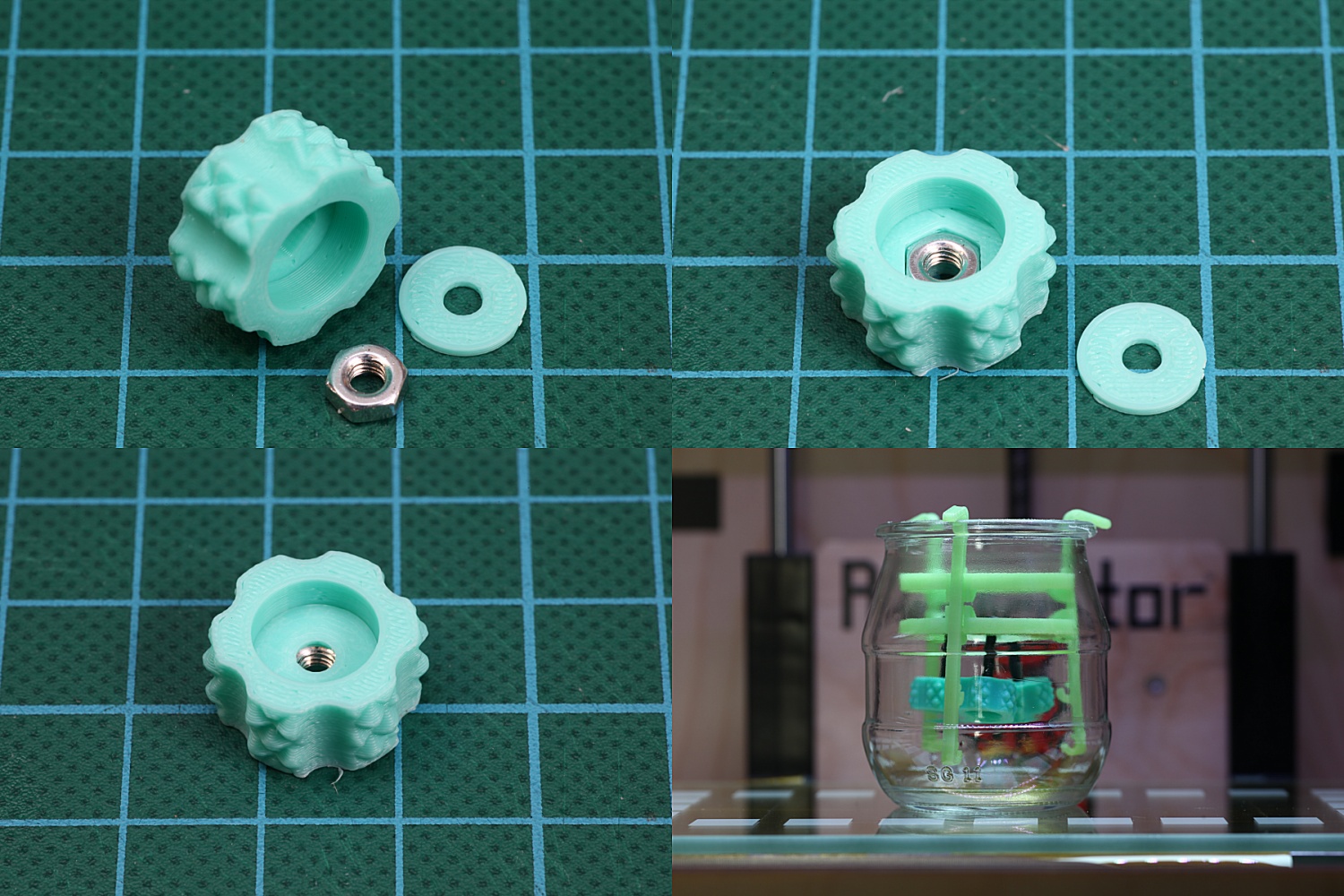

The washer acts as a nut retainer, thus, it needs to be glued, melted or press fit. I choose to melt it with an acetone vapor bath.

You could also play with the nut's across flats distance to get that nut so tight that no washer is required...

3D printer file information

  • 3D design format: SCAD and STL Folder details Close
    • Knob_M3_nut.stl
    • levelKnobs.scad

    Learn more about the formats

  • Publication date: 2019/10/01 at 15:51
