3D model description

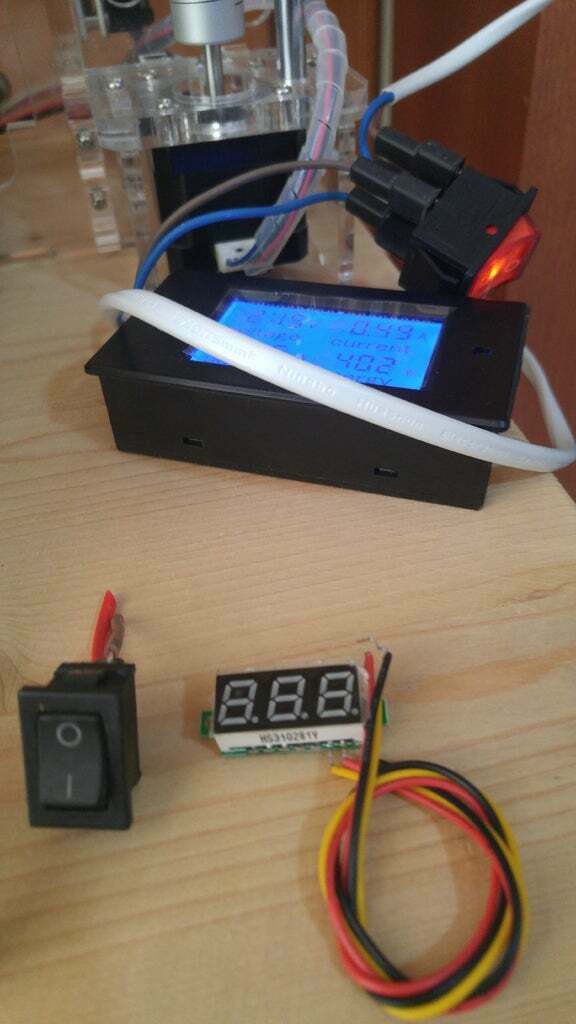

this project need same electronics parts

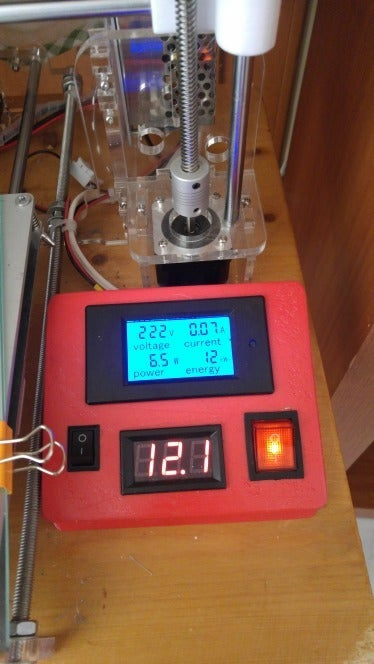

Power supply control

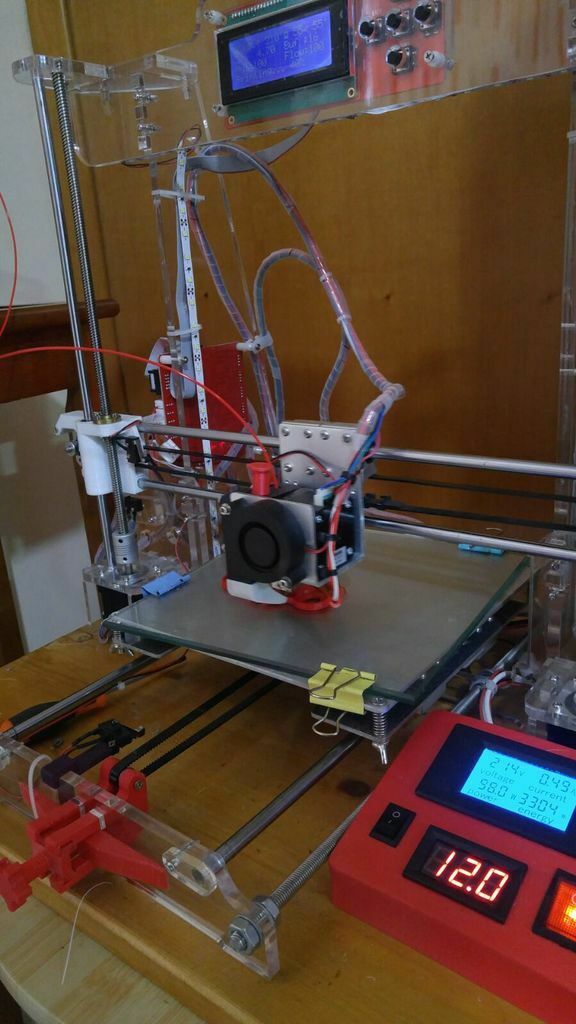

Controls and monitors the power consumption of your 3D printer

Voltage Current Power Power consumed

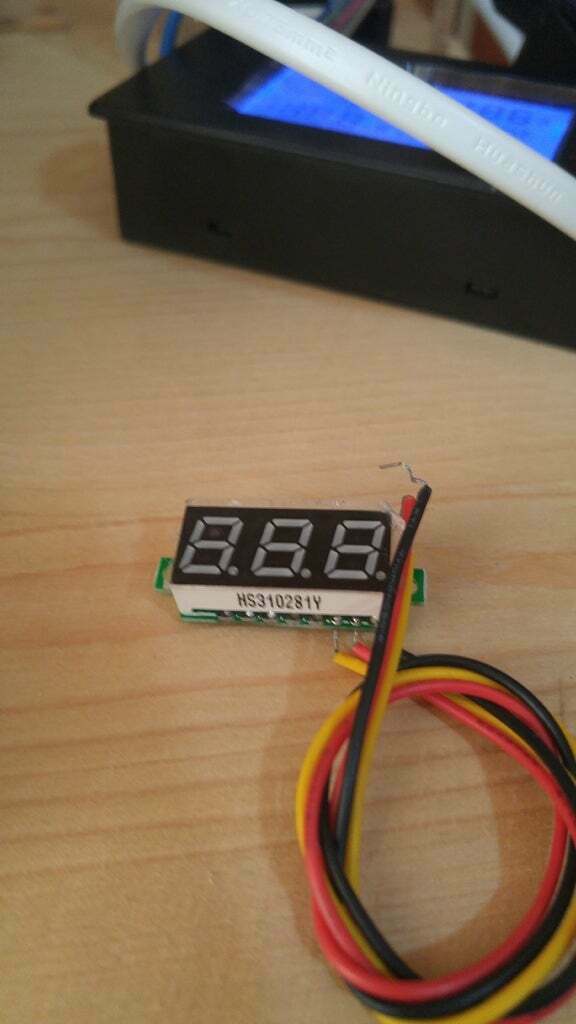

Prepares a voltage meter feeder Lower voltage.

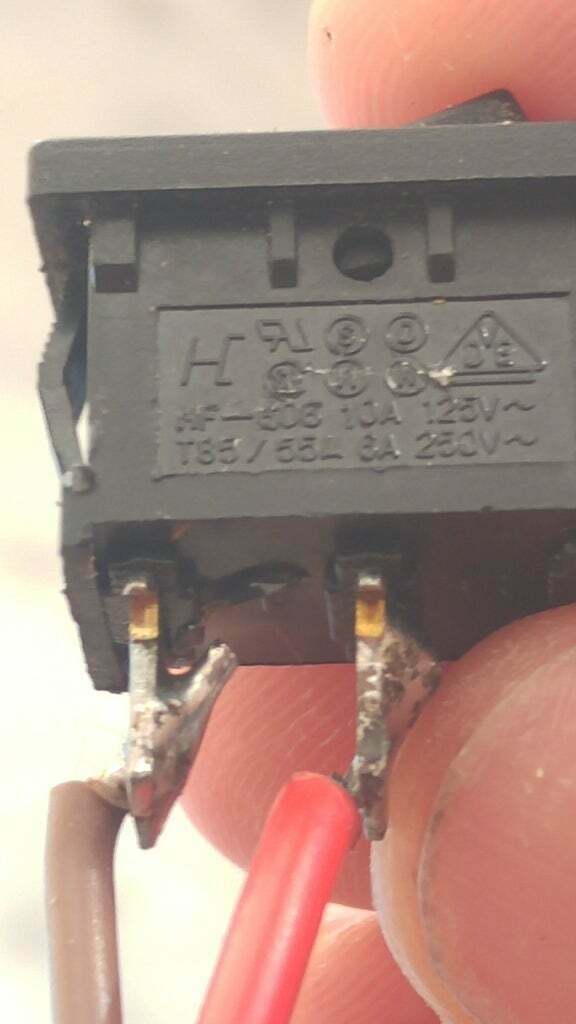

First switch turns the system

Second switch to illuminate the print platform

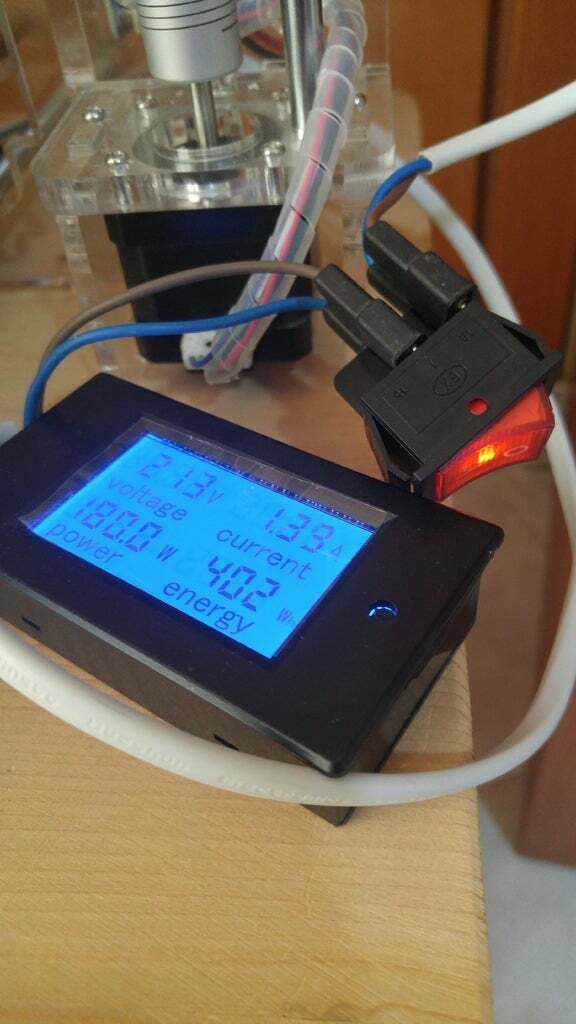

followed by details of the electronic module Model: PZEM021 (cost about 6 euro)

Power supply control

You need:
Model: PZEM021

Accept a little donation!

  • 3D file format: STL

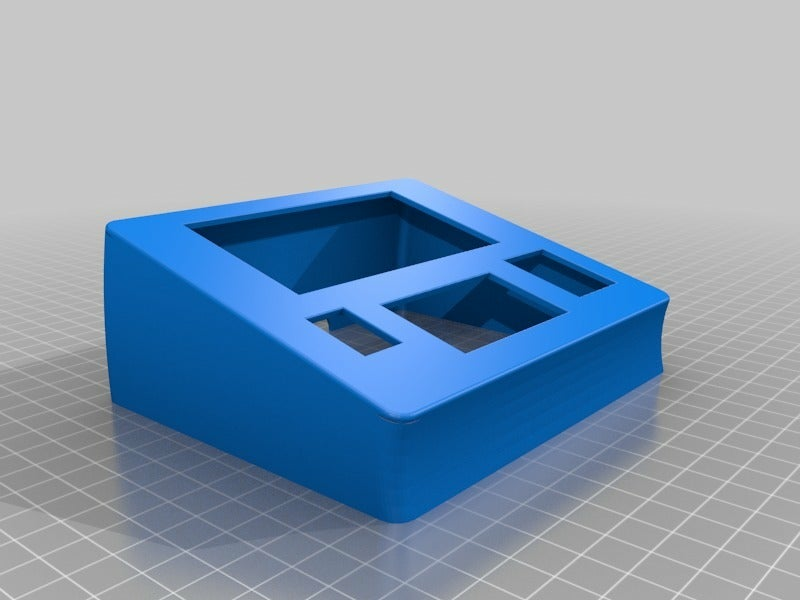

  • 3D model size: X 130 × Y 112 × Z 51.7 mm
  • Publication date: 2020/12/30 at 00:14
