UPDATE: as another user, rayko1974 made me notice, the space isn't great inside of the model for the cables, so I've made a 25mm longer versions of the back-file, that you can find in the zip archive folder :)

PLEASE READ THE DESCRIPTION , cose isn't a simple print.

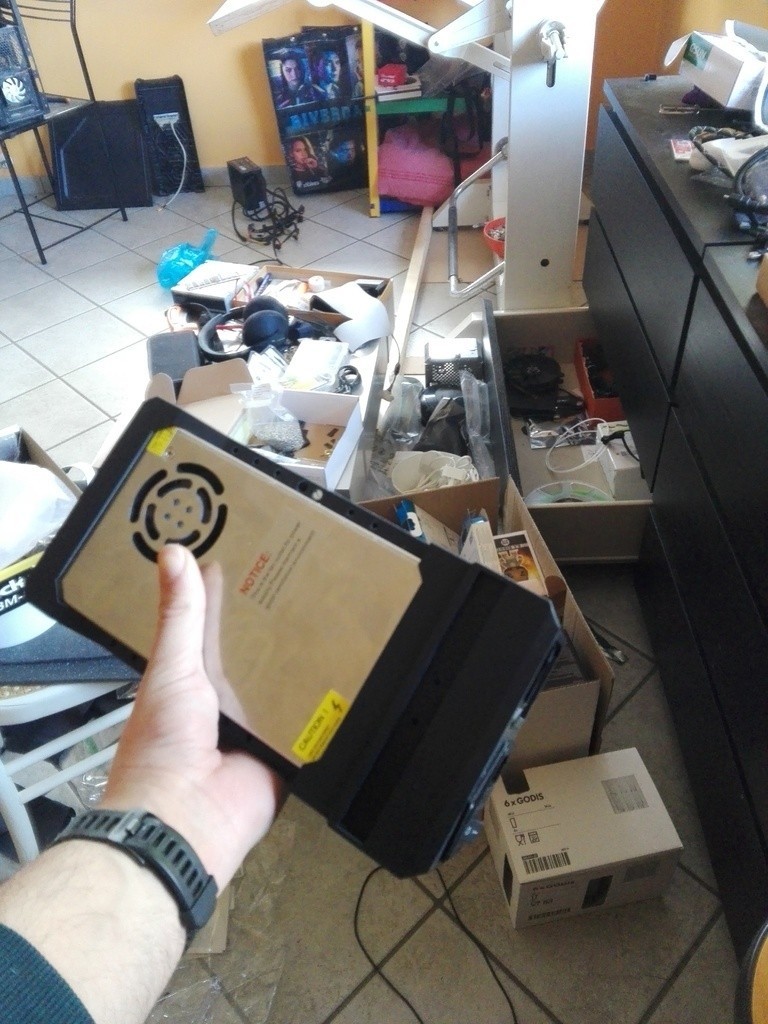

this is a modular cover studied to make safer and more useful our 3d printer power suppplies.
this cover is for any power supply with dimensions of: 190x11x50mm (actual real dimensions 198.50x110.50x50mm) this is a standard form factor so it is suitable for many power supplies.

MODELS:
there are actually 2 models:
- standard

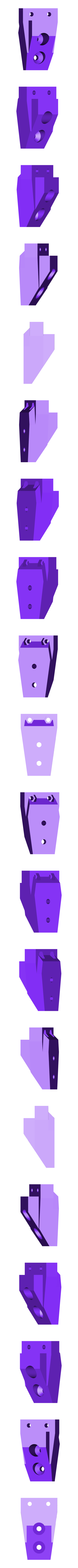

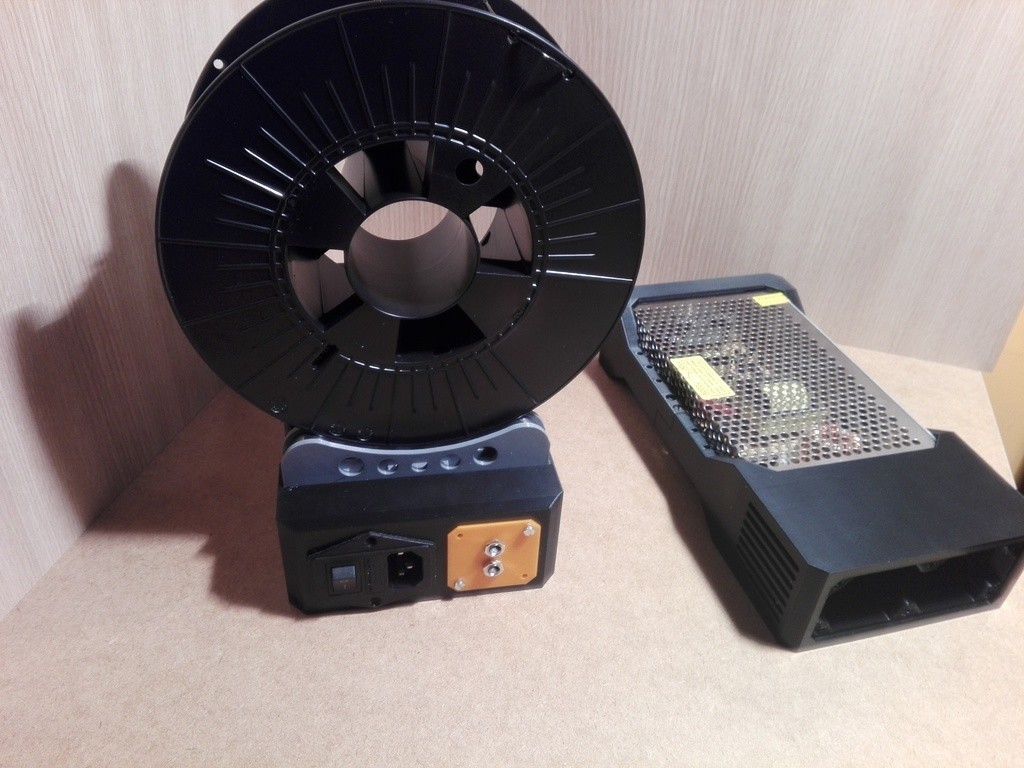

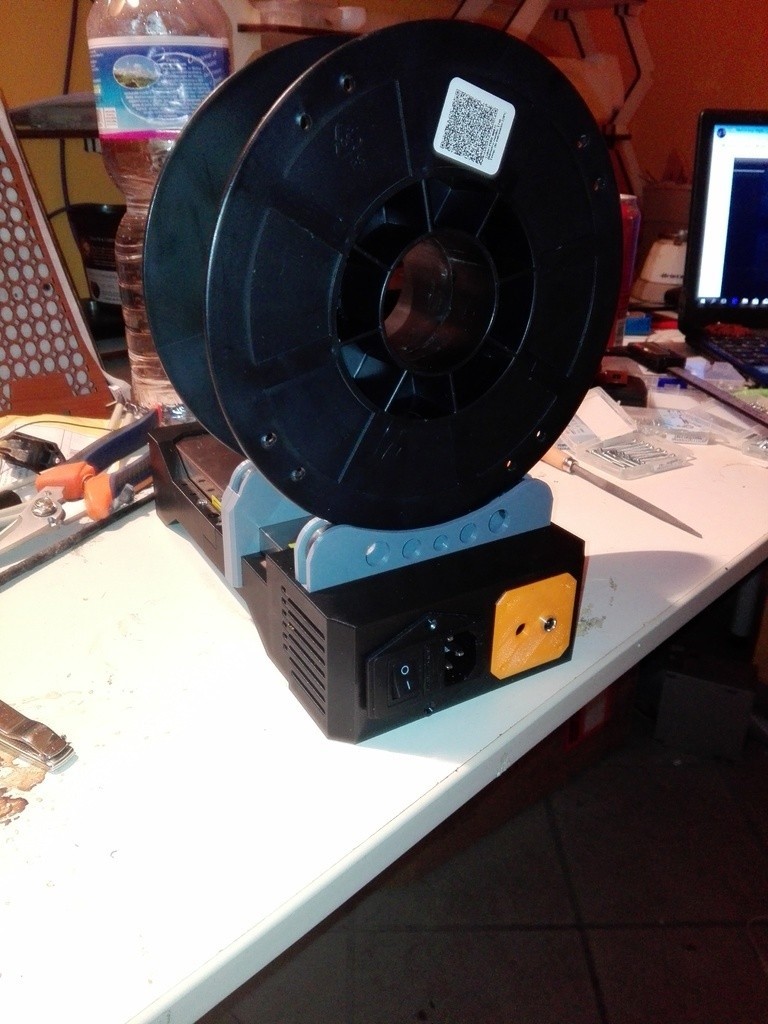

- tush support

TYPES
each model has 3 types:

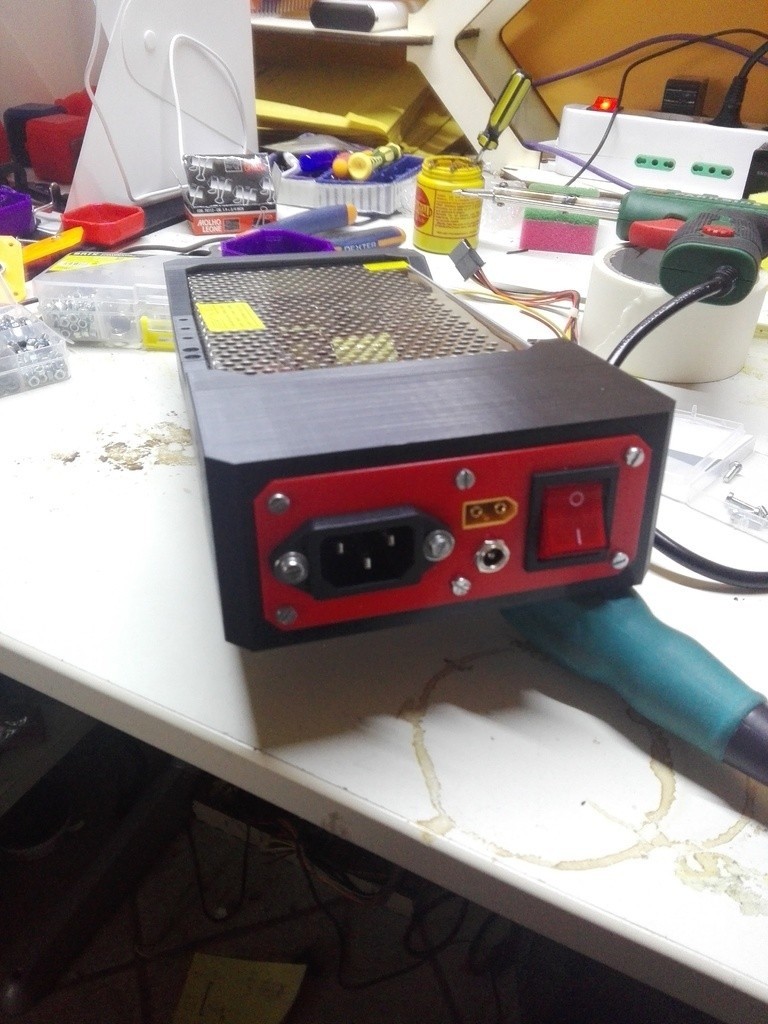

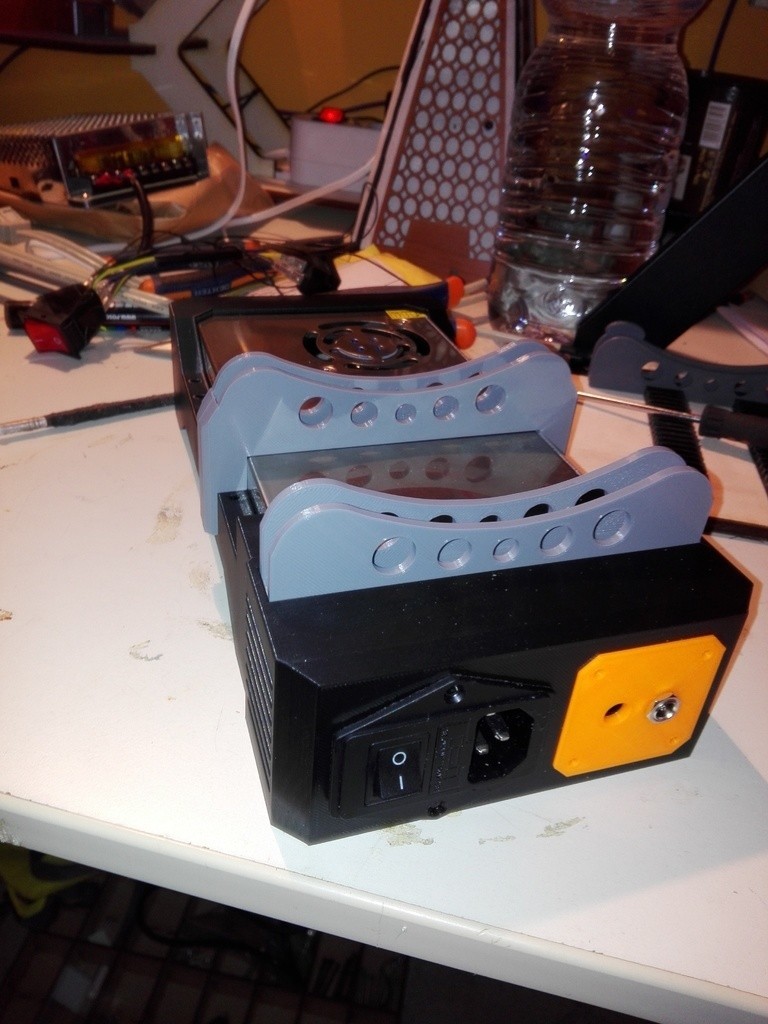

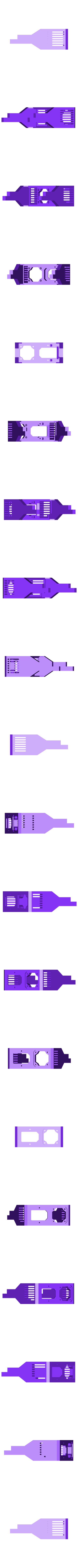

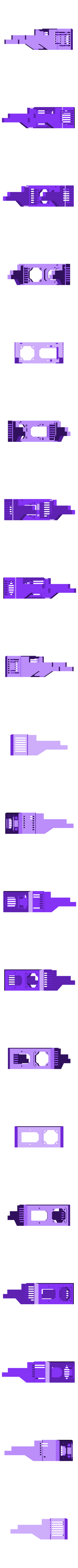

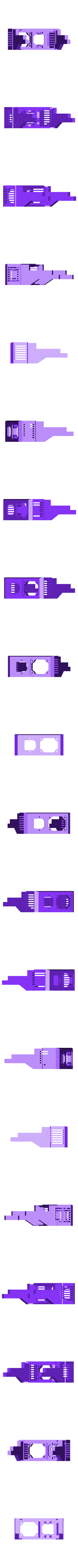

- 1 - with iec plug +fuse and switch.

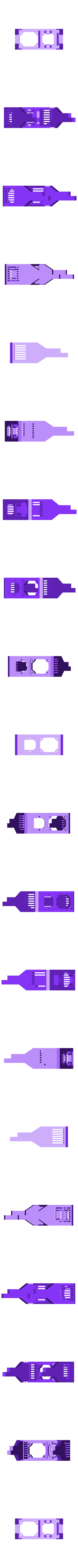

- 2 - with iec plug +fuse
- 3 - general purpose, modify as u wish

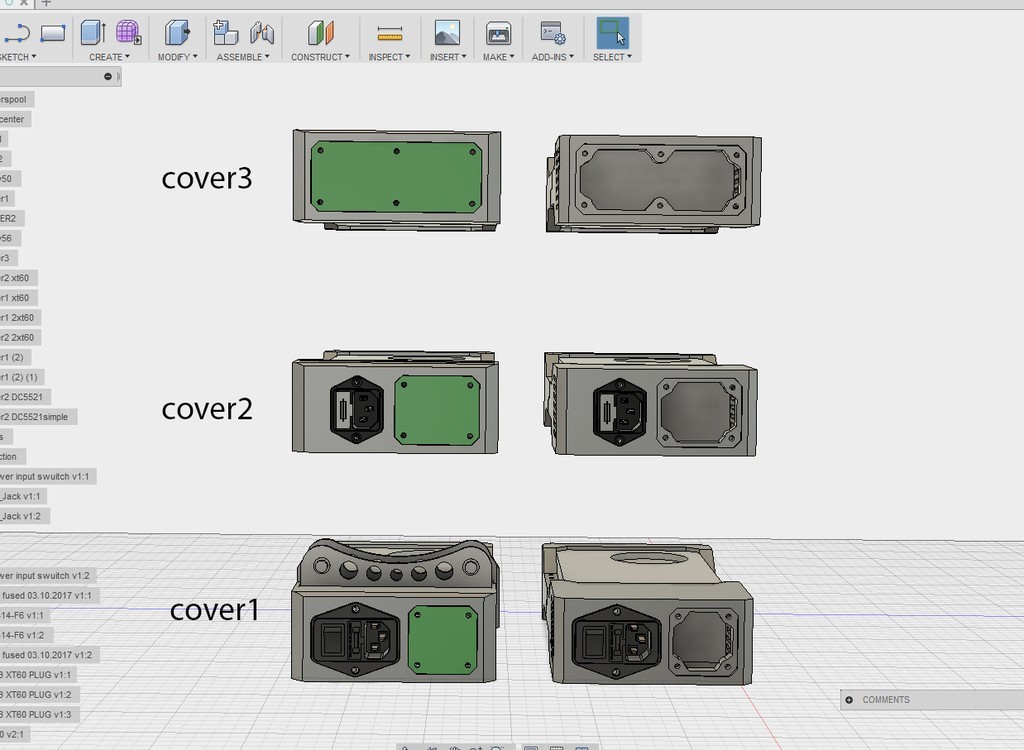

u can choose each type by their names, and also each type as a cover with is number.

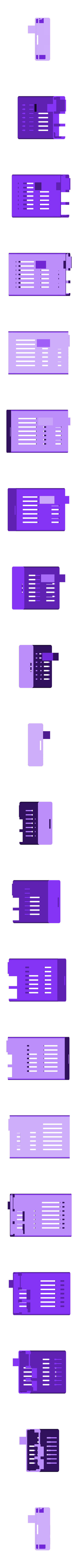

COVERS
already made covers:

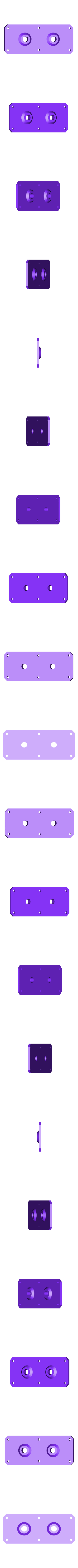

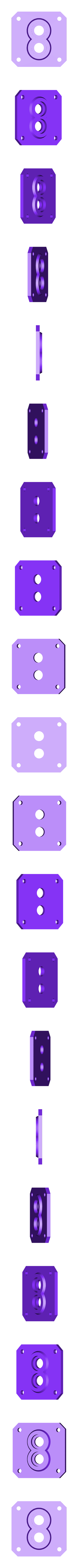

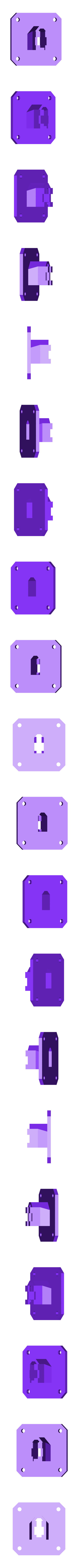

- with one xt60 hole mount

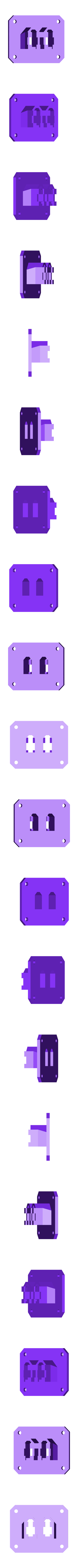

- with 2 xt60 hole mount

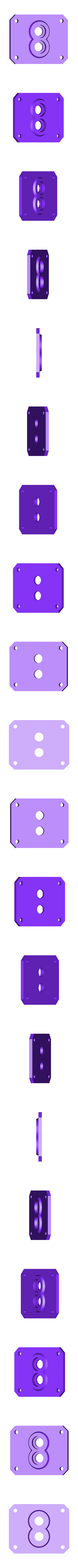

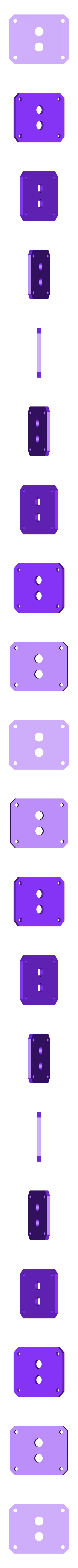

- with tw0 8mm holes suitable for a female dc jack 5.5 2.1

ADDONS
each addons work with any models, and has more than one position so is up to u wich and how to use.

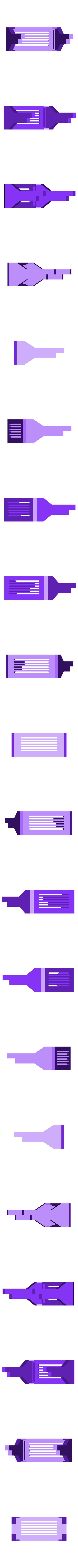

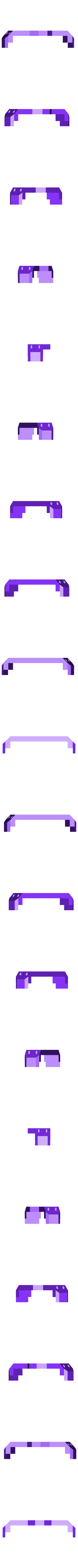

  • table/ wall mount feets

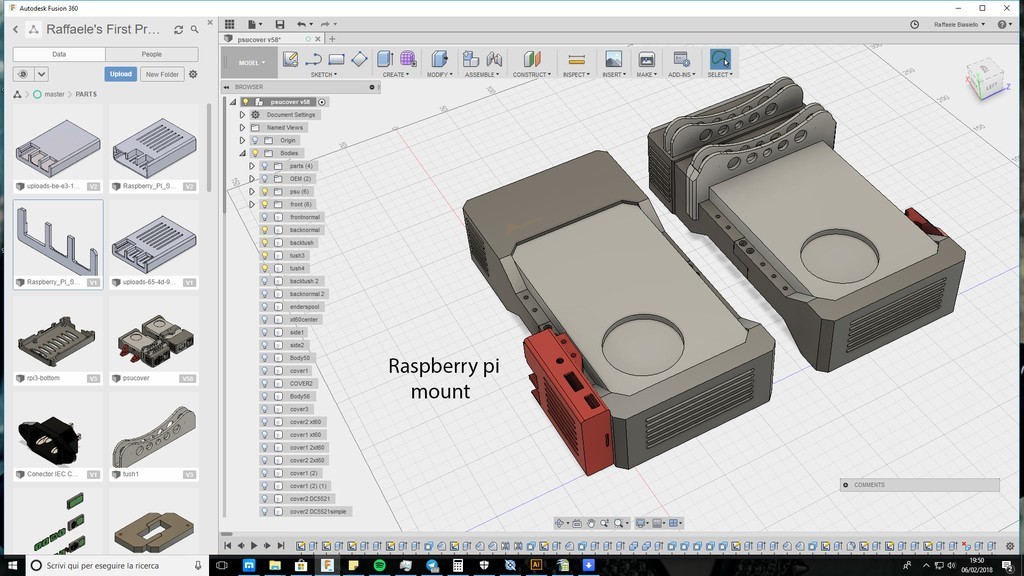

  • raspberry pi case
  • handle for transport (coming)

TOOLS NEEDED:
join front and back: #2 3Mx20mm bolts and nuts
cover 1-2 : 4# 3Mx12mm bolts and nuts

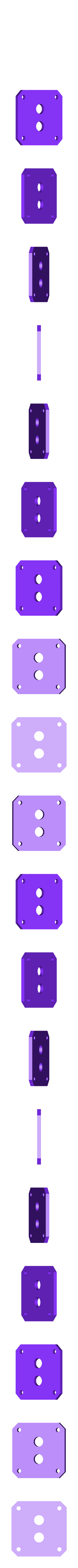

cover3 : 6# 3Mx12mm bolts and nuts

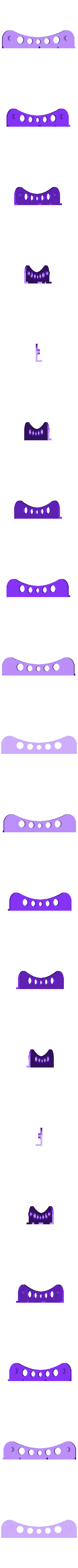

tush : #4 3Mx10mm bolts ,4# 608zz bearings
mount feets : #2 m3x 35-40mm bolts and nuts

PARTS TO PRINT:

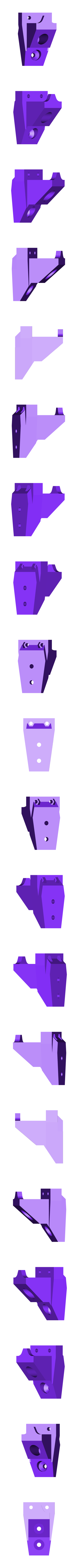

- one front
- one back and the cover (caarfully choose yours)
- any addons u want

each stl is already positioned for the best print with few supports

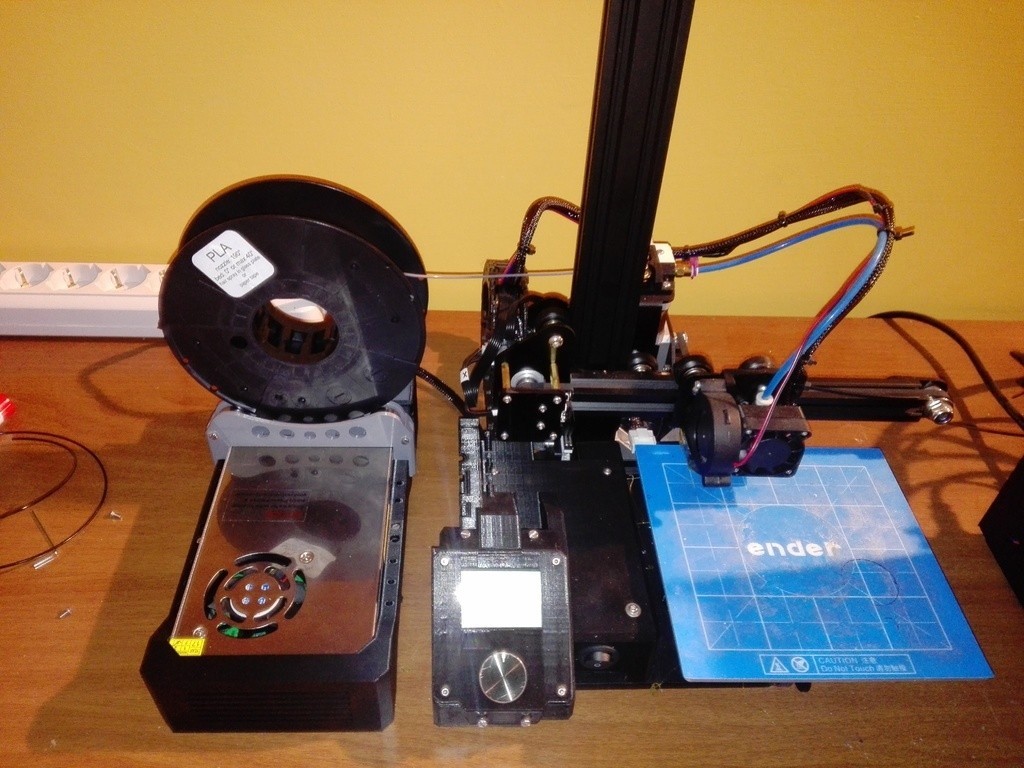

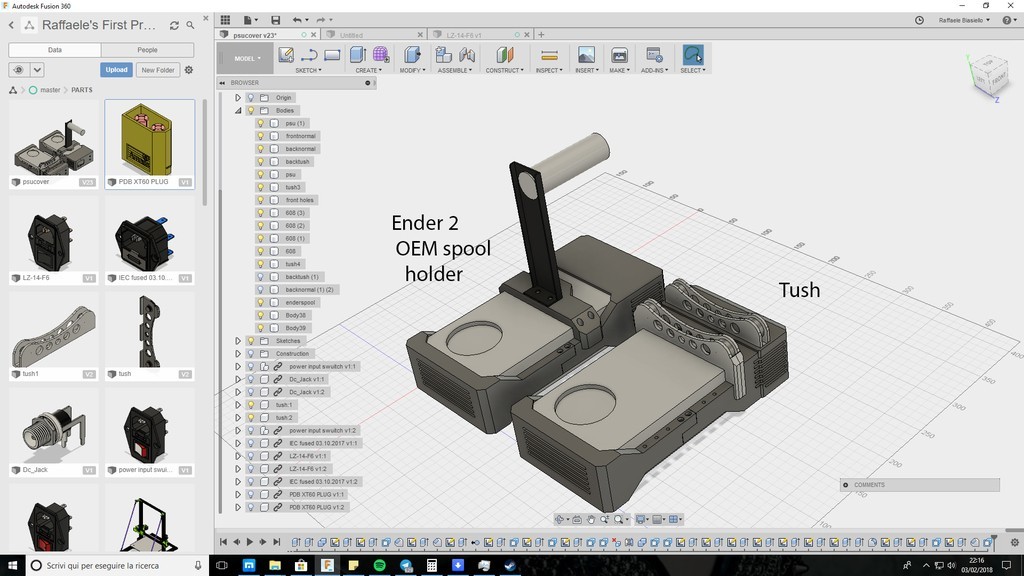

** ENDER 2 users ** if u are not confortable with connectors and plugs u can just print the back version 3 and the cover 3 for ender 2 printer

*I'm here for any modds or additions, hope to see few makes and have a feedback,
in the file list there is a fusion360 file to make the covers u need :) *

NOTICE:
I've discovered that there are few tipes of iec plug that have the holes a bit shifted, in case appens just, drill a bit a new hole and force the screw, sorry for the little inconvenience but discovered few days ago when I got 2 new plugs..
anyway I have adapted the holes for the most common one, looking on aliexpress

MESSAGE:
if u like my work any support is appreciated, also just uploading the make of this thing will incite me to continue sharing my works :)
if u want to support me : https://www.paypal.me/raffoslab
