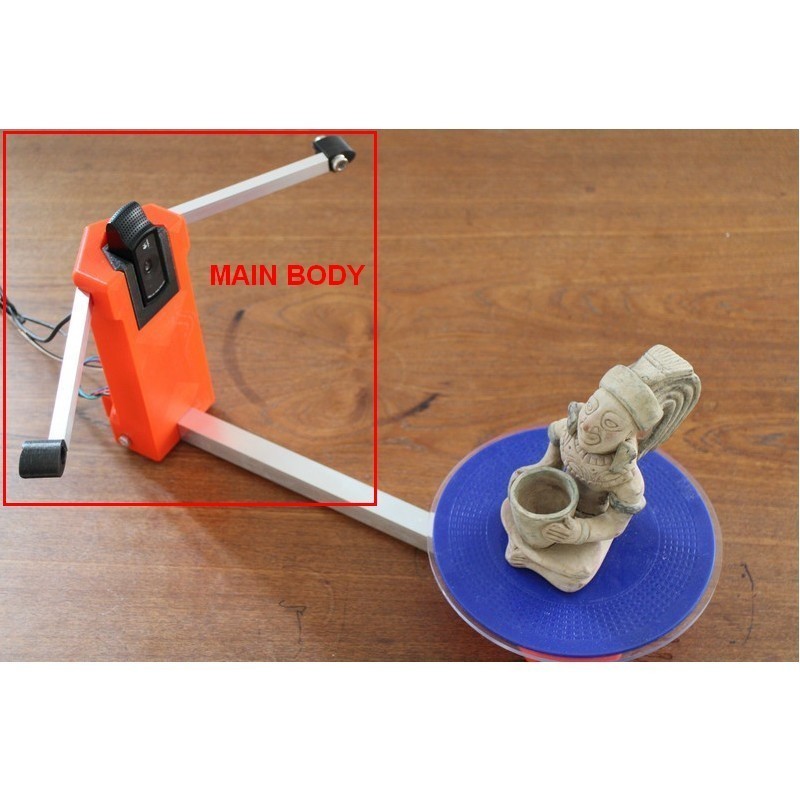

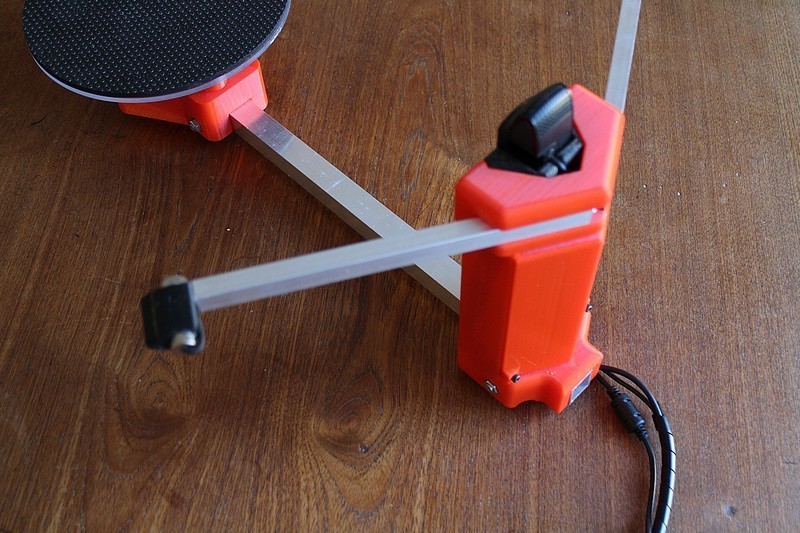

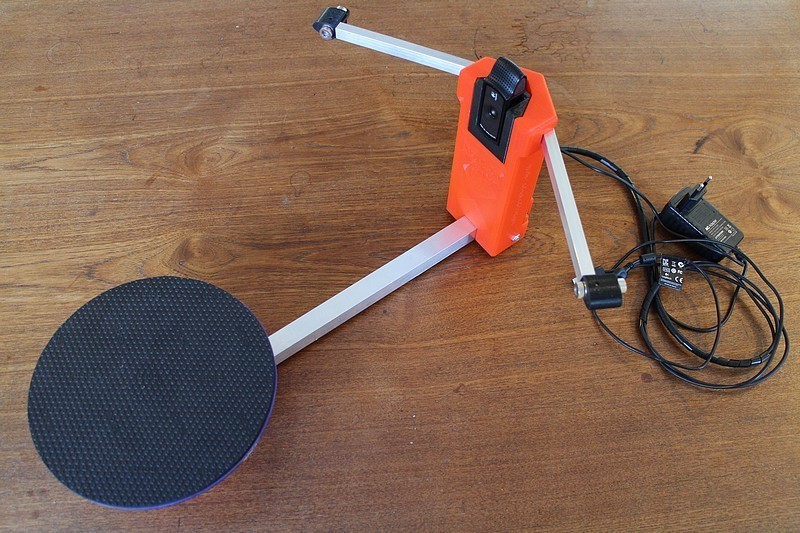

Modular 3D Scanner

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

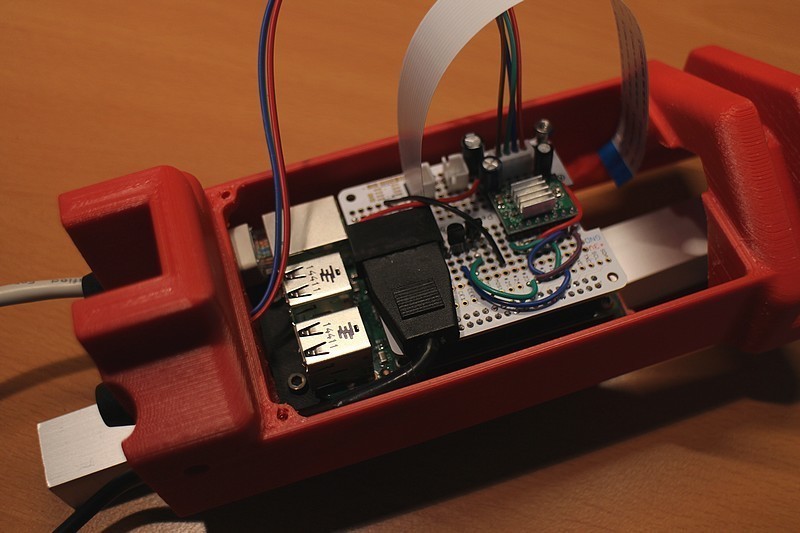

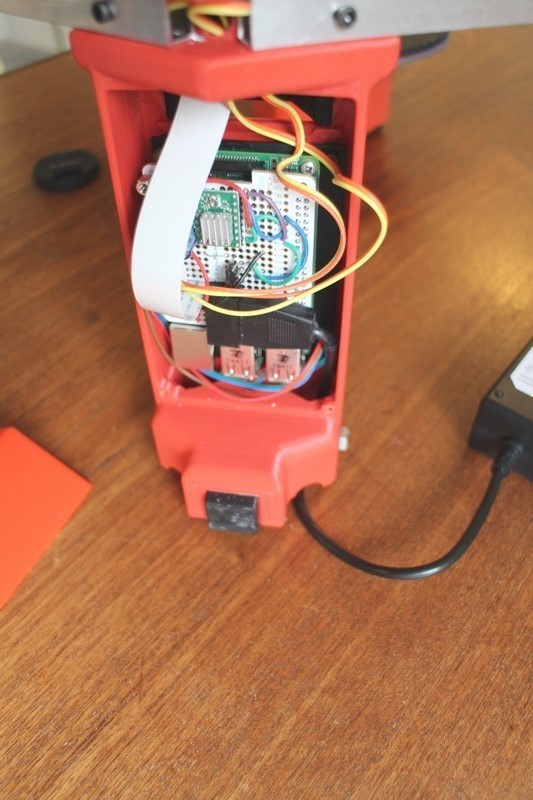

Needing of a desktop 3D scanner for my activities, I was very interrested by the CICLOP designed by a Spanich guy. I’ve also see this great project on Kickstarter named FreeLss : another great desktop scanner. The fist one is drived by an Arduino and needs a computer to build the fils, the second one with a Raspberry Pi which computer free.

I found a lot of very usefull information on Bill's assorted rambling blog, and also on the Atlas 3D users Google group. I noticed that the reseller ReprapUniverse is selling the 3D Raptor kit where you can find the same electronics and principle used for the Atlas FreeLss.

I coudn’t decided between both and that is why I’ve decided to design a structure which make possible to test each of them and also could accept electronics and camera improvements.

3D printing settings

All détails about assembling are provided on the wordpress Adapted Designs blog.

3D printer file information

  • 3D design format: STL Folder details Close
    • BACK_COVER_V2.stl

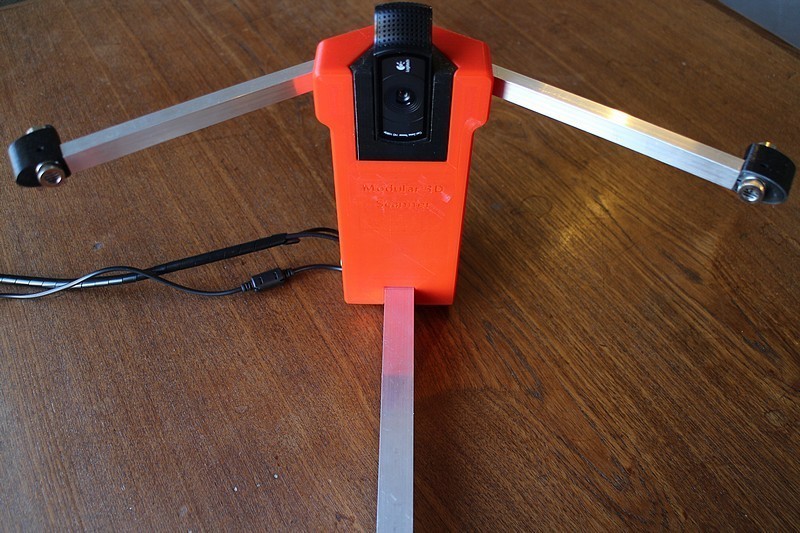

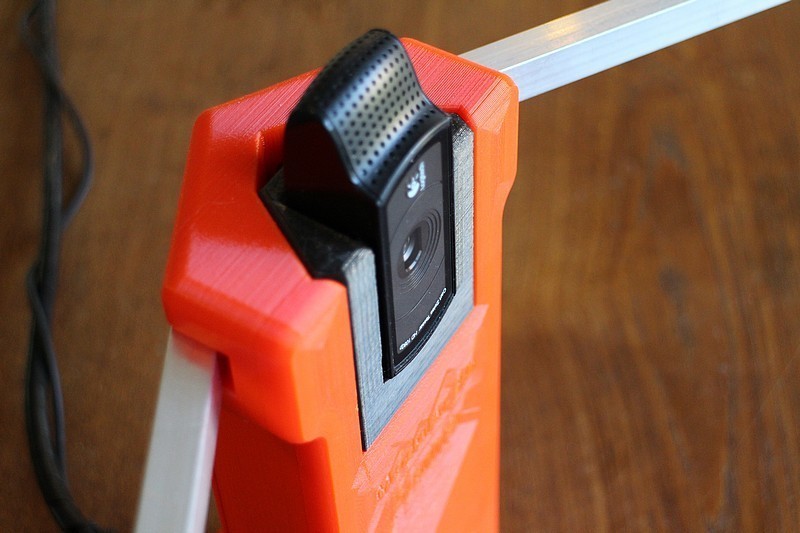

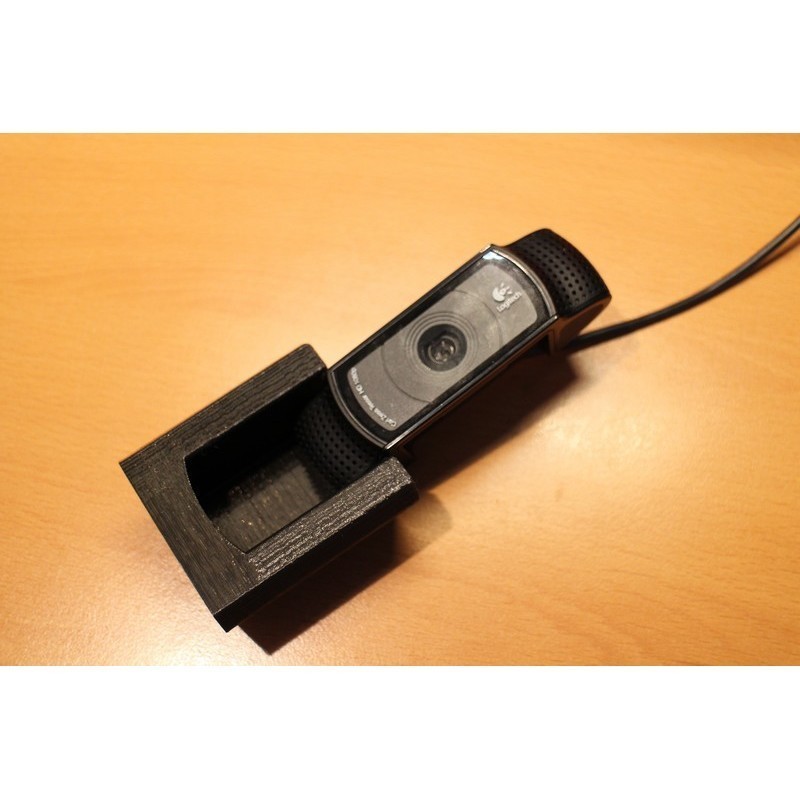

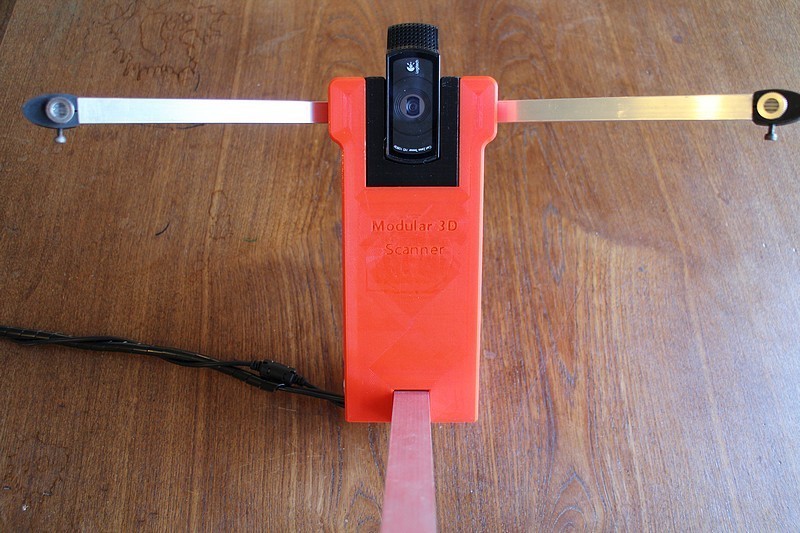

    • C920_CAMERA_HOLDER.stl

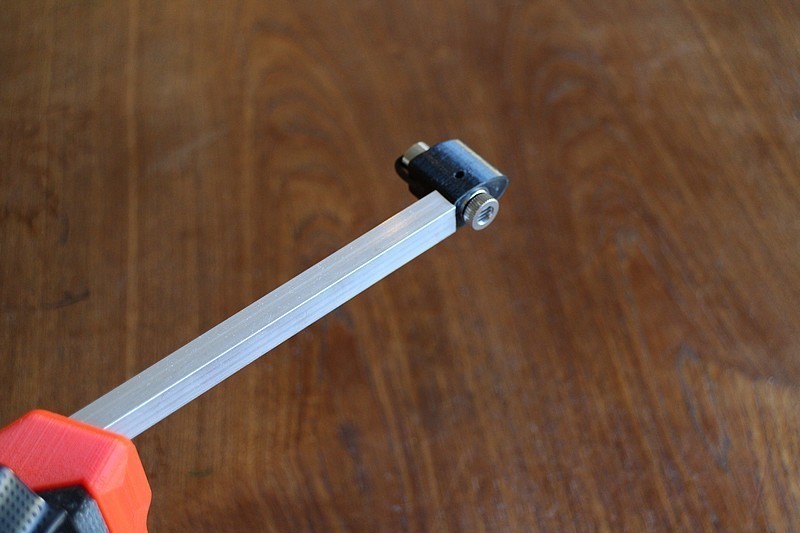

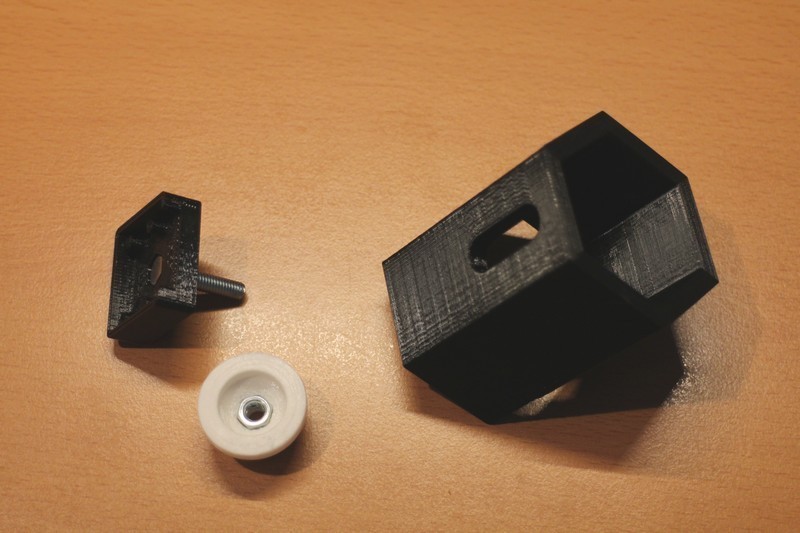

    • LASER_HOLDER.stl

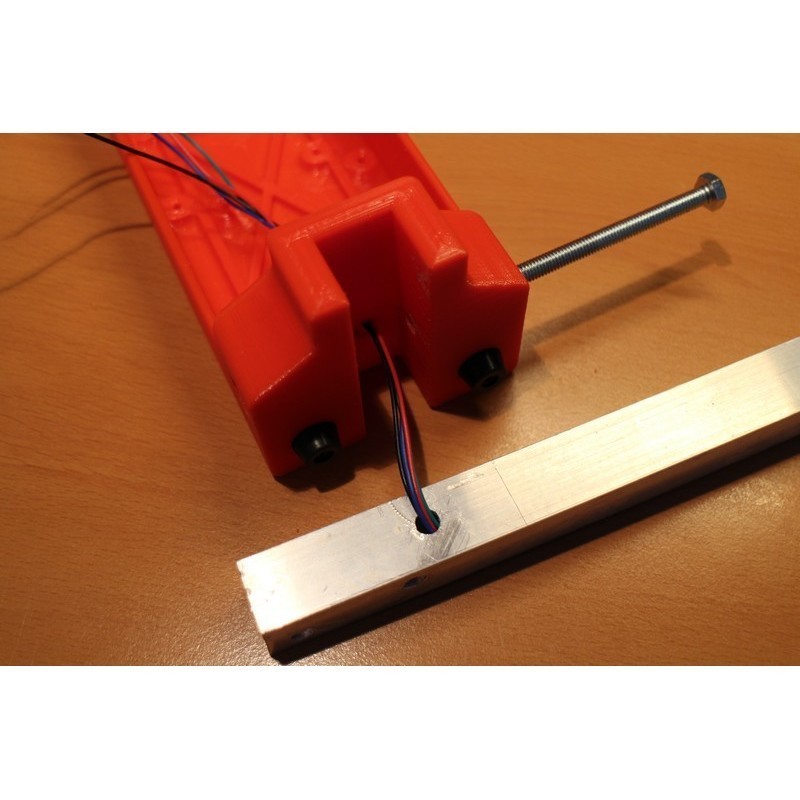

    • MAIN_BODY.stl

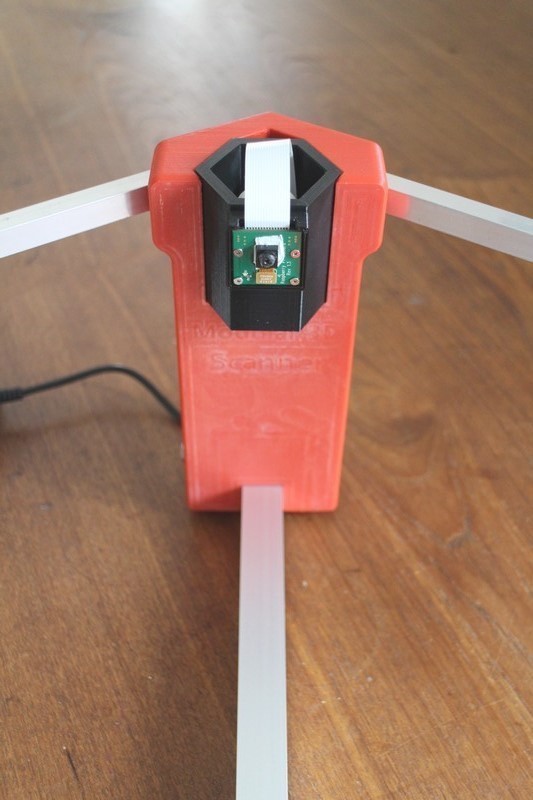

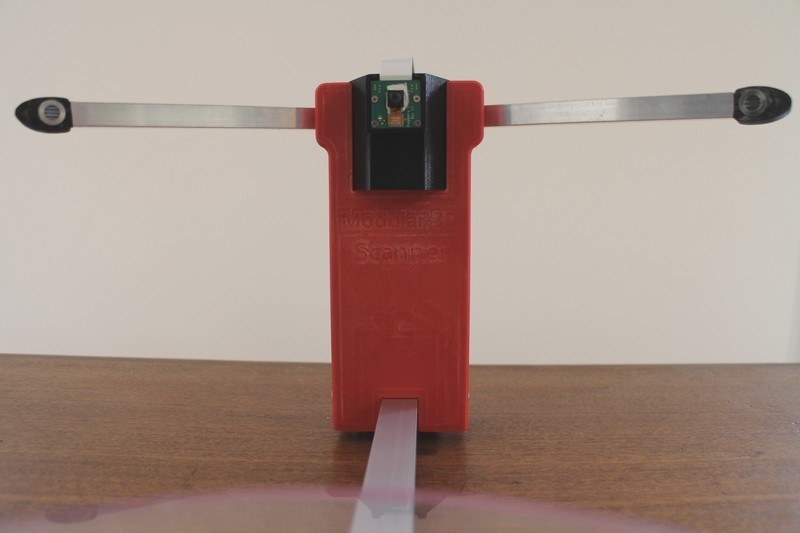

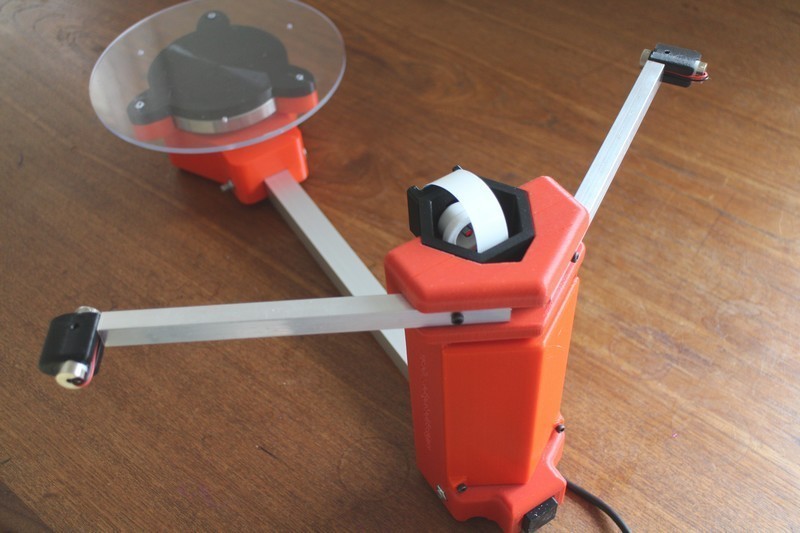

    • RASPICAM_BOX.stl

    Learn more about the formats

  • Last update: 2017/05/25 at 14:45
  • Publication date: 2015/03/20 at 12:03
