Modelism RC: ground clearance adjustment gauge 10-40mm

20180526_141550 (2).jpg Download STL file Modelism RC: ground clearance adjustment gauge 10-40mm • 3D printable model, woody3d974
4.JPG Download STL file Modelism RC: ground clearance adjustment gauge 10-40mm • 3D printable model, woody3d974
20180526_141623 (2).jpg Download STL file Modelism RC: ground clearance adjustment gauge 10-40mm • 3D printable model, woody3d974
jauge.STL Download STL file Modelism RC: ground clearance adjustment gauge 10-40mm • 3D printable model, woody3d974
bras.STL Download STL file Modelism RC: ground clearance adjustment gauge 10-40mm • 3D printable model, woody3d974
molette2.STL Download STL file Modelism RC: ground clearance adjustment gauge 10-40mm • 3D printable model, woody3d974
jauge_creux.stl Download STL file Modelism RC: ground clearance adjustment gauge 10-40mm • 3D printable model, woody3d974
Add to
Make
?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 5k views
  • 13 likes
  • 40 downloads

3D model description

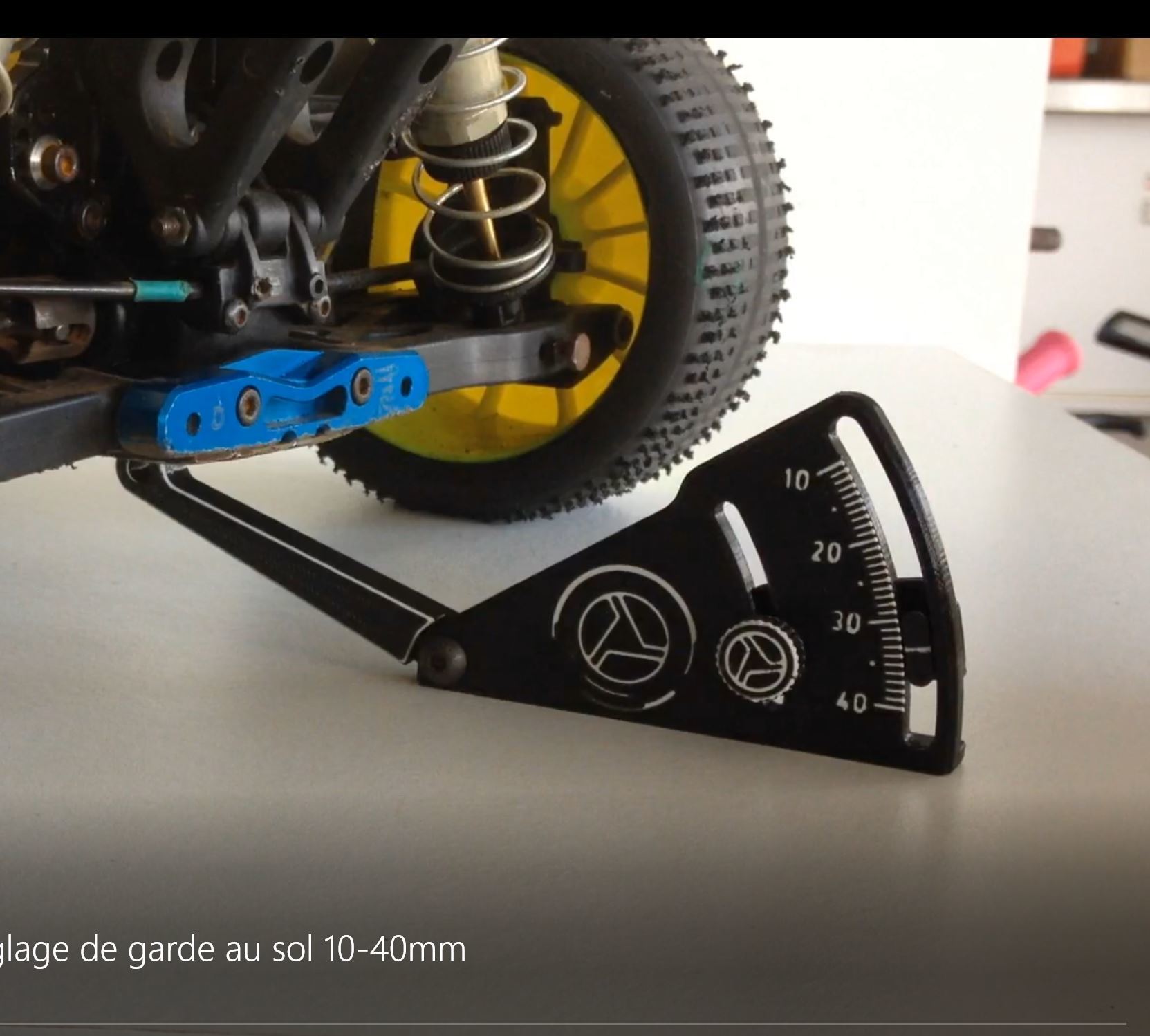

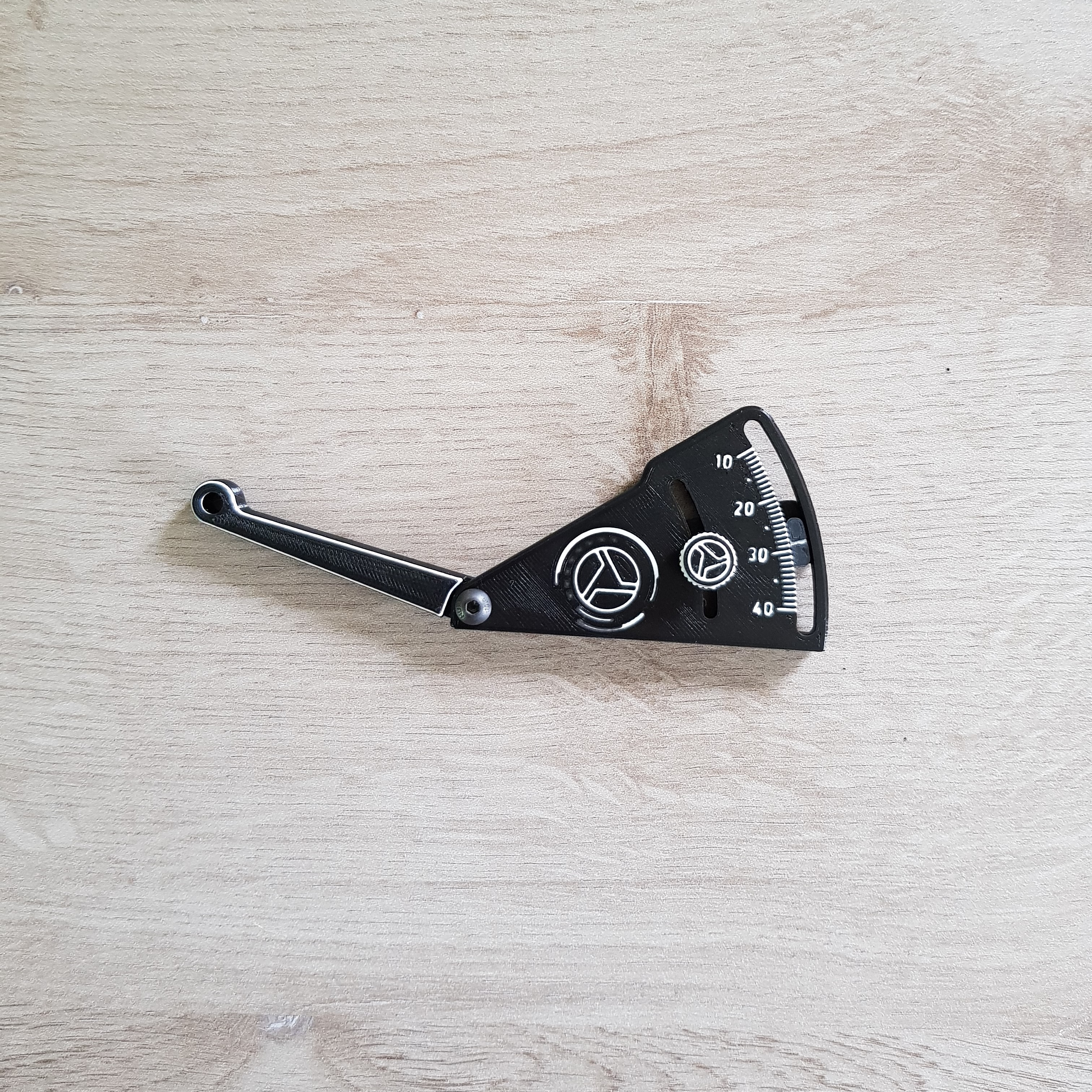

I present you here an adjustment gauge, an accessory used to measure the ground clearance of rc modeling frames. The measuring range is between 10 and 40mm, and will be adapted to RC 1/8 buggy.

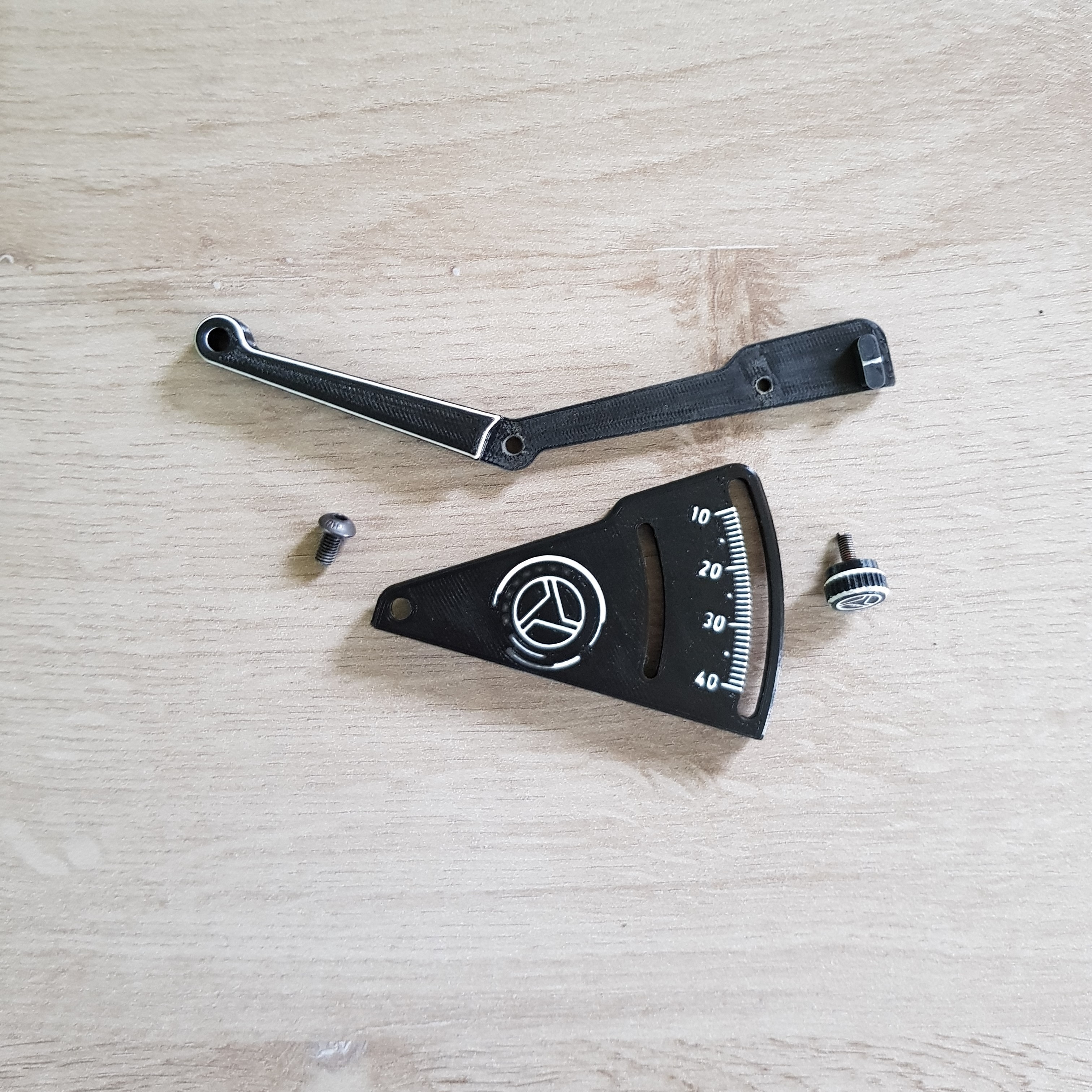

For assembly you will need a small grub screw m3 (or a threaded rod m3 ) and a m4 screw.

For colour printing techniques with a single extruder, I refer you to the video below:

https://youtu.be/m2LewRzax_Q

https://youtu.be/027AeBjK2Vg

3D printing settings

Filament: PLA

Printing time: 1h

Layer height: 0.2mm

Temperature Nozzle: 210°C

Plateau temperature: 55°C

3D printer file information

  • 3D design format: STL Folder details Close
    • bras.STL
    • jauge.STL
    • jauge_creux.stl
    • molette2.STL

    Learn more about the formats

  • Last update: 2021/02/14 at 17:45
  • Publication date: 2018/05/26 at 11:50

Copyright

©

Tags

Creator

woody3d974 woody3d974
Designs 24
Downloads 4.5k
Sales US$536
Followers 49
Message

https://www.youtube.com/channel/UCz-zQZcKcvEDdd9C9hOKYWg

Mes fichiers sont systématiquement testés et imprimés. Après plusieurs prototypes et une fois satisfait, je les upload.
N'hésitez pas à me laisser des commentaires si vous avez des questions ou des suggestions.
Bonnes impressions !

My files are systematically tested and printed. After many prototypes and once satisfied, I upload it. Feel free to contact me if you've got some questions or some suggestions.
Happy printings !
