Minimalistic Ender 3 Enclosure for Bigtreetech SKR 1.4

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 758 views
  • 3 likes
  • 22 downloads

3D model description

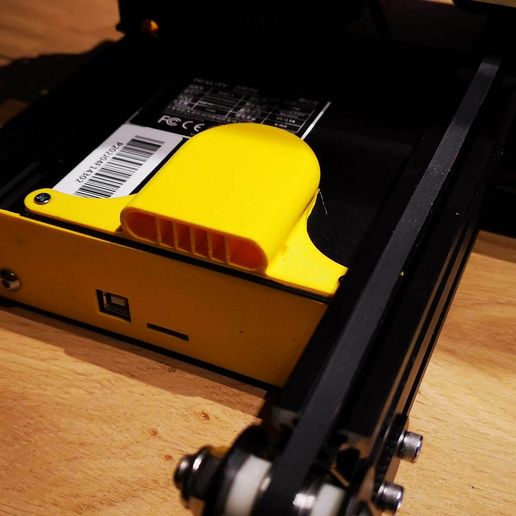

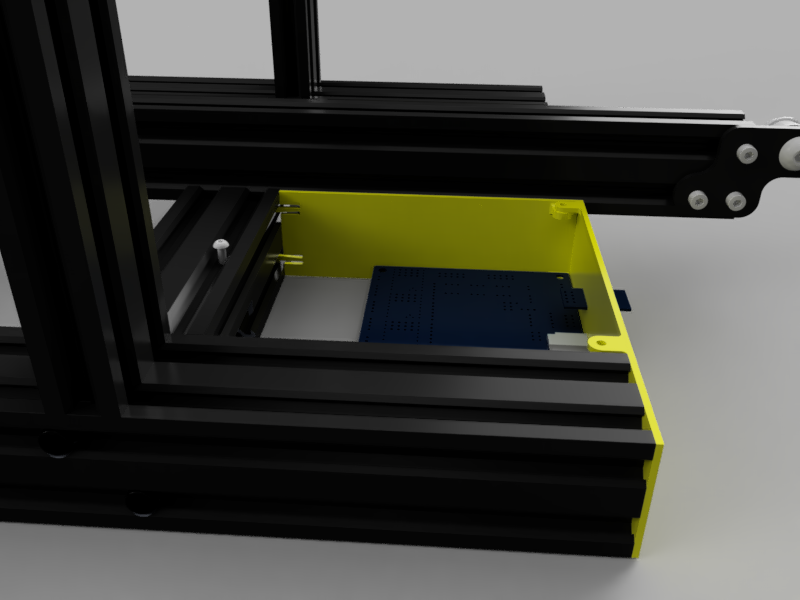

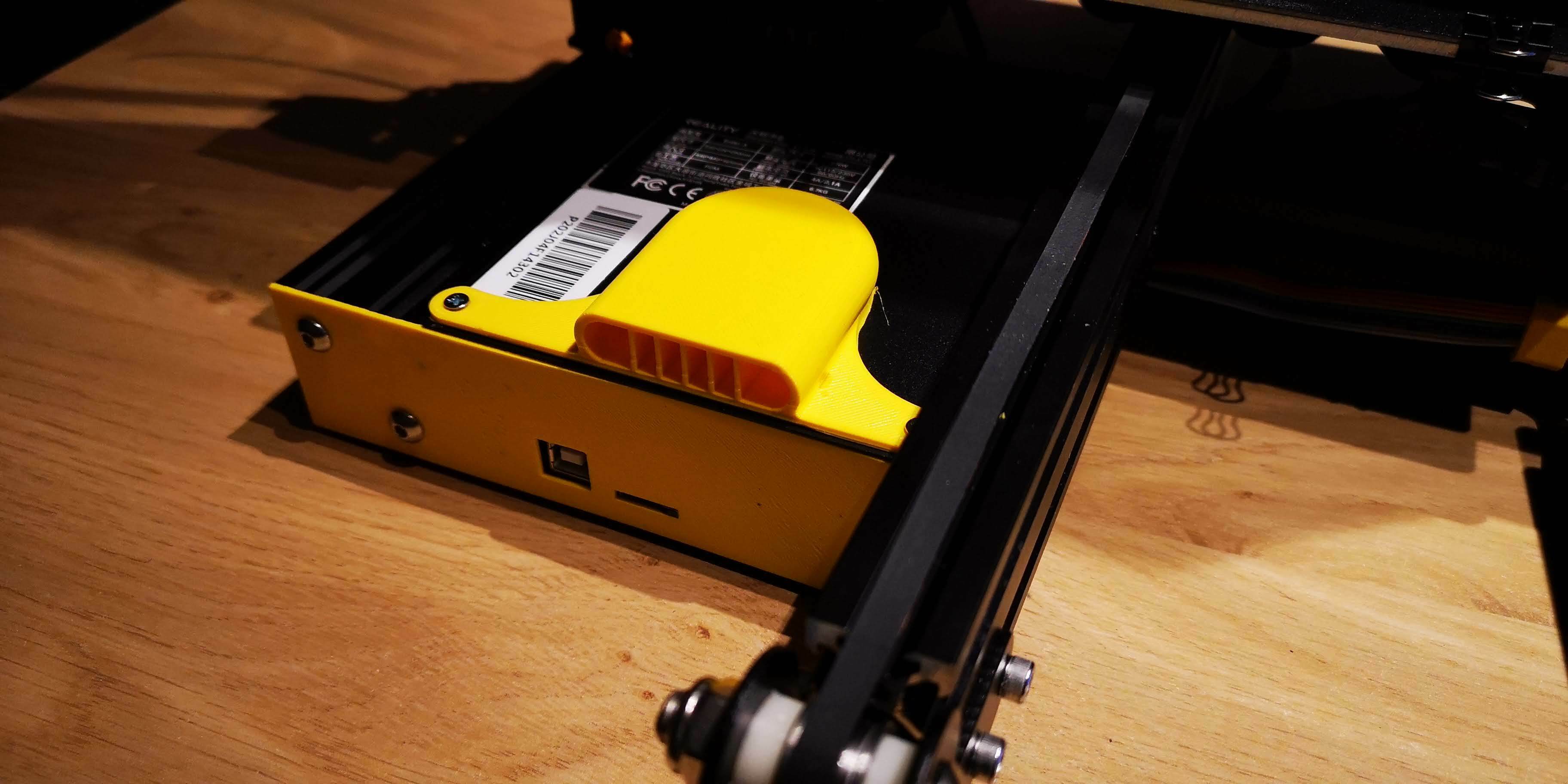

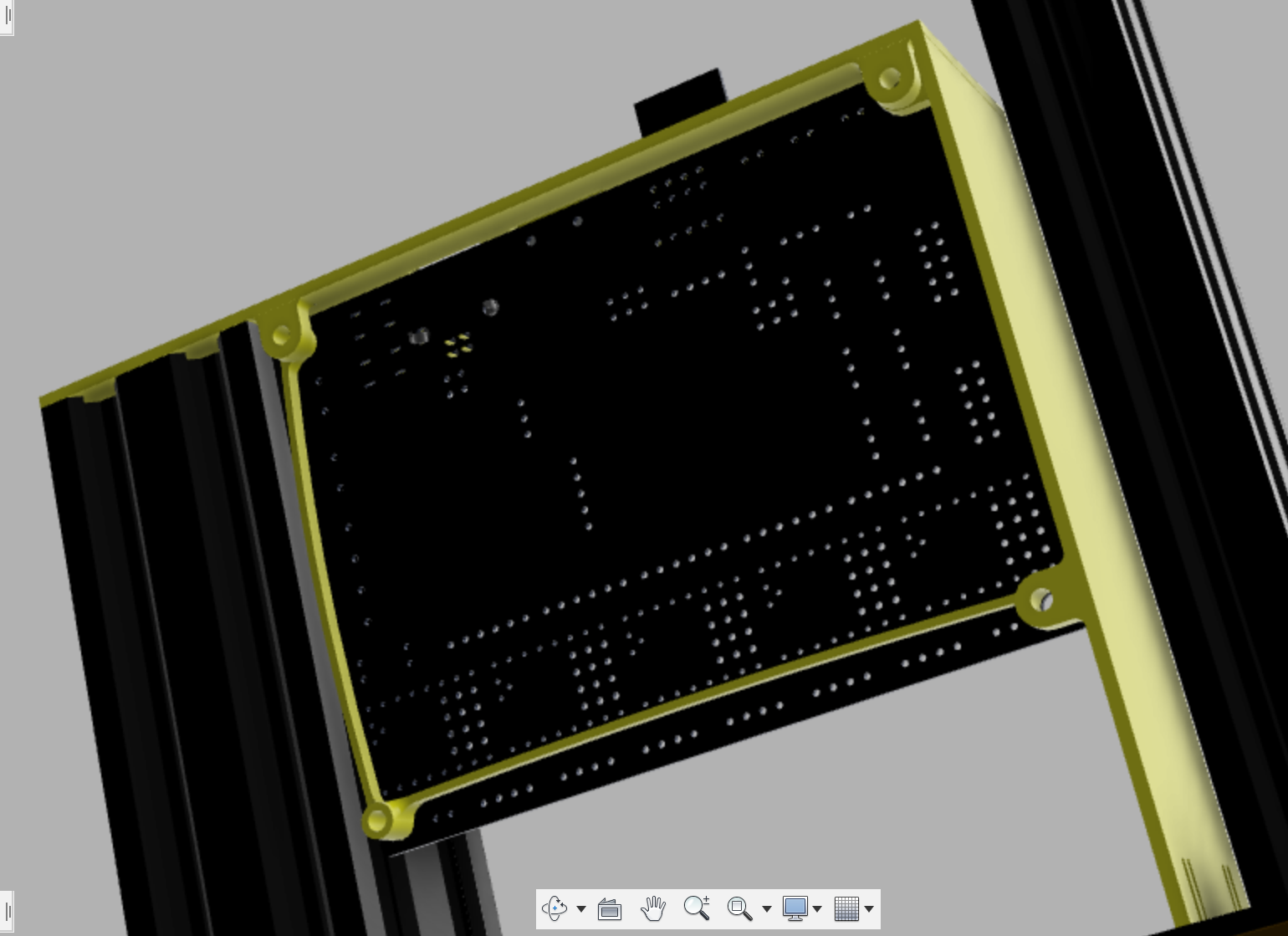

After upgrading to a BTT SKR 1.4 on my Creality Ender 3, I needed somewhere to put my board. Preferably in the front. Teaching Tech has one for the back.

Design goals:
- Under 2 hr print.
- No supports.
- Viewable faces flat on the bed for best finish.
- Reuse of screws (M3's did not work out they are too short).
- No extra screws -> the back snaps in the 4040 profile.
- Reuse of standard lid (and fan) so I didn't have to print that.

All of the enclosures I could find used to much plastic, supports, different mounting hardware etc.

It is made for the Ender 3 and the BTT SKR 1.4. But if sufficient interest, I could adapt this to other boards/printers.

Discussion on Reddit:
https://www.reddit.com/r/functionalprint/comments/l2nzza/minimalistic_ender_3_enclosure_for_bigtreetech/


3D printing settings

No support
100% infill
0.16mm layer height

3D printer file information

  • 3D design format: 3MF and STL Folder details Close

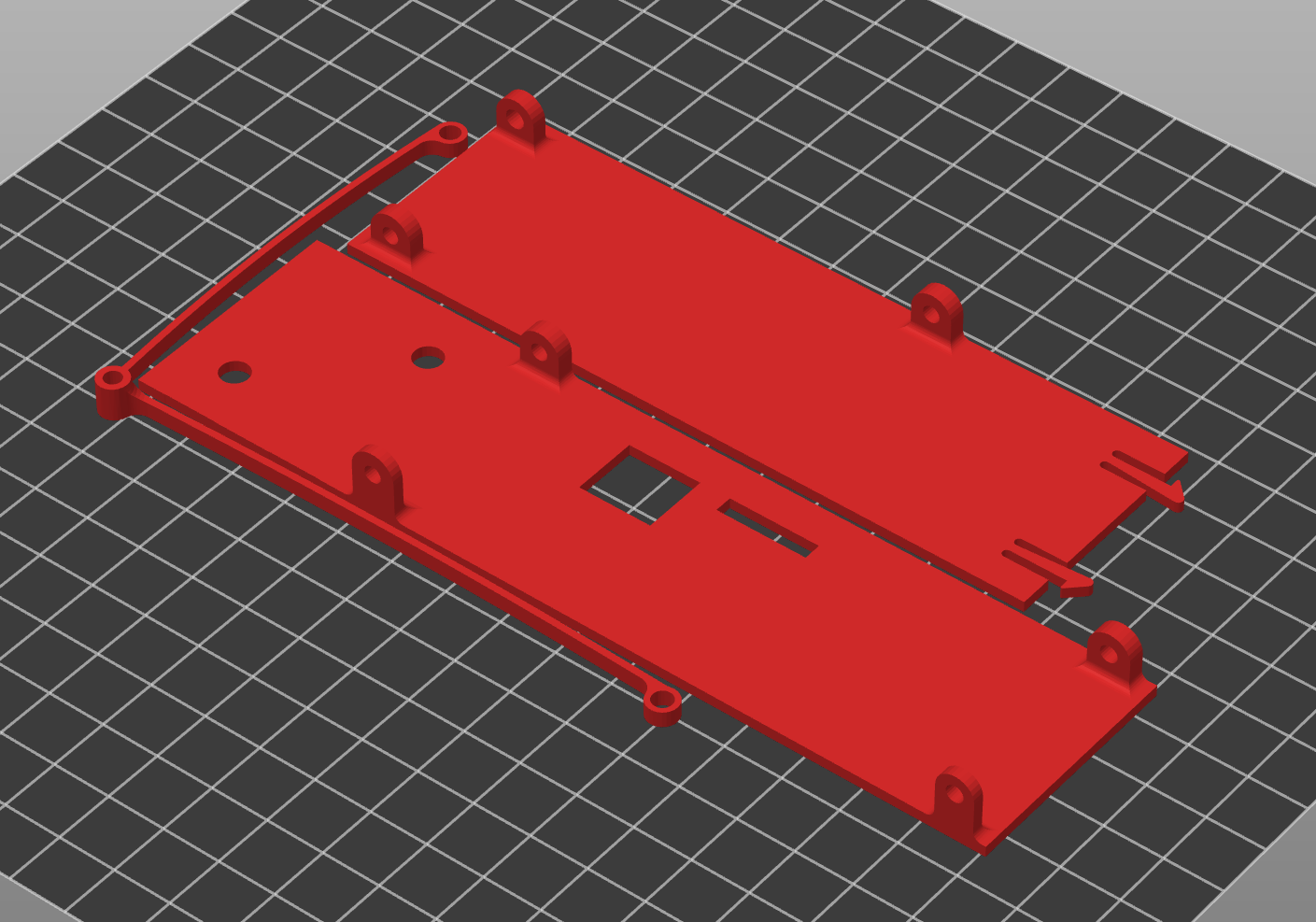

    • Minimalistic Ender 3 - SKR 1.4 Enclosure_Ender 3 SKR 1.4 enclosure v3_Front_New Enclosure.stl
    • Minimalistic Ender 3 - SKR 1.4 Enclosure_Ender 3 SKR 1.4 enclosure v3_Side_New Enclosure.3mf
    • Minimalistic Ender 3 - SKR 1.4 Enclosure_Ender 3 SKR 1.4 enclosure v3_Side_New Enclosure.stl
    • Minimalistic Ender 3 - SKR 1.4 Enclosure_Ender 3 SKR 1.4 enclosure v3_Spacer_New Enclosure.stl

    Learn more about the formats

  • Last update: 2021/02/03 at 19:49
  • Publication date: 2021/01/21 at 17:40

License

CC BY

Tags

Creator

Issue with this design? Report a problem

Makes created by the community

Best sellers of the category Tools


Add a comment

2 comments

i printed this out and it printed great and i loved the look of it, however when i went to intall it with the board the connectors for the 24v wires were causing problems and eventually broke the casing....what did you to prevent this from happening on your setup and could you make changes to keep this from being such a problem?
