Minimal X axis for Prusa I3 Steel - 8mm leadscrew

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 381 views
  • 4 downloads

3D model description

I fiddled a bit with wobbling stabilizers but I got nowhere, so I said leadscrew it and bought myself a couple of 8mm screws and antibacklash nuts.

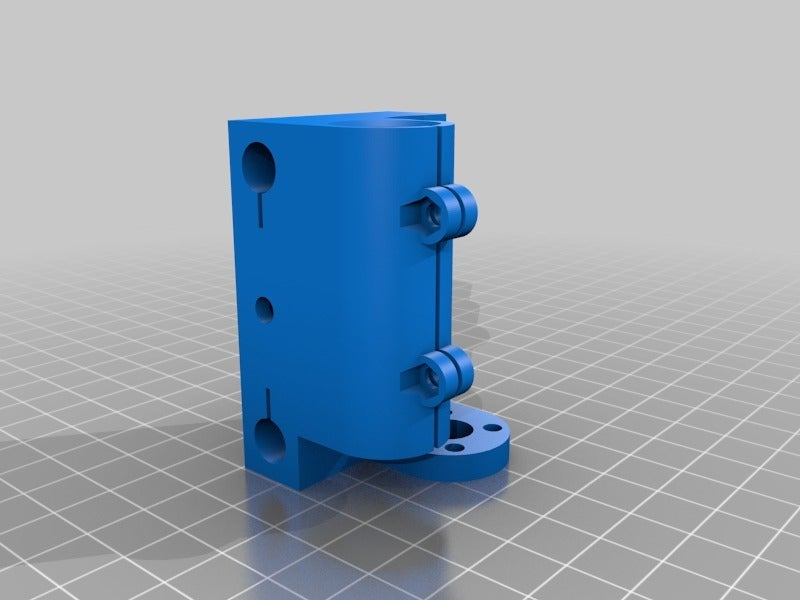

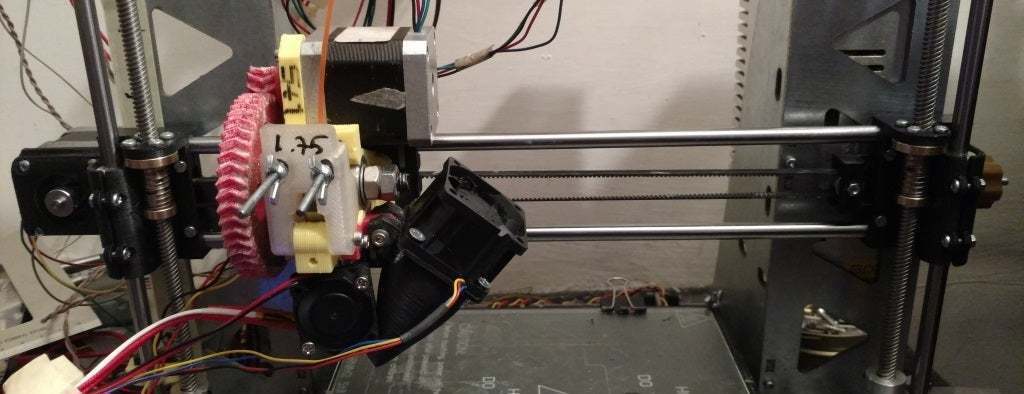

I've cobbled together X axis parts trying to make a simple, compact design but I still believe there's much room for progress... Anyway, everything can and should be tightened and the horizontal bars can be inserted from both sides.

IMPORTANT: In this model the distance between the leadscrew axis' center and the guiding rod's is 17 mm, while that between the two horizontal rods' axes is 46 mm.

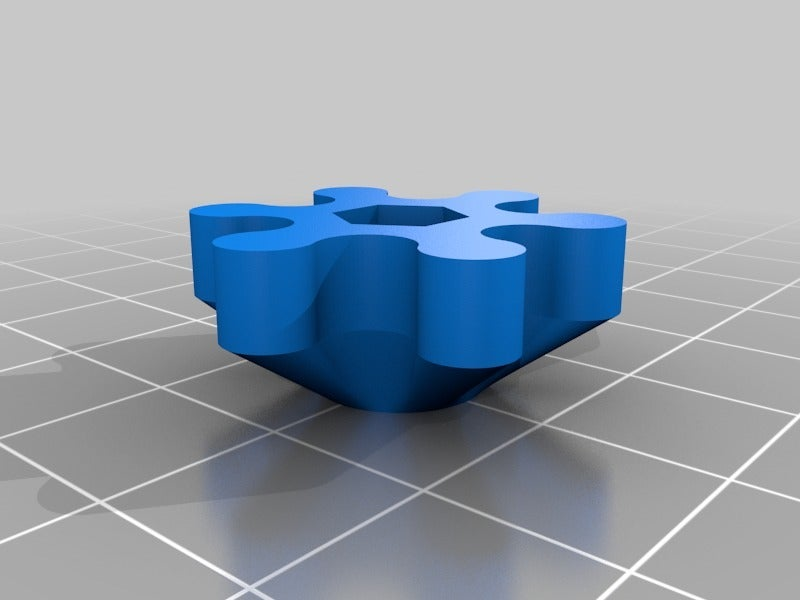

EDIT 26/08/2017: Changed the pulley a bit and added a knob.

  • 3D file format: STL
