Mini Wirelessly Powered Tesla Desk Lamp

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.1k views
  • 6 likes
  • 33 downloads

3D model description

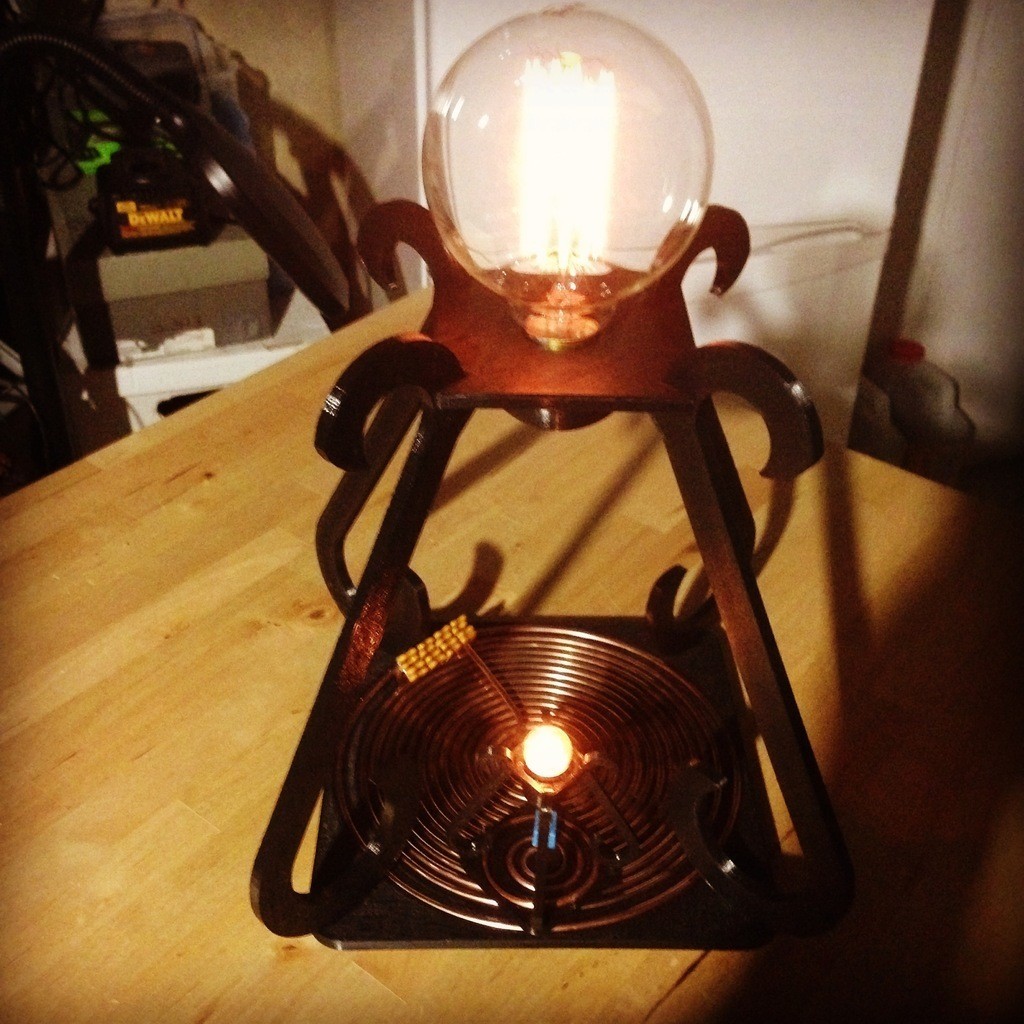

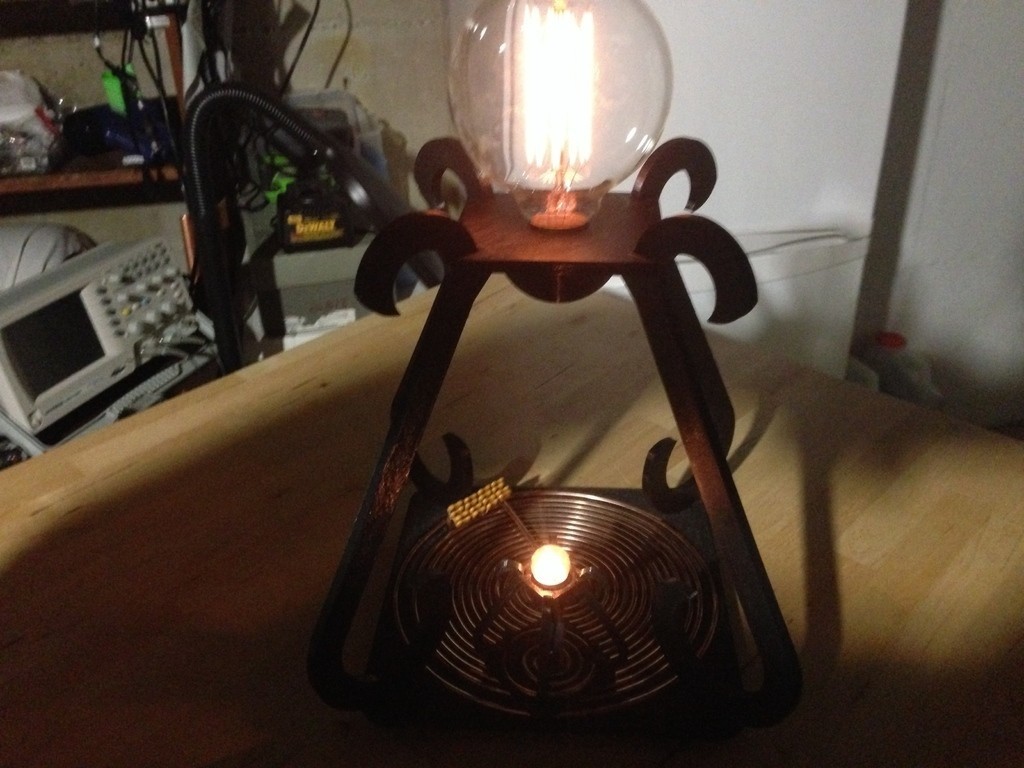

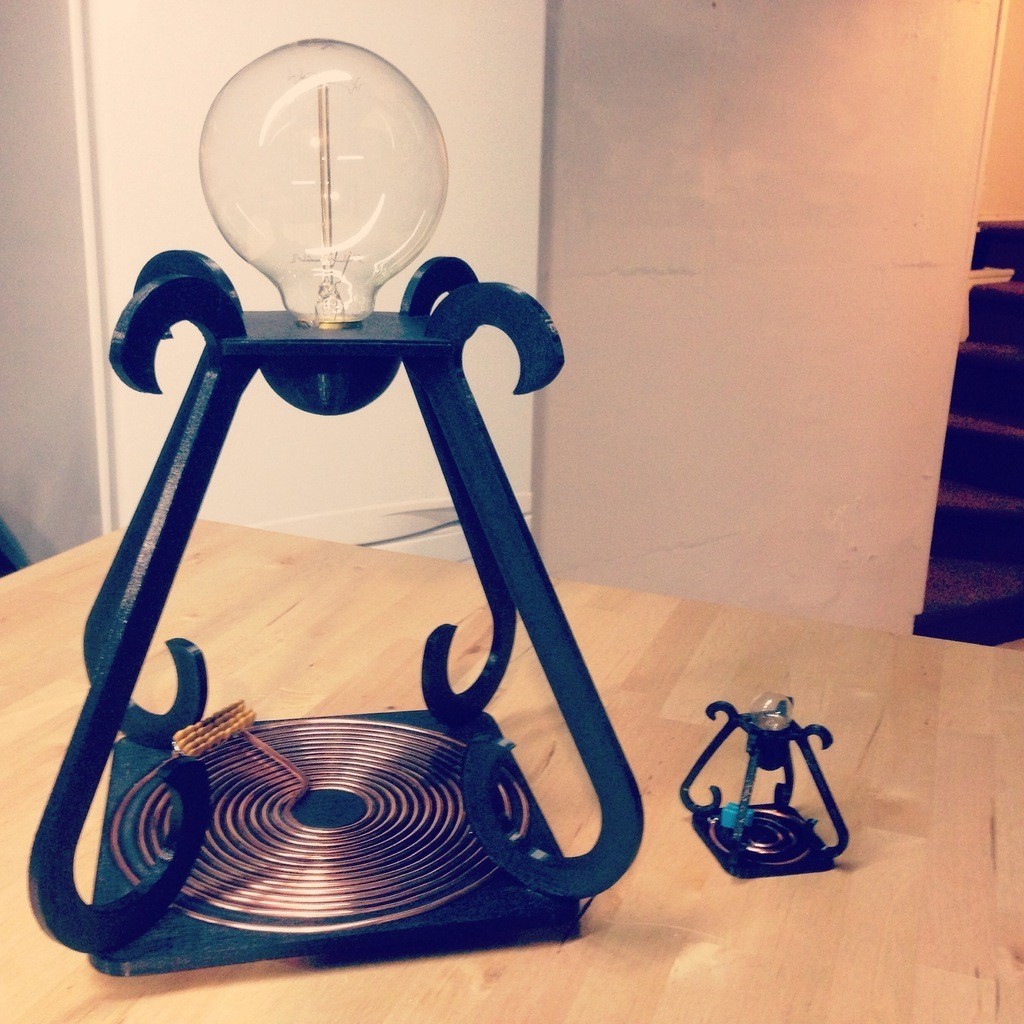

This is a ~1/4 scale, functioning model of the Wirelessly Powered Tesla Desk Lamp.

A mini one!

https://www.youtube.com/watch?v=dUi3cMTy0ds&feature=youtu.be

I wanted to create a wireless lamp that more people would be able to print with smaller printers.

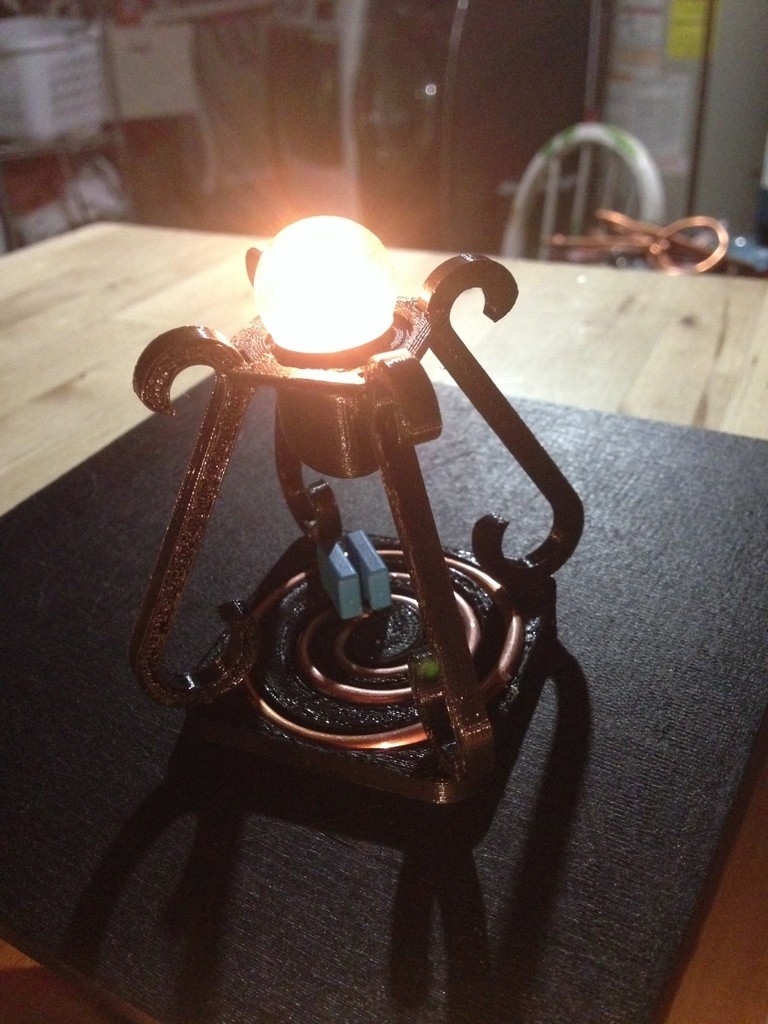

This runs a motorcycle tail light (Sylvania 90, 12V, ~6W). I chose this bulb because of it's size and voltage requirement and I had some lying around. It would probably work better with a 6V bulb but I didn't have any.

Resonant Frequency: 6.5MHz

Spiral Inductor: ~0.1uH.

Overal Dimensions: 2.3" x 2.3" x 3"

Designed by David Choi

3D printing settings

The coils are made with 1/8" copper tubing you can buy online or at any auto parts store.

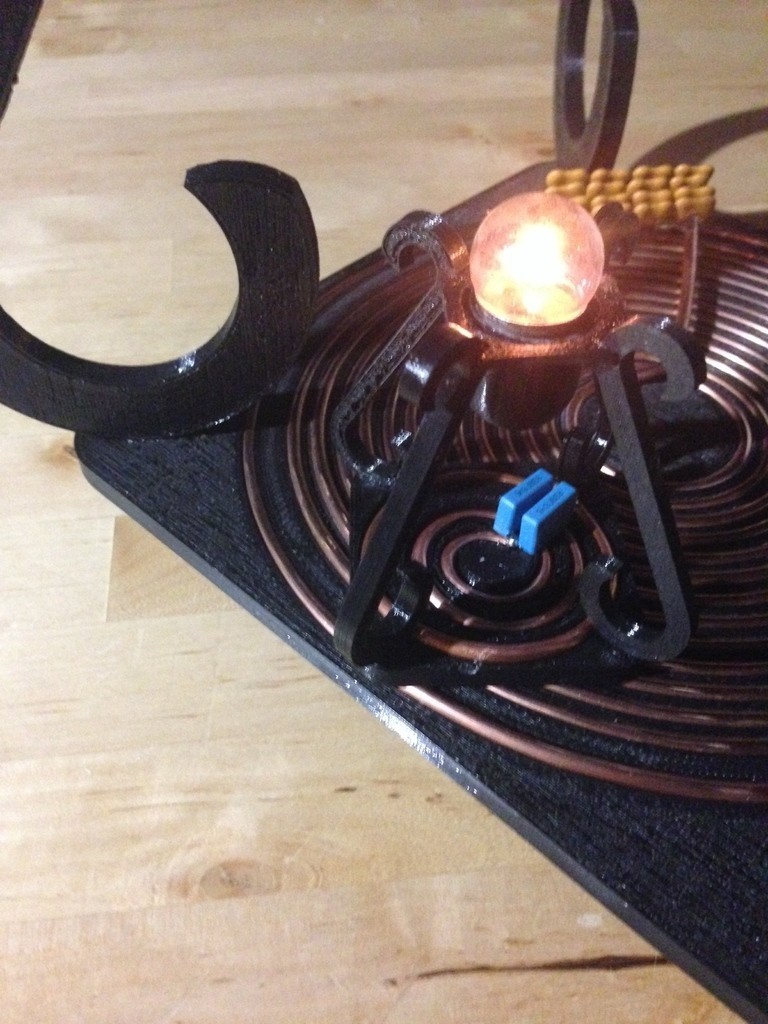

I used (2) 3.3nF caps in parallel (6.6nF) to resonate at ~6.5MHz

The coil receives power wirelessly from the table (transmitter in its underside)

It works best with a repeater due to it's small size.

The Sylvania 90 bulb is directly wired to the outer coil with 22ga copper enameled wire.
