Mini Kossel Delta 3D Printer Spoolholder

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 5 likes
  • 54 downloads

3D model description

=> First Off very IMPORTANT!! <=

For a half year now i'm teaching my little brother how to draw in cad.
The rendered pictures is his work.
I must say nice job!
But what do you people think? shell i let him Pass?
give it a grade, let me know in the comments!

2 weeks ago i bought my self a new 3d printer.
A mini kossel delta to be exact.
This is my third 3d printer and i love the freaking thing!
Lots of calibration, but prints like a dream.
One thing i was disappointed about was the spoolholder.

So i designed my own, and works like a charm.
I presume that every mini kossel is the same and have the same dimensions.
So i did not bother making it adjustable.
But if this is not the case please let me know.

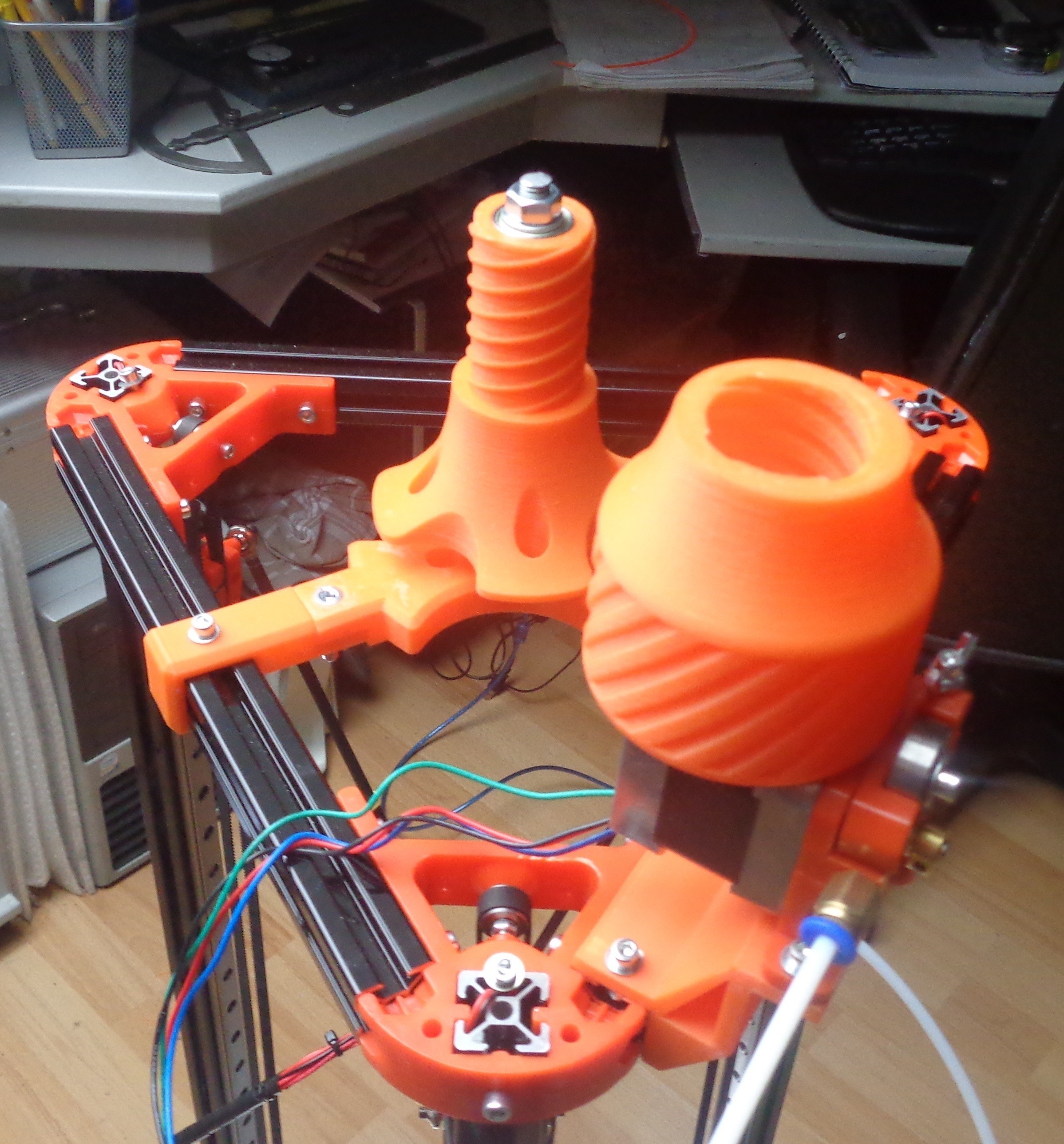

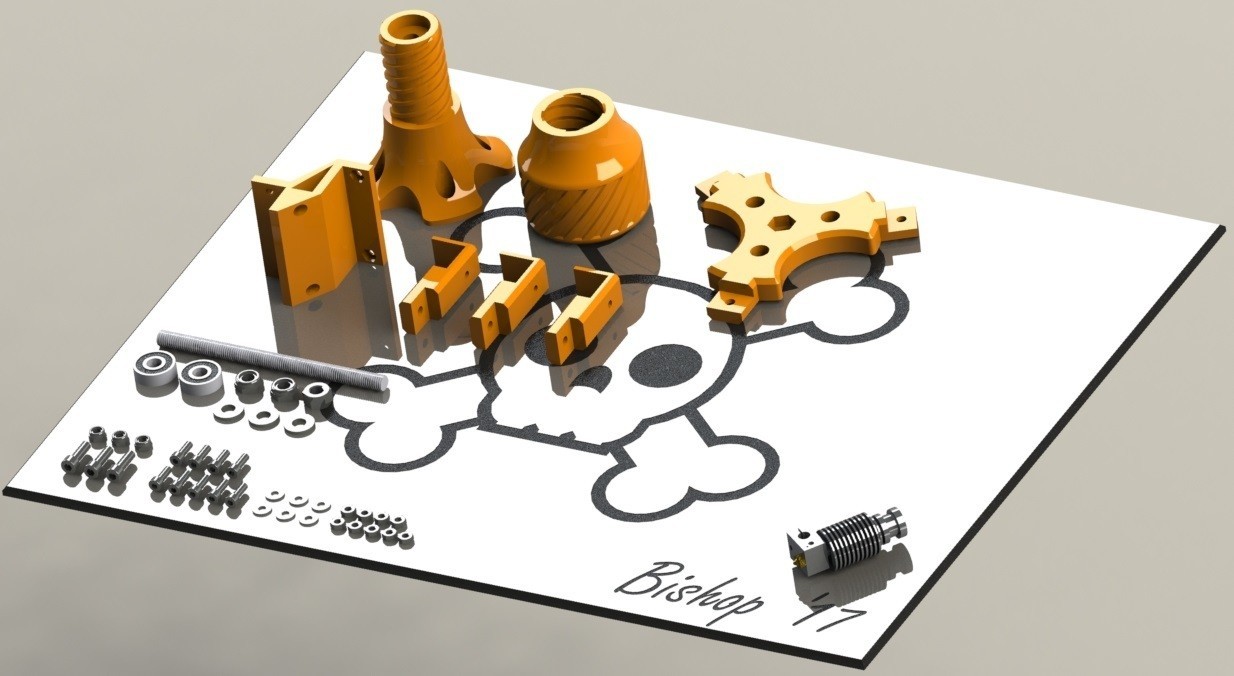

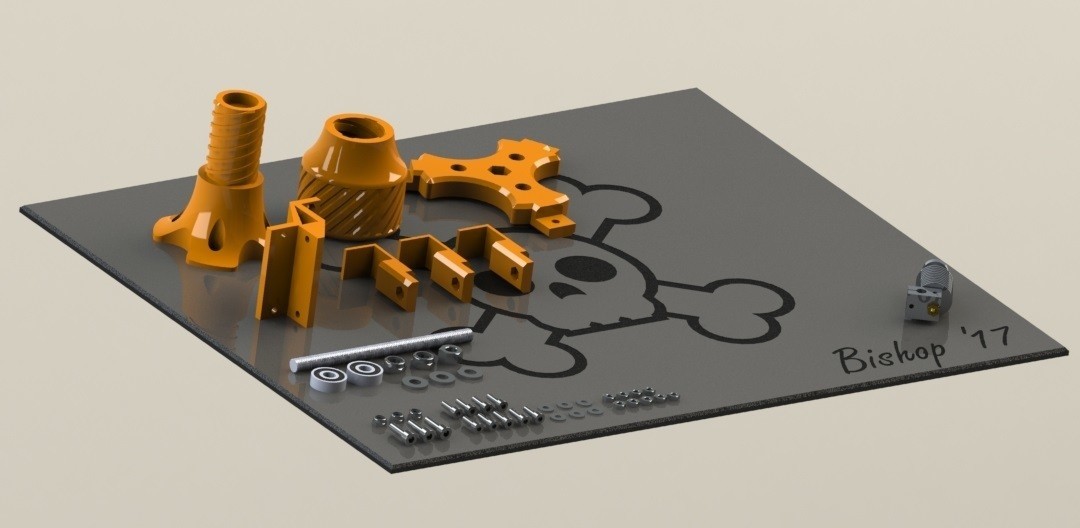

P.s: Fun fact all the 3d printed parts you see in the rendered picture, is correct orientation to print the parts.

Shopping list:

2 x 608ZZ bearings

3 x M5x16 Hexabolts
3 x M5 Nuts

9 x M4x12 Hexabolts
7 x M4 washers
9 x M4 Nuts (or M4 Tnuts)

1 x M8 Rod L=130mm
3 x M8 Washers
3 x M8 Nuts

If you have any questions or remarks let me know!
And i will try to help as good i can.

3D printing settings

Layer Height: 0.2
Shell Thickness: 1.2
Bottom/Top Thickness: 0.8
Infill 35%

Support: Only by the spoolholder delta 1 -Touching build plate-
