Mini Grande Modular Tool Rack & Organizer System

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

3D model description

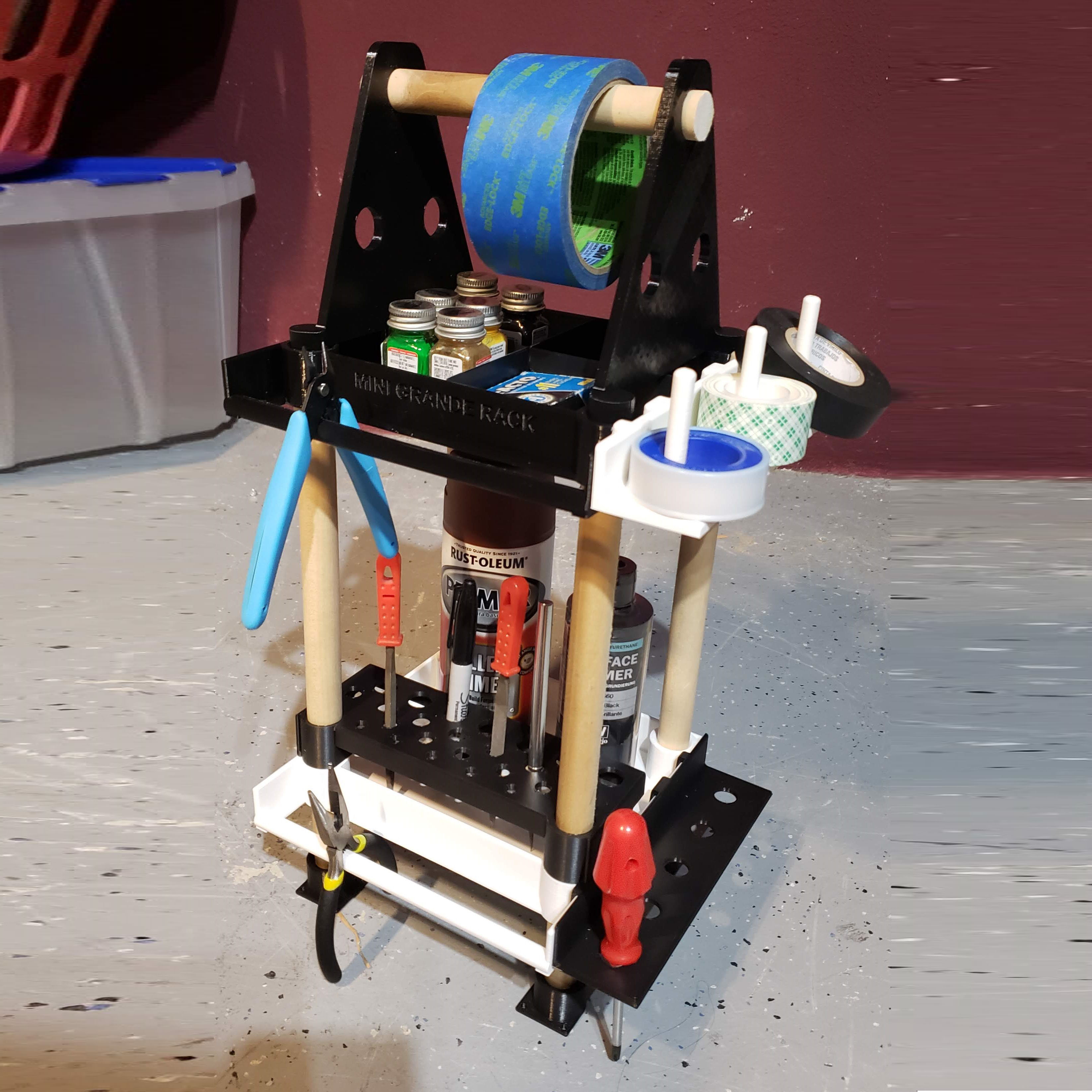

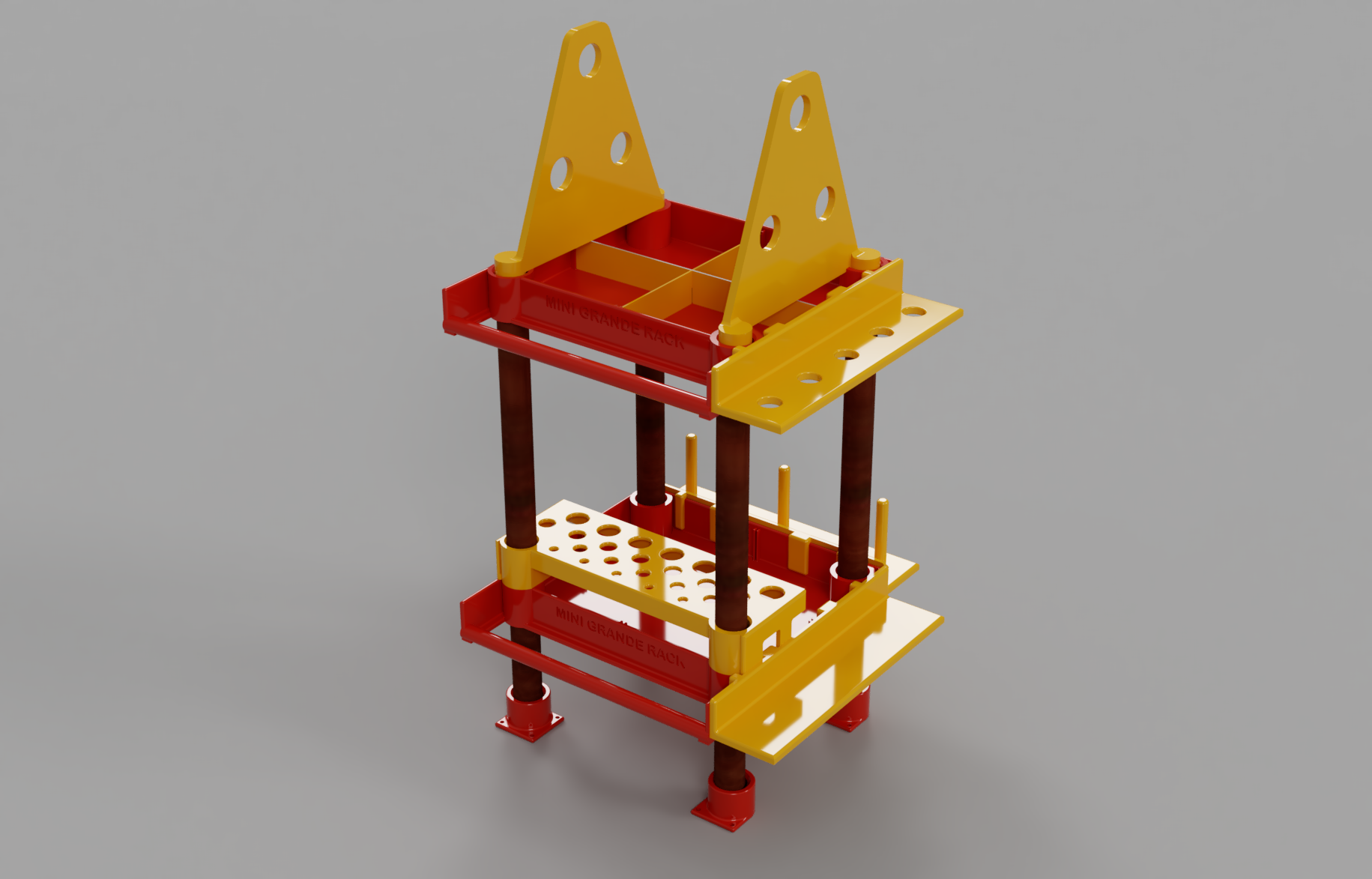

A fully modular and scalable tool organizer system to keep your work space clean and efficient.

All parts press fit into place, no need for any gluing or hardware, simply print out the pieces you need and snap them together to create your custom storage solution.

Use 3/4" / 19mm dowels or pipe cut to length for your preferred shelf height.

A base footprint of 190mm x 190mm means all parts will fit on common printers such as a Prusa Mk.II/III or an Ender 3.

On larger printers the whole system can be scaled up in your slicing software to suit bigger tools. Below is a chart of common metric and imperial tube/dowel diameters and the scaling percentage to use on your parts for each size.

Tube (Diameter) - Scale all Parts (%)

3/4 Inch - 100%
20mm - 105.24%
1 Inch - 133.51%
30mm - 157.59%
1.5 Inch - 200%
40mm - 209.95%
1 1/2 Inch - 233.25%


3D printing settings

0.4 Nozzle
0.3 Layer Height
3 side walls
3 top layers
3 bottom layers
15% infill

Supports are not needed, but for the clip-on shelves a brim is recommended during printing to support the mating clips on the back.

3D printer file information

  • 3D design format: STL Folder details Close

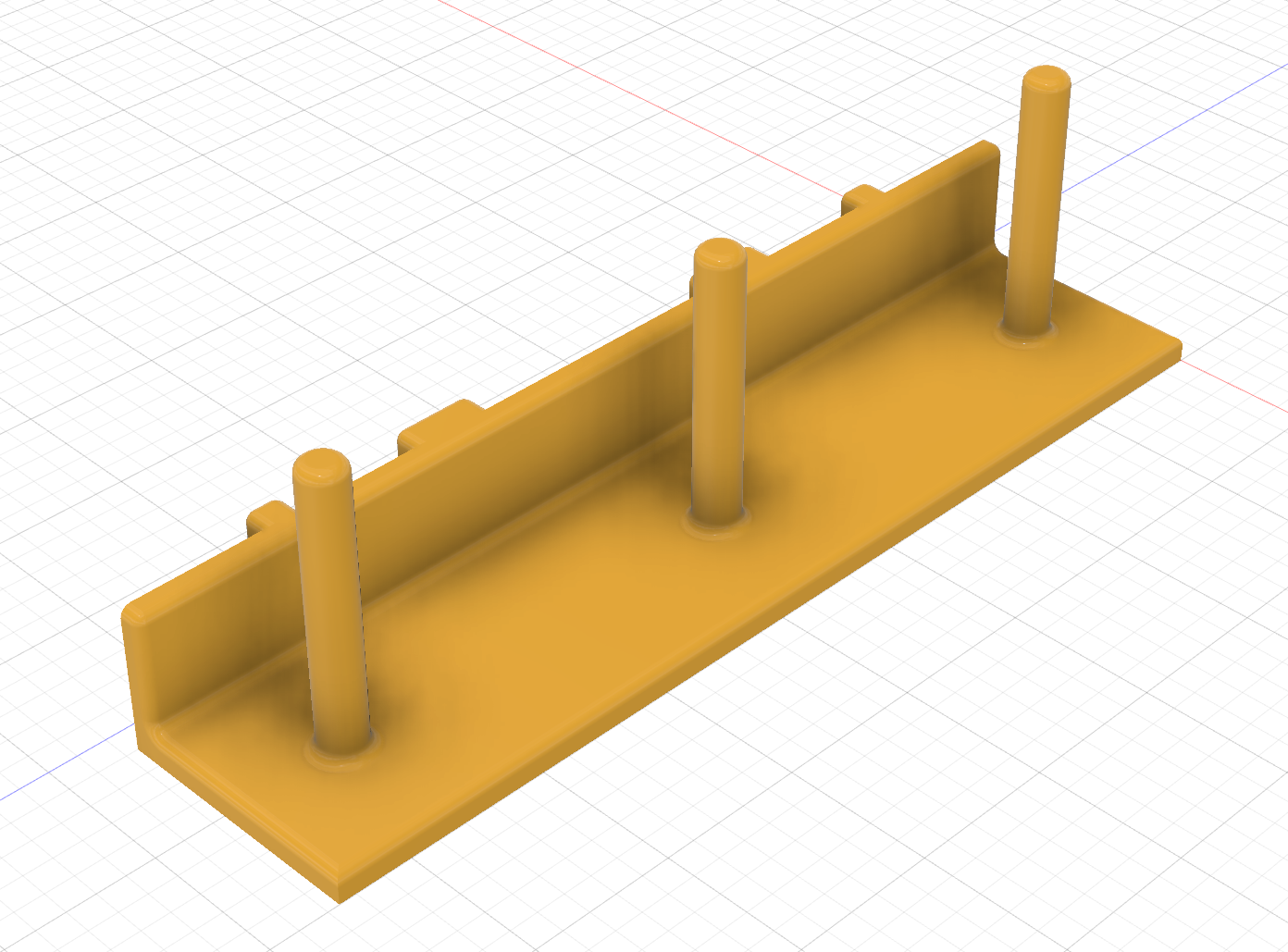

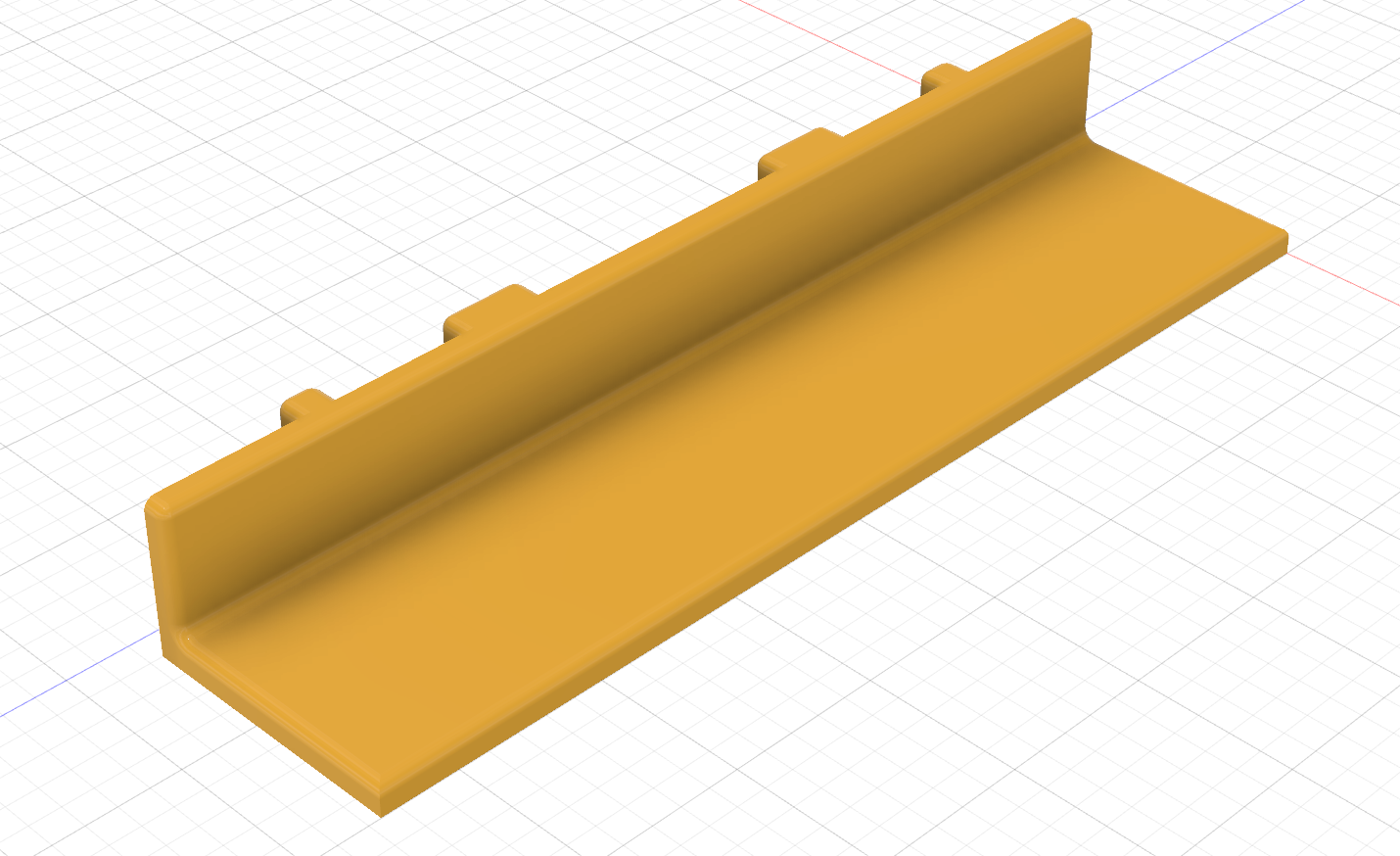

    • Blank Shelf.stl

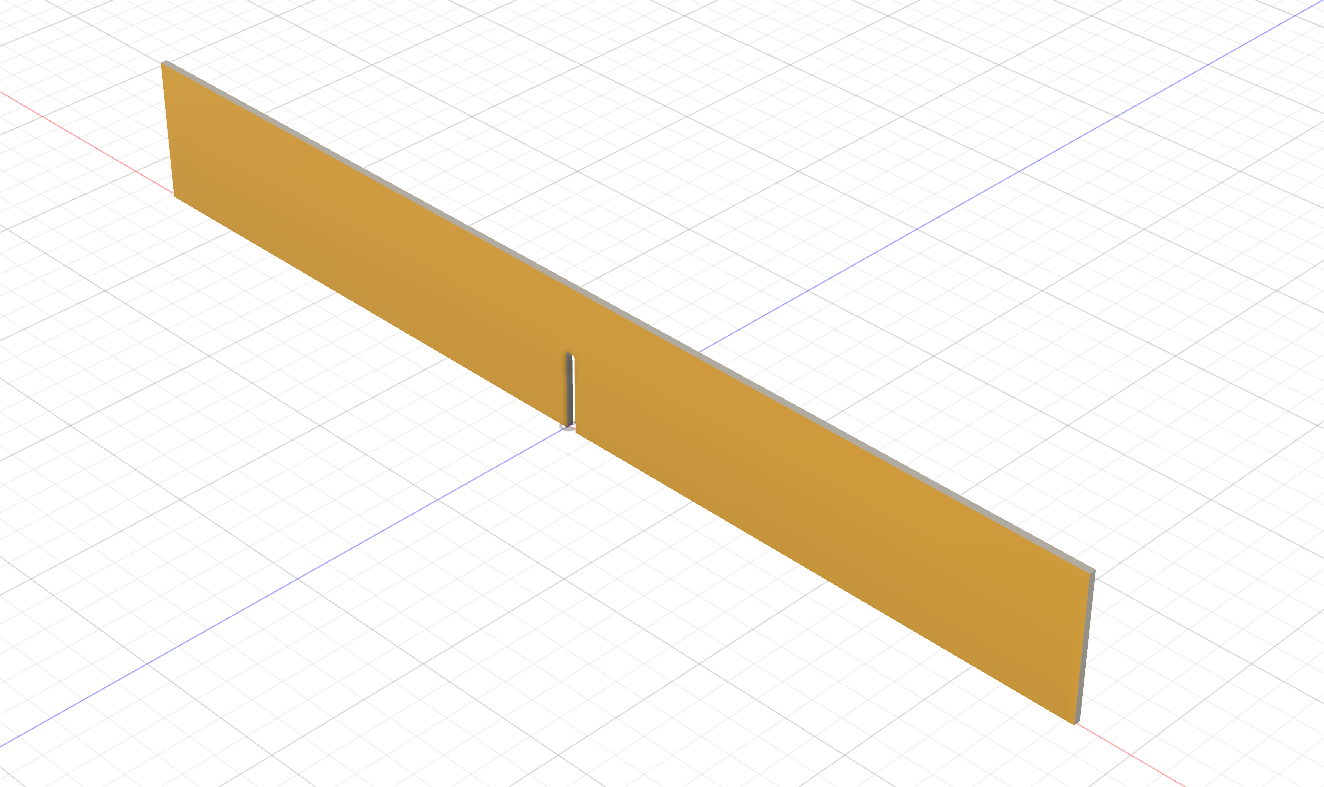

    • Depth Separator.stl

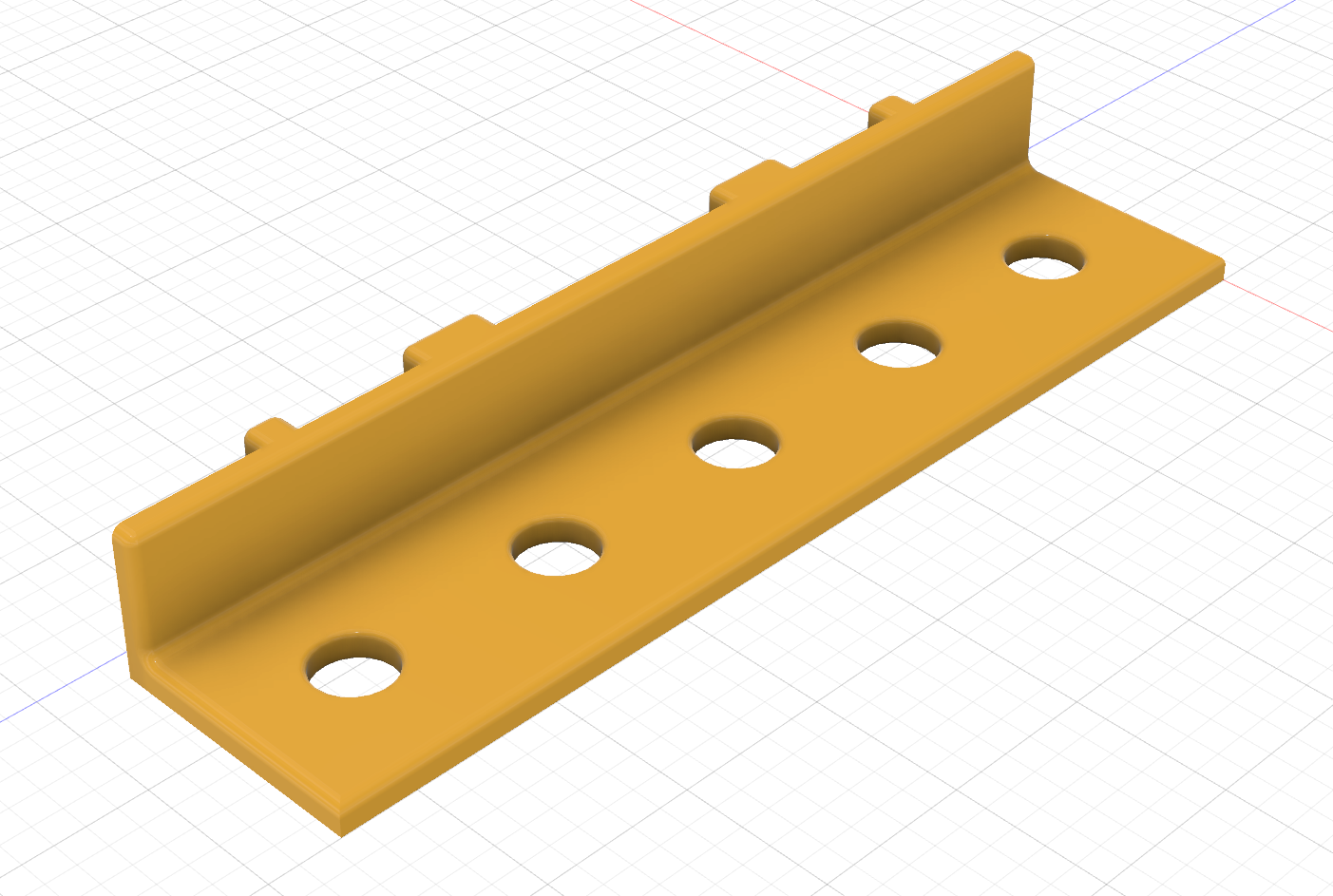

    • Hole Shelf.stl

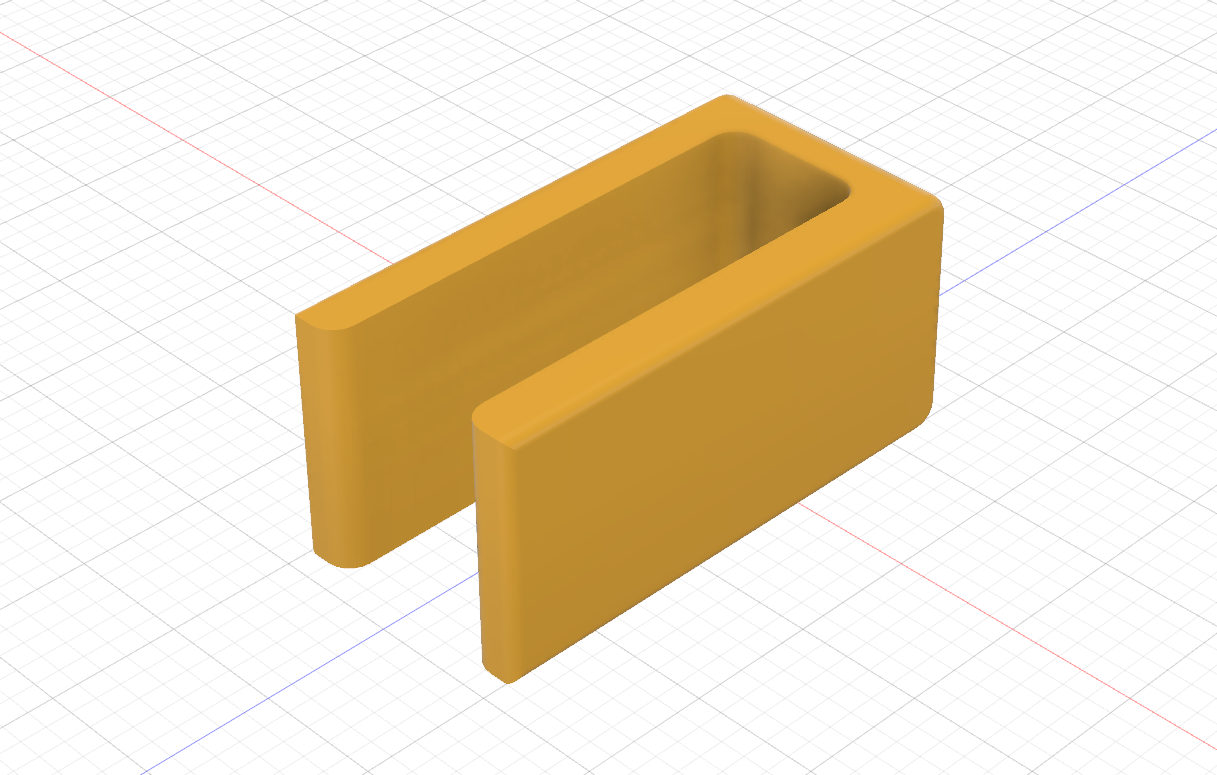

    • Mating Clip.stl

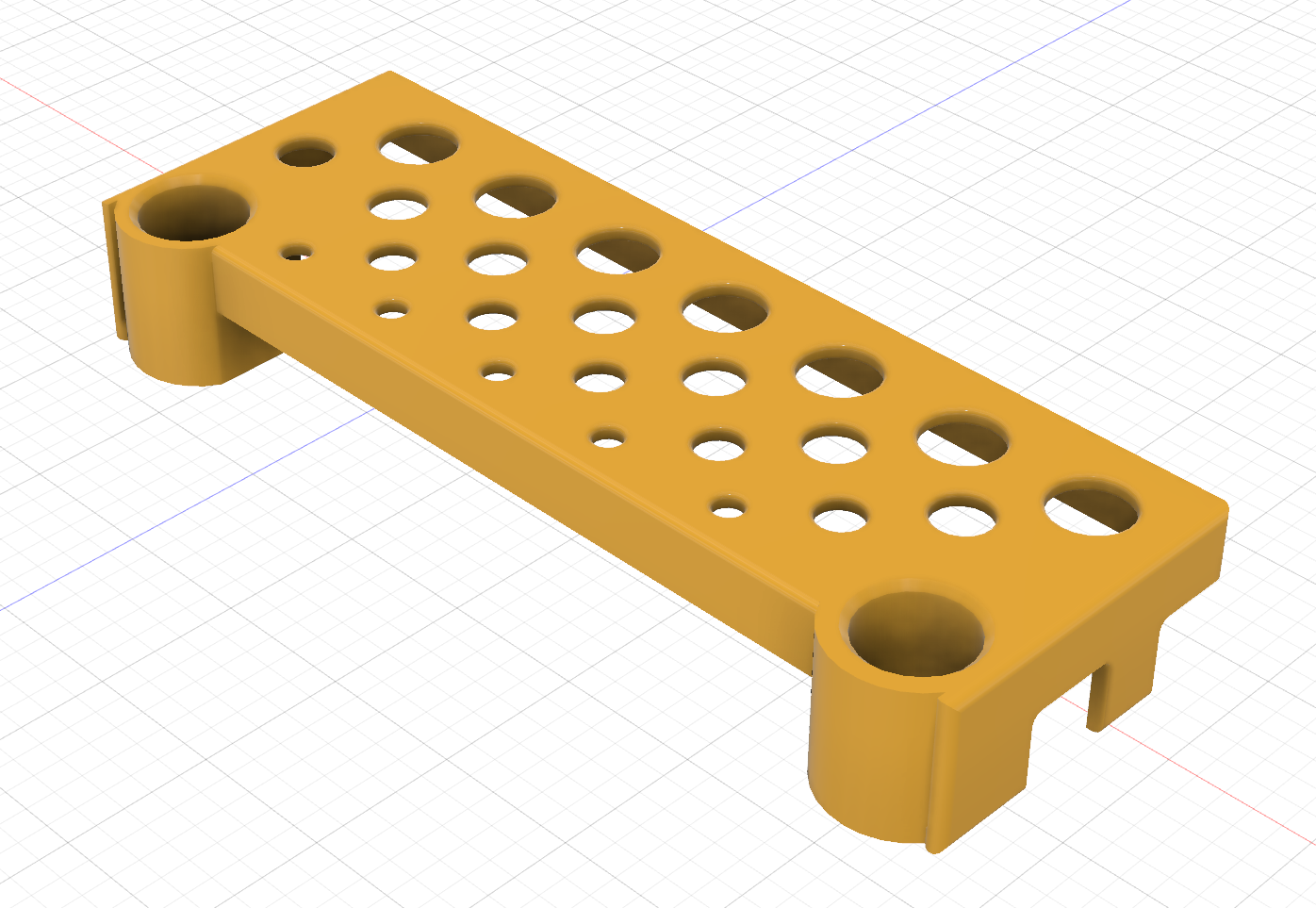

    • Organizer.stl
    • Pole Shelf.stl

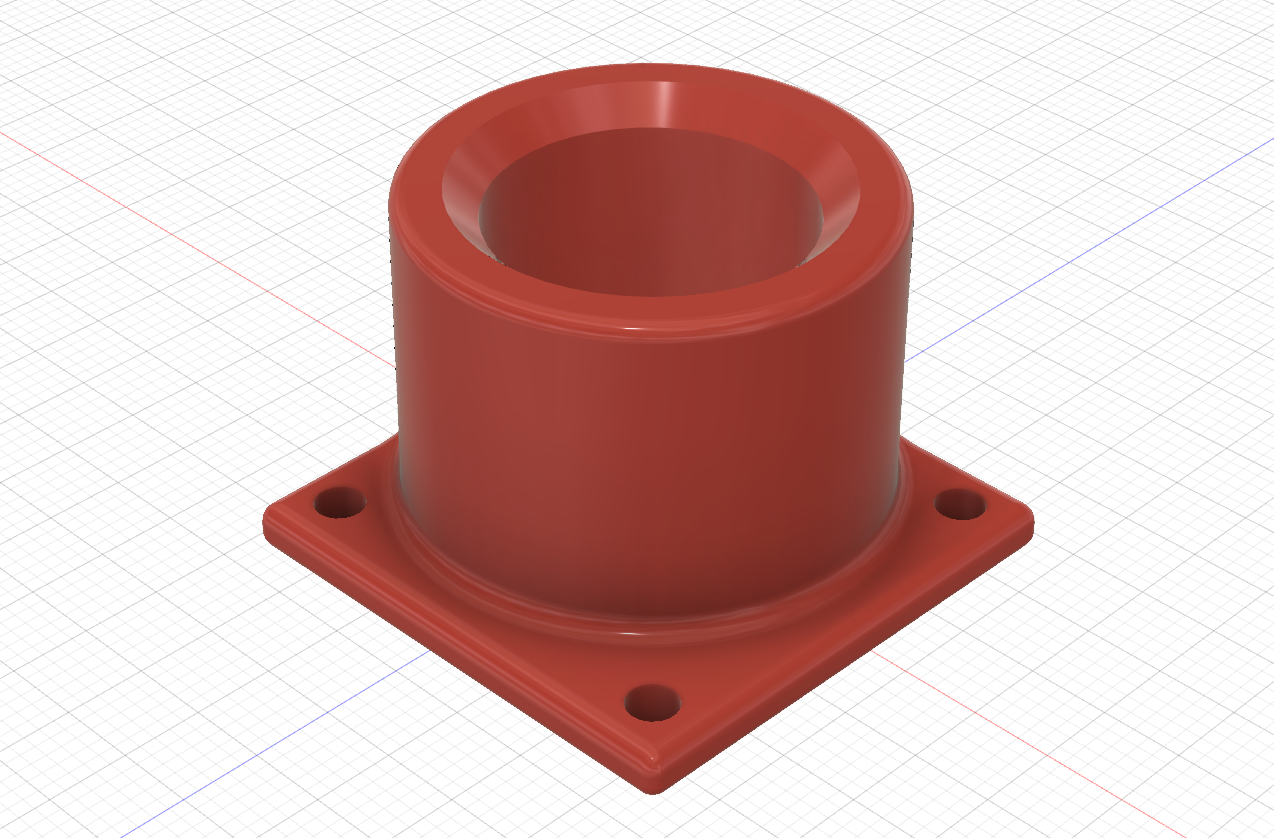

    • Rack Foot.stl

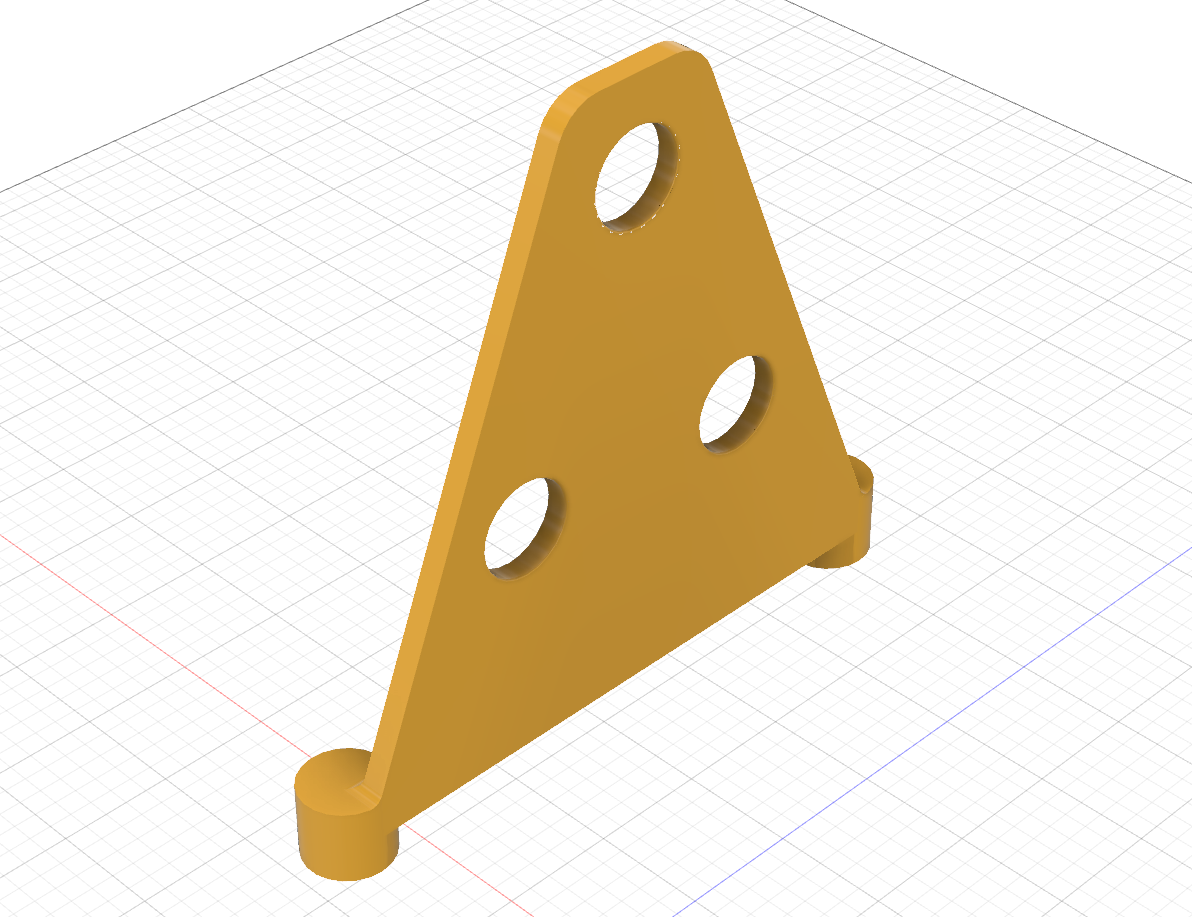

    • Spool Holder.stl

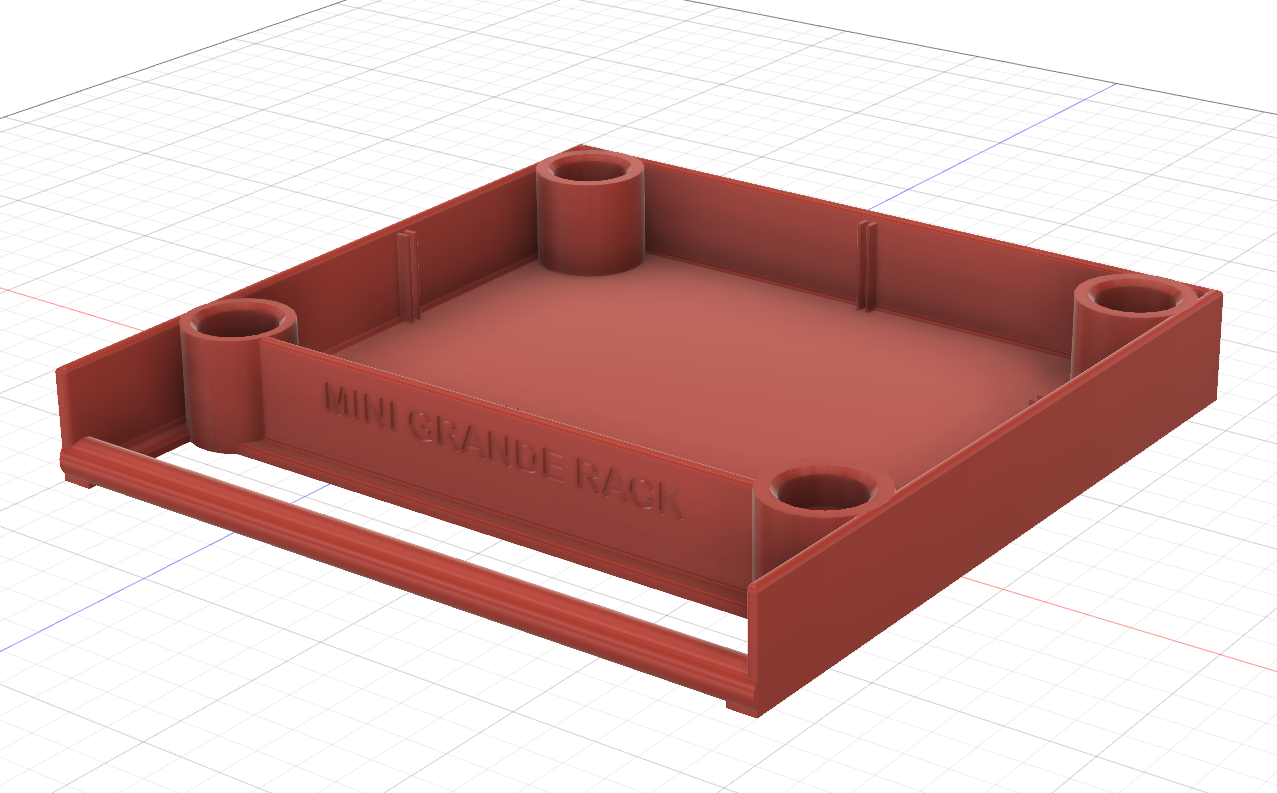

    • Tray.stl

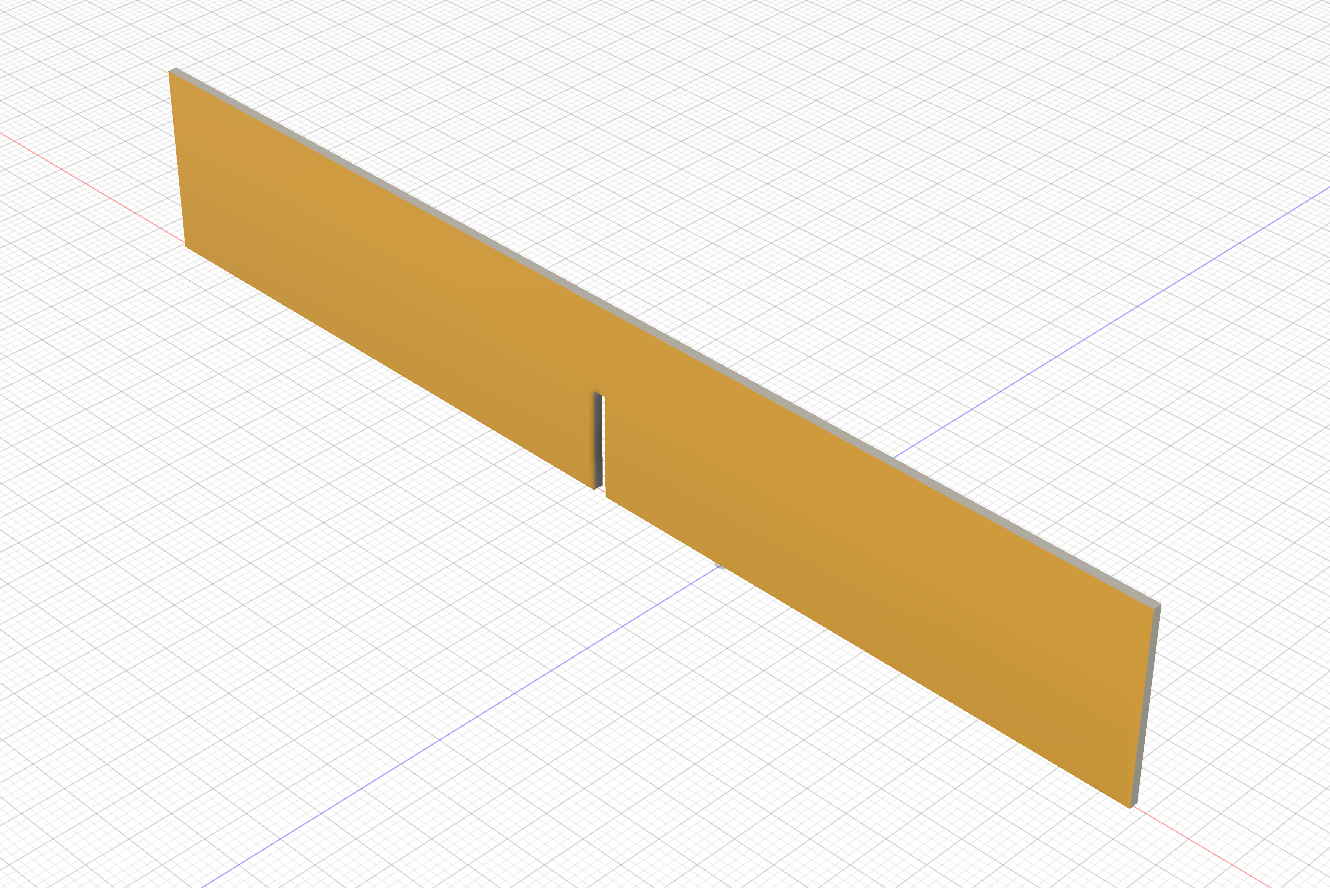

    • Width Separator.stl
