Mini DC PWM Controller Housing

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 5 likes
  • 65 downloads

3D model description

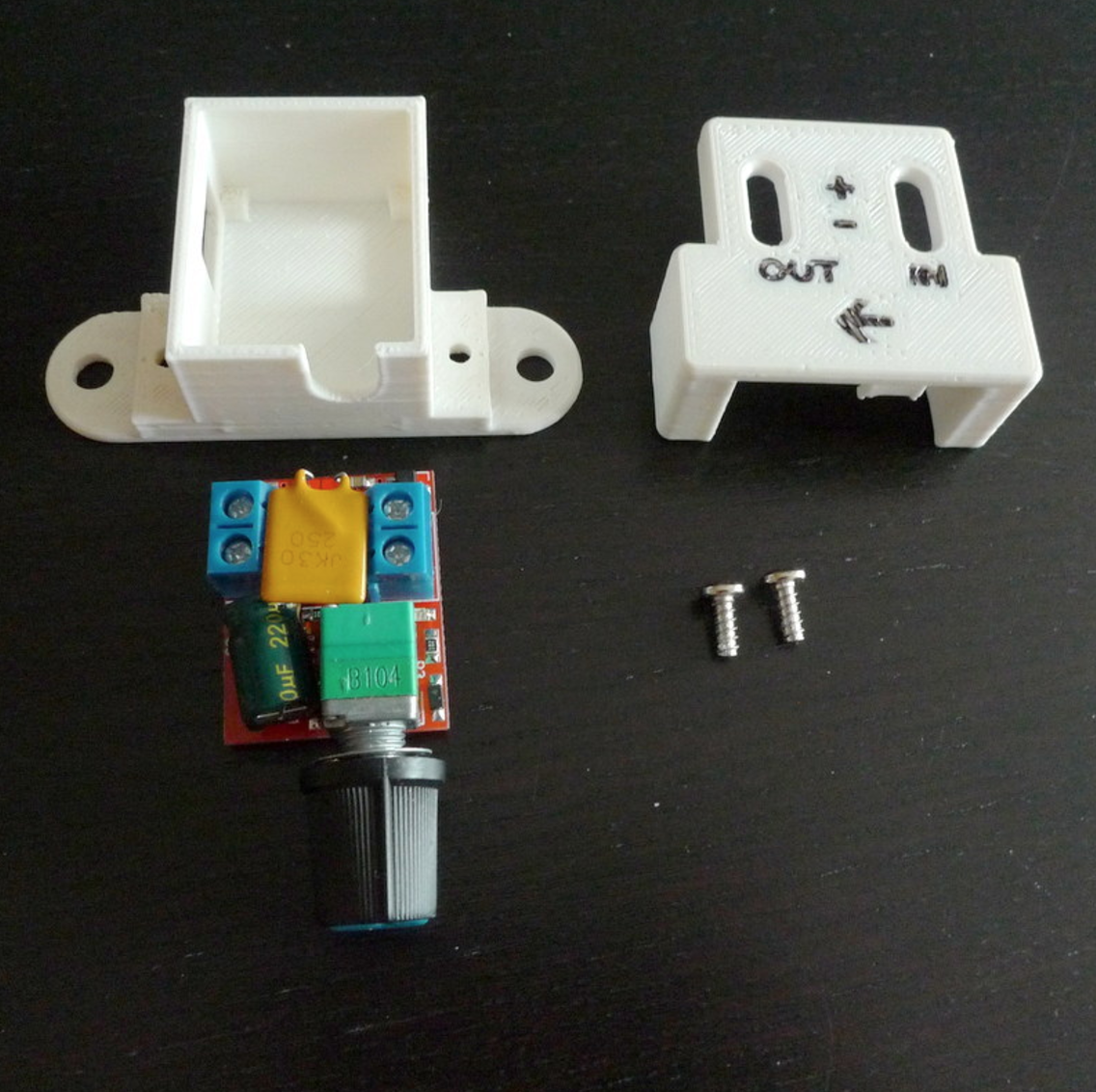

Housing for "Mini DC 3V-35V 5A Motor PWM Speed Controller Speed Control Switch LED Dimmer" that is available cheap at eBay.

http://www.ebay.com/sch/i.html?_from=R40&_trksid=p2050601.m570.l1313.TR0.TRC0.H0.X%22Mini+DC+3V-35V+5A+Motor+PWM+Speed+Controller%22.TRS0&_nkw=%22Mini+DC+3V-35V+5A+Motor+PWM+Speed+Controller%22&_sacat=0

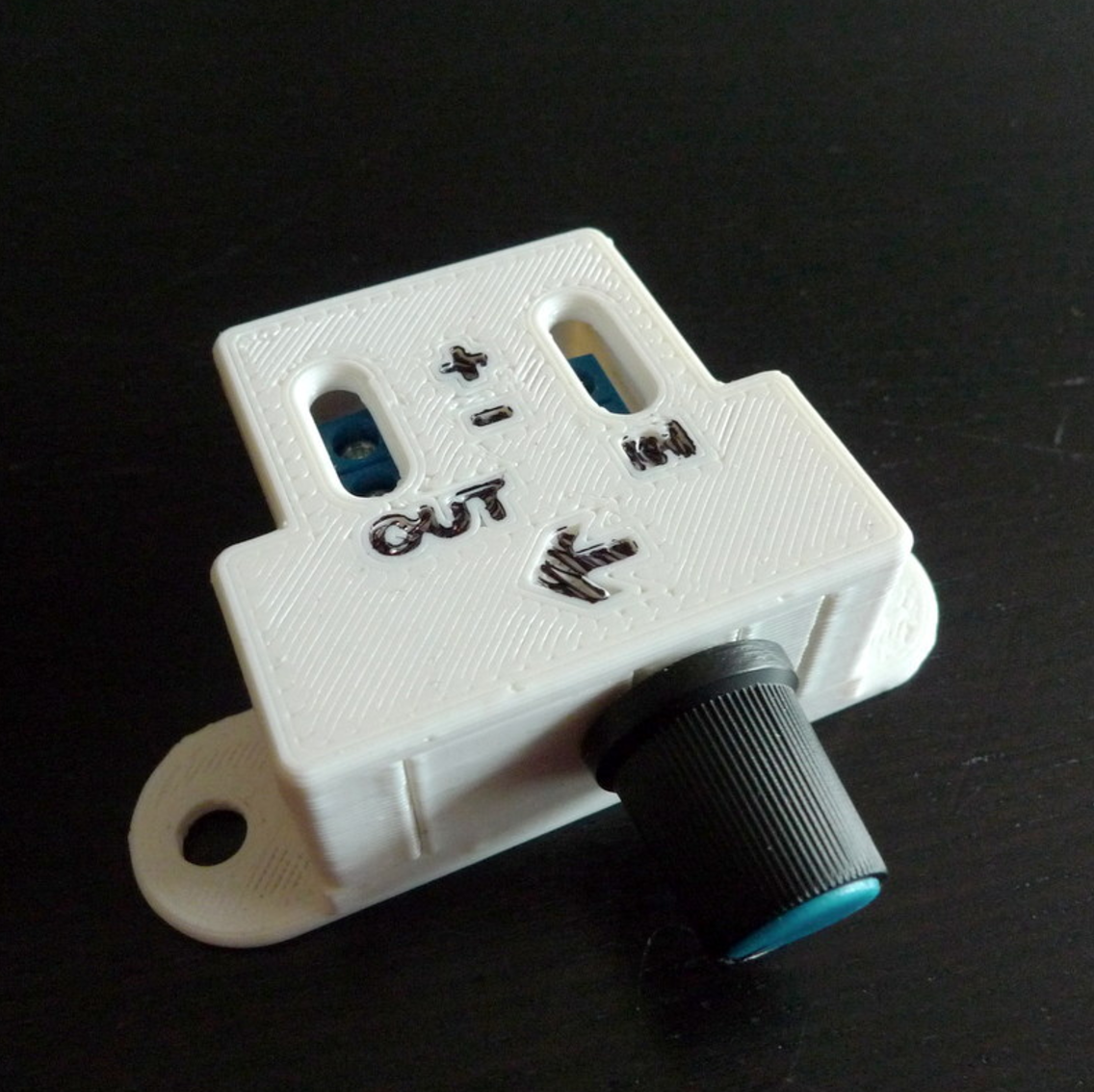

Both parts joined together using two small screws.


3D printing settings

Printer:
Easy3DMaker

Rafts:
No

Supports:
No

Resolution:
0.25

Infill:
70%

3D printer file information

  • 3D design format: STL Folder details Close
    • PWM_Controller_bottom.stl
    • PWM_Controller_top.stl

    Learn more about the formats

  • Publication date: 2016/12/02 at 17:59

License

CC BY

Creator

Issue with this design? Report a problem

Best sellers of the category Tools


Add a comment

One comment

I am curious if you have an SCAD version of the file. There's some minor tweaks I would like to do with this, mainly adjusting the holes to get to the screw posts as I have a bunch of these controllers, but the board is ever so slightly different. The screw posts are a tiny bit closer to the knob and nudged in from the sides as well.

My boards also have that yellow component on the back of the board sticking right up, but that's a simple soldering mod I can do on my own to nest it between the screw posts.
