Microscope Stand Upgrade

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 7 likes
  • 52 downloads

3D model description

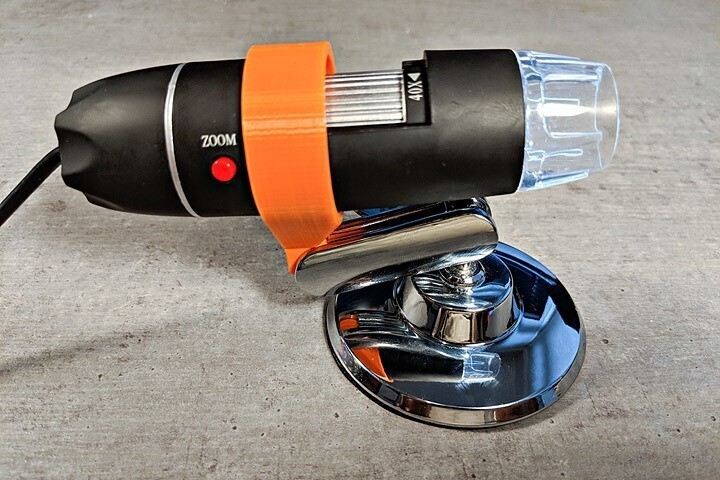

An upgraded stand for this popular and inexpensive USB microscope (Jiusion 1000x and similar).

The clamp that comes in in the kit it's way too flexible, making it really hard to focus. This upgrade uses a simple trick to hold the microscope steadier: the clamp itself gets tightened by the same screw mechanism that locks the position (angle).

Hint: print out of PETG. Note you lose one degree of freedom, but I found that to be a non-issue in practice, because this rotation around Z was redundant with the stand anyway.

  • 3D file format: STL
  • Publication date: 2019/01/28 at 10:19

Tags

Creator

Designs 47
Downloads 6.9k
Followers 50

I enjoy designing minimalist-functional 3D objects.

License

CC BY
