Microphone Clip for Drum Hoop

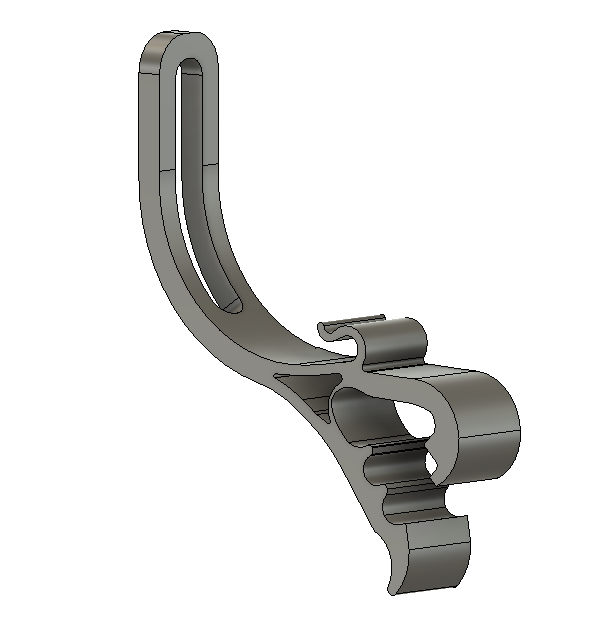

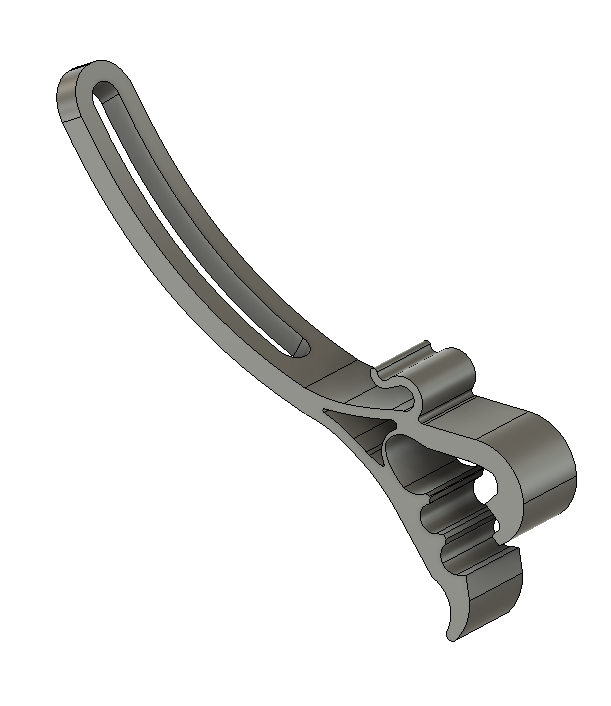

Fusion360_qgofniQtce.png Download free STL file Microphone Clip for Drum Hoop • 3D print design, HavokTheorem Fusion360_JdHbR26N8e.png Download free STL file Microphone Clip for Drum Hoop • 3D print design, HavokTheorem
mic screw.stl Download free STL file Microphone Clip for Drum Hoop • 3D print design, HavokTheorem drum mic clip.stl Download free STL file Microphone Clip for Drum Hoop • 3D print design, HavokTheorem drum mic clip 2.stl Download free STL file Microphone Clip for Drum Hoop • 3D print design, HavokTheorem
Make
?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 444 views
  • 1 like
  • 37 downloads

3D model description

Clip on to common drum hoops for recording close microphones on toms or snare.
The thin spring section allows the clip to be compliant when installing or removing.
Can be attached to a 3/8"-16 thread microphone holder with the included screw.
Early revision - please comment with feedback

3D printing settings

If the spring section is too thin for your material, increase the horizontal expansion value in your slicer.

Print laying on side.
Material: ASA is my material of choice. In order of preference, the next choices would be ABS, PLA, PETG. Polycarbonate (PC) or polypropylene (PP) would also work great but are less common.

0.2mm layer height with 0.4mm nozzle. Brim may be necessary depending on bed type.
Wall & top/bottom thickness: 0.8mm-1.2mm depending on stiffness of material.
Infill pattern: Triangles or grid, 20-40% density.
Support pattern: Zig-zag, 25% density

  • 3D file format: STL
  • Publication date: 2020/08/26 at 18:00

Tags

Creator

HavokTheorem HavokTheorem
Designs 16
Downloads 216
Followers 4

Hello! I am a tinkerer and engineering enthusiast from Christchurch, New Zealand.
I have an Ender 3 V2 and a Zonestar Z6FB.
I am glad to provide all my CAD work for free as an ameteur, but if you want to return the favour, please give feedback on any designs you print of mine!
