Micro USB Plug Shell

?
Creation's quality: 4.8/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.9k views
  • 3 likes
  • 118 downloads

3D model description

My friend "Hardwarekiller" did need a Micro USB Plug for an extraordinary long cable. So I designed the parts and they fit well.

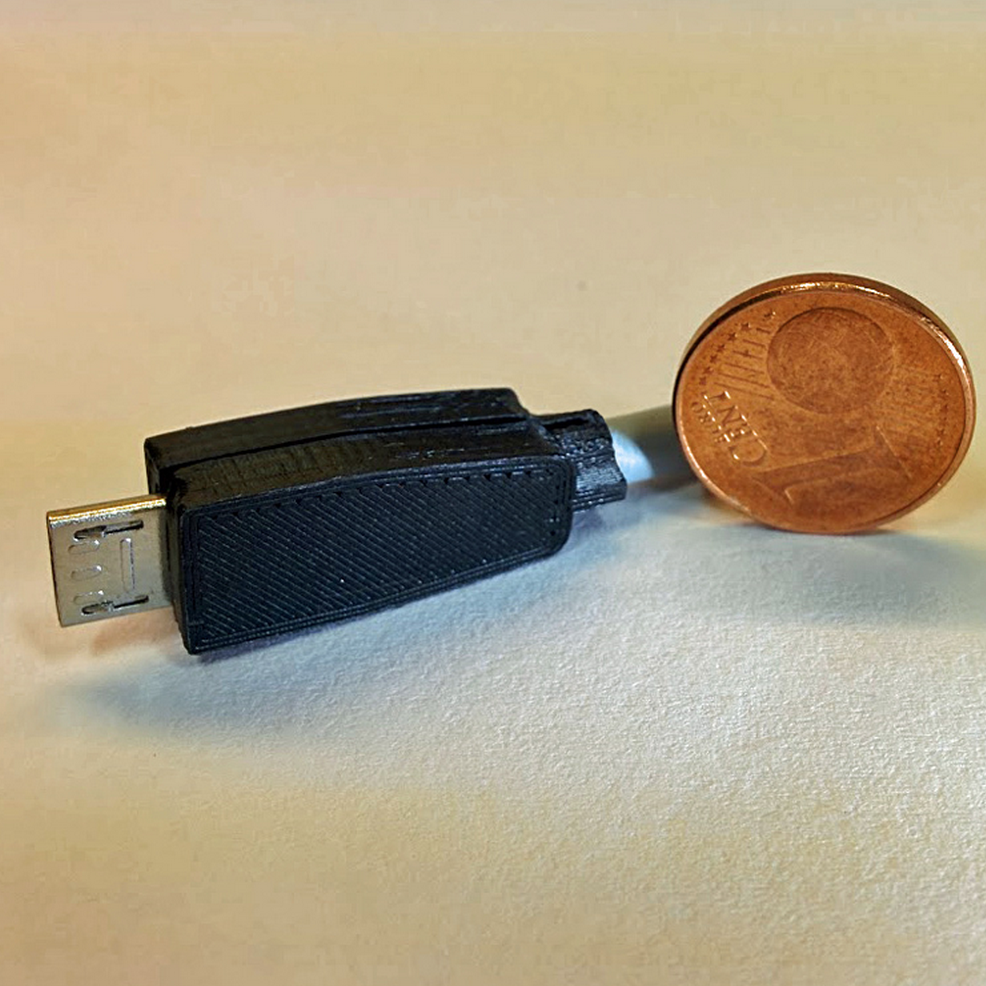

What you see is the result which he already has printed with 0.1 layer height and 0.3 width. But you can use also 0.2 layer height.


3D printing settings

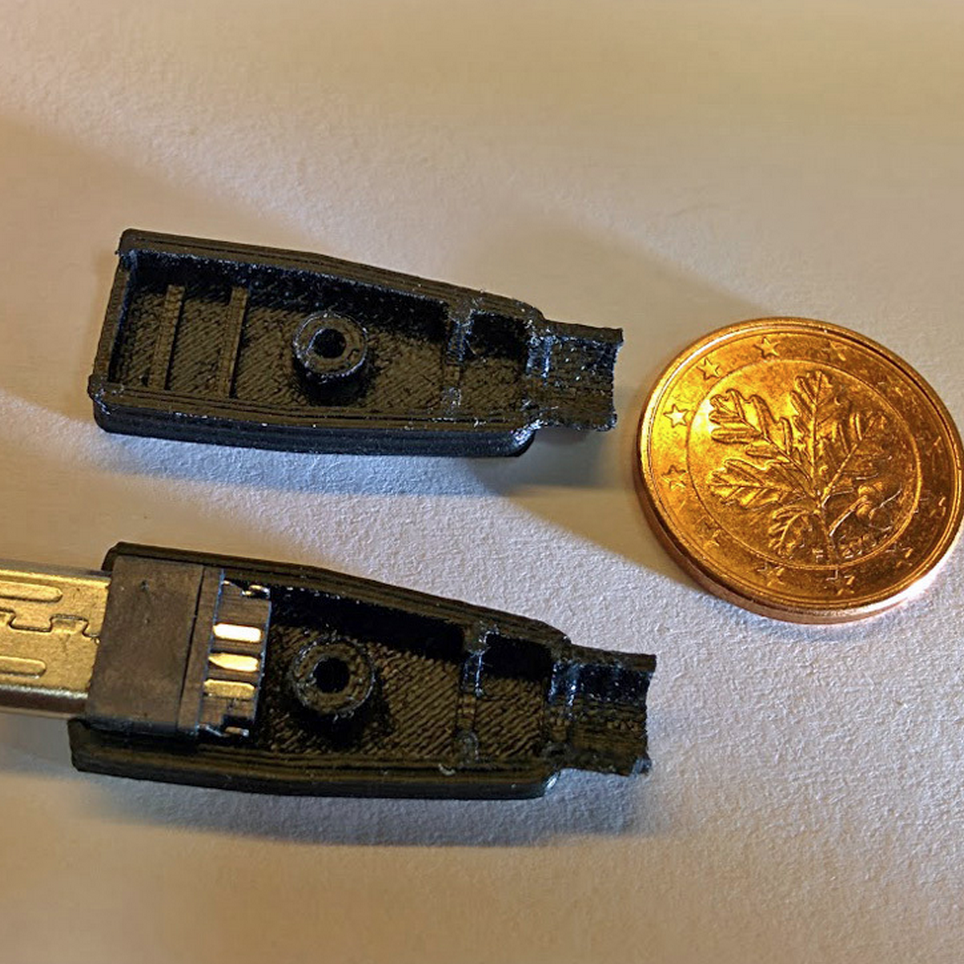

There are two different parts. One (Micro USB Plug hole) has an open hole to fasten with a 2 mm screw.
You can also use two of the parts with closed holes and glue them together.

3D printer file information

  • 3D design format: STL Folder details Close
    • Micro_USB_Plug.stl
    • Micro_USB_Plug_hole.stl

    Learn more about the formats

  • Last update: 2018/06/27 at 10:48
  • Publication date: 2015/08/18 at 13:28

License

CC BY SA

Tags

Creator

http://www.vizy.homepage.t-online.de/

I am constructing engineer for powerplants. Designing was allways my passion and I am glad, now as a pensioner, to have interesting challenges again.
I want to give thanks to the
http://www.hackerspace-ffm.de
