MGN-12H Carriage Loader

Download free STL file MGN-12H Carriage Loader • 3D printable model, MGXDownload free STL file MGN-12H Carriage Loader • 3D printable model, MGXDownload free STL file MGN-12H Carriage Loader • 3D printable model, MGXDownload free STL file MGN-12H Carriage Loader • 3D printable model, MGXDownload free STL file MGN-12H Carriage Loader • 3D printable model, MGXDownload free STL file MGN-12H Carriage Loader • 3D printable model, MGX
Download free STL file MGN-12H Carriage Loader • 3D printable model, MGX

Did you 3D print this model?

3D model description

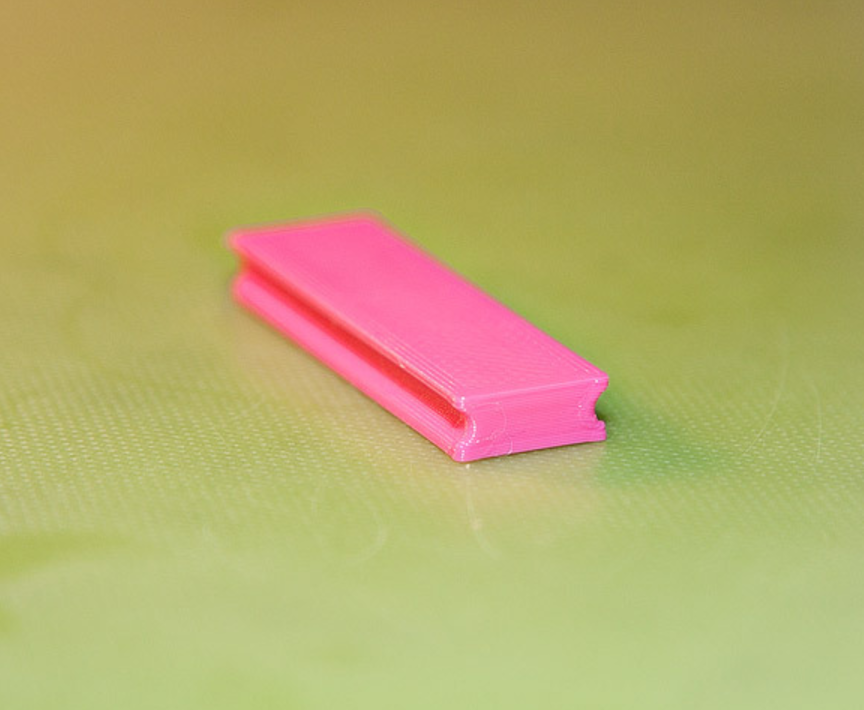

This retainer saves time and eliminates frustration when mounting Hiwin MGN-12C/MGN-12H carriages back onto the linear rails. These 12mm linear rails are typically used in Kossel based printers and although the carriages have a wire retainer it does not do a good job in preventing the balls from escaping.

Note: The no-name carriages vary wildly in dimensions (I found a difference of almost 0.5mm between two carriages in the same set) so you might have to scale before print. This part is designed to have 9.25mm clearance between the retainer wires.

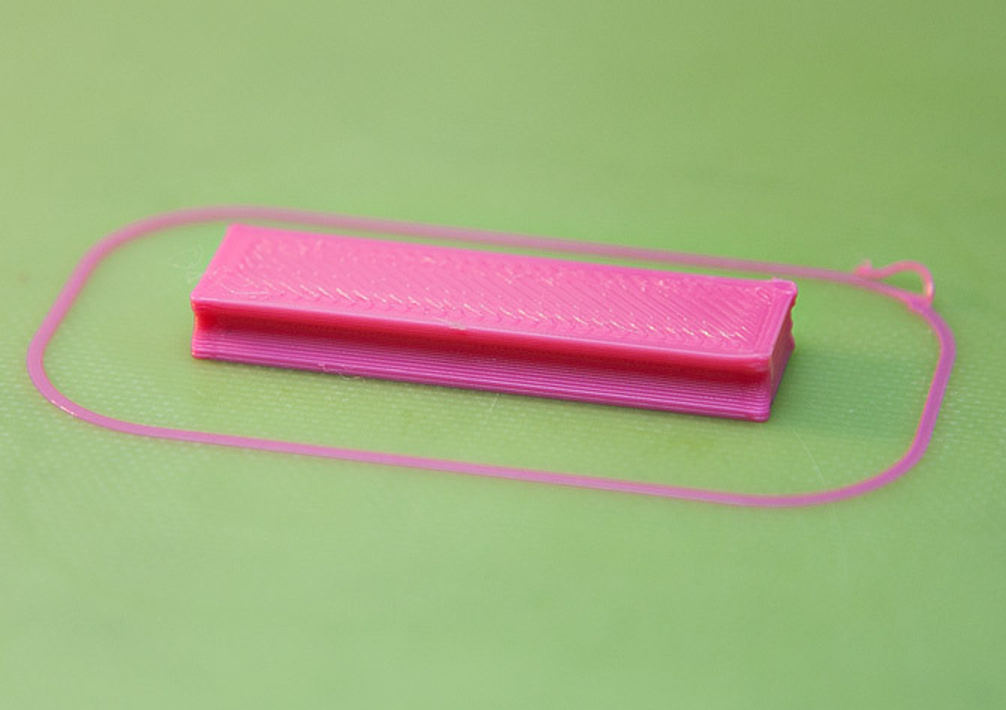

3D printing settings

Print at 0.2 layer or less and 50% infill.

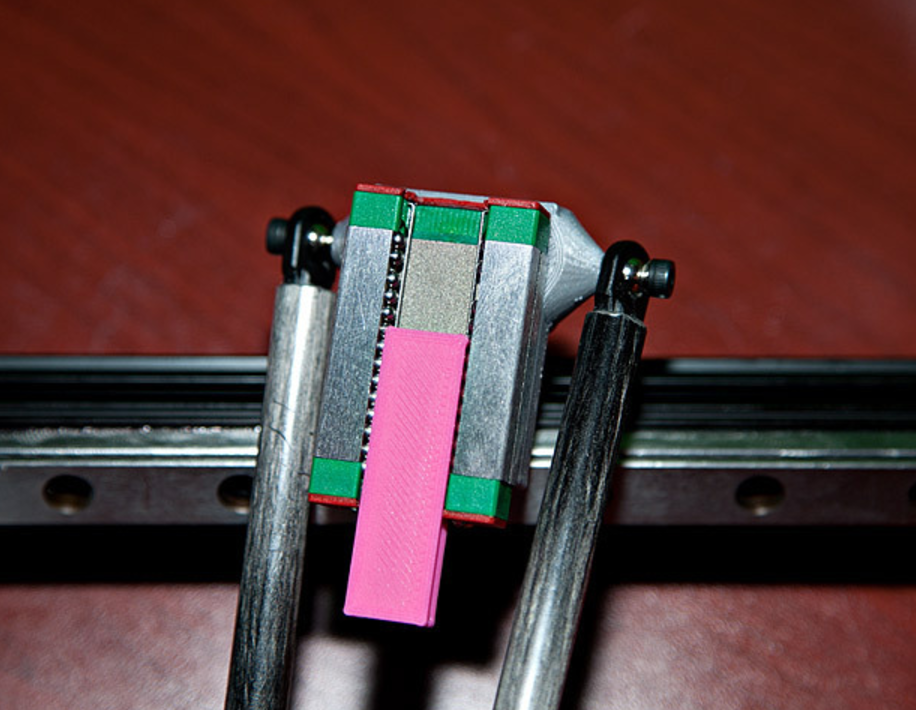

Load the printed part inside the carriage
Align the carriage with the rail

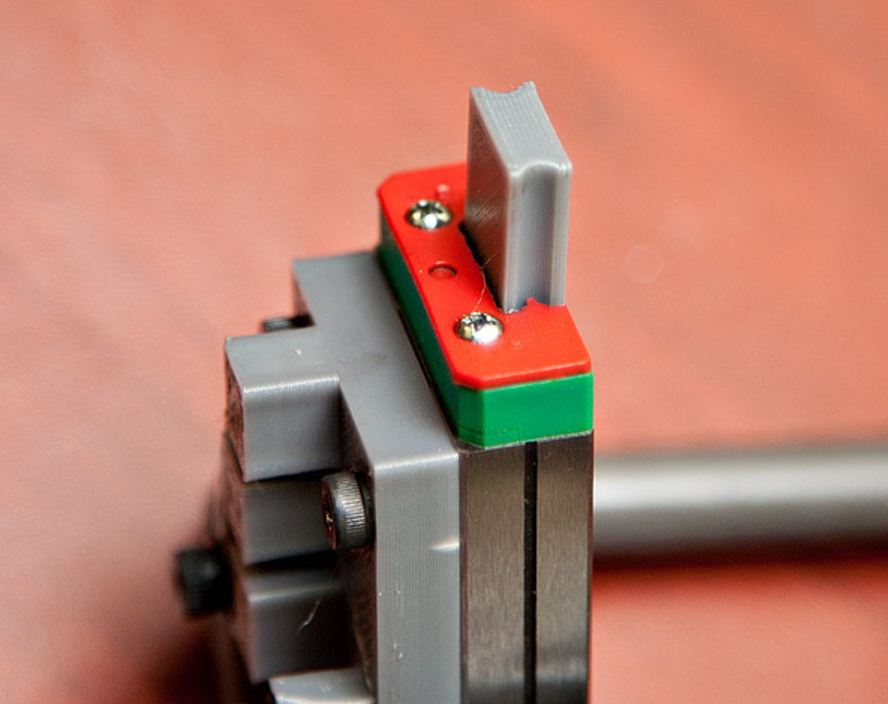

Slide the carriage on the rail while keeping pressure on the plastic retainer

  • 3D file format: STL
