MendelMax Risers

Download free STL file MendelMax Risers • 3D print object, Revalia6DDownload free STL file MendelMax Risers • 3D print object, Revalia6D
Download free STL file MendelMax Risers • 3D print object, Revalia6D

Did you 3D print this model?

3D model description

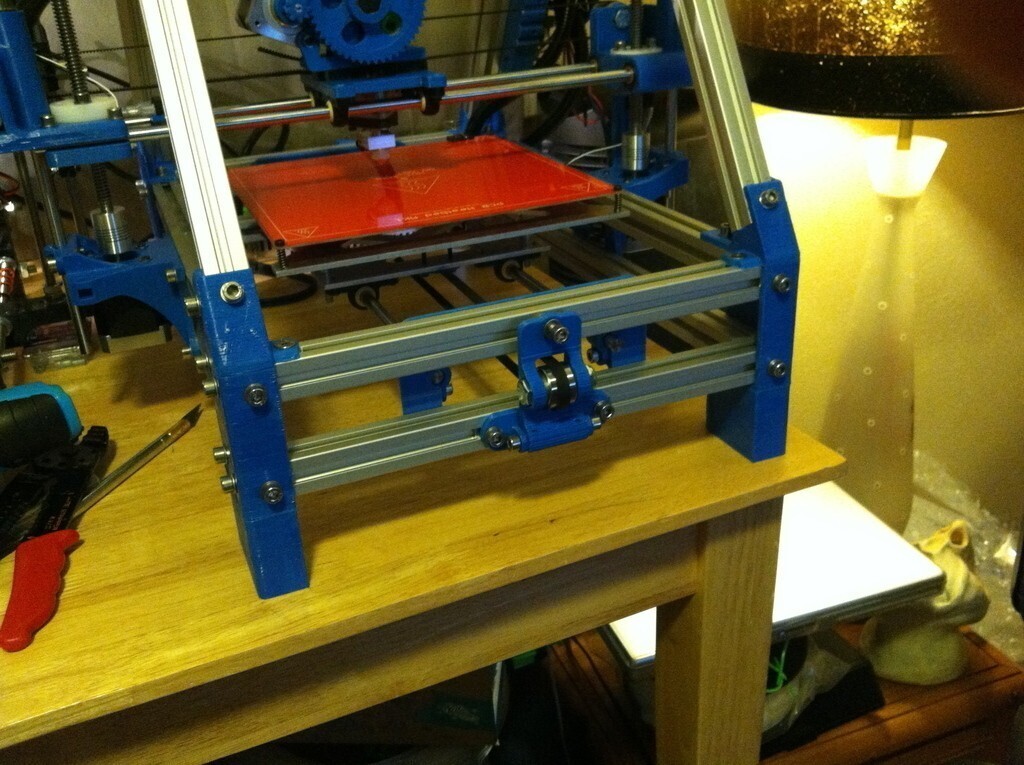

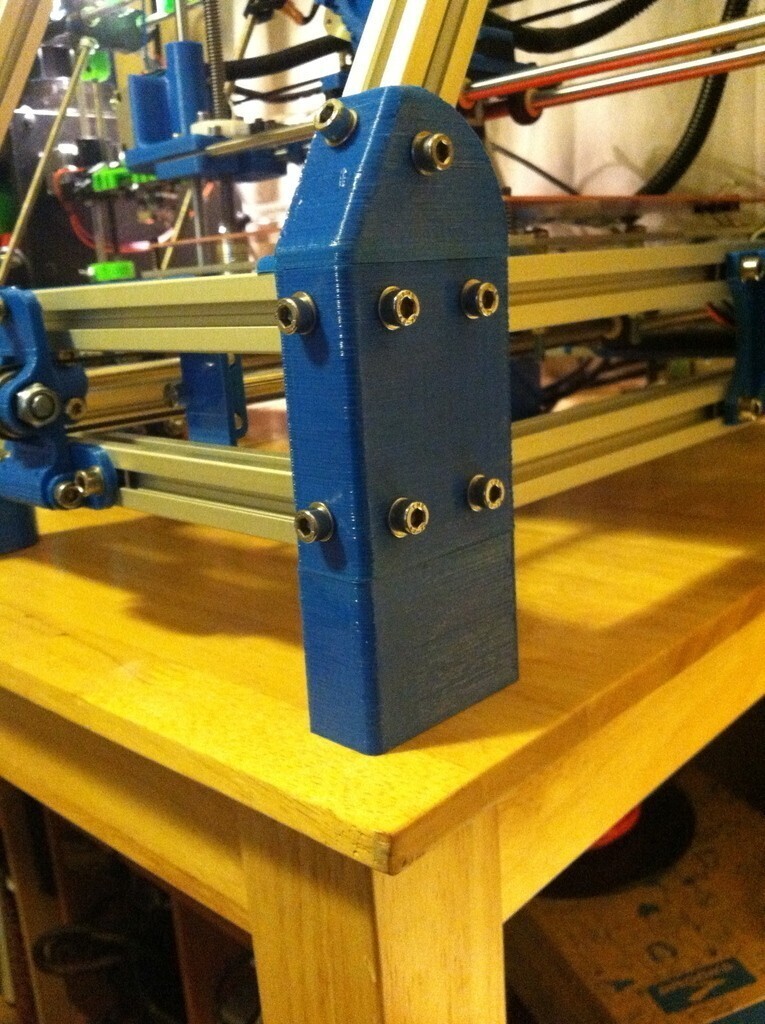

I wanted to jack up my new MendelMax so I can mount my power supply under there, but didn't like the look of any of the legs I could find on Thingiverse so I made these. They match the profile of the existing base pieces to keep things sexy and bolt through the bottom holes.

They are 1.8" (approx 45.75mm) tall, which was more than enough to fit my power supply and primarily sized to fit the 50mm bolts I already had.

I'm a mesh modeler, so I don't have SCAD to share, sorry.

3D printing settings

Print two times, front and back pairs.

I printed with 20% infill and they are plenty sturdy. I slathered some ABS/acetone goo between these and the base pieces to make sure they stay straight since there's only one bolt per riser.

Hold in place with the a slot-nut in the bottom of the extrusion and an M5 50mm bolt.

  • 3D file format: STL

Tags

Creator

License

CC BY
