Melzi 2040 Electronics Case

Preview_2040_Melzi_Case_Title.png Download free SCAD file Melzi 2040 Electronics Case • Template to 3D print, trg3dp 20180411_203006.jpg Download free SCAD file Melzi 2040 Electronics Case • Template to 3D print, trg3dp 0ae0da5c95e4110ae10831670e01f4f9.png Download free SCAD file Melzi 2040 Electronics Case • Template to 3D print, trg3dp 215339d6b414ef75dae63d685bd1cf69.png Download free SCAD file Melzi 2040 Electronics Case • Template to 3D print, trg3dp 70263084d296773b8210c84131f970c5.png Download free SCAD file Melzi 2040 Electronics Case • Template to 3D print, trg3dp

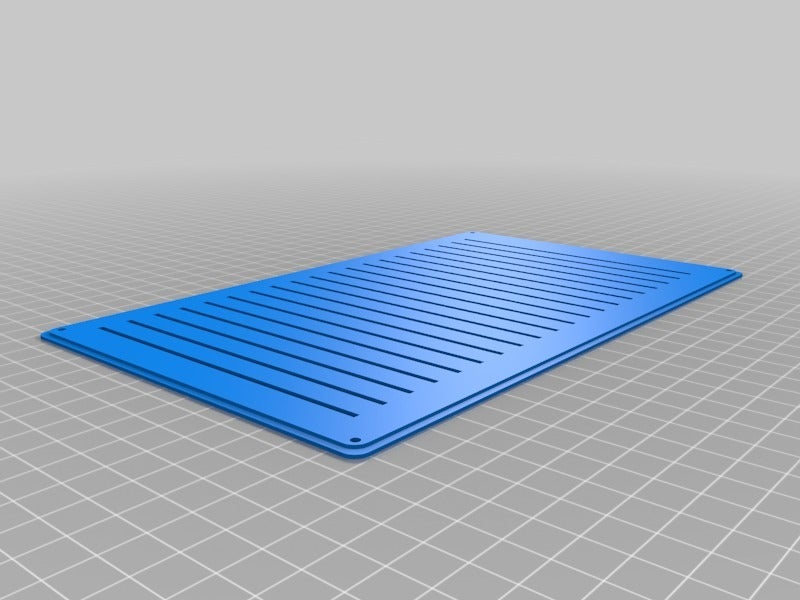

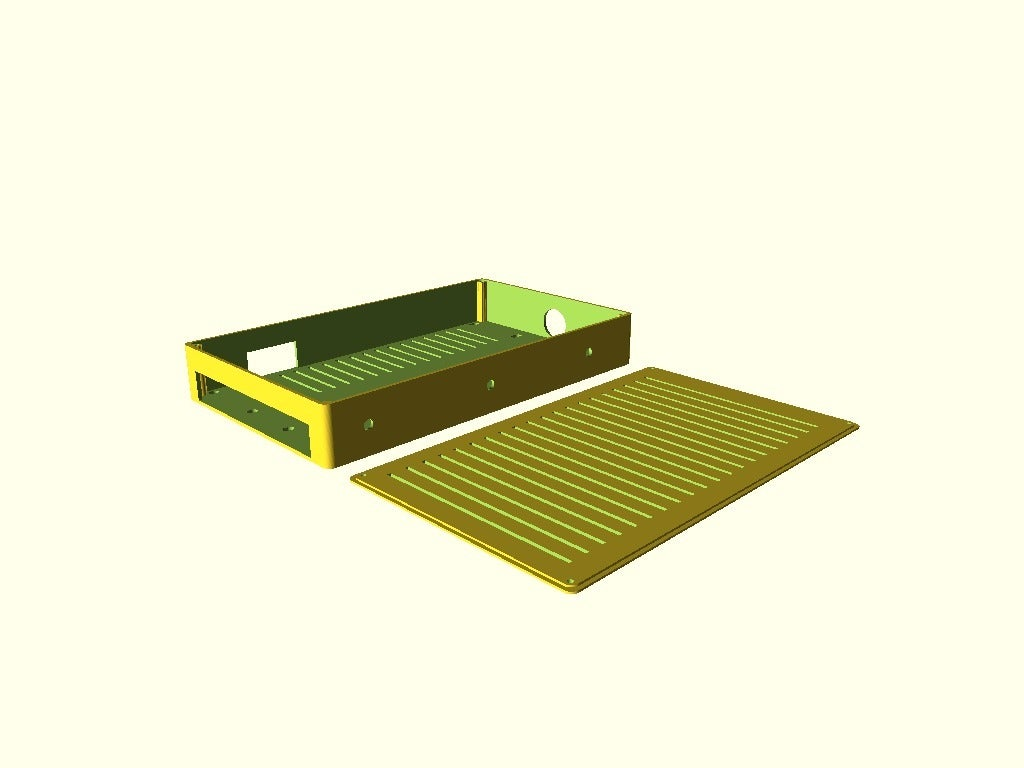

Melzi_2040_Case_lid.stl Download free SCAD file Melzi 2040 Electronics Case • Template to 3D print, trg3dp Melzi_2040_Case_Box.stl Download free SCAD file Melzi 2040 Electronics Case • Template to 3D print, trg3dp
Make
?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 513 views
  • 1 like
  • 17 downloads

3D model description

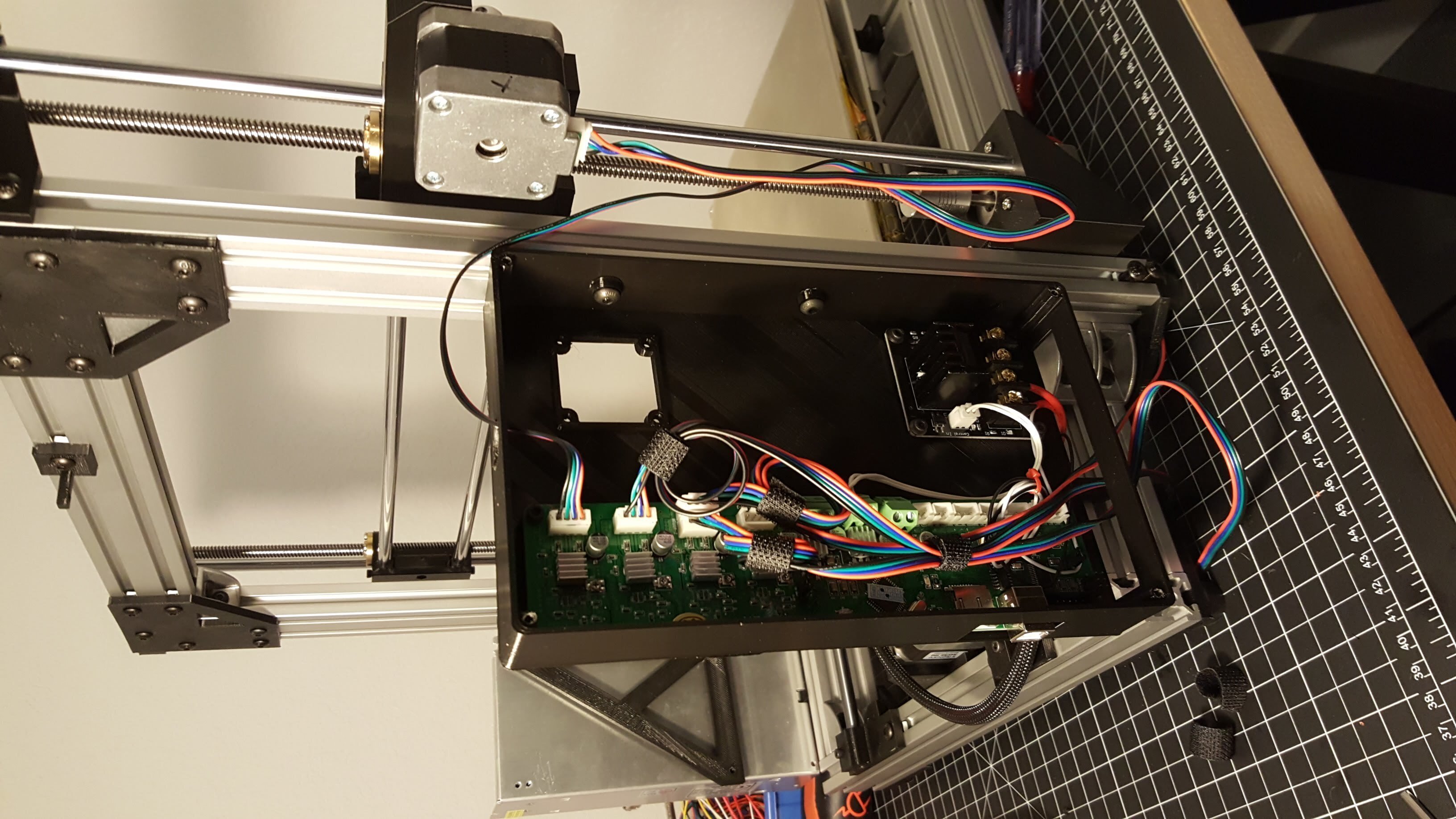

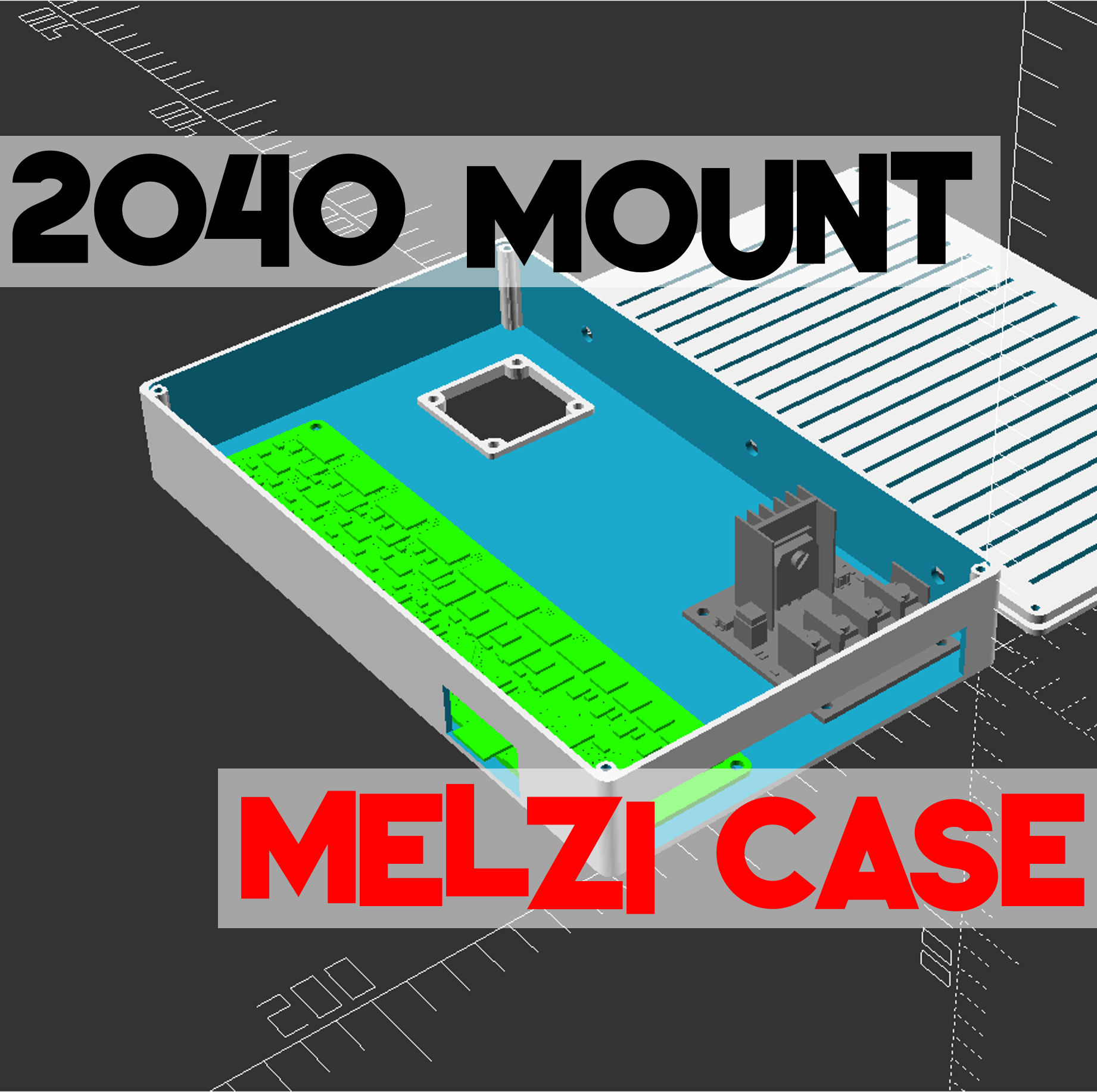

I designed this case to work with my Melzi version of an AM8 frame. It can support a Melzi v2 board, mosfet and raspberry pi OR another mosfet.

The source is included, so you can set numMosfets = 2 if you want to support 2 mosfet boards.

Use caution, some mosfets might be too tall for this case.

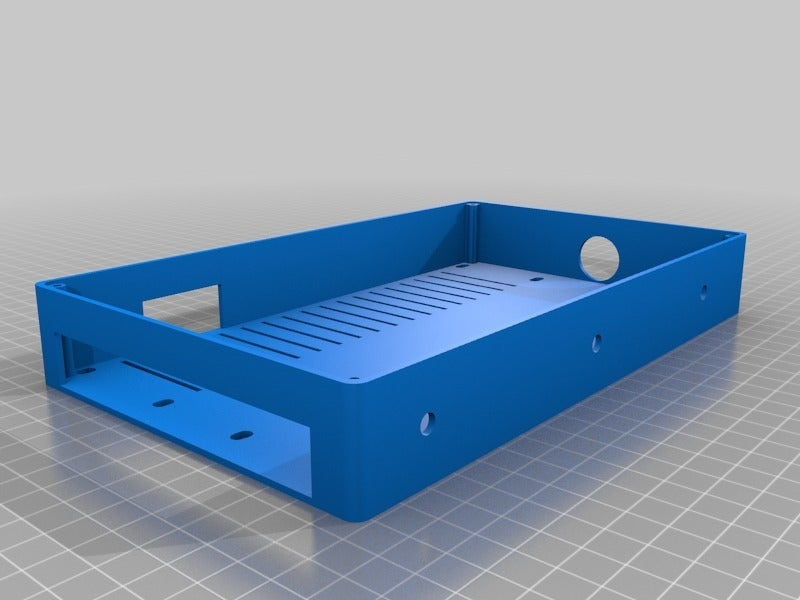

The fan hole is for a 40mm fan. A noctua should fit inside, if not it will fit outside.

  • 3D file format: SCAD and STL
  • Publication date: 2020/02/25 at 13:29
