Tacklife vacuum cleaner mod. PVC05B connector

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 220 views

3D model description

I made this project to be able to use the Tacklife vacuum cleaner
for vacuuming sawdust from wood tools such as: planer, belt sander, oscillating multi-tool, without damage or alter the original pipe with its connectors that can still be used to vacuum the floor.

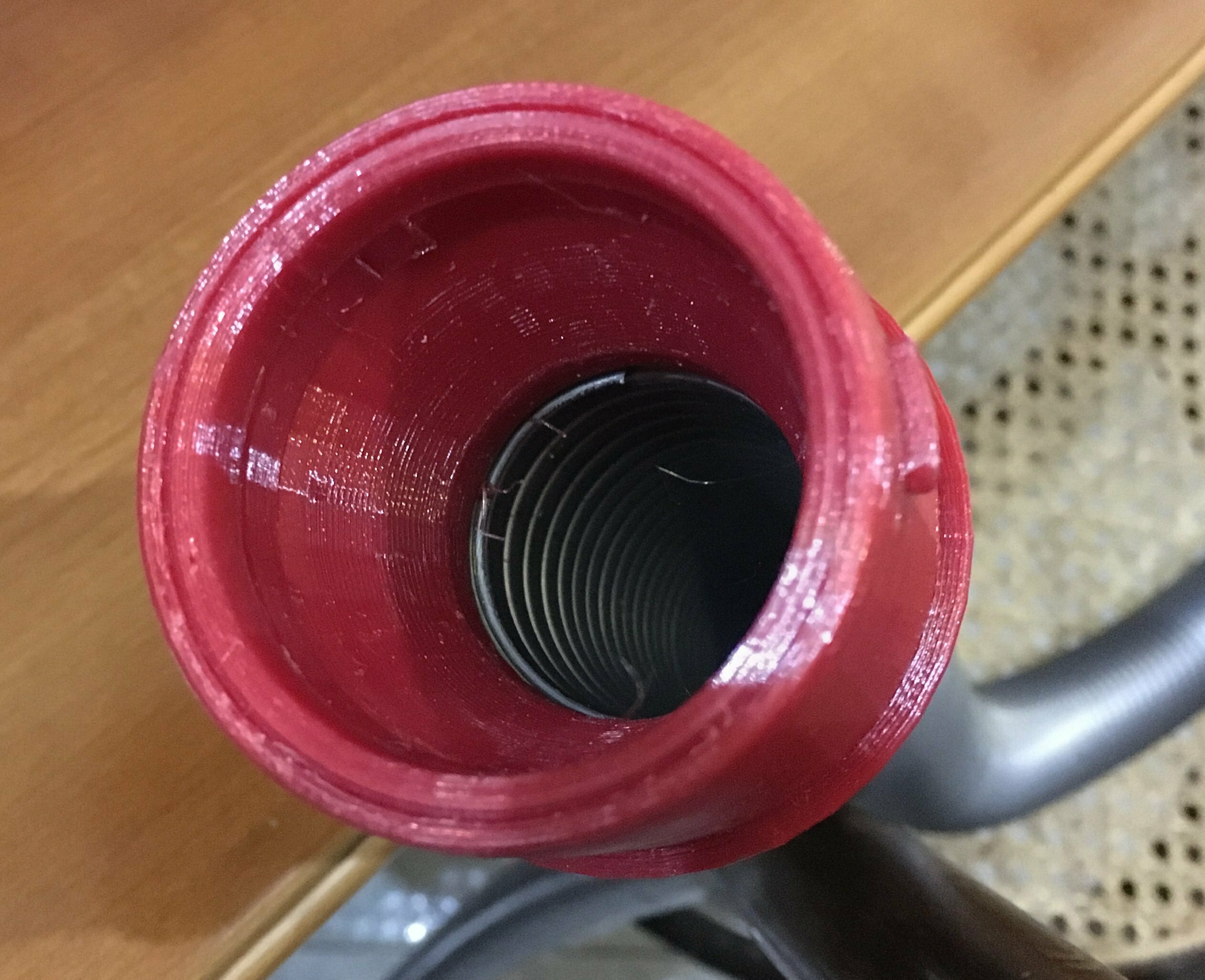

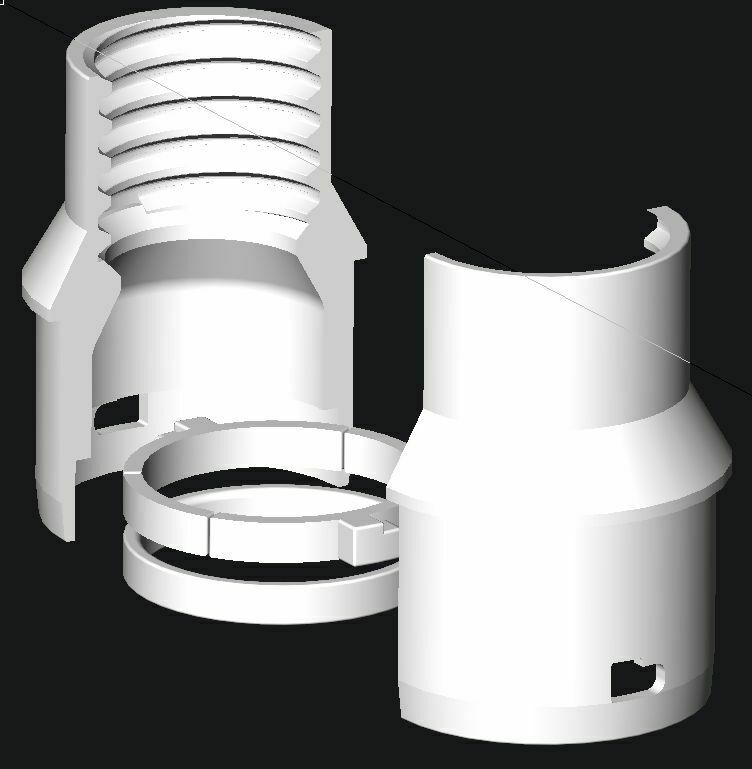

It is equipped with an internal left-handed thread for coiled pipe with internal diameter 32 mm (38-40 external).

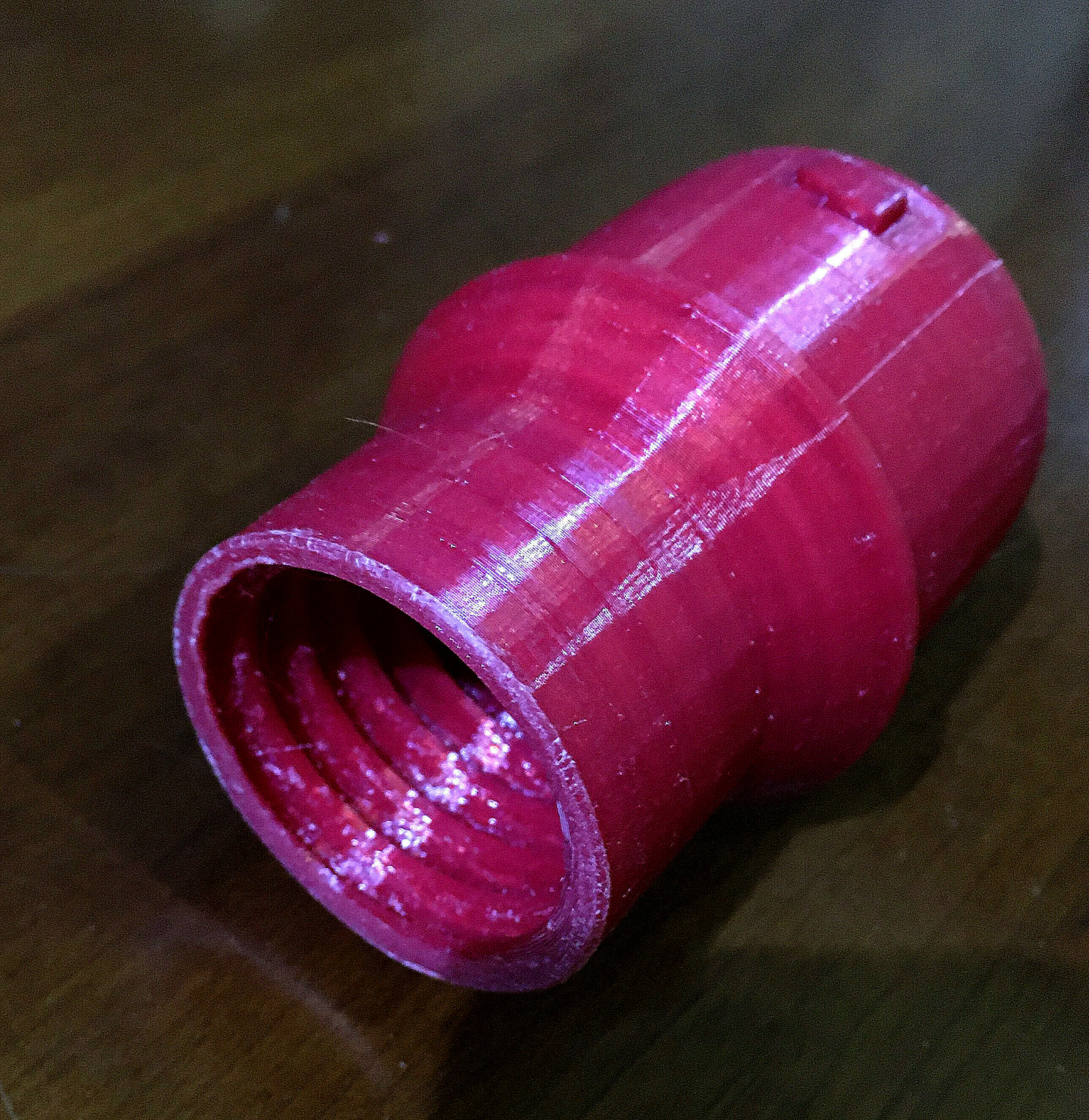

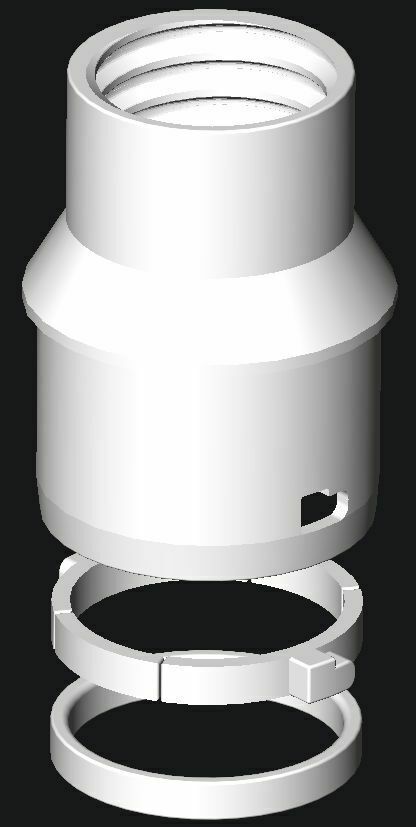

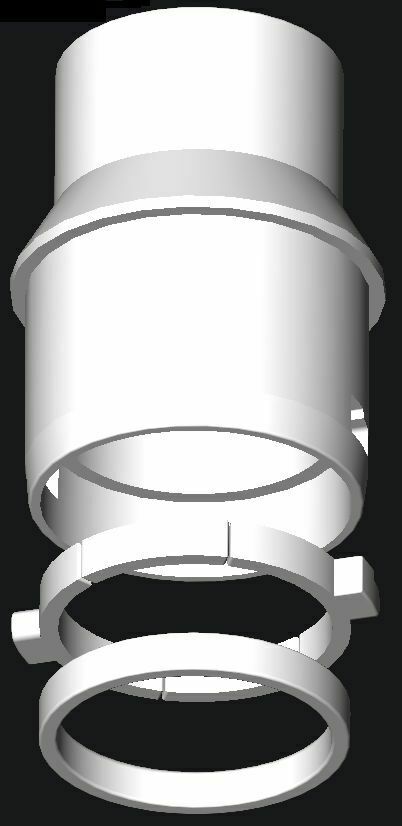

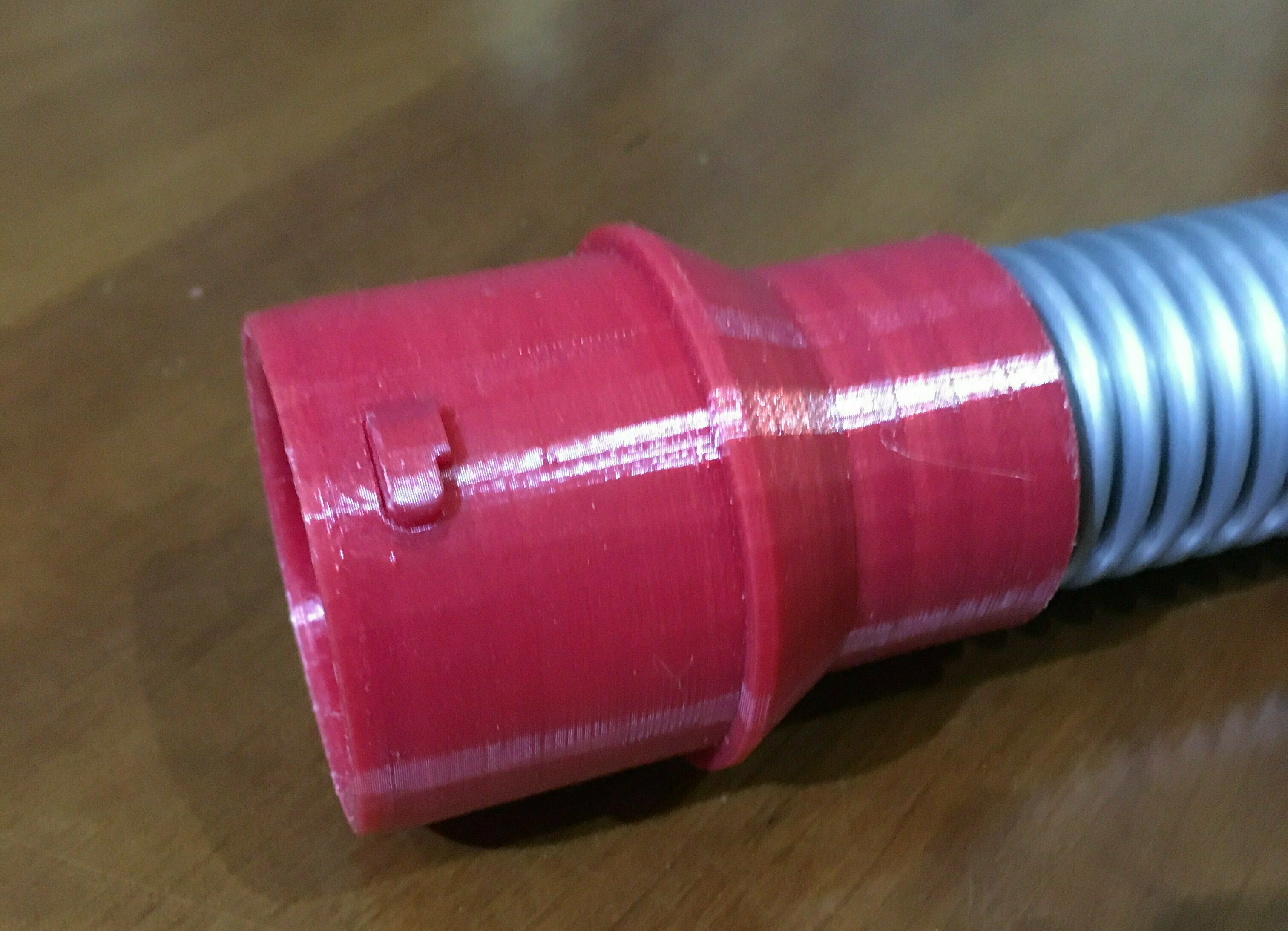

From the photos it can be seen that the tool is made in 3 parts:

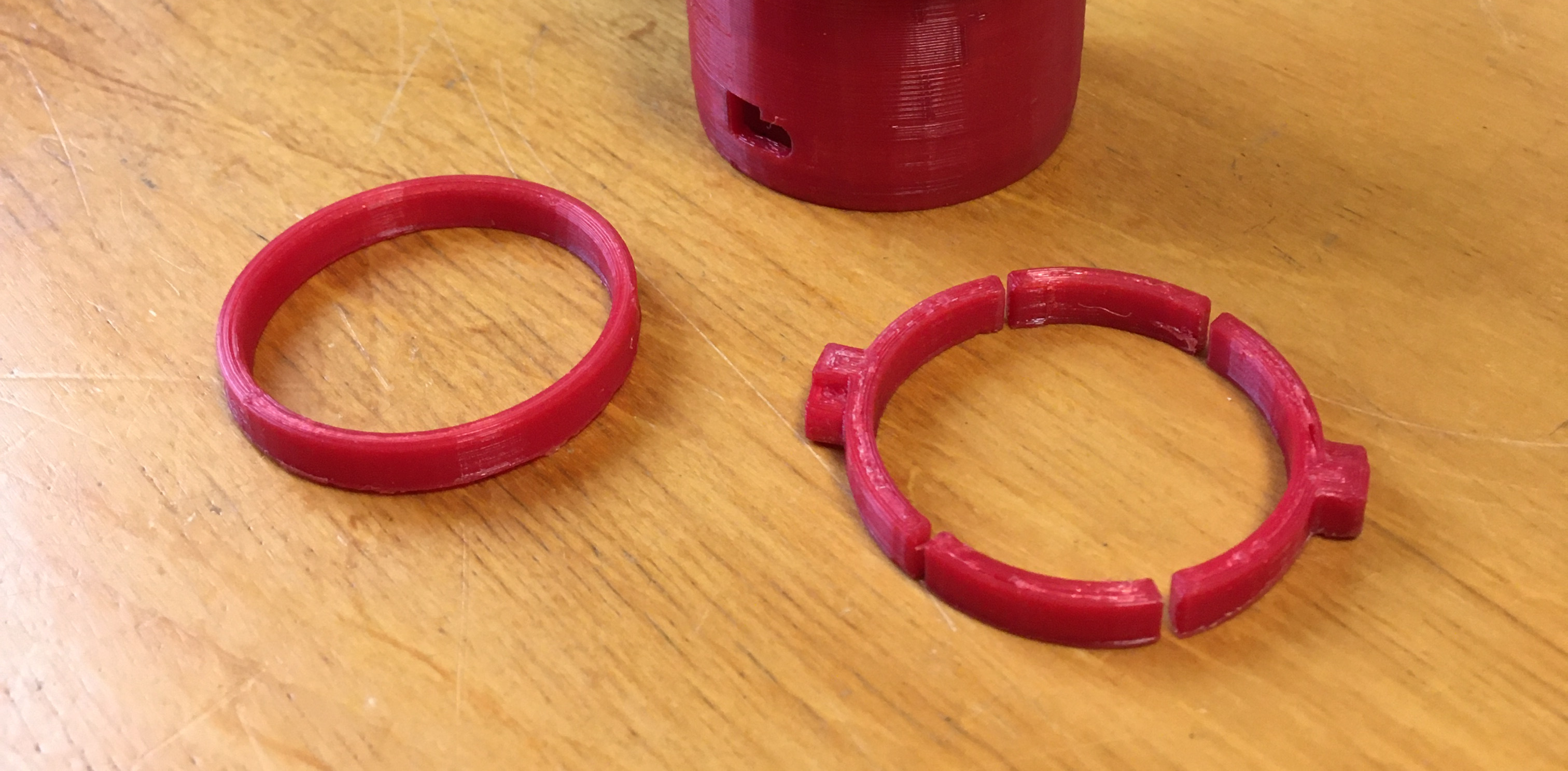

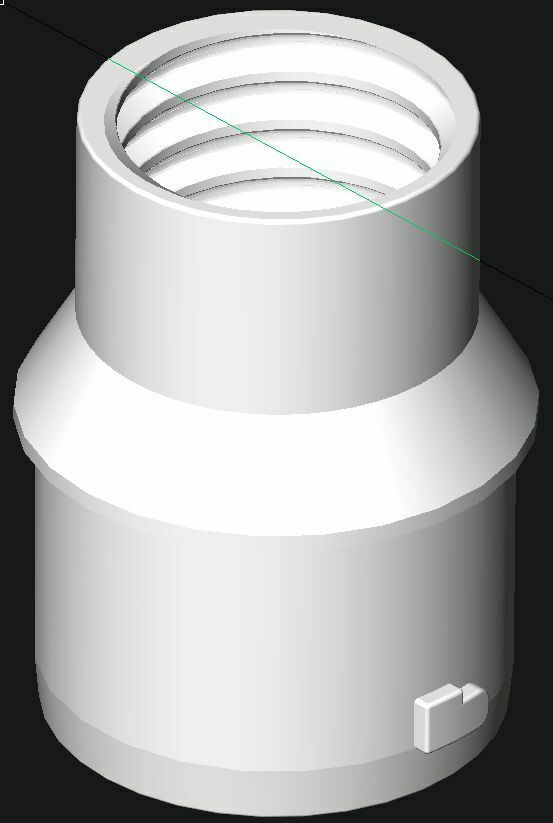

manifold, bayonet couplings and final retaining ring.
All components are interlocking, but if you prefer you can also put a few drops of cyanoacrylate to permanently lock the lower ring.
This model is printed in PETG, with 0.2 mm layers;
Bed temperature 70 °C and extruder at 240 °C.
It doesn't have the silky look of PLA, but I guarantee it is indestructible.
For those wishing to print in PLA, I have also attached the GCODE for PLA, with bed temperature 60 °C and extruder at 200 °C.

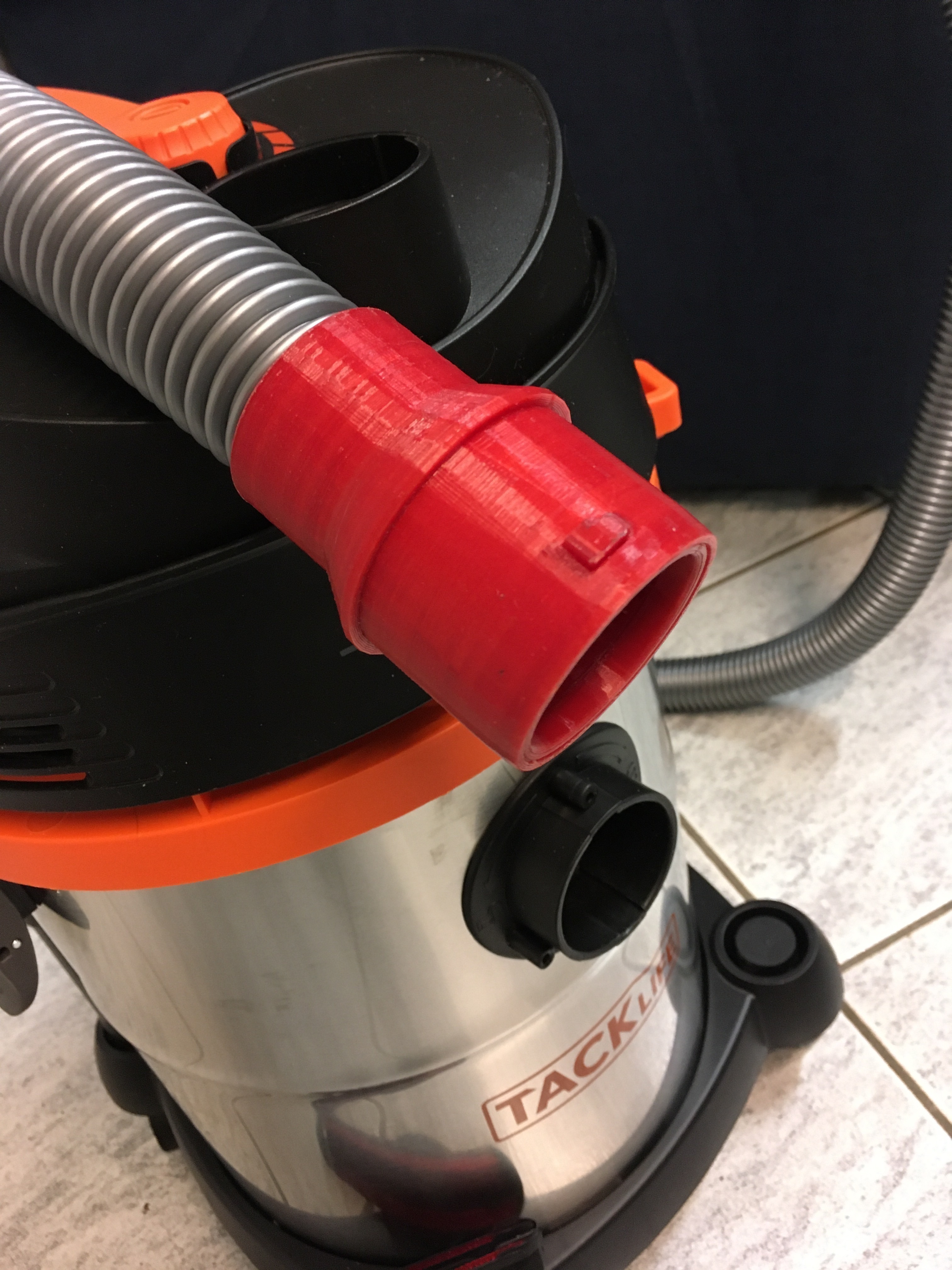

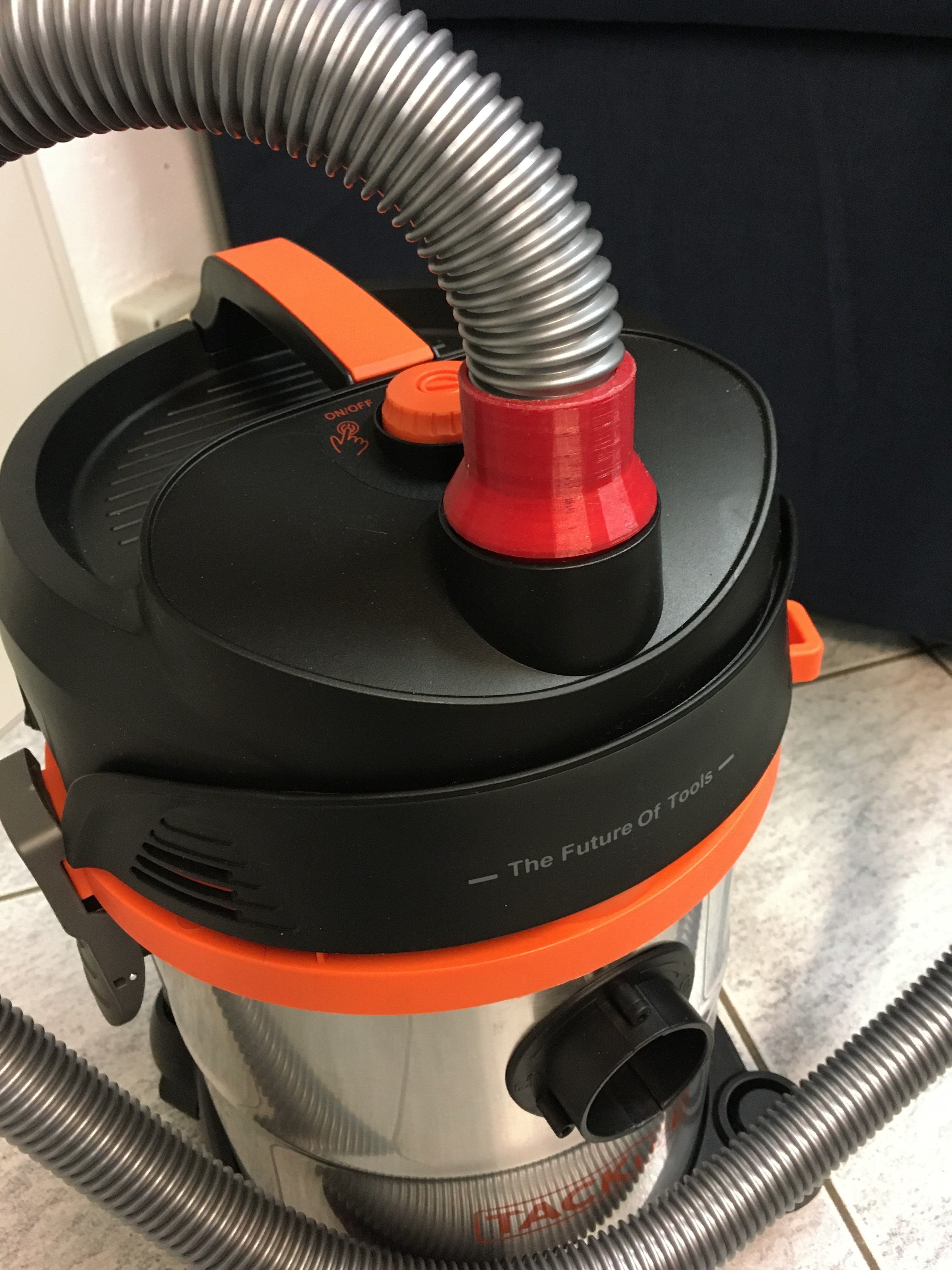

The piece fits perfectly into the Tacklife mod. PVC05B vacuum cleaner.
Soon you will find on my profile also other tools to connect the 32 mm pipe to the carpenter's tools.

3D printing settings

PETG, with 0.2 mm layers, bed temperature 70 °C and extruder at 240 °C.
PLA, with with 0.2 mm layers, bed temperature 60 °C and extruder at 200 °C.
All GCODE files are for the Ender 3 pro printer, and were generated with the Prusaslicer code.
The attached STLs can be used with any 3D printer

  • 3D file format: GCODE and STL
