Main-Gear-Box, for Helicopter, Full metal bearing type

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This model is a modified model of Main-Gear-Box (see URL) created previously.

The modification purpose is for using the major components of the Helicopter-Power-Train model which driven by Turboshaft model (see URL) created recently.

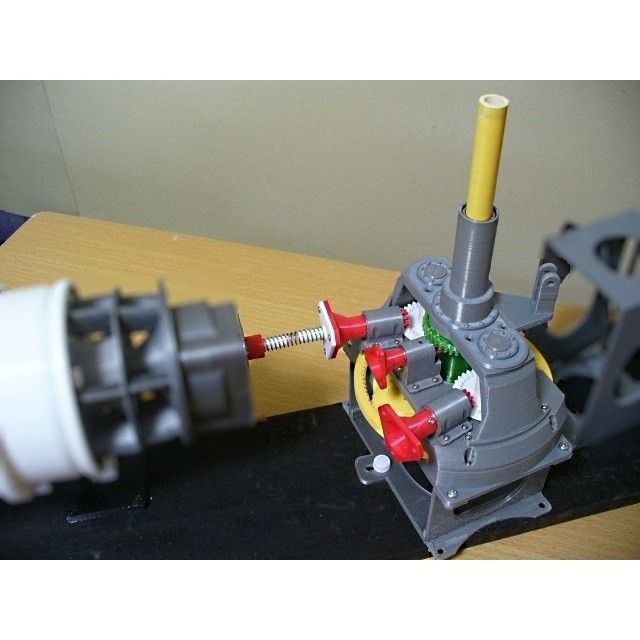

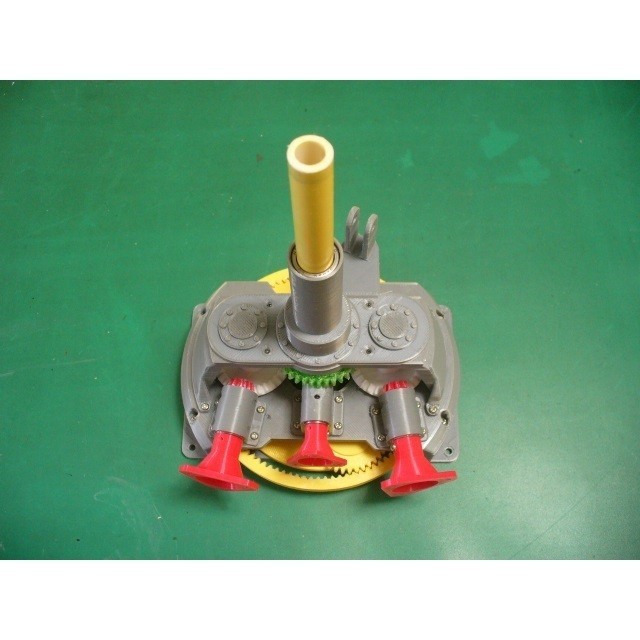

About Helicopter-Power-Train model image, refer to the photo.

The following modifications are introduced in order to obtain the stable rotation.

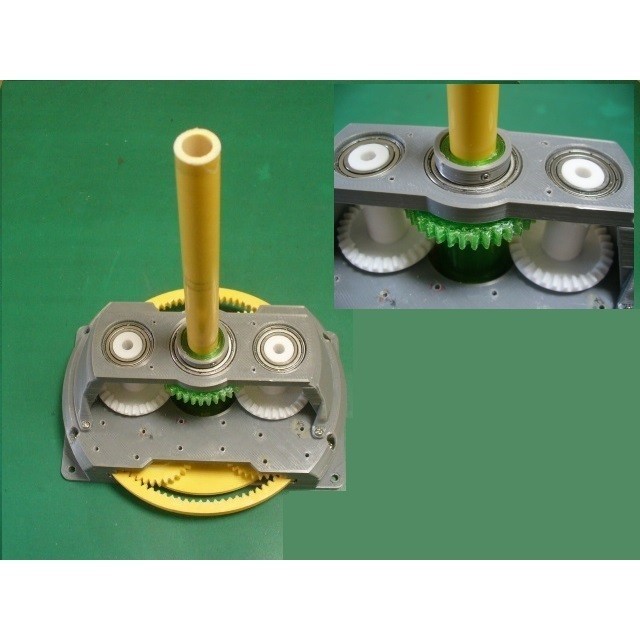

1. Use Metal Bearings for all the rotation shafts.
2. Change Input Gear into Bevel Gear.
3. Provisions so that Main Rotor Head will be attached in the Future.
"Freewheel Clutch" is uploaded as option. Refer to;

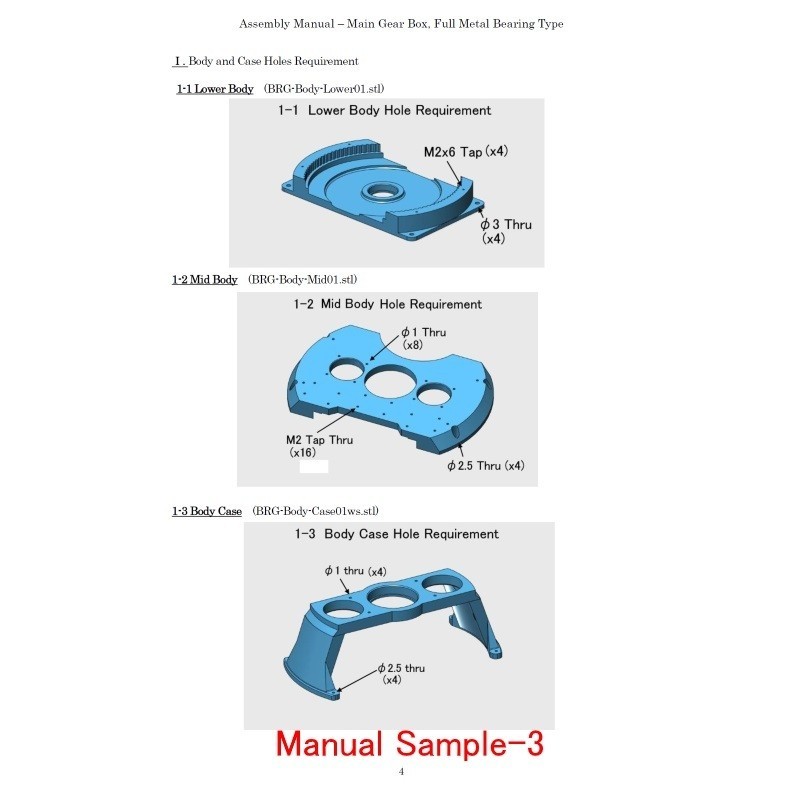

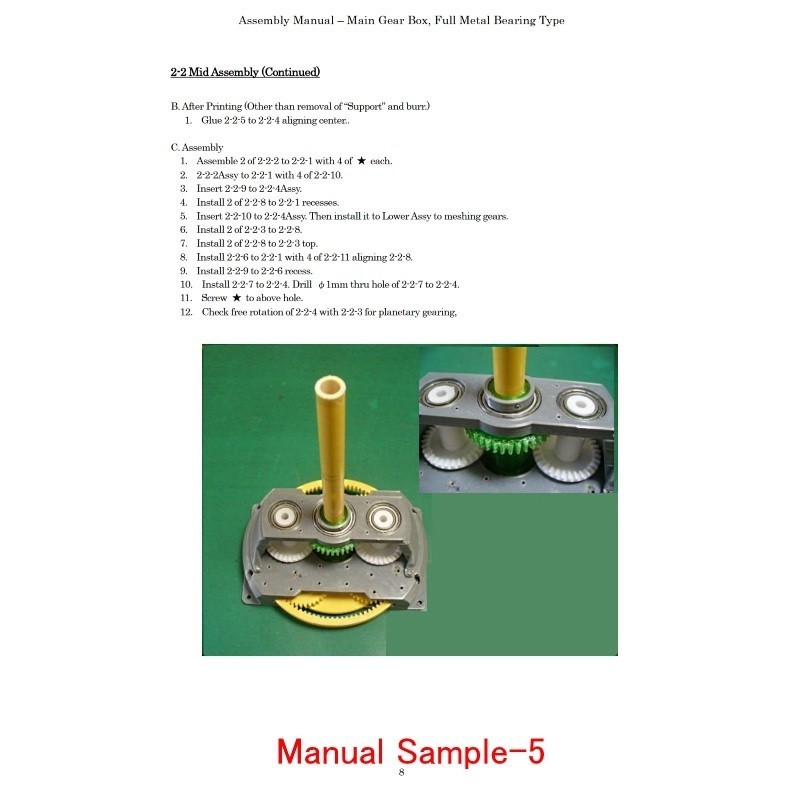

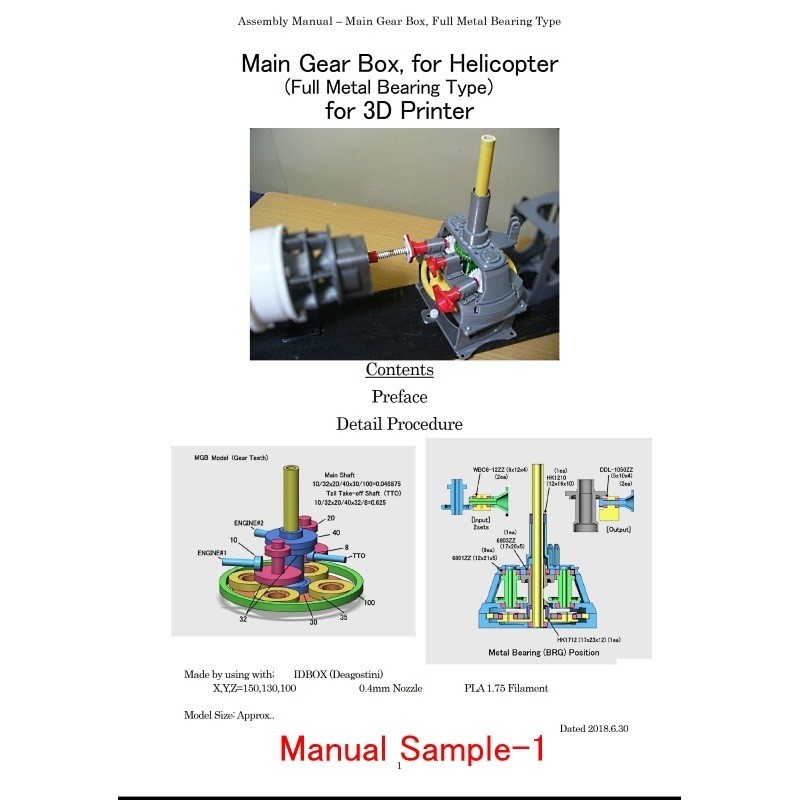

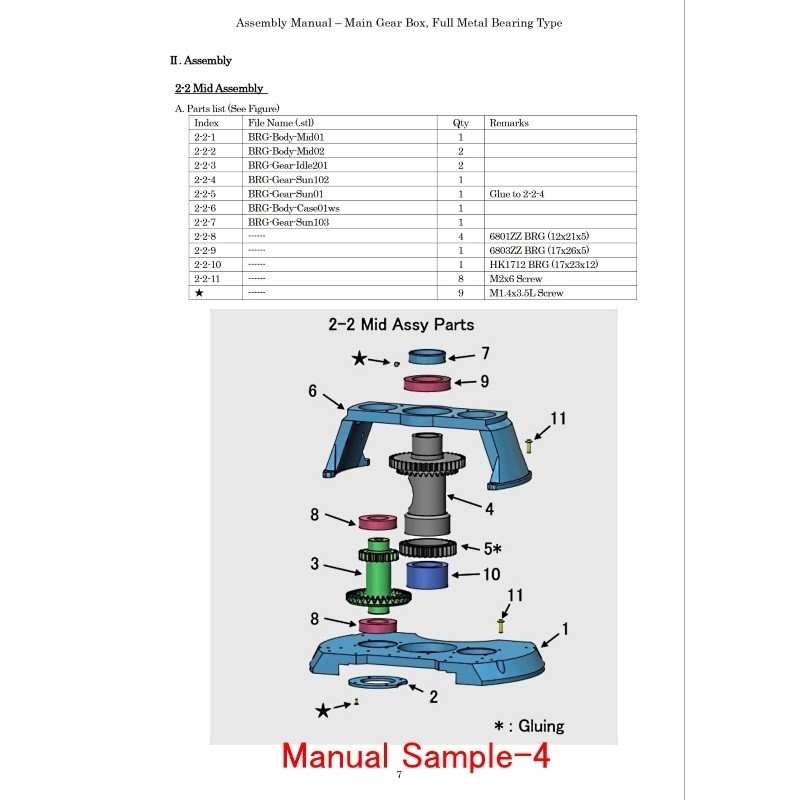

Assembly Manual (PDF format, total 14 pages)
The detail assembly manual including "Parts-List", "After printing treatment" and "Assembly procedure" are prepared based on "Standard Skill (Filing, Drilling, Tapping and painting)".

Download files includes;
-files: STL Files (24 items)
STL file name: "ws" of last 2 digits means "With Support" which special designed.

Purchase Parts Information;
- Bearing
Metal Bearings are used for every shafts. See Assembly Manual.
Estimate cost is about 6,000yen for 1 set of bearings in Japan.
-ABS Tube
See Assembly Manual.
-Screws and etc.
Micro screws M1.4x3.5L - 5 ea - Direct screw-in to 1 mm diameter hole (No nut),
Other size of Screws - See Assembly Manual.

Total Net Print Time: Approx. 35HR
- (Estimated as case of PLA, 0.4mm Nozzle, 0.2mm Layer Height, 40% infill and No raft and support)

Note: When at actual print, each parameter may be adjusted by your experience.

I do hope your success!!

[Update] 2018.7.28
Part info. in Assembly Manual revised
[Update] 2020.2.20
No Special Support Parts are added by request from purchaser.

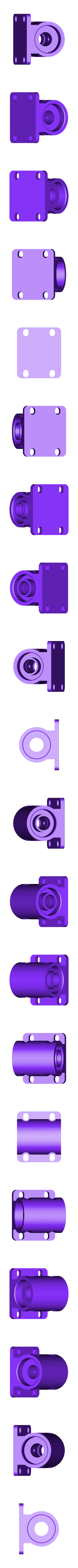

- BRG-Body-Case01.stl
- BRG-Pinion8-Hsg201.stl
- BRG-Pinion10-Hsg201.stl
- MGB-Top-Cover01.stl
Freewheel Clutch uploaded as ;
See Figure added

3D printing settings

3D printing settings
Raft, Support, Layer Height, Infill: Depending on your experience.
But the parts having gear, small shaft and thin portion: 100% infill is recommended.
My models were printed by "idbox" using with 0.4 nozzle, 1.75 PLA.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • Assembly

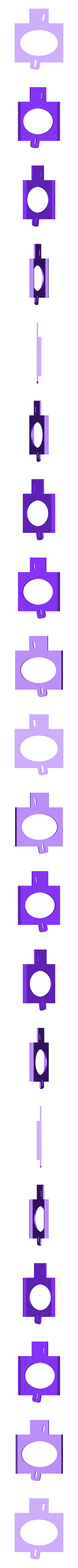

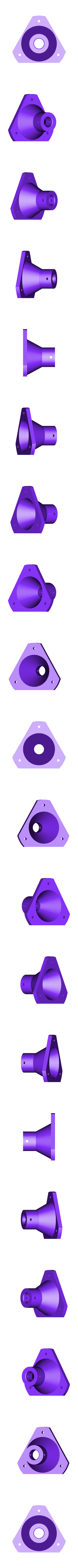

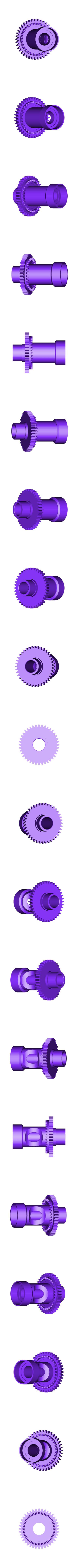

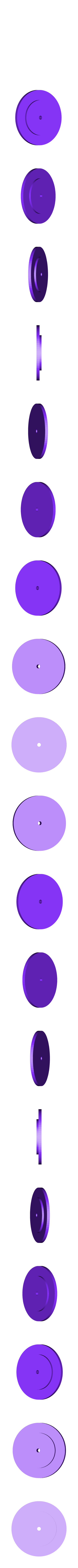

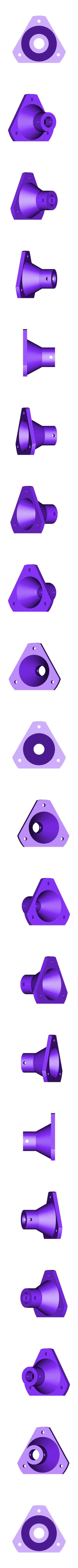

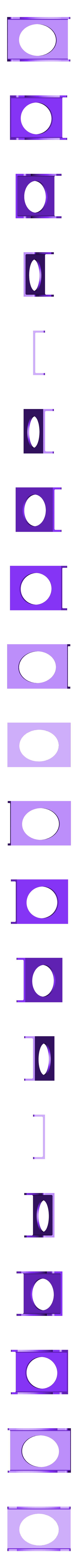

    • BRG-Body-Case01.stl
    • BRG-Body-Case01ws.stl
    • BRG-Body-Lower01.stl
    • BRG-Body-Mid01.stl
    • BRG-Body-Mid02.stl
    • BRG-Gear-Idler201.stl
    • BRG-Gear-Sun01.stl
    • BRG-Gear-Sun102.stl
    • BRG-Gear-Sun103.stl

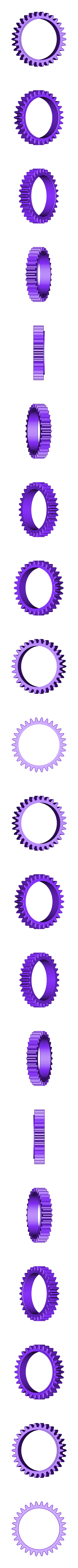

    • BRG-Gear100-5-Ring101.stl

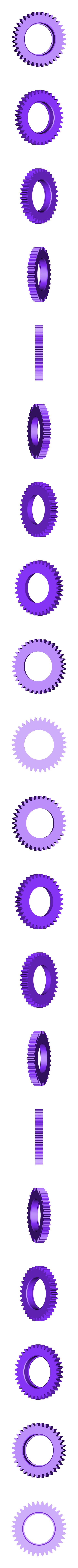

    • BRG-Gear35-21-5-101.stl

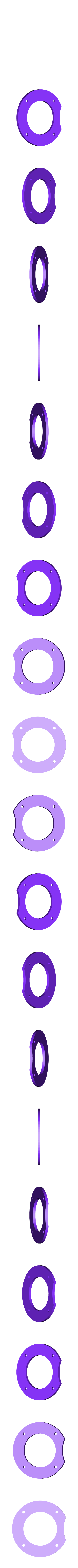

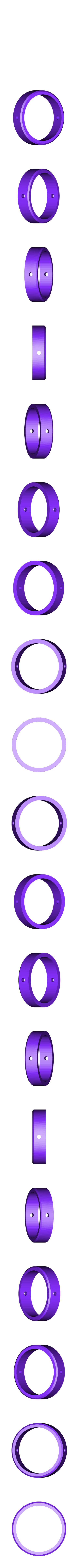

    • BRG-Main-Sft-Spacer01.stl

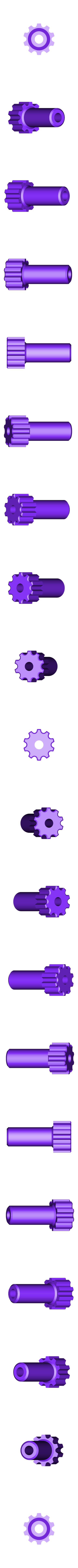

    • BRG-Pinion10-101.stl
    • BRG-Pinion10-Hsg201.stl
    • BRG-Pinion10-Hsg201ws.stl
    • BRG-Pinion8-Hsg201.stl
    • BRG-Pinion8-Hsg201ws.stl
    • BRG-Planet-Carrier01.stl
    • BRG-Planet-Carrier02.stl
    • Drive-Cplg01.stl

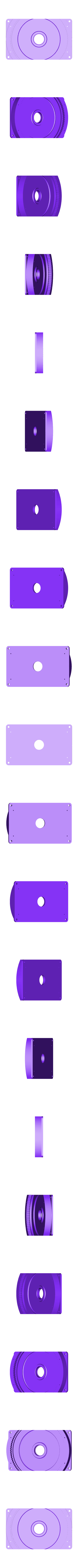

    • Drive-Flg-MGB01.stl

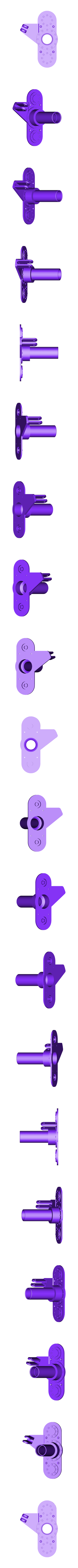

    • Gear08-Pinion-Flg01.stl

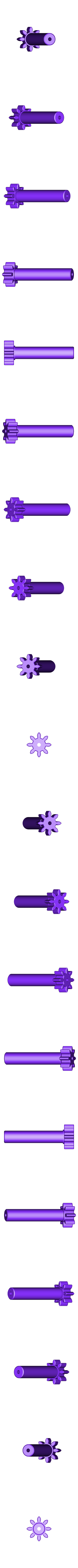

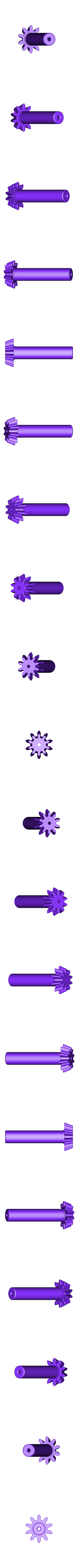

    • Gear08-Pinion101.stl
    • Gear10-Pinion-Flg101.stl
    • MGB-Top-Cover01.stl
    • MGB-Top-Cover01ws.stl
    • Stand-Foot-Slide101.stl
    • Stand-Foot01.stl

    Learn more about the formats

  • Last update: 2020/02/20 at 15:46
  • Publication date: 2018/06/23 at 03:14





Retired Aircraft Engine Engineer
Aichi, Japan
"Aircraft Engine Museum by 3D Printer Models"

Issue with this design? Report a problem

Best sellers of the category Tools

Add a comment


Thank you! I downloaded and now it will be no problem!

Dear Tomasrepisky
Thank you very much for purchasing.
I just uploaded 4 stl files without my special support.
Please download them from Cults site.
Thank you for message.

Hello, I purchased this model and I have a problem with the STL that are "WS" (with special support). Can you please put up files that do not have supports? I will add my own. Thank you! :-)
