M4 Pistol Grip Foregrip

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.8k views
  • 6 likes
  • 73 downloads

3D model description

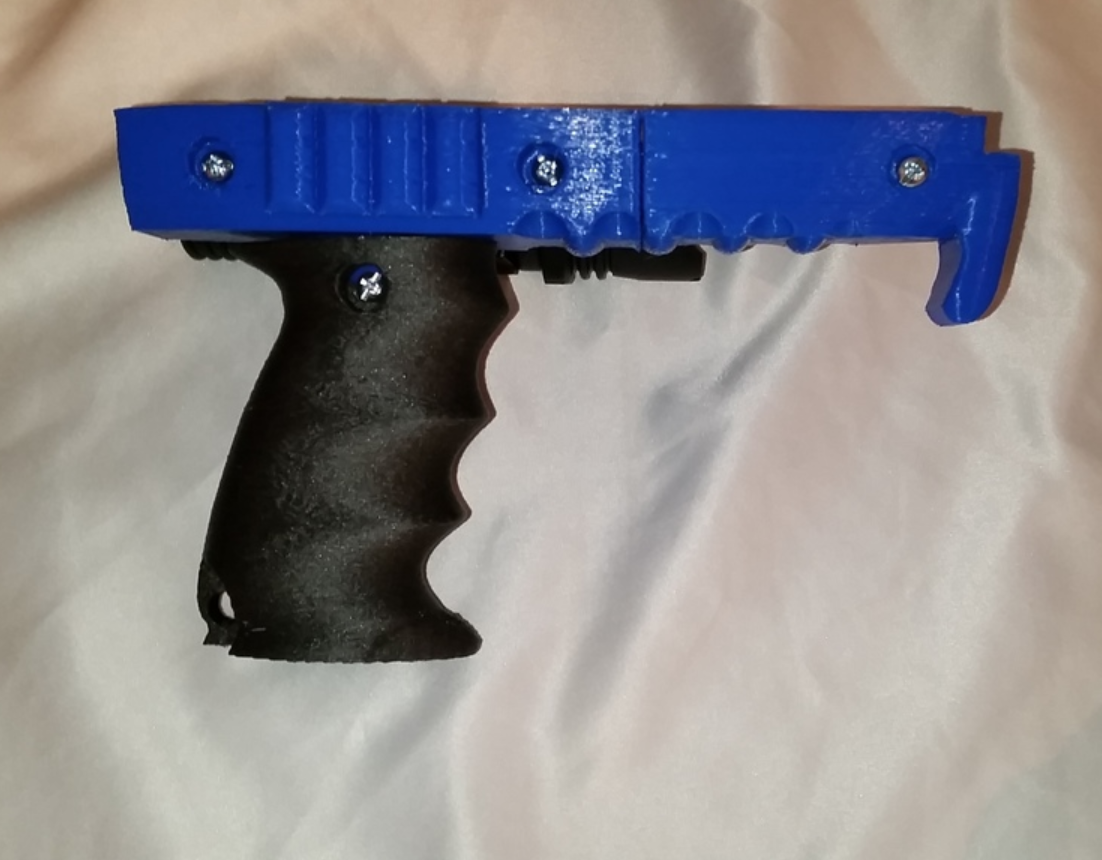

This is a vertical pistol grip and horizontal fore grip all in one designed to fit a standard M4 length lower rail. The current file works fine however my printer cannot handle the entire piece at once. I am currently working on breaking it into 3 parts so that you can hook them together with a couple screws and print much easier. I cut the hex holes for the screws to fit a 6/32 machine screw I picked up from the local hardware store. If you want a different screw size, feel free to message me.

The "Sample Test Piece" will let you print a small piece to make sure it fits your rail before printing the entire grip. As the sample picture shows, it is designed to fit a standard set of picatinny rails.

This thing was made with Tinkercad. Edit it online https://www.tinkercad.com/things/ia8SydHX2tq

  • 3D file format: STL

Creator

I am an engineer by day and a part time 3D designer enthusiast by night. I mainly do table top minis, terrain, etc. but I have also done many other projects such as gun accessories and a few mech designs.

I'm flexible and easy to work with. So, if you don't like something you see then feel free to shoot me a message and I'll be happy to make any changes so that my design fit your needs :)

License

CC BY SA
