M10 to M6 Pushfit Adapter 1.75mm MK7 Bowden

Download free STL file M10 to M6 Pushfit Adapter 1.75mm MK7 Bowden • 3D print object, MightyNozzleDownload free STL file M10 to M6 Pushfit Adapter 1.75mm MK7 Bowden • 3D print object, MightyNozzleDownload free STL file M10 to M6 Pushfit Adapter 1.75mm MK7 Bowden • 3D print object, MightyNozzle
Download free STL file M10 to M6 Pushfit Adapter 1.75mm MK7 Bowden • 3D print object, MightyNozzle

Did you 3D print this model?

3D model description

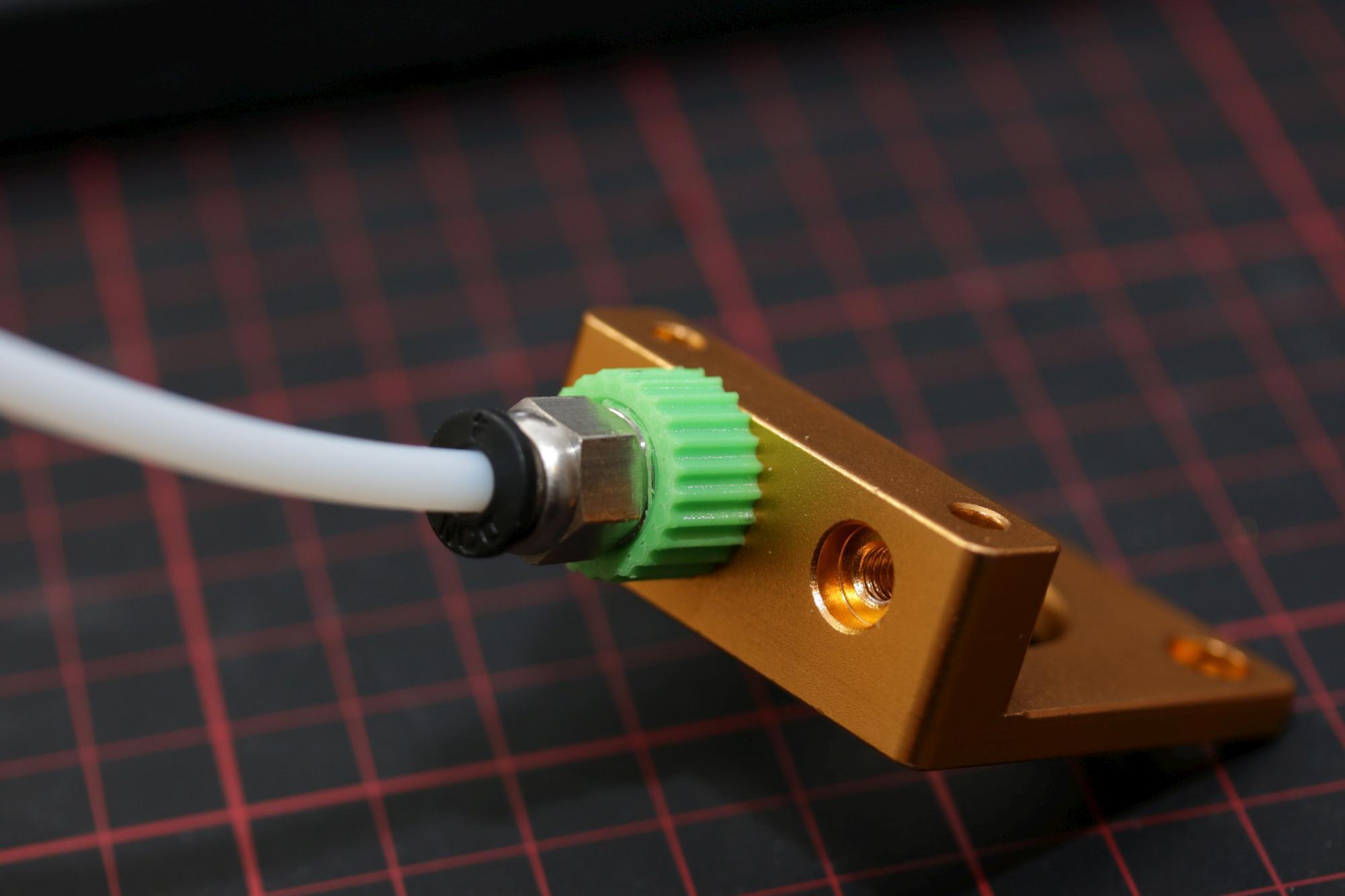

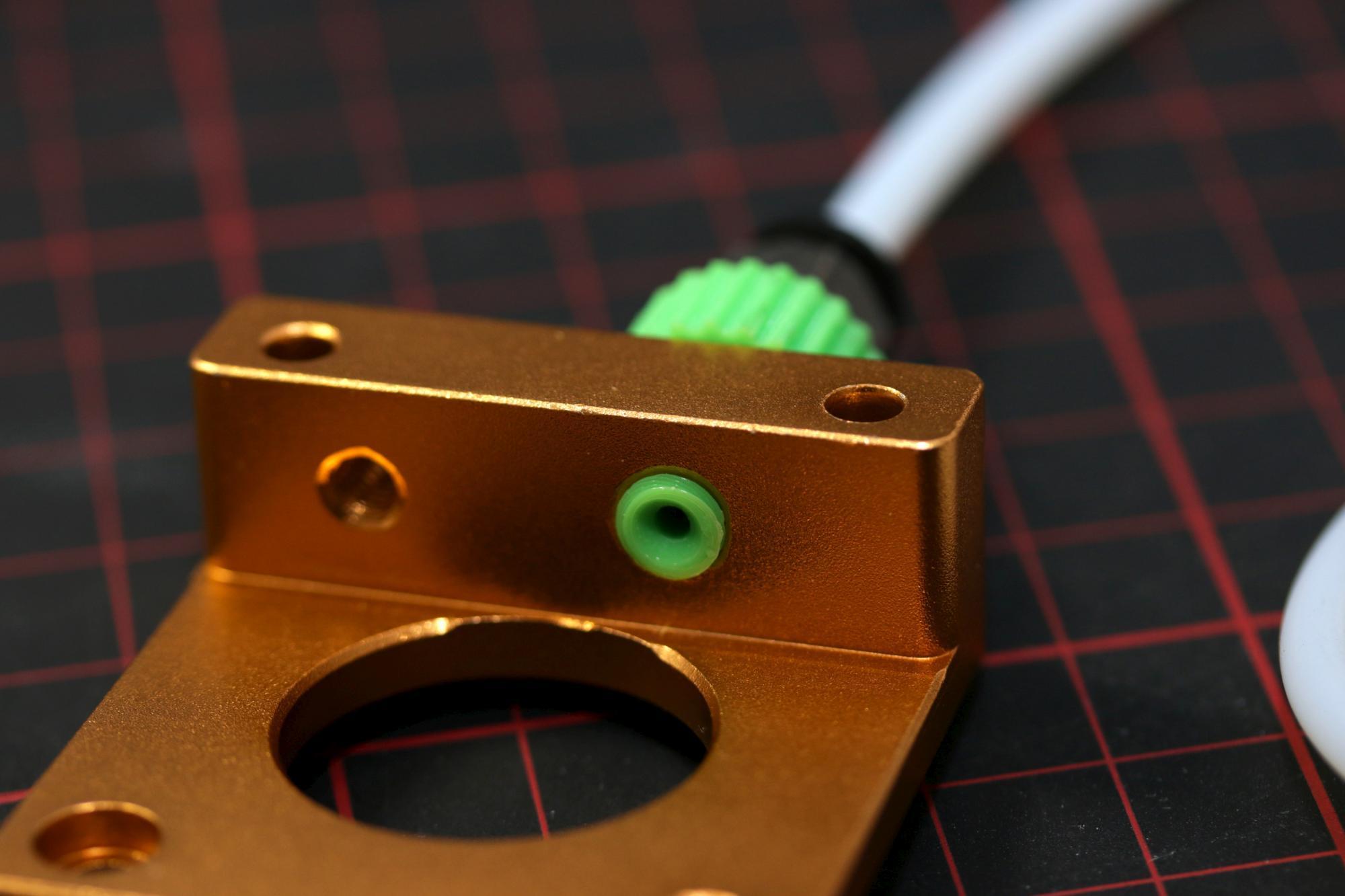

Because I don't have the correct thread of the pushfit, I've created this adapter. It takes a PC4-M10 pushfit (like the one on the china E3D bowden version) and screwed on a M6 thread of the MK7 (MK8?) extruder.
I don't know, if it will be strong enough. The weakest point is between the M6 thread and the M10 section. For the long term, you should grab one of these fittings: https://goo.gl/K0rPgI

How to support me?
Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15

3D printing settings

Rafts:
No

Supports:
No

Resolution:
0.1

Infill:
100%

Notes:
I printed it with a 0.4mm nozzle and set the extrusion width manually to 0.35mm, instead of 0.48mm. I used 4 perimeters.

Post-Printing

Step 1
Drill 2mm through the filament hole. Clean all the debris.

Step 2
Screw the Pushfit on the adapter. I used a 10mm wrench for the Pushfit and universal pliers for the adaper (teeth part). Screw the Pushfit deep enough in.

Step 3
Screw the adapter on the extruder. Not to tight, otherwise the adapter will break at the weak point.

Custom Section

Website
https://mightynozzle.com

  • 3D file format: STL

Tags

Creator

Designs 136
Downloads 26185
Followers

I like to create things to save money and time. Wherever possible, I try to use aspects of ecological design. As a full-time software developer and pragmatic solution designer my focus is on the creation of customizable things.

License

CC BY NC
