Lumix LX3 Microscope Adapter

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.8k views
  • 2 likes
  • 21 downloads

3D model description

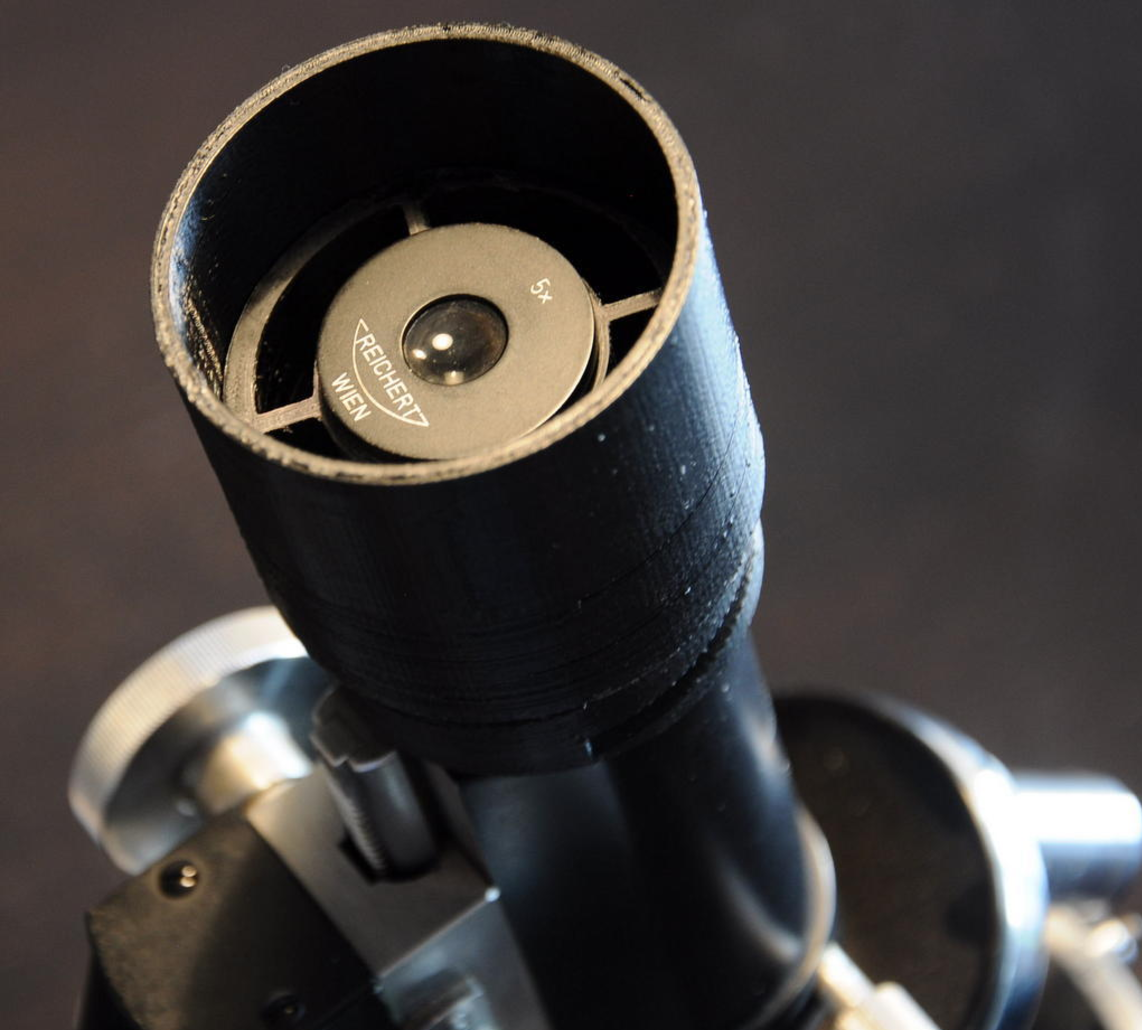

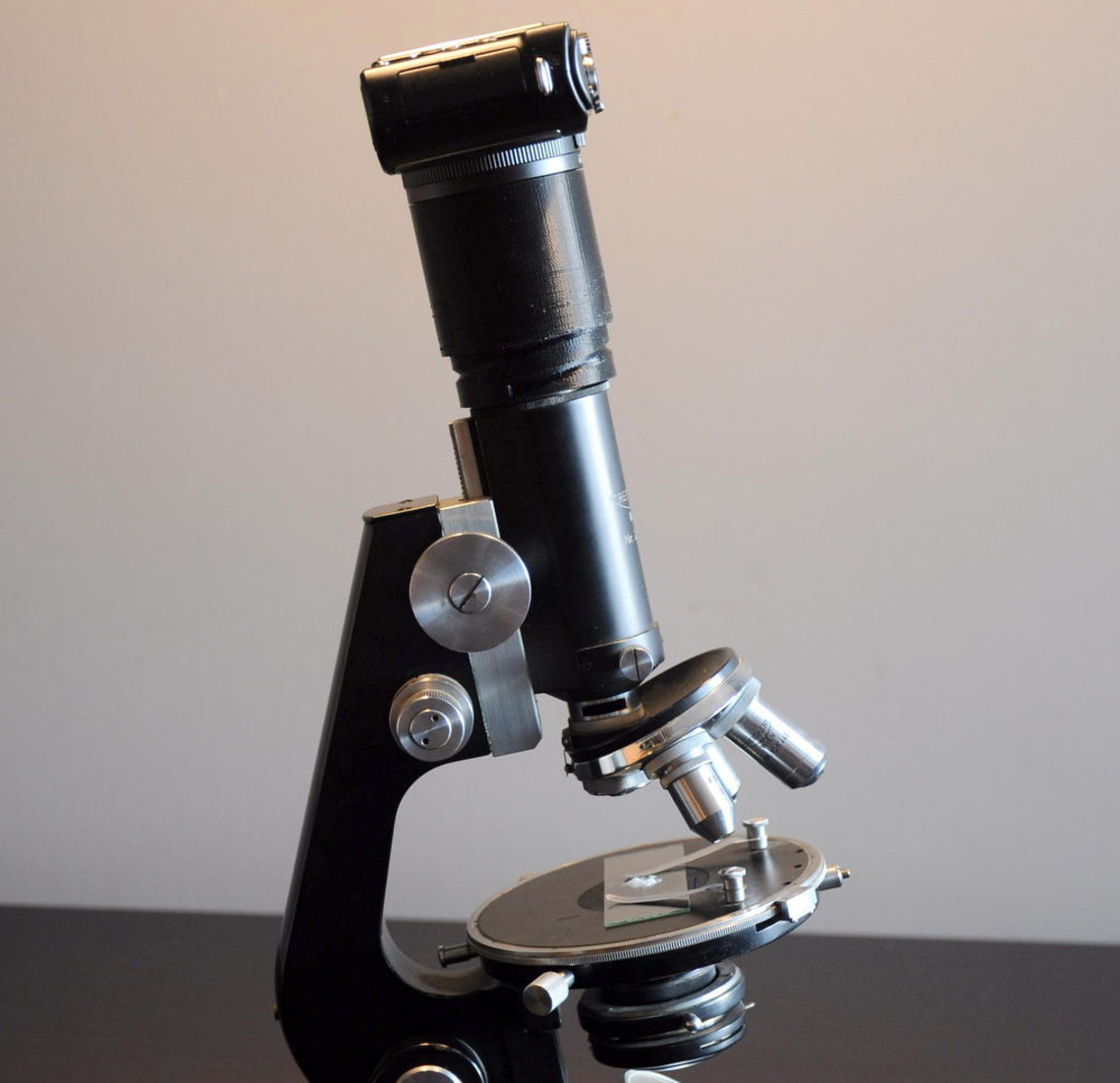

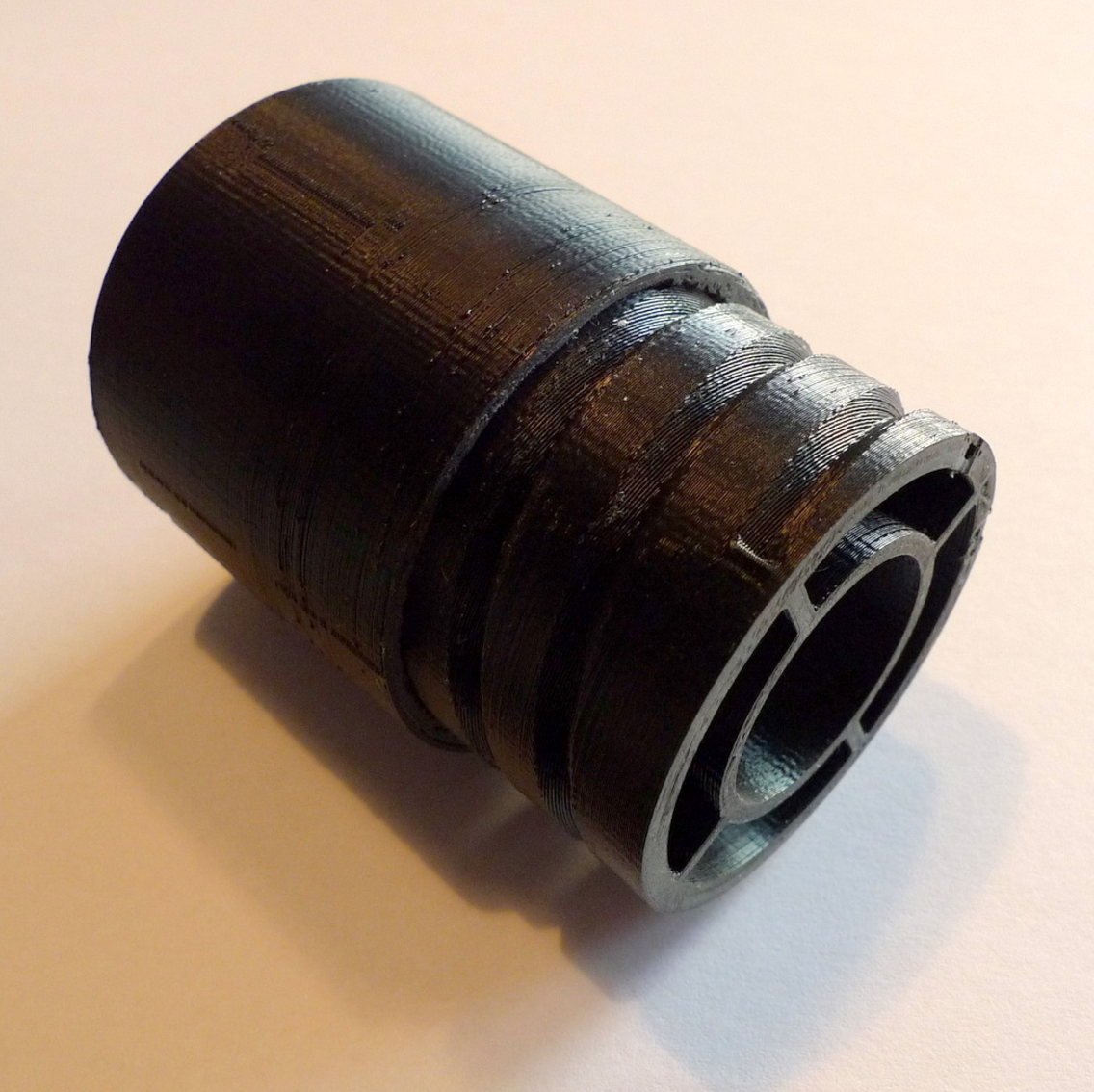

Microscope adapter for Panasonic Lumix LX3.
Should also work with other Panasonic cameras with the same lens diameter.

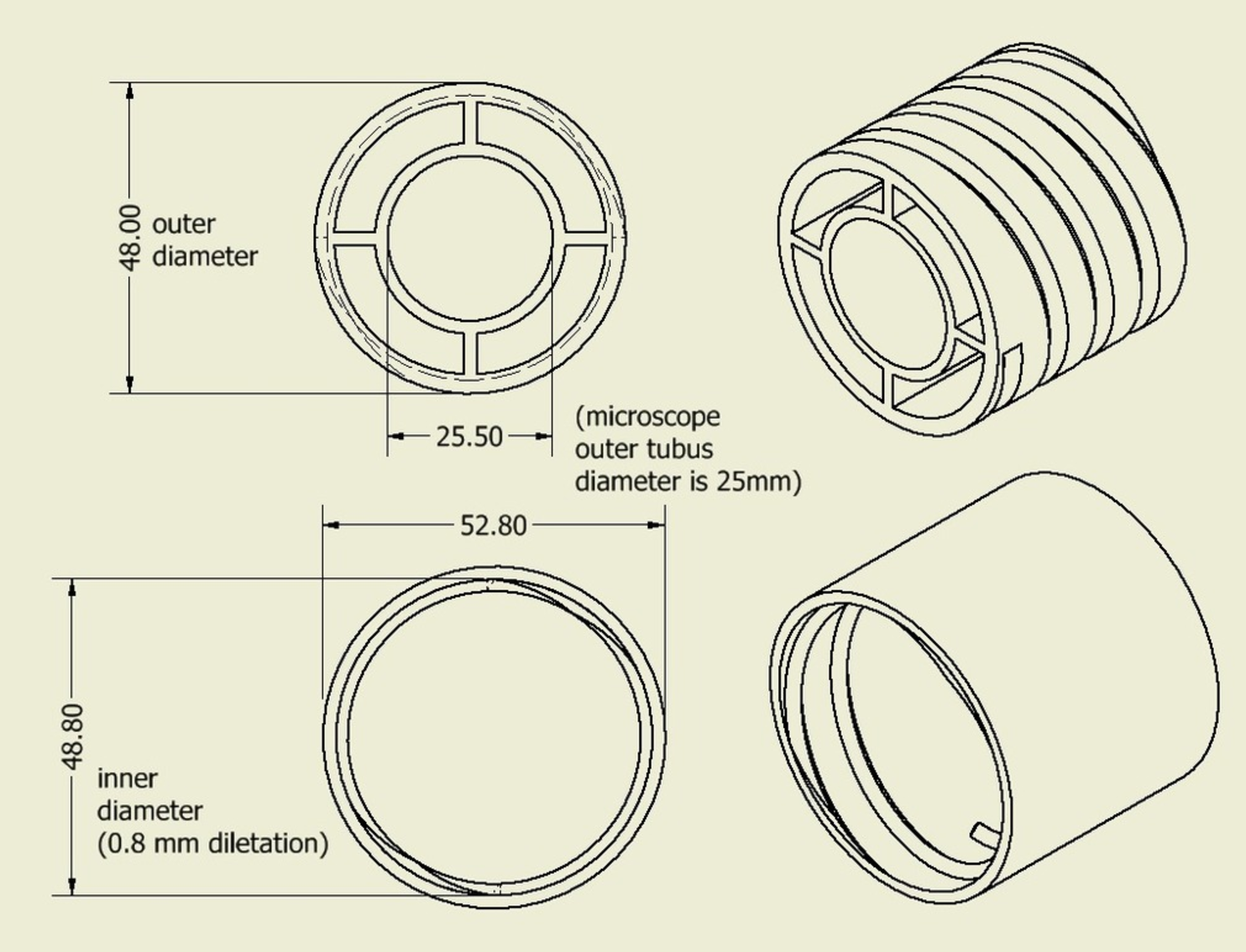

Microscope ocular tube diameter 25mm.
Adjustable lenght.


3D printing settings

Printer:
Easy3DMaker

Rafts:
No

Supports:
No

Resolution:
0.2mm

Infill:
20%

Notes:
Printed from ABS.

3D printer file information

  • 3D design format: STL Folder details Close
    • Microscope_lumix_LX3_adapter_inner.stl
    • Microscope_lumix_LX3_adapter_outer.stl

    Learn more about the formats

  • Publication date: 2016/12/02 at 17:49

License

CC BY
