Lee Pro1000 Case Separator Collator Insert Sample

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 381 views
  • 2 downloads

3D model description

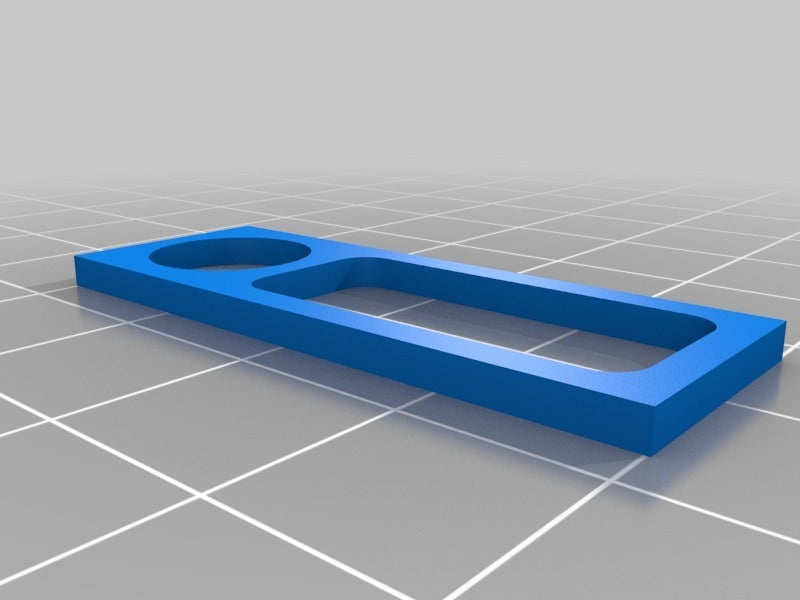

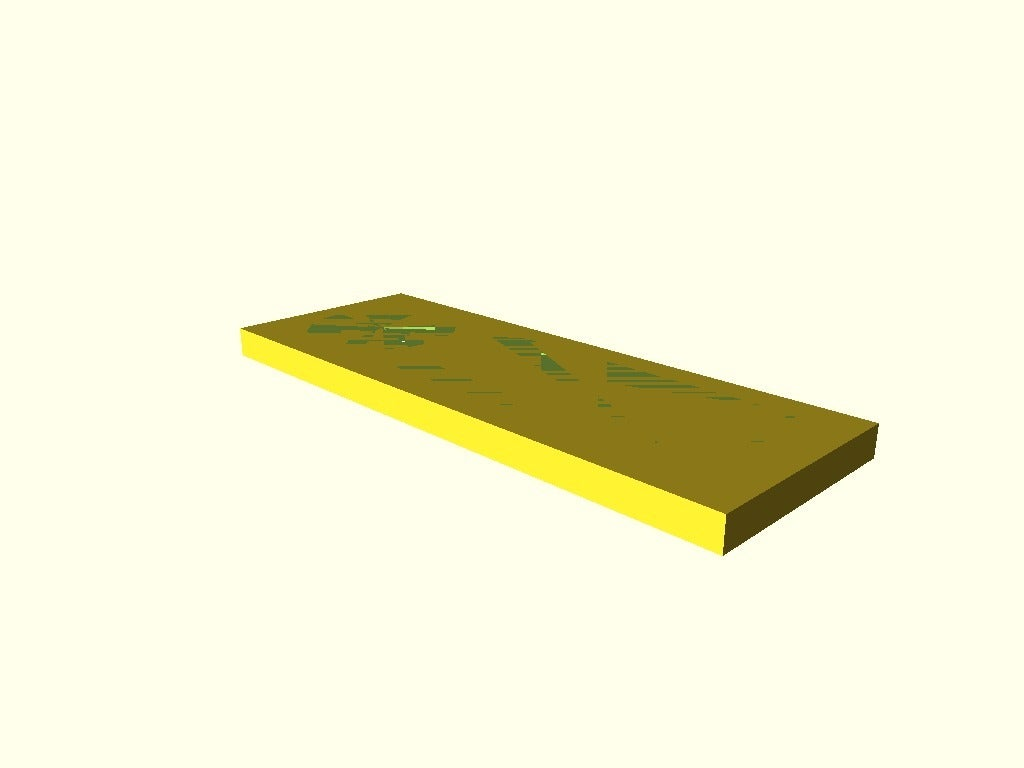

This is a sample file for the Lee Pro1000 Case Separator Collator Insert (https://www.thingiverse.com/thing:3380330). Use this sample to set the parameters according to your setup.

Variables used:

RES = Resolution. This is just the polygon count, to get nicer curves. I wouldn't go over 100.

CDA = Case Diameter Adjustement. The most important variable, it sets the width of the sieve holes. I've found that with my printer setup a 0.5mm CDA is just enough to let the 9mm cases go through and keep the .40 out. Adjust this according to your setup, you might need to insert a negative value.

STN = Sieve ThickNess. This is to set how thick you want the object to be. I'm fine with 2mm, but you might want a sturdier or lighter sieve.

  • 3D file format: SCAD and STL

Tags

Creator

License

CC BY
