Lee Pro1000 Case Separator Collator Insert

Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

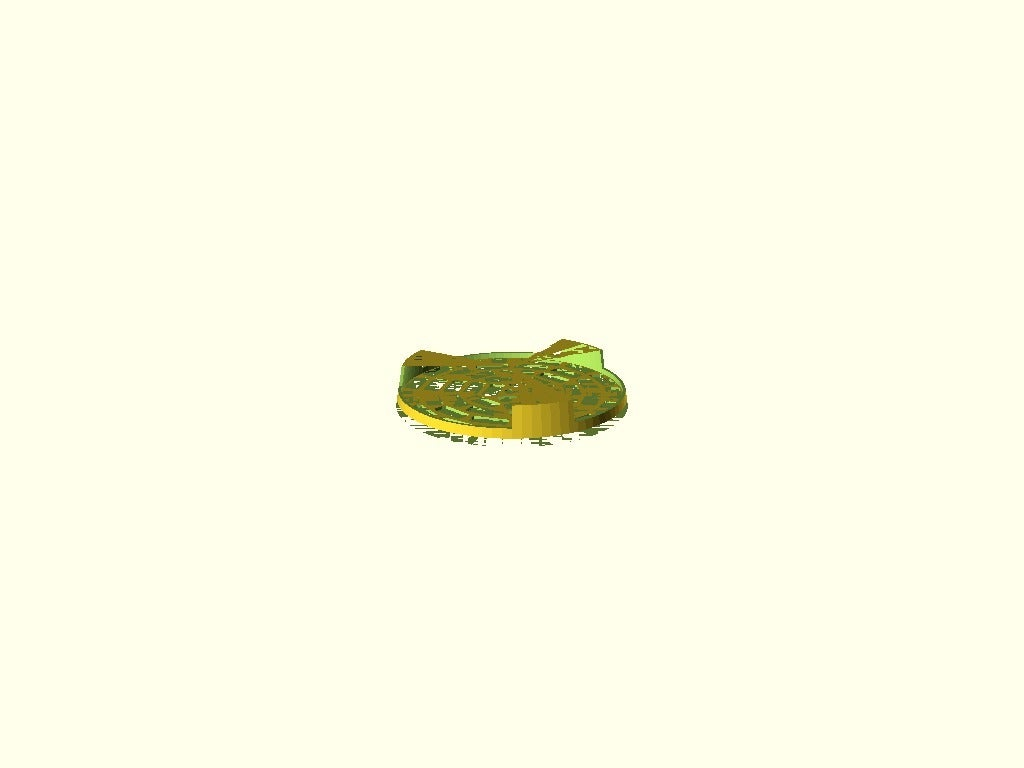

This is an insert for the Lee case collator that separates the 9mm cases from the larger ones. It's just to do a final check so that a .40 doesn't get stuck and you have to remove the whole thingamajig to get it out.

Since 3D printers can be a bit finicky I've added a "SAMPLE" module ( so that you can check the width of the sieve holes to ensure the correct function of the insert.

The object uses the following parameters:

RES = Resolution. This is just the polygon count, set it higher to get nicer curves. I wouldn't go over 100.

CDA = Case Diameter Adjustement. The most important variable, it sets the width of the sieve holes. I've found that with my printer setup a 0.5mm CDA is just enough to let the 9mm cases go through and keep the .40 out. Adjust this according to your setup, you might need to insert a negative value.

STN = Sieve ThickNess. This is to set how thick you want the object to be. I'm fine with 2mm, but you might want a sturdier or lighter sieve.

  • 3D file format: SCAD and STL
