LED Strip Mount

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.8k views
  • 5 likes
  • 122 downloads

3D model description

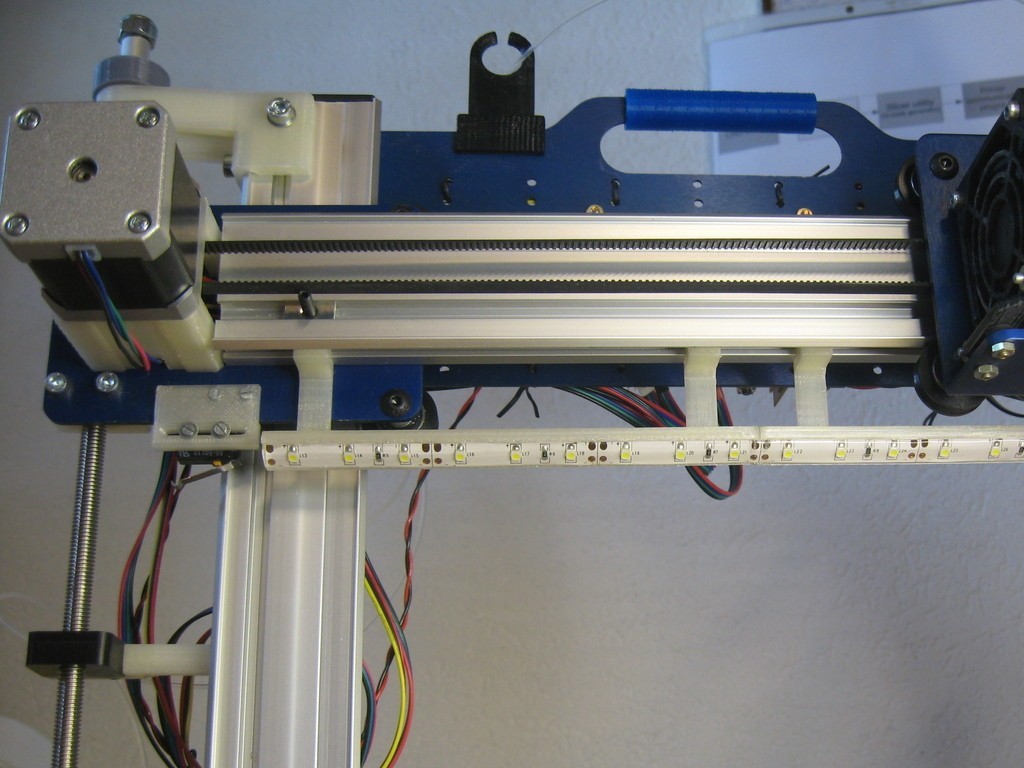

LED lighting for 3D Printers. It's optimised for the Hadron (ORD Bot) but can be also used for other Printers or generally for Misumi Extrusions.

The LED Bar can be rotated (approx. 60 degrees) so you can optimize the Light Angle.

3D printing settings

  1. Print two LedStripMountBars for a total length of 2x150=300mm.
  2. Insert the LED Strip (Length=300mm, width=10.15mm) into the Bars by pressing it carefully.

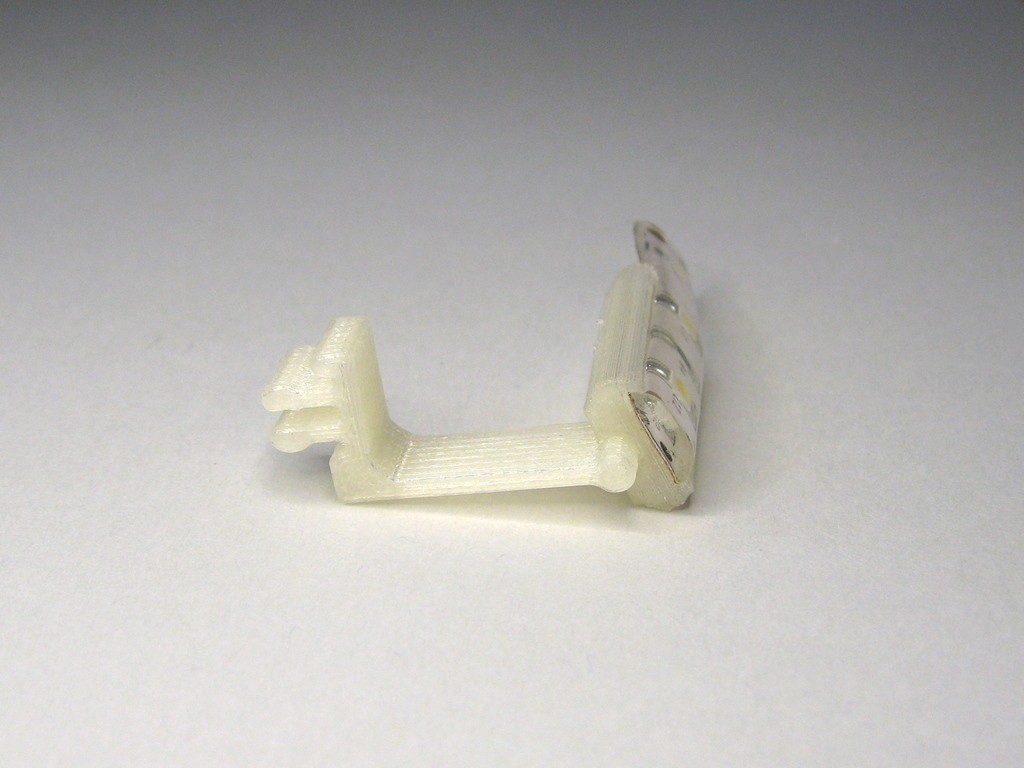

  3. Print four LedStripMountClips and insert them laterally into the Bars.
  4. Insert the four Clips into the Extrusion.

I added a partial brim to the LedStripMountBar to prevent lifting.

LED Strip used:

FLEXIBLE LED STRIP - COLD WHITE - 300 LEDs - 16.40 Ft - 12V

Width: 10.15 mm

The LED Strip is connected to the 12VDC Power Supply.

Links:

http://www.vellemanusa.com/products/view/?id=526514

Others Suppliers for similar LED Strips:

http://www.superbrightleds.com/moreinfo/top-emitting/waterproof-300-high-power-led-flexible-light-strip-reel--wfls-x3/936/

or

http://www.adafruit.com/products/357

  • 3D file format: STL
  • Publication date: 2018/11/16 at 12:27
