LED Glasses Frame IS31FL3741
:still():format(webp)/https://files.cults3d.com/uploaders/2348942/illustration-file/483262ba-56d6-46de-b67f-b1860f2539b8/hero-1.jpg)
/https://preview3d-images.cults3d.com/variants/ye7228wt9f2c6lrgkyujmg54x1gi/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/w77c4h6os70ma2wygdoysmistjzl/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/41e2byazdsmmh7f870mvgstwig5d/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/15hblm7lfrkx9hf4jwu3rosnonzv/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 2.3k views
- 4 likes
- 16 downloads
- 0 comments
- 0 makes
Designer
3D model description

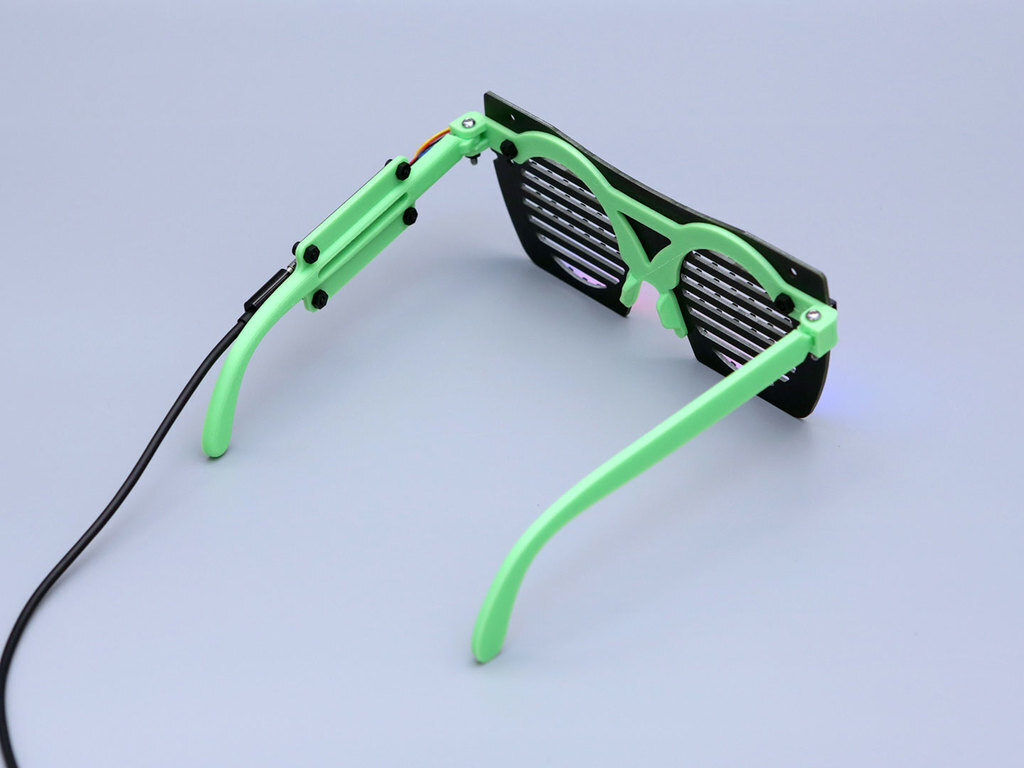

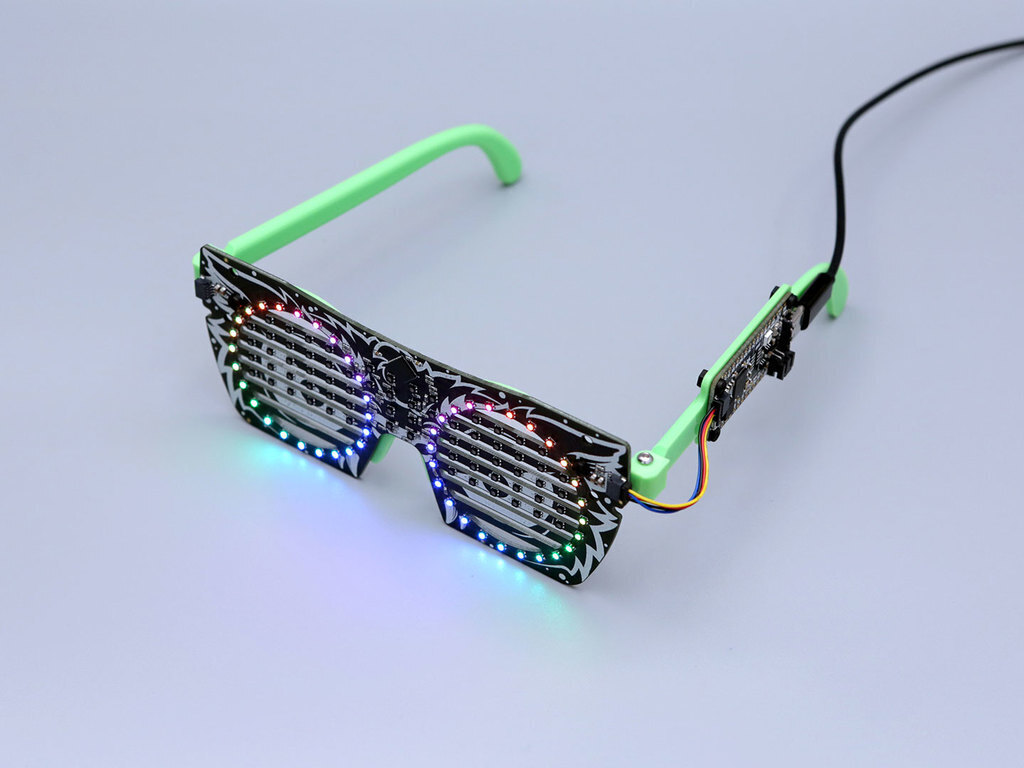

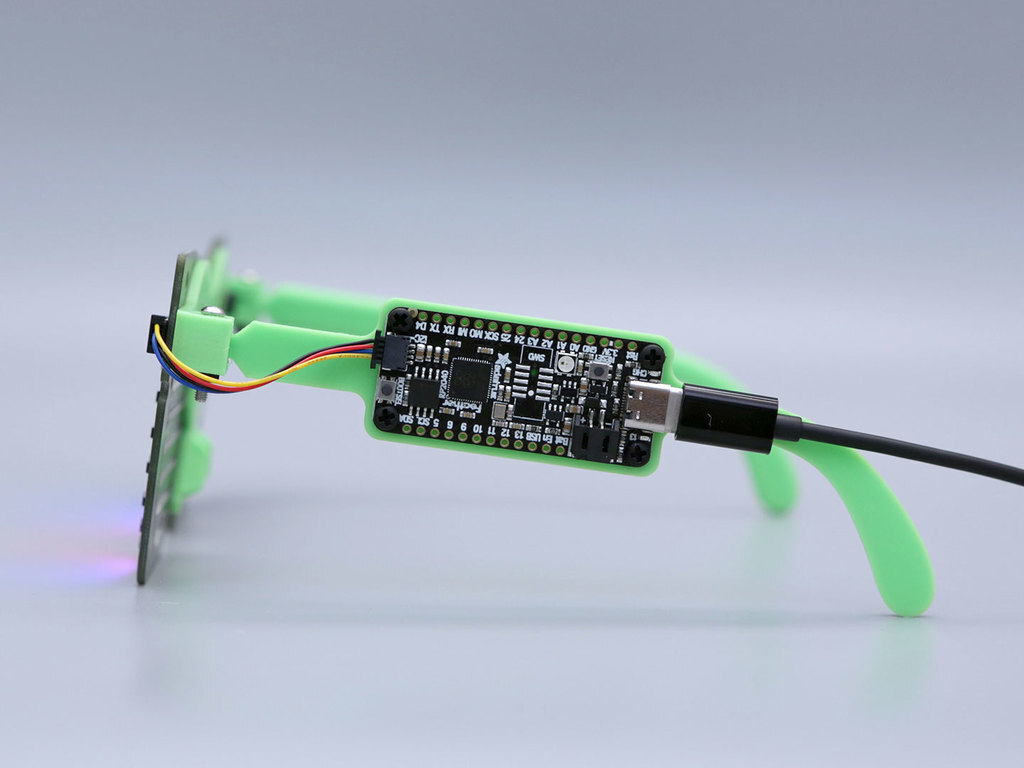

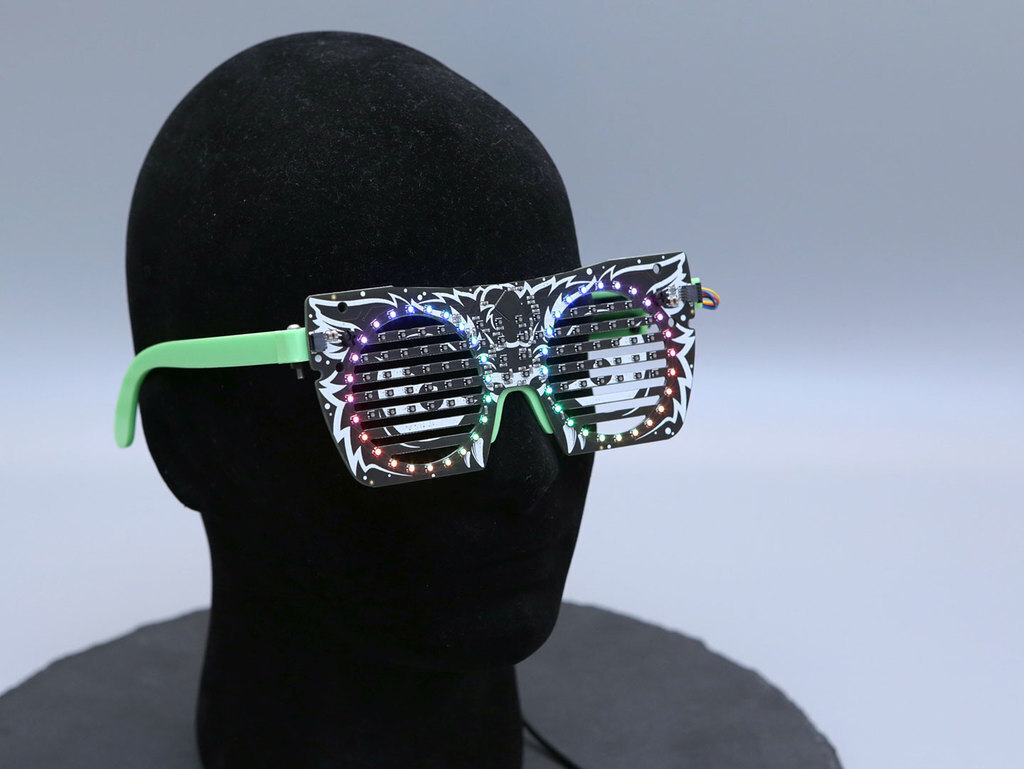

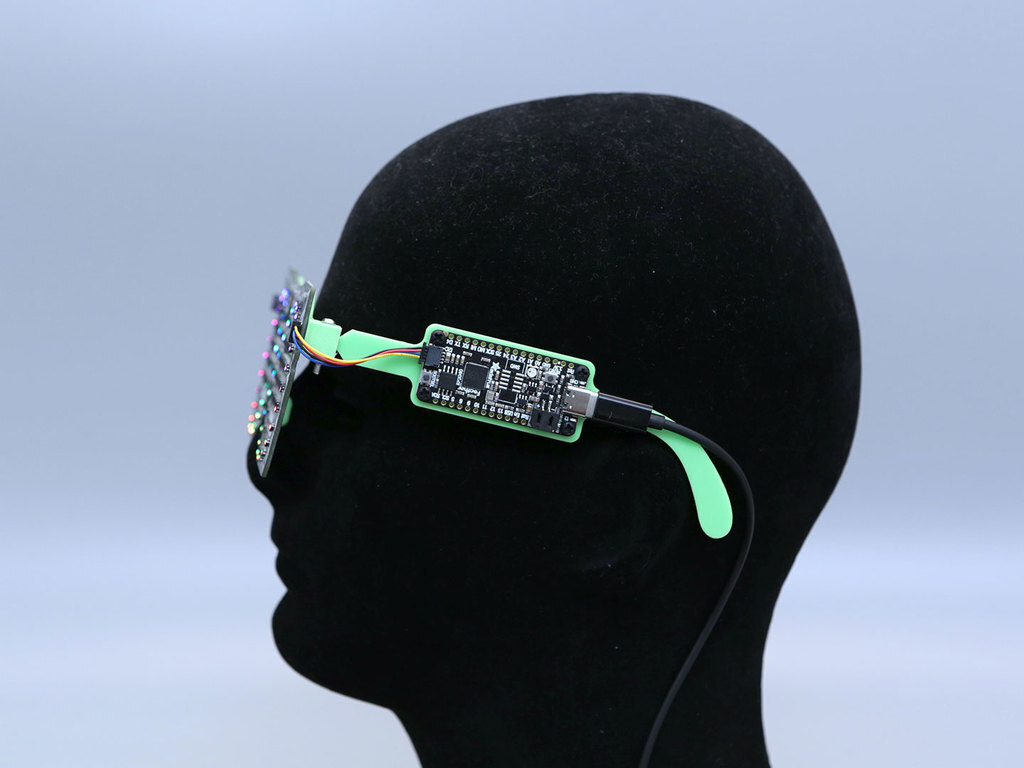

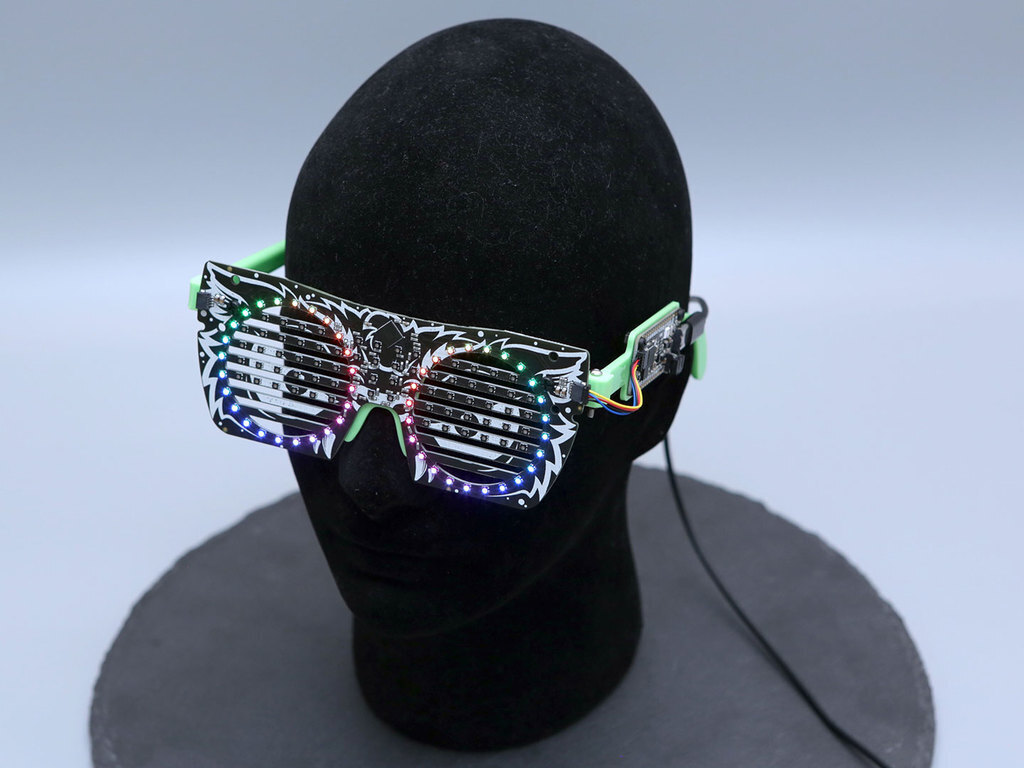

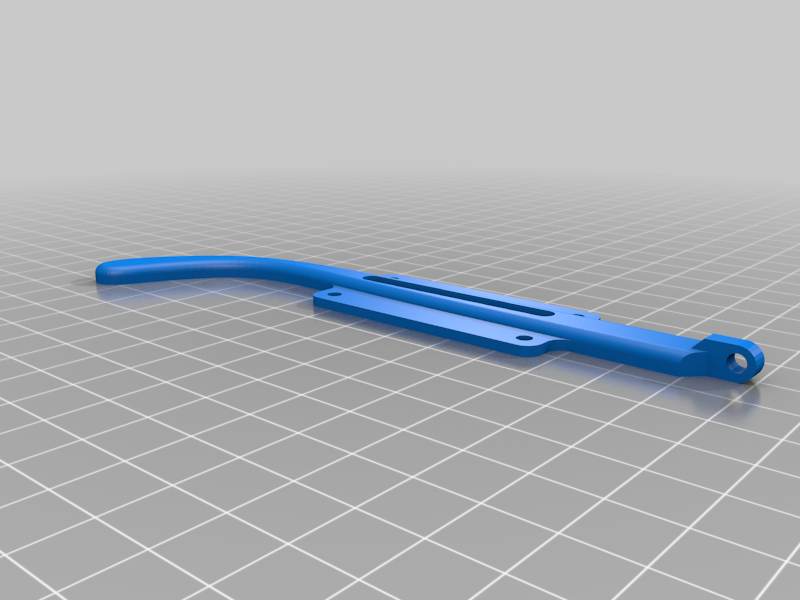

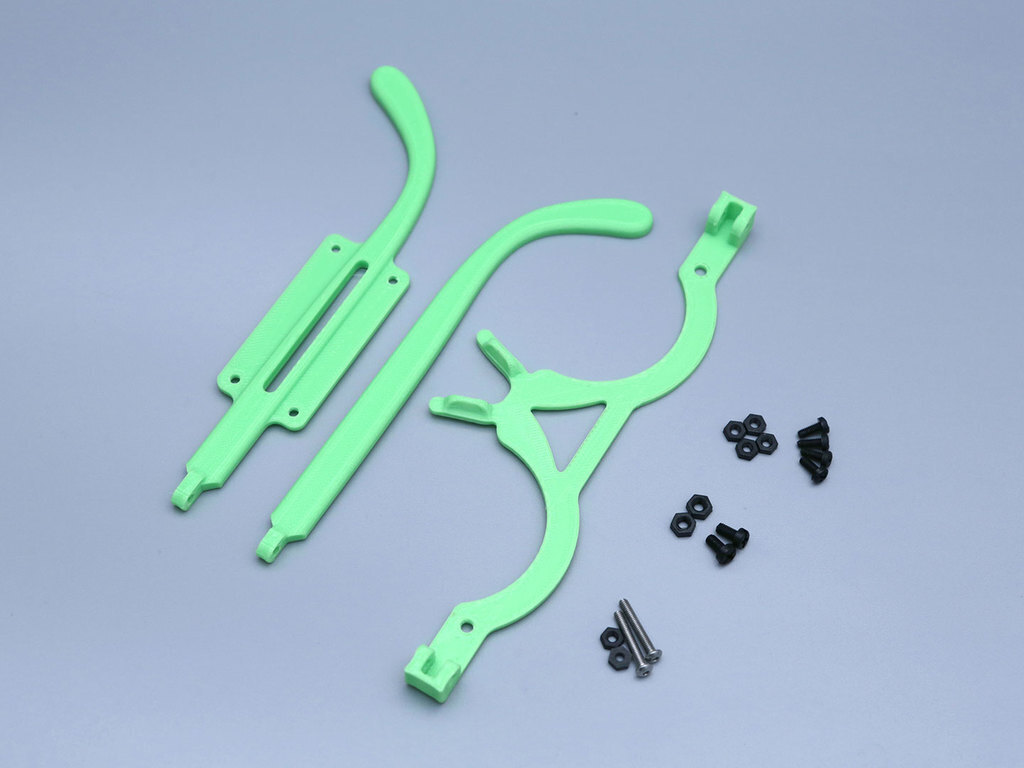

3D print a frame for Adafruit LED Glasses IS31FL3741. Use any Adafruit Feather compatible board to control the LED Glasses. The Feather is secured to the arm with M2.5 x 6mm screws and hex nuts. The two arms are secured to the frame with M2.5 x 14mm long machine screws and hex nuts. The frame is secured to the LED glasses PCB with M3 x 6mm long screws and hex nuts. The Feather connects to the LED glasses using a 50mm STEMMA QT cable.
Adafruit LED Glasses IS31FL3741
https://www.adafruit.com/product/5210
50mm STEMMA QT Cable
https://www.adafruit.com/product/4399
Feather RP2040
https://www.adafruit.com/product/4884
M3 Hardware Kit
https://www.adafruit.com/product/4685
M2.5 Hardware Kit
https://www.adafruit.com/product/3299
USB-C cable
https://www.adafruit.com/product/4696
3D printing settings
-
3D printer file information
- Design number: 525477
-
3D design format: 3MF, F3D, STEP, and STL Folder details Close

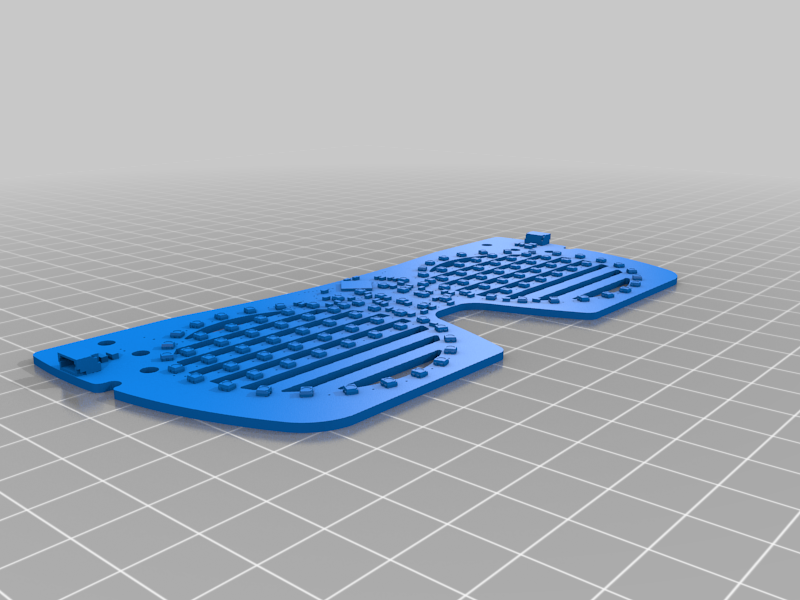

- 5210_LED_Glasses-IS31FL3741.3mf
- 5210_LED_Glasses-IS31FL3741.f3d
- 5210_LED_Glasses-IS31FL3741.step
- 5210_LED_Glasses-IS31FL3741.stl
- LED_Glasses_Frame.f3d
- LED_Glasses_Frame.step
- LED_glasses_frame.3mf
- LED_glasses_frame.stl
- arm-feather.3mf
- arm-feather.stl
- arm-right.3mf
- arm-right.stl
-
Publication date:
2021-09-21 at 23:00
?
Published to Thingiverse on: 2021-09-21 at 16:42
