THE POCKET METER

3D model description

New resolution! I'm starting to do some DIY!

Yes, but here it is, I don't have a tape measure, or I never know what I've done with it or where I've put it.

It's no longer a problem! With THE POCKET METER, no more poorly cut ribs, dimensional errors and random cuts.

#XYZCHALLENGE

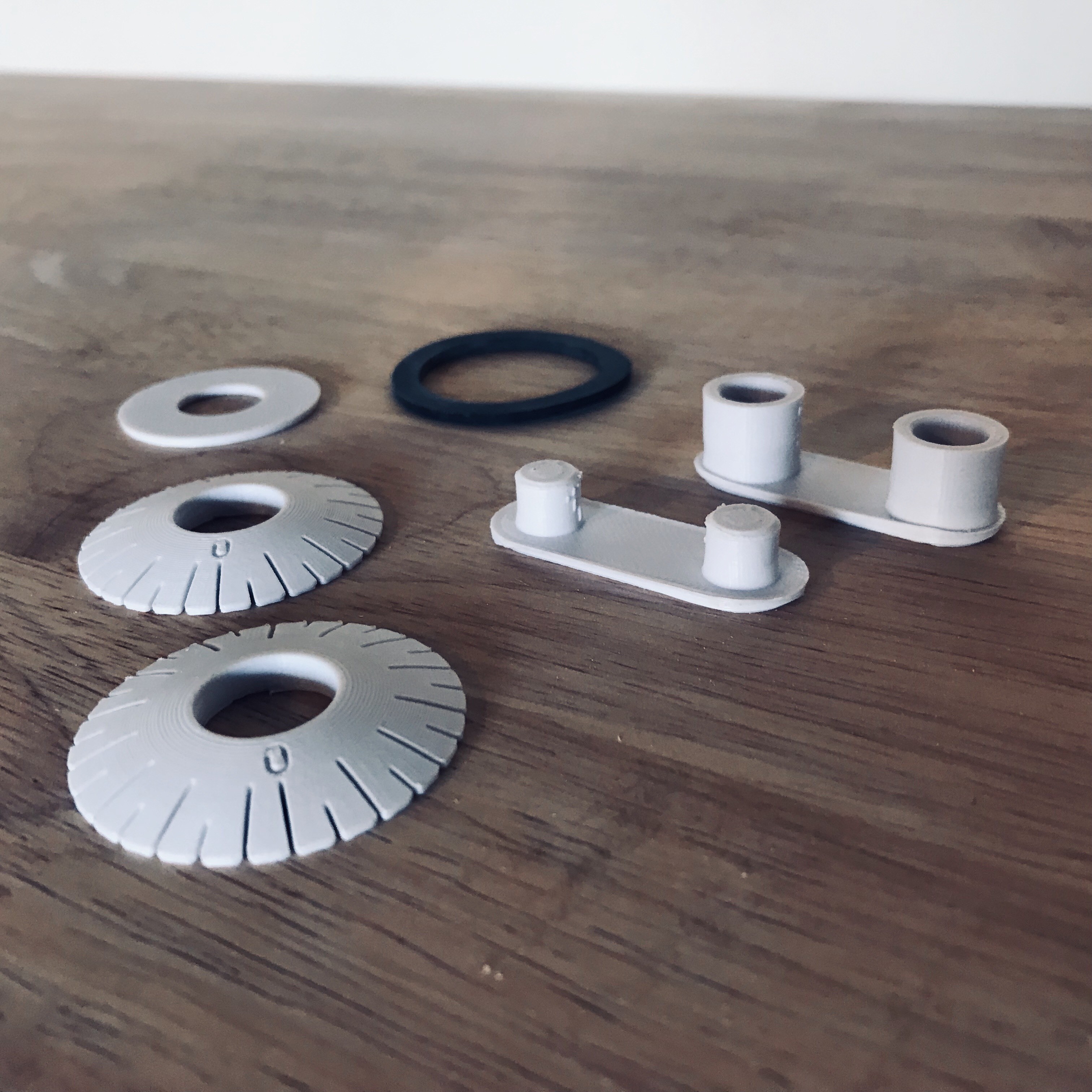

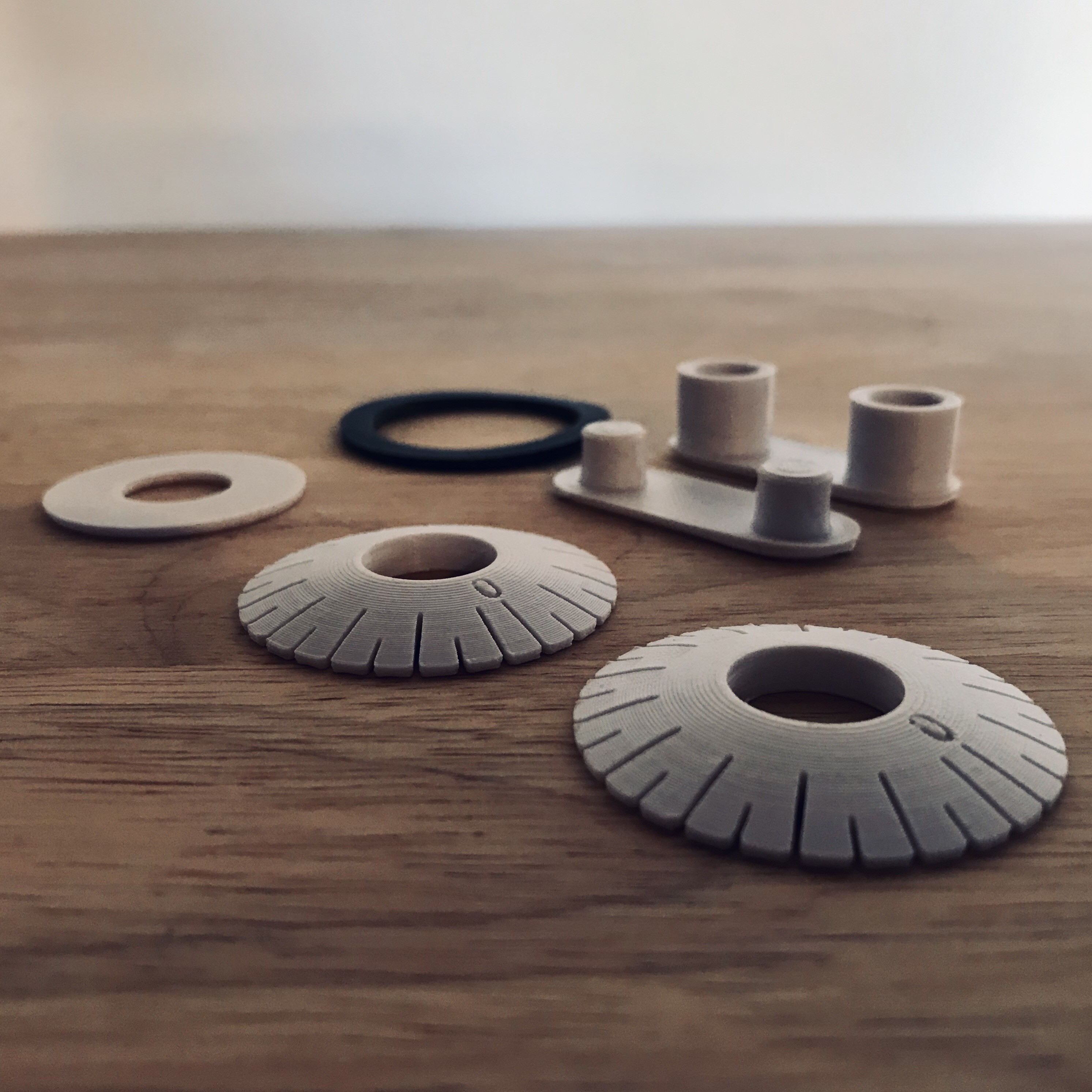

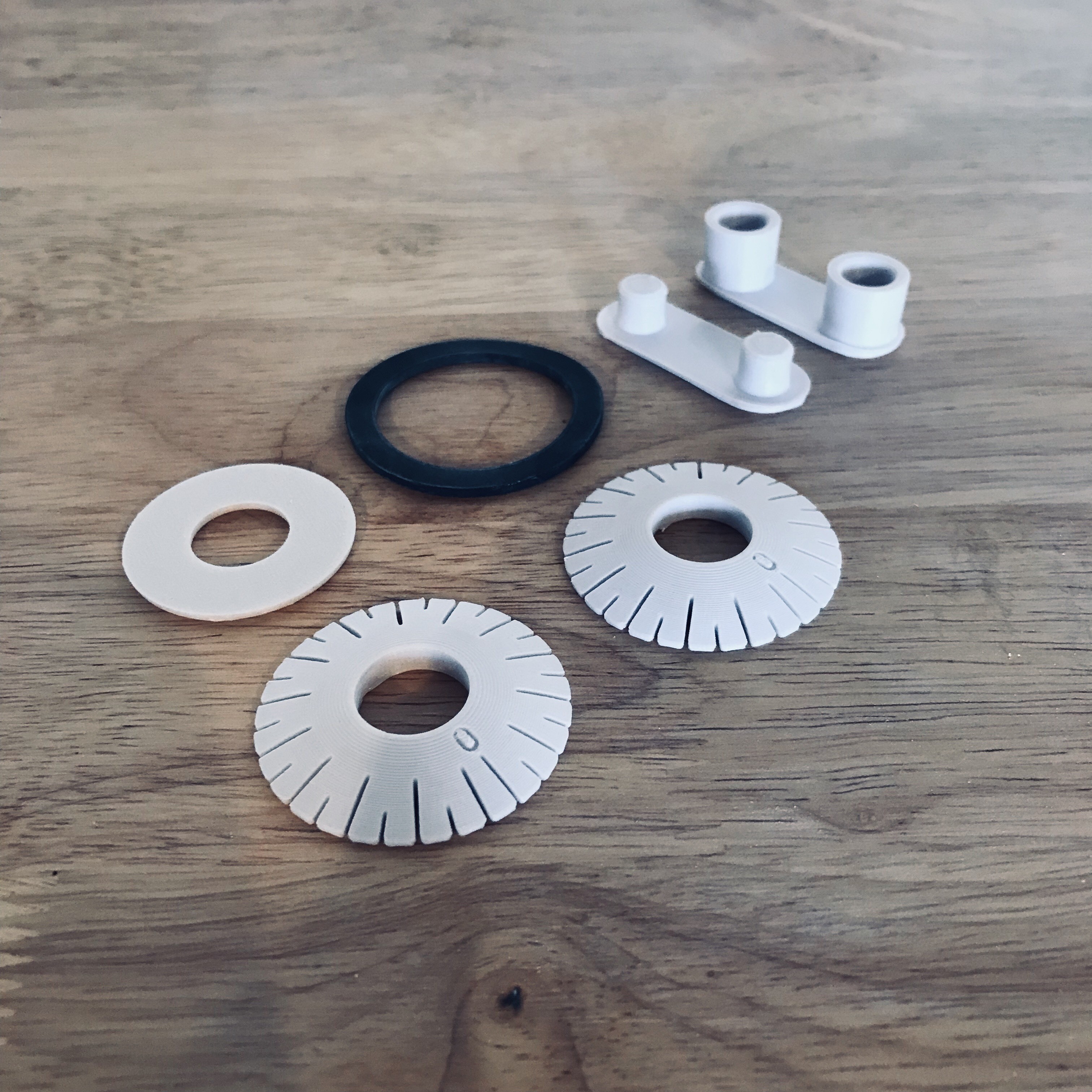

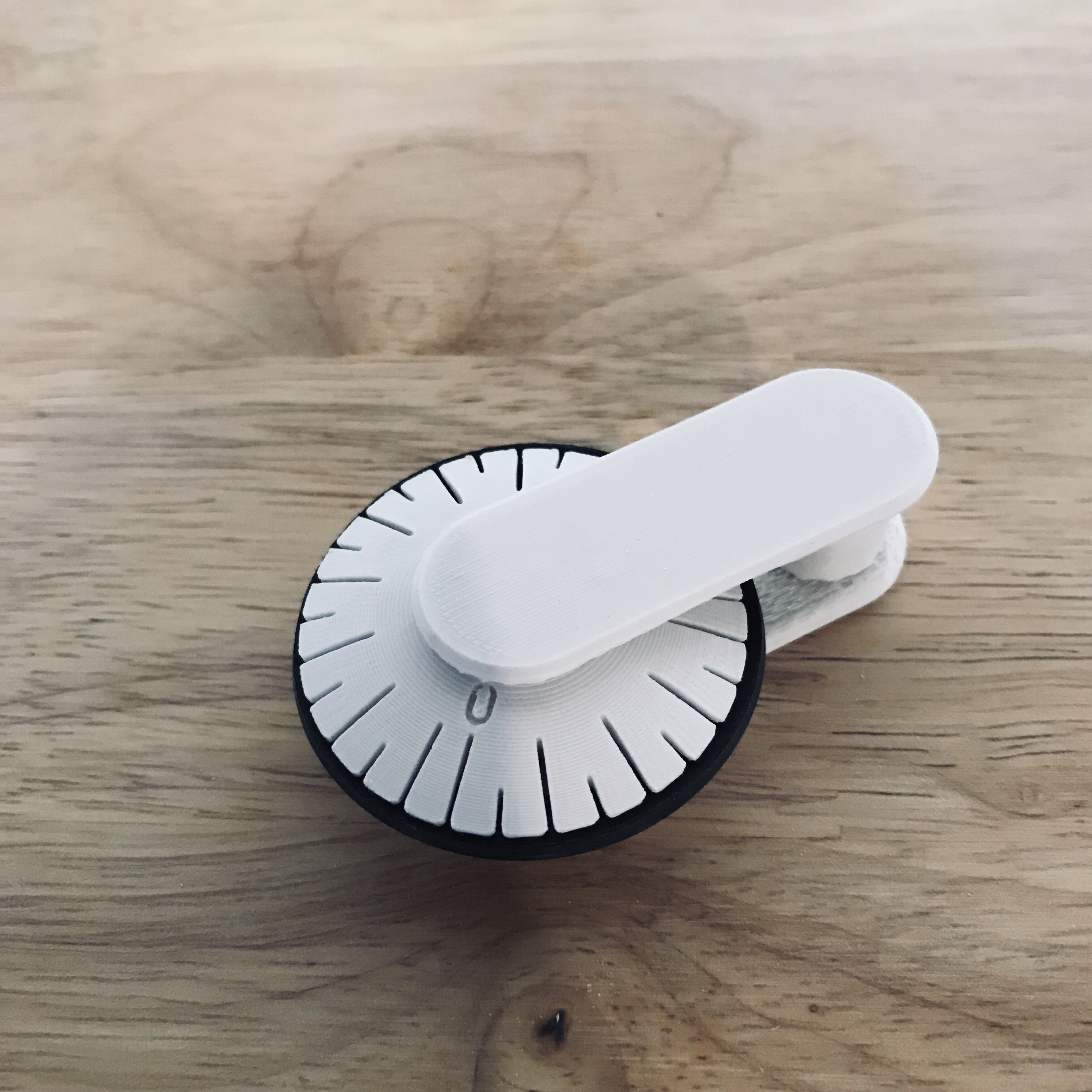

Printed simply in several pieces, it will be enough to assemble the various parts to obtain THE POCKET METER and start tinkering.

The idea on the model presented is to use a standard seal diameter.40-49 mm that can be found in all DIY stores (or in their toolbox...).

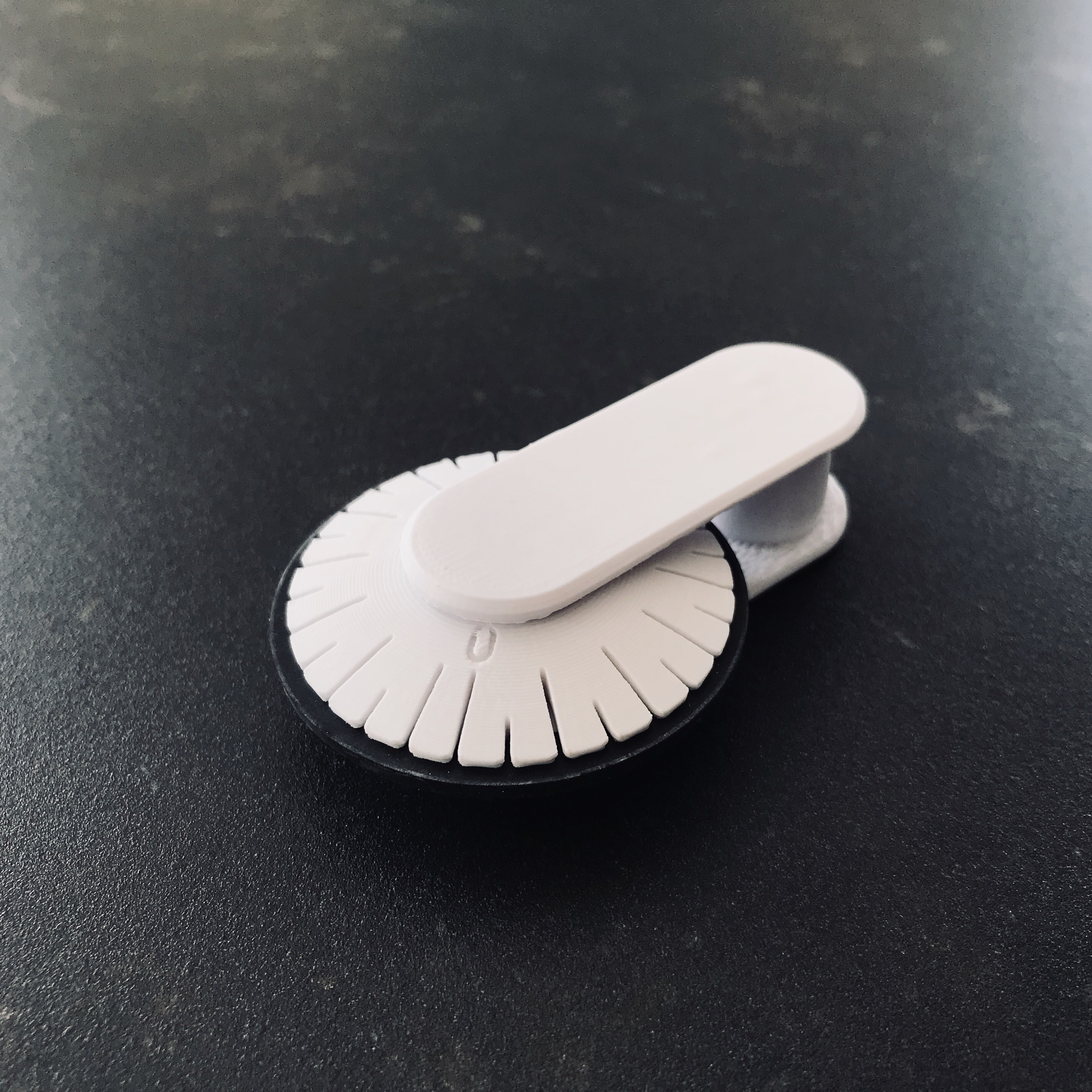

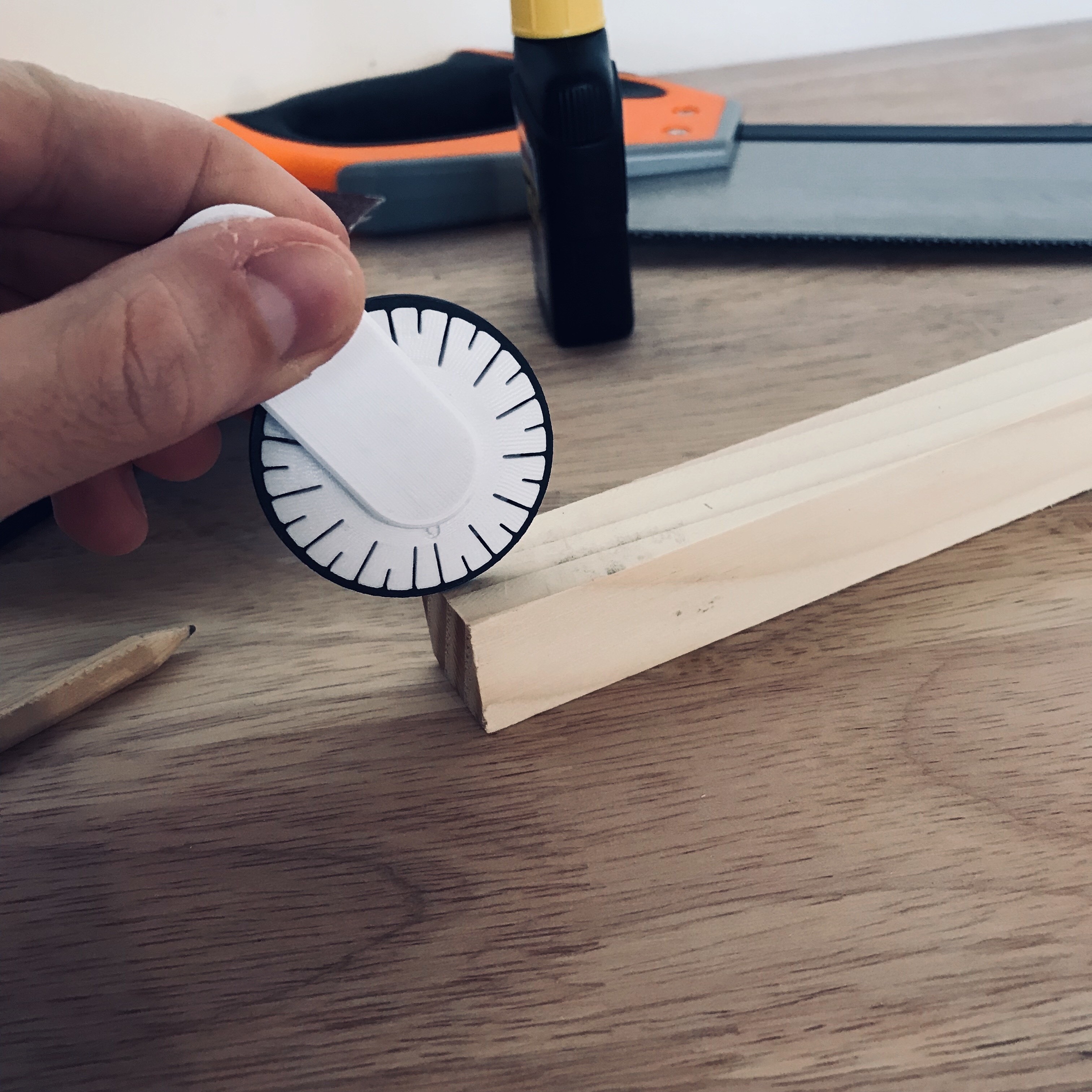

Each scale indicates 5 mm and the higher scales represent cm (10 mm). One complete turn of the wheel is equivalent to 14.5 cm (145 mm).

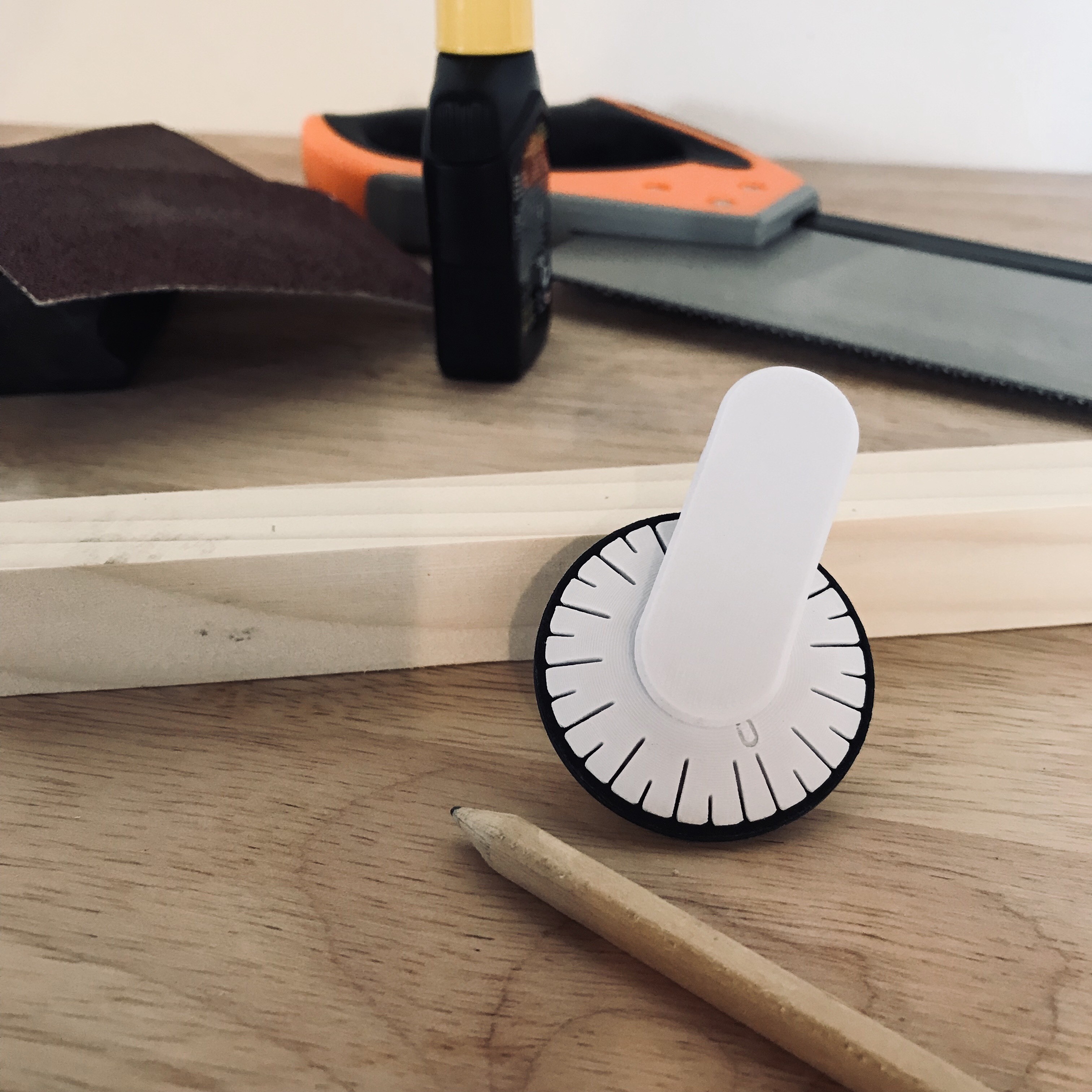

No need for a tape measure which is limited in size, with THE POCKET METER it is possible to measure everything, no matter the length!

3D printing settings

PLA printing.

T° : Extruder: 205°c Tray 0°c (not heated)

Accuracy: 0.2 mm

Filling: 20%.

Wall thickness: 1 mm

No supports required

Dimensions : (values rounded to the whole).

Printing times are given as an indication and are rounded (depending on the cleaning of the part etc.)

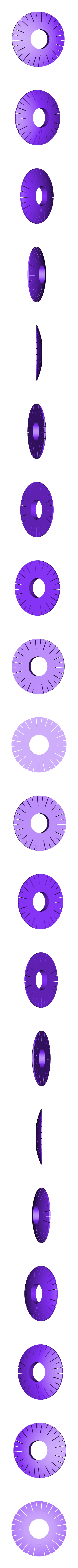

SHELL (Graduated part) x2 : Ø43mm x H5mm - 1h30 printing

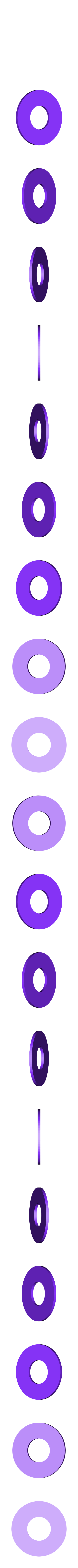

MAINTENANCE: Ø36mm x H1.75mm - 30mn printing

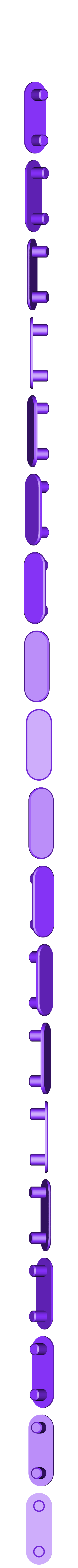

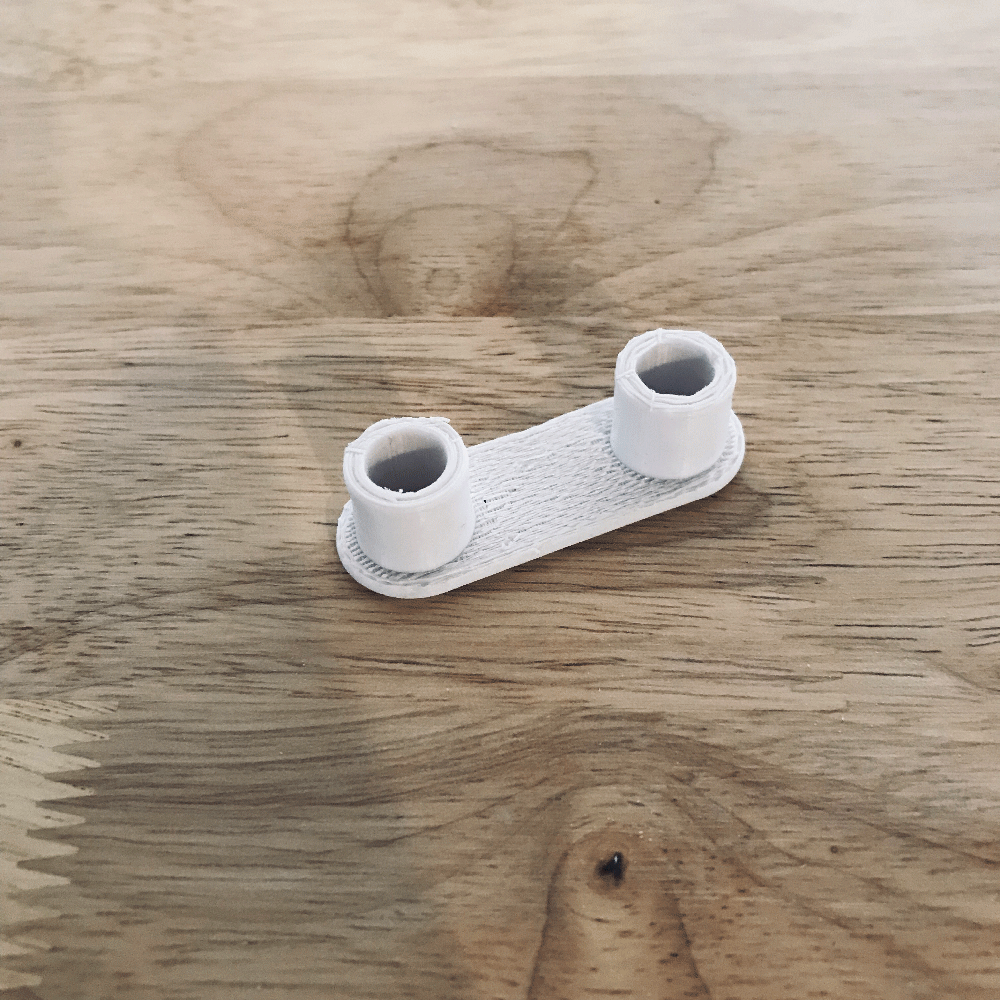

BRIDGE01: 55mmX20mmX20mmX14mm - 1h15 of printing

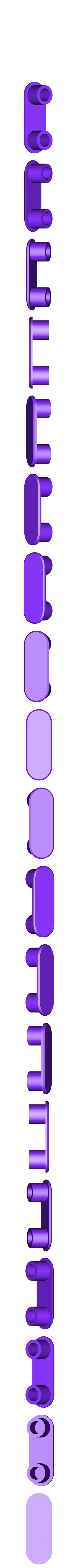

BRIDGE02: 55mmX20mmX20mmX15mm - 1h15 of printing

  • 3D model format: STL

Tags

Creator

Followers Followings 8
Downloads 478
Sales $36

Ingénieur, Designer, Maker

License

CC BY
