Laser Engraver Hold Down
by RebelTaz

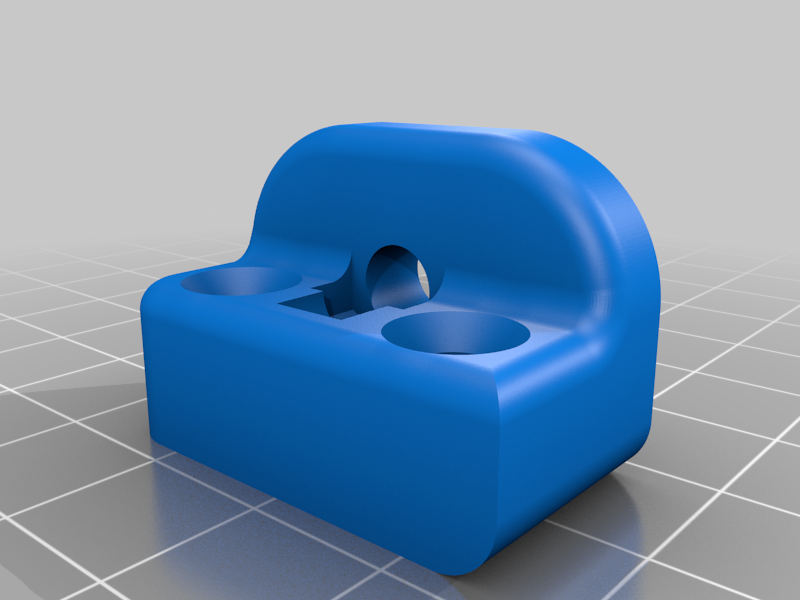

This is a simple hold down for a laser engraver to ensure that the engraver stays stationary in relation to the wasteboard. Very useful when using LAHobbyGuy's 400x400 grid :)

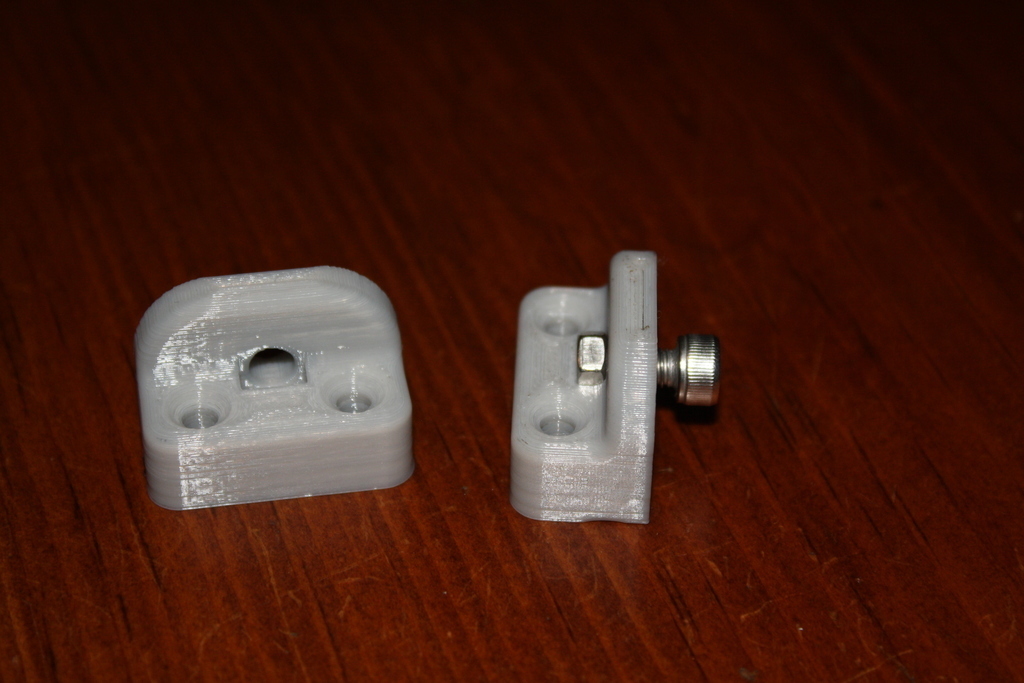

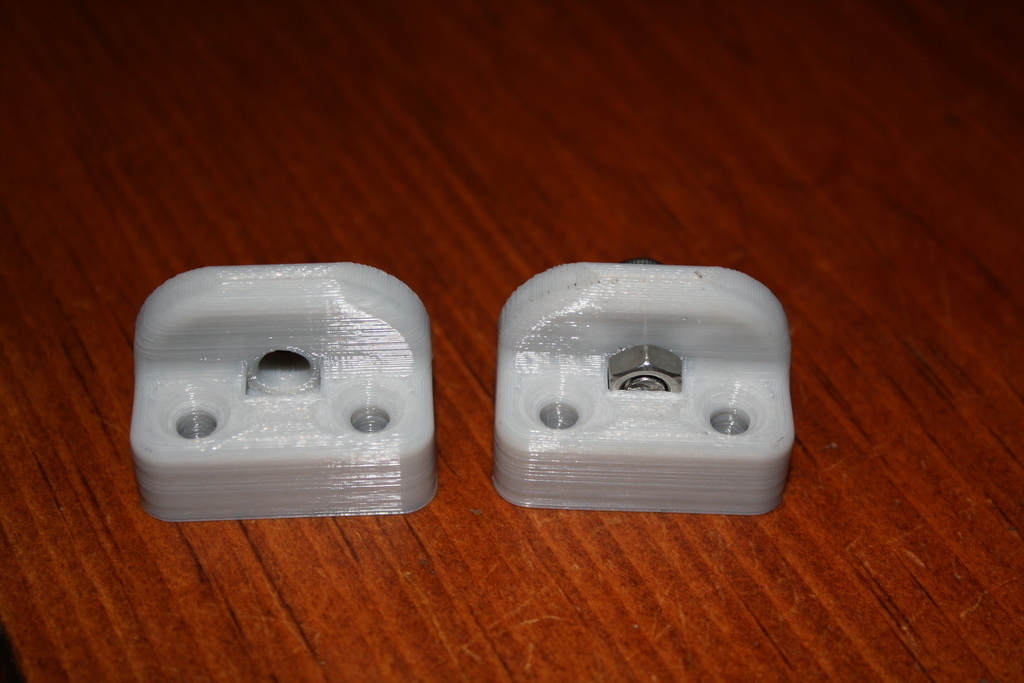

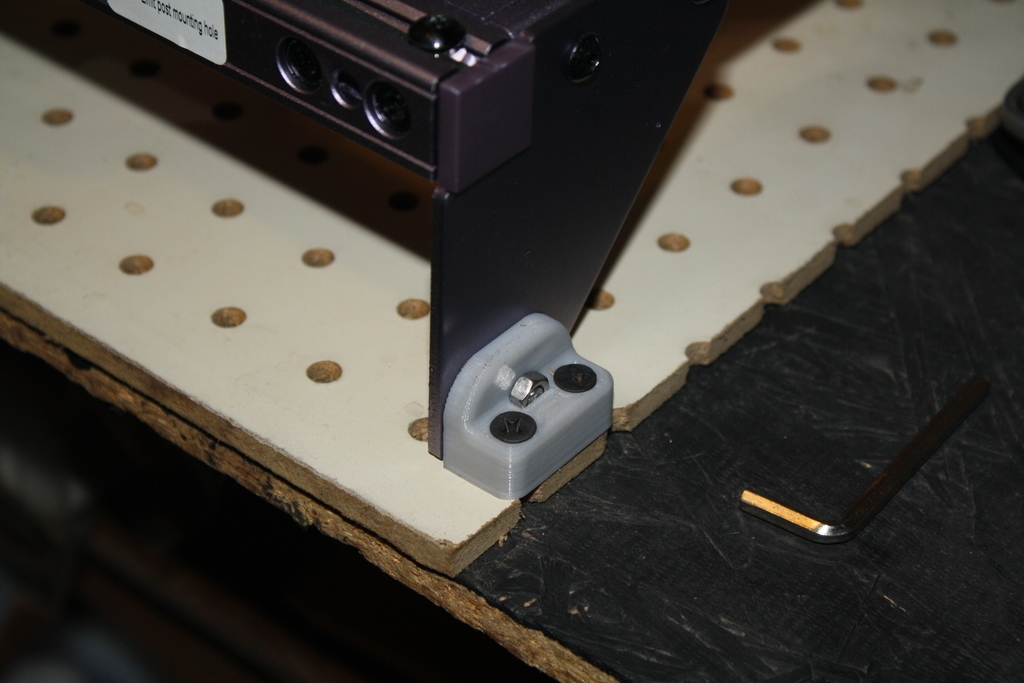

These are designed for a befon laser engraver with an AtomStack L40 A5 Pro laser. your mileage may vary. This particular machine has a 5mm hole in each laeg already, so you simply slide a nut into the hold down, place it against the leg and thread an m5x12-ish screw into it. Then using #6 sheet rock screws at least 3/4" long, attach the hold down (and thereby the engraver) to your waste board. You really only need one sheet rock screw per hold down but I added two just for added stability if you want to use both. Also, you really only need two hold downs - diagonally from each other - but, some people say that more is better :)

3D printing settings

-

3D printer file information

  • Design number: 728034
  • 3D design format: STL and TXT Folder details Close
    • README.txt
    • holddown.stl

    Learn more about the formats

  • Publication date: 2022-05-17 at 23:00
    ?
    Published to Thingiverse on: 2022-05-17 at 05:16

License

CC BY-NC-ND - Attribution - Non commercial - No derivatives
