laser centering device

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 3 likes
  • 25 downloads

3D model description

Based on an idea from Michael Cox I printed this wonderful gadget.

Link: http://mikesworkshop.weebly.com/laser-centreing-device.html

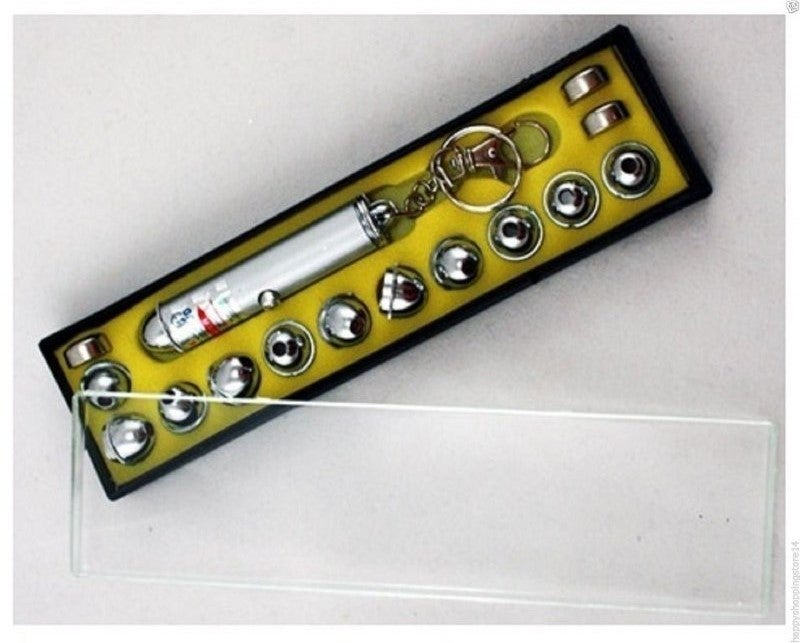

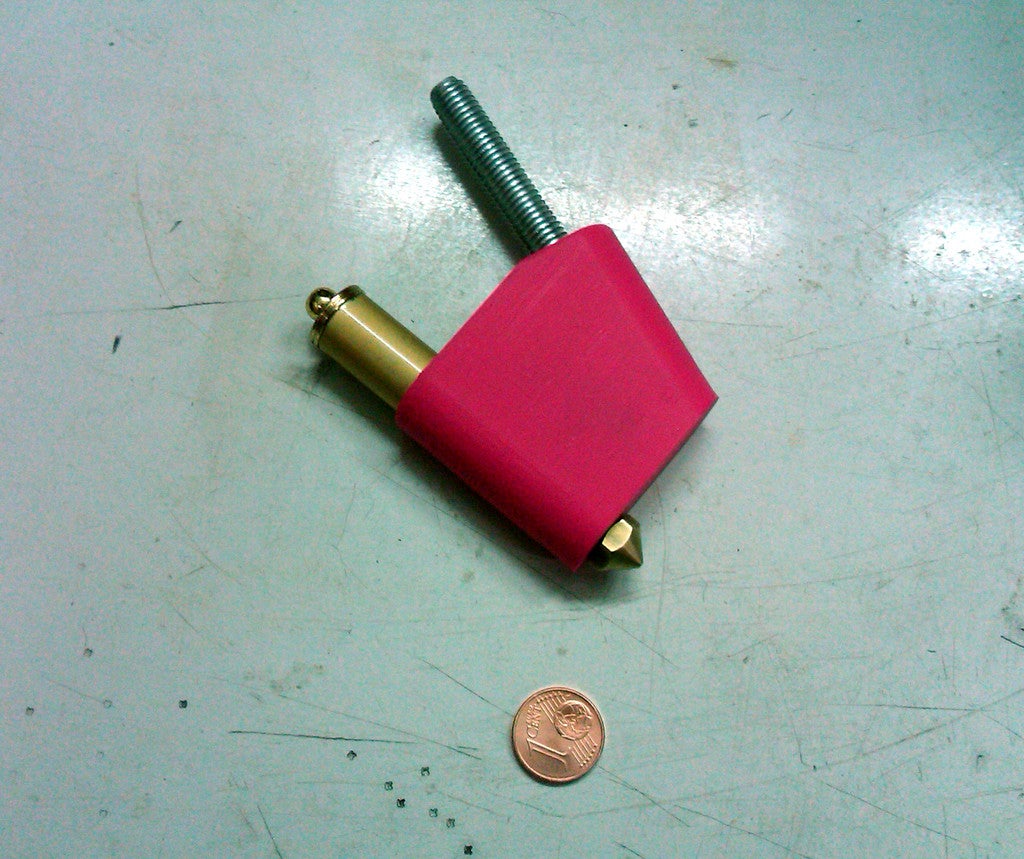

As additional vitamins you need one of these cheap chinese laser pointers (as shown in above picture), a piece of 8mm threaded rod and a hotend printer nozzle (serves as iris to narrow down the laser beam.

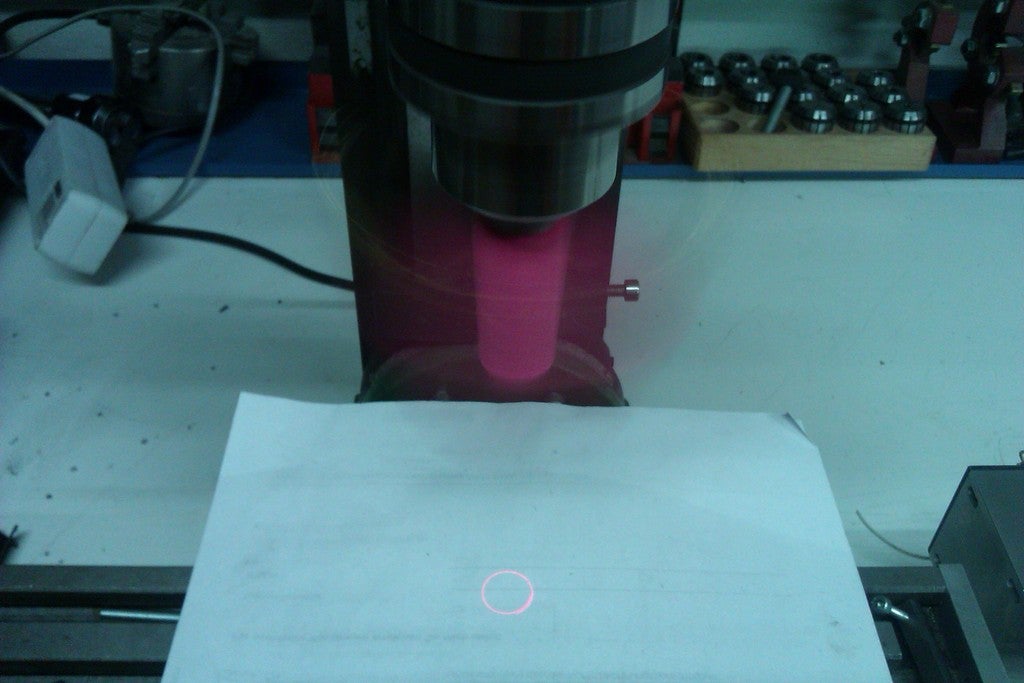

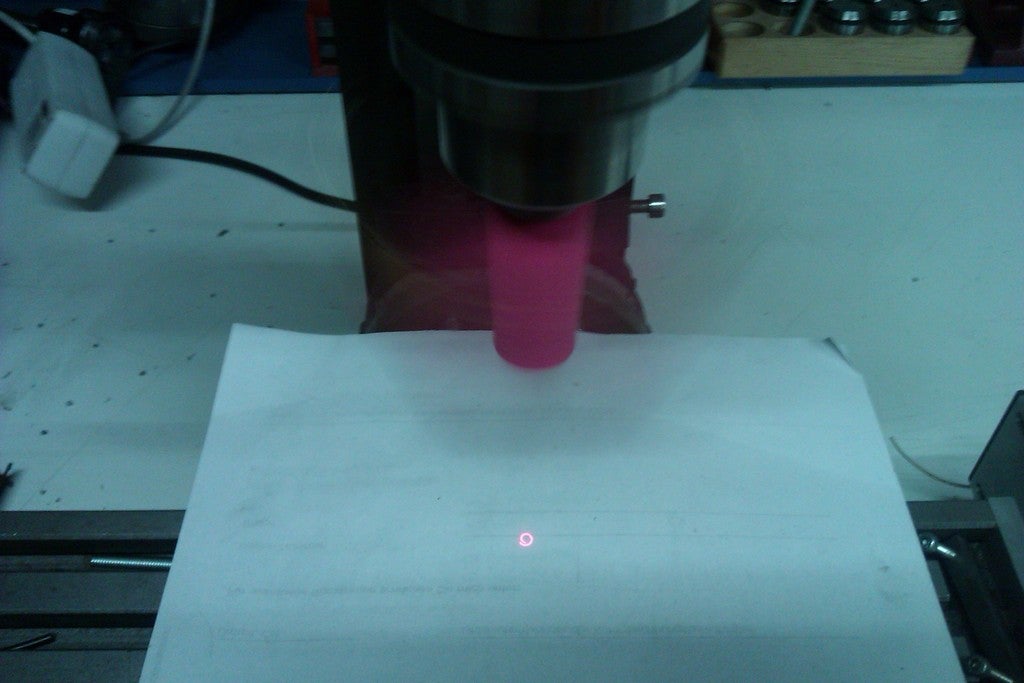

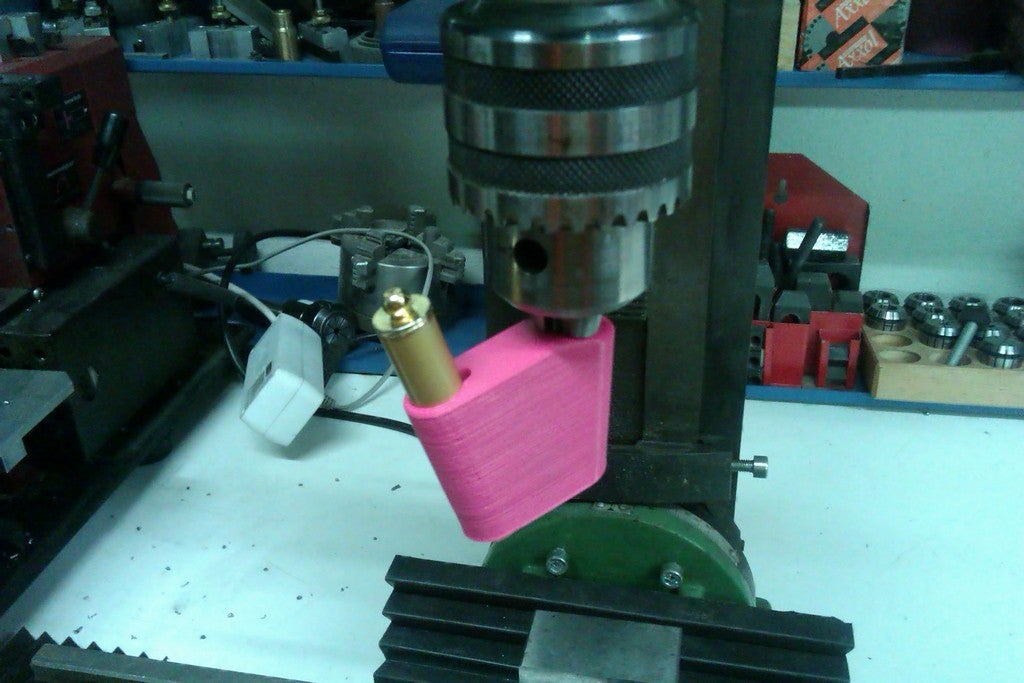

Works perfectly to find centers of punch marks, holes and even large bores - the best centering device I have ever used!

For detailed instructions visit the link

  • 3D file format: STL
  • Publication date: 2019/07/11 at 15:18

Tags

Creator

License

CC BY SA
