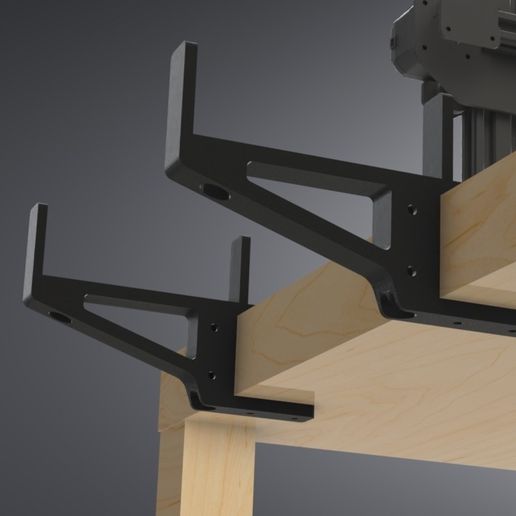

IKEA LACK Table CR-10 Control Box Support Bracket

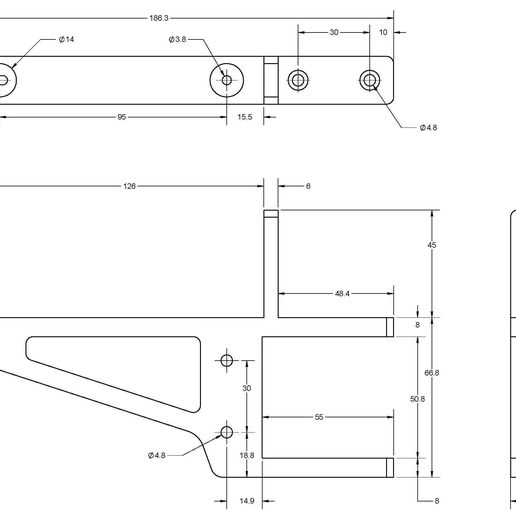

Fits IKEA Lack table with 50mm thick top.

CHECK OUT MORE GREAT 3D PRINTS HERE: https://cults3d.com/en/users/Trikonics/creations

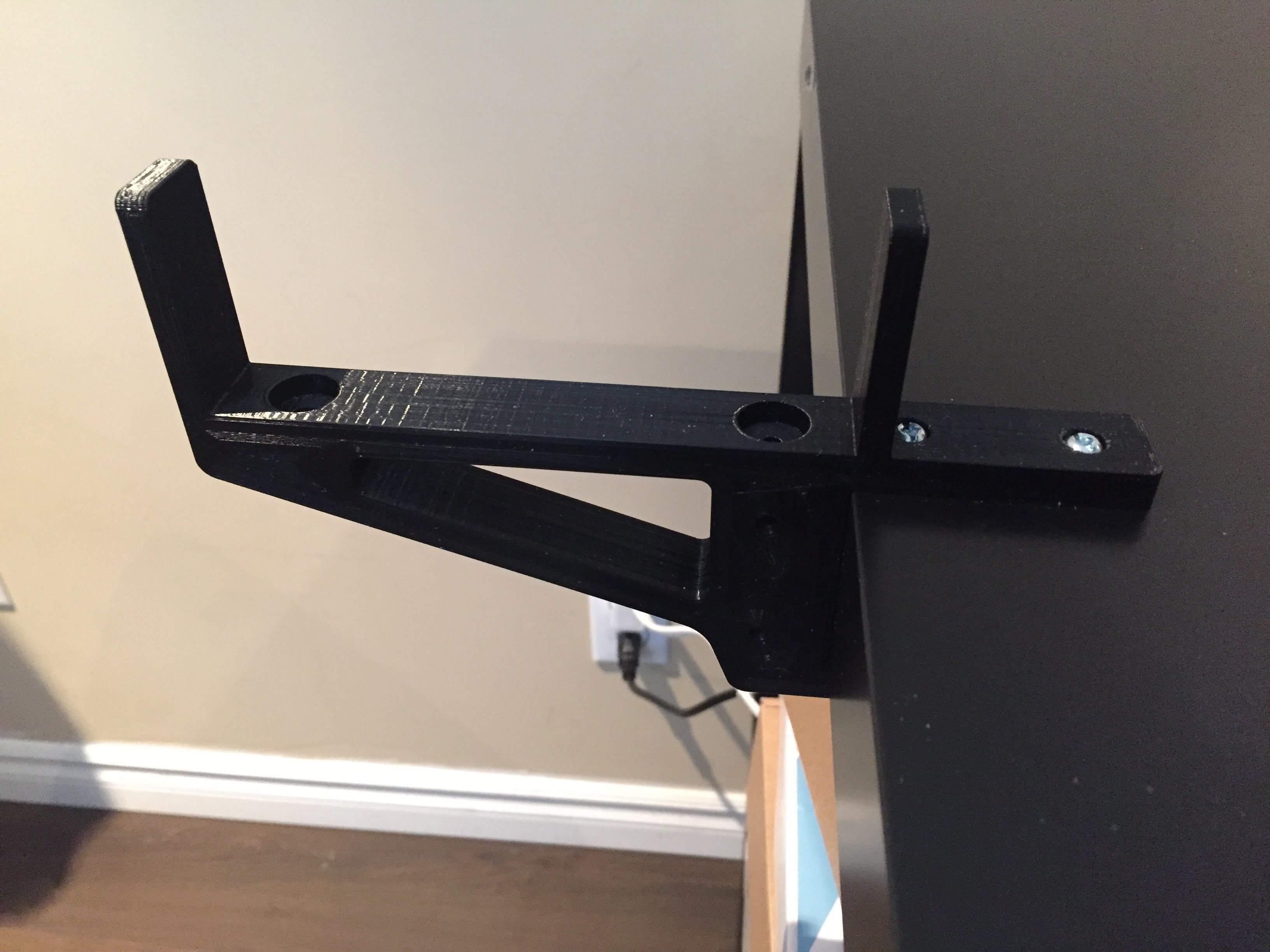

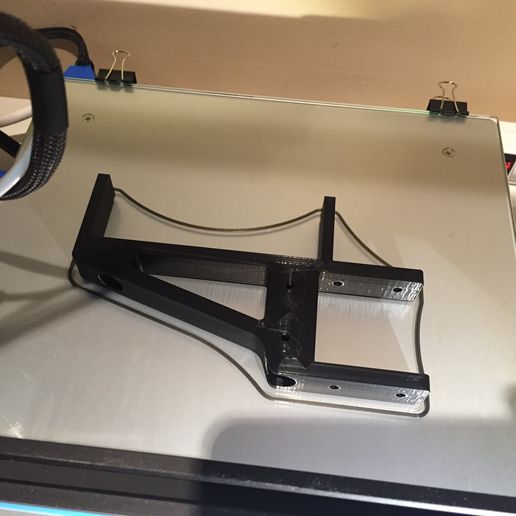

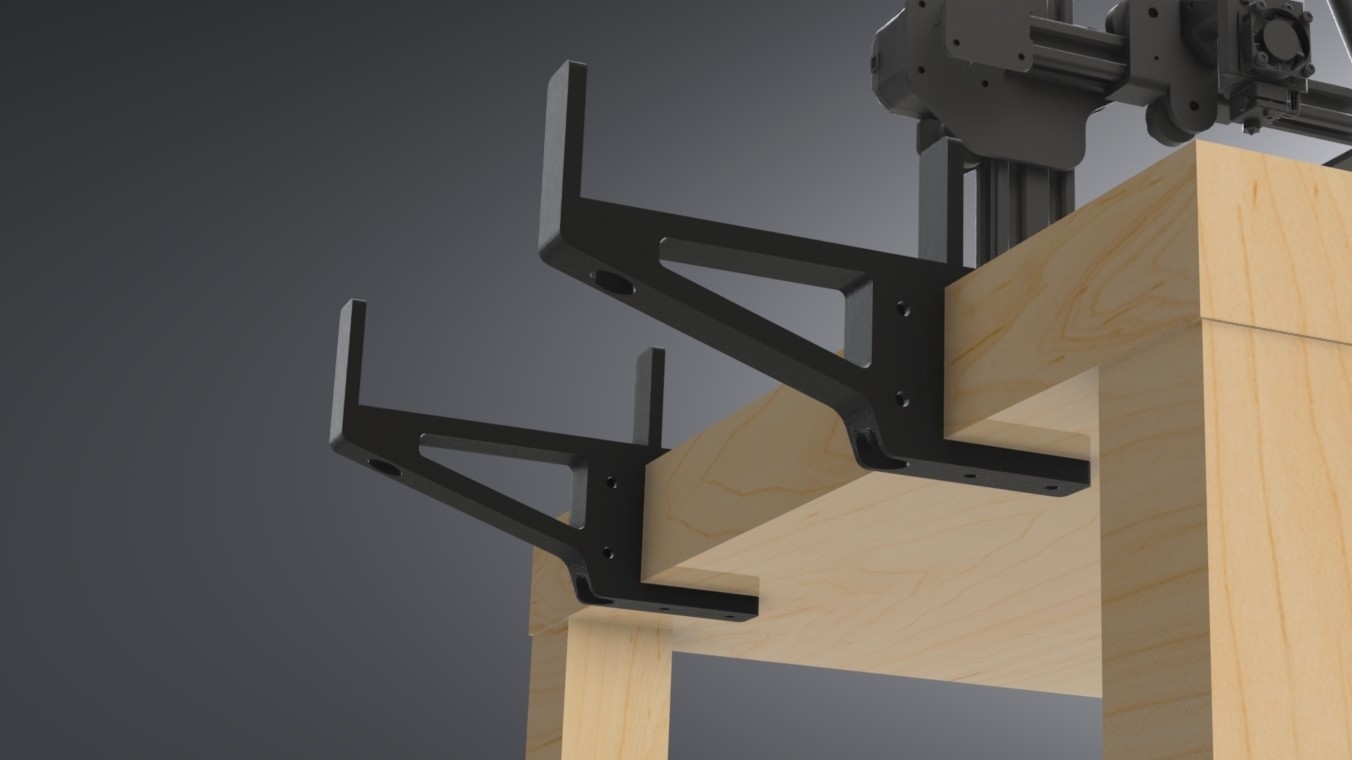

Print QTY 2, brackets for main attachment to table, 40 percent infill.

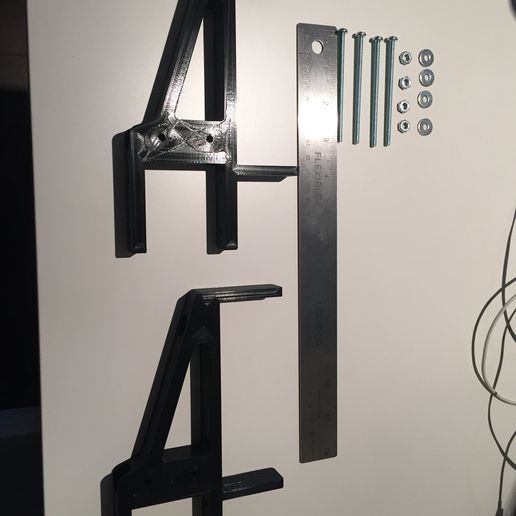

Required hardware,

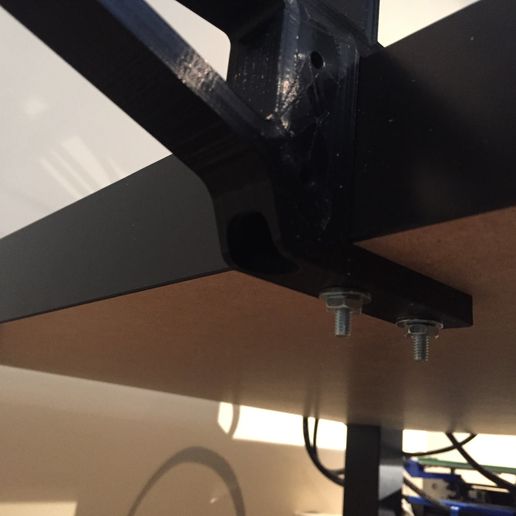

QTY 4 - Pan Head Screws, M4x70mm LG for main attachment to table
QTY 4 - M4 Nuts
QTY 4 - M4 Flat Washers

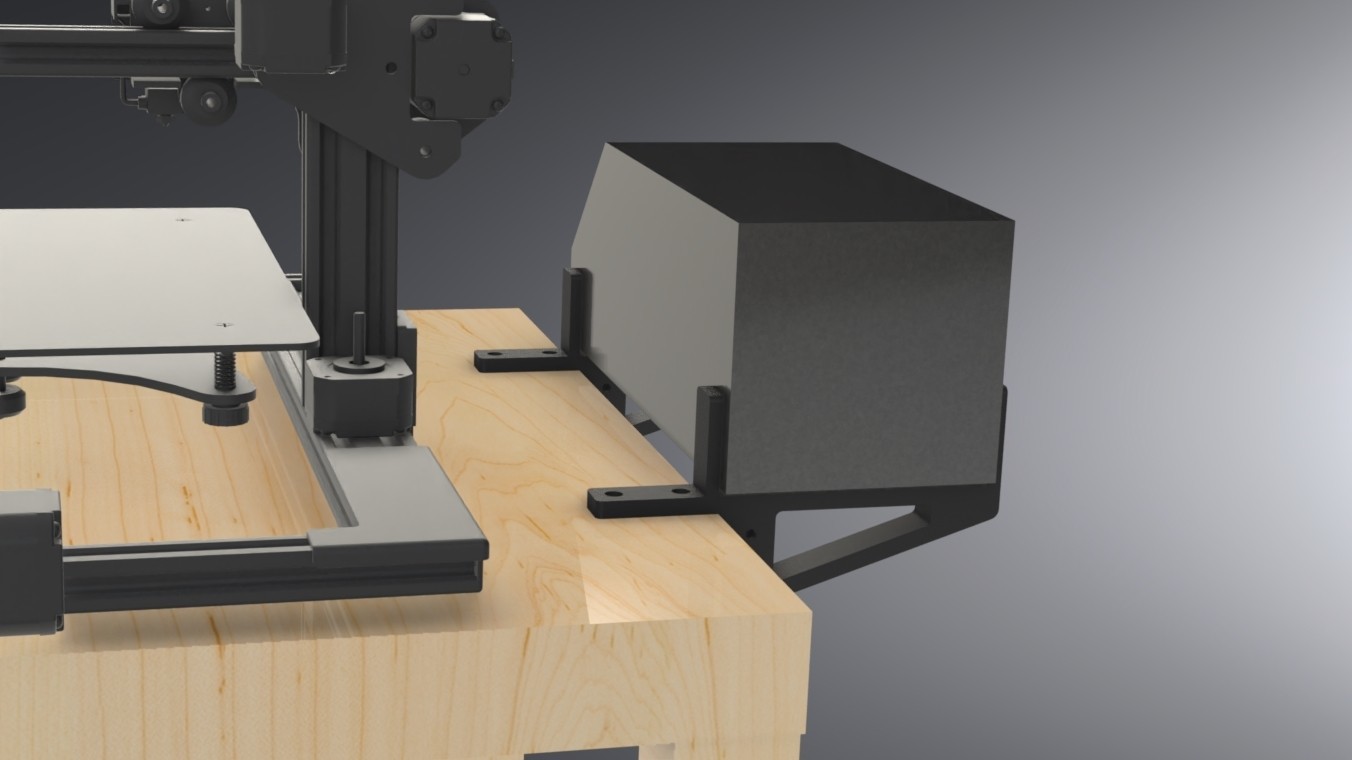

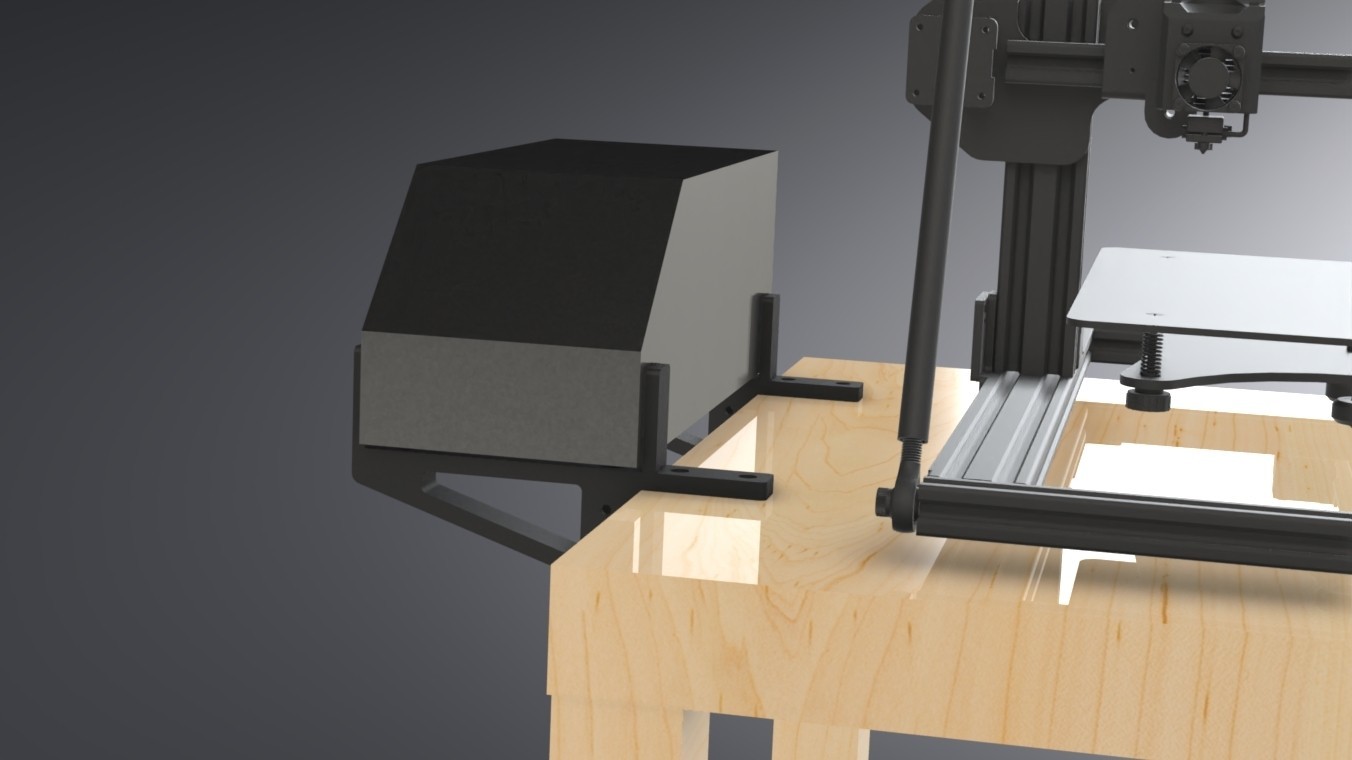

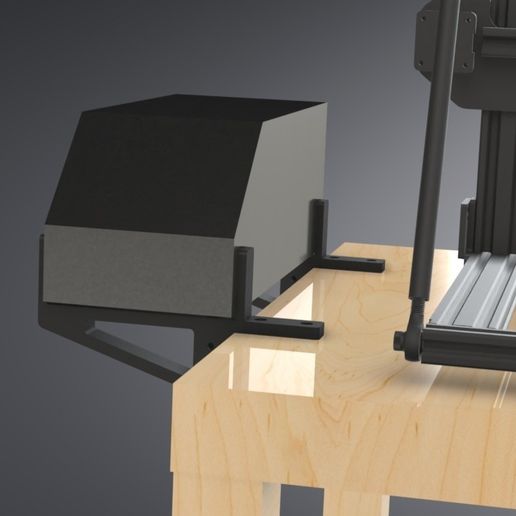

Position brackets in reference to CR-10 control box's rubber feet.

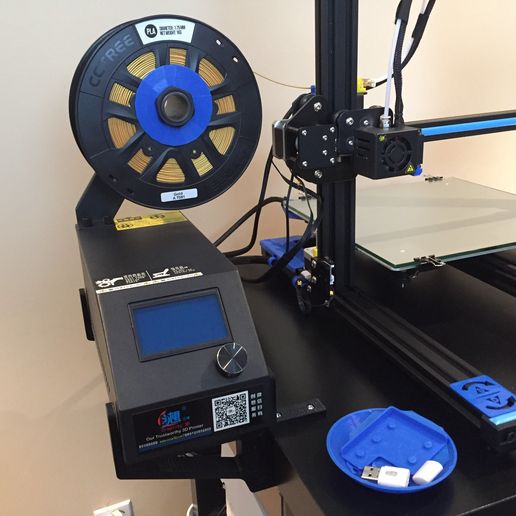

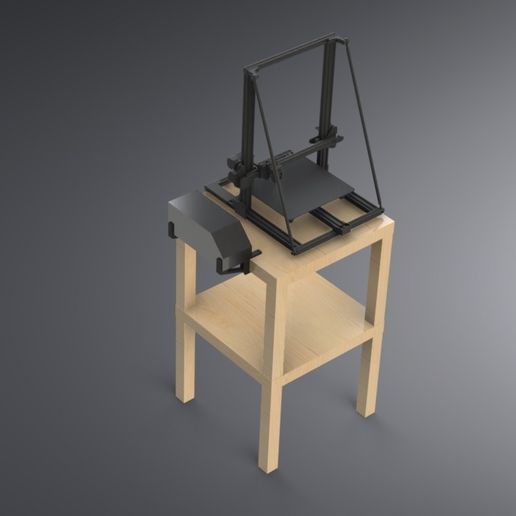

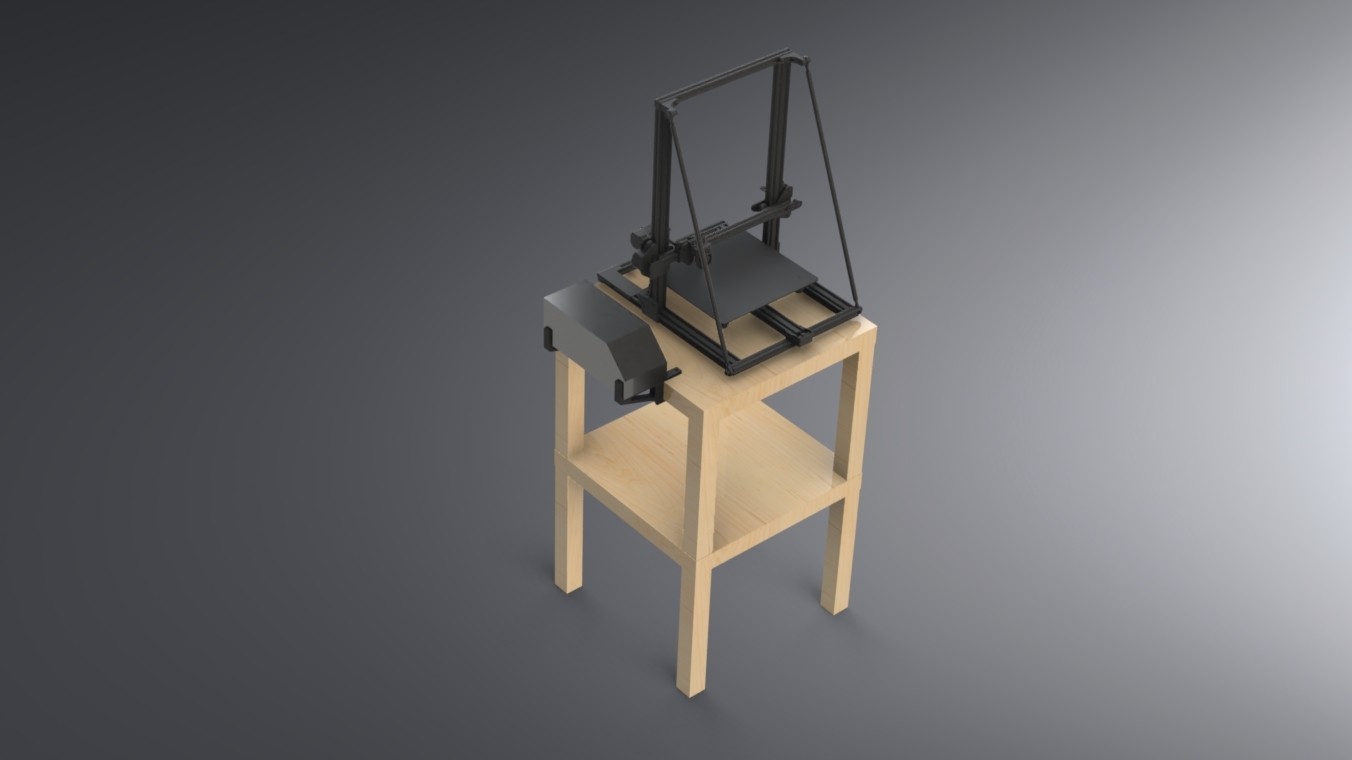

Control box and spool should be positioned inline with feeder. Spot from brackets and pre-drill thru holes accordingly.

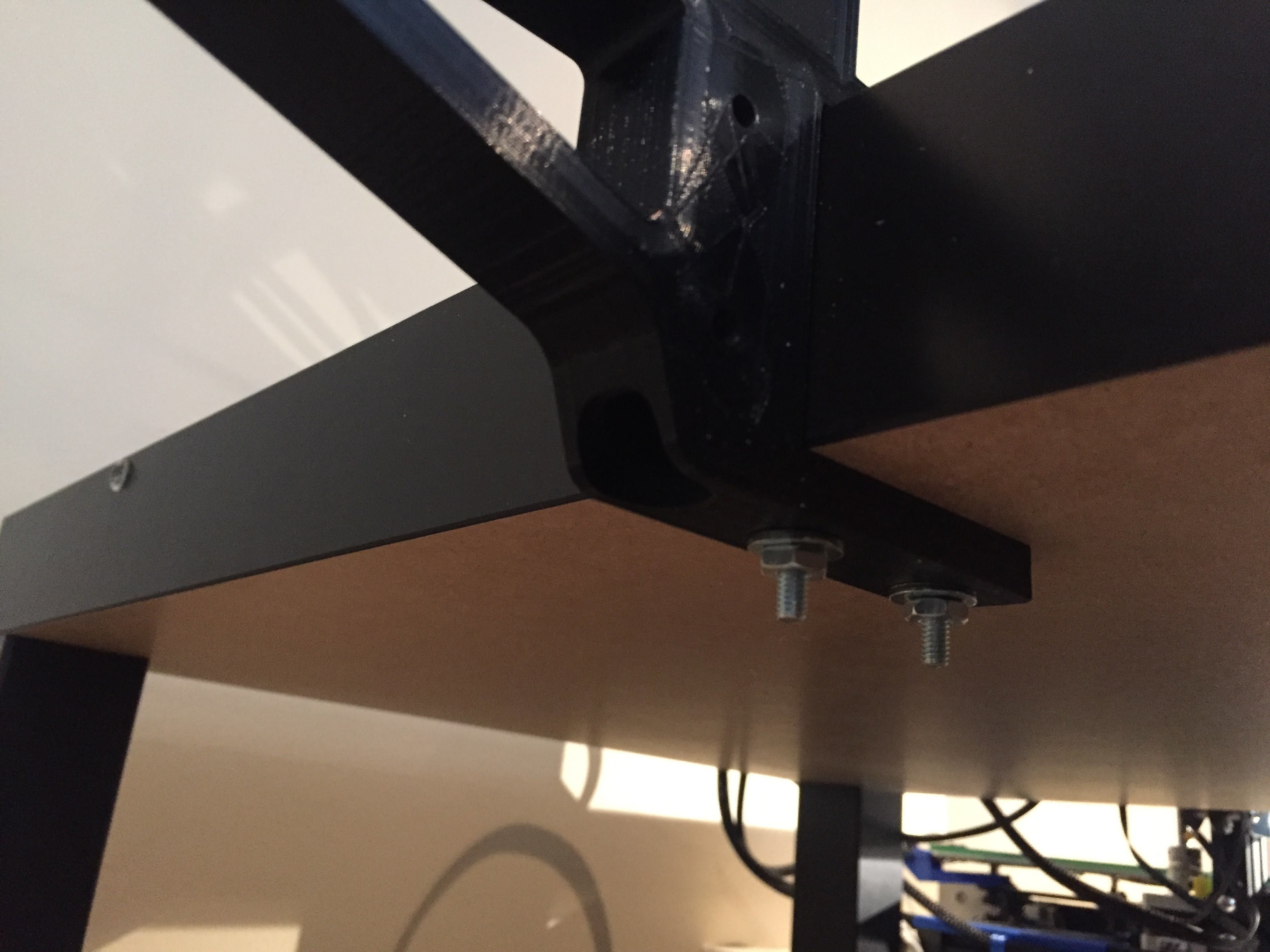

Gently secure hardware for firm grip.

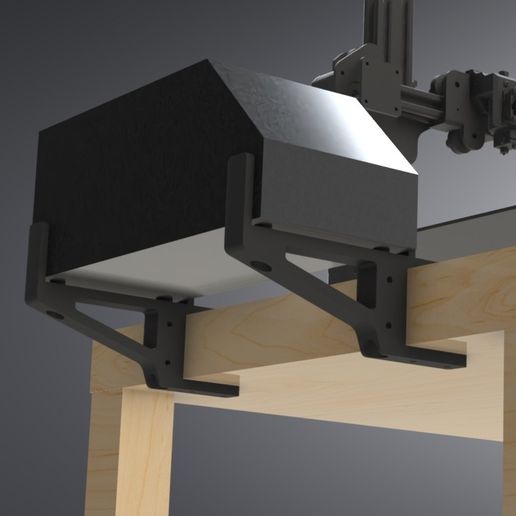

Control box's rubber feet sits in counter bore holes, no attachment required.

Have fun printing!

Regards,

Trikonics

3D printing settings

Print 3 walls
40% infill
No supports

  • 3D file format: STL
