Kossel Delta top spool Extruder mounting bracket

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 52 views

3D model description

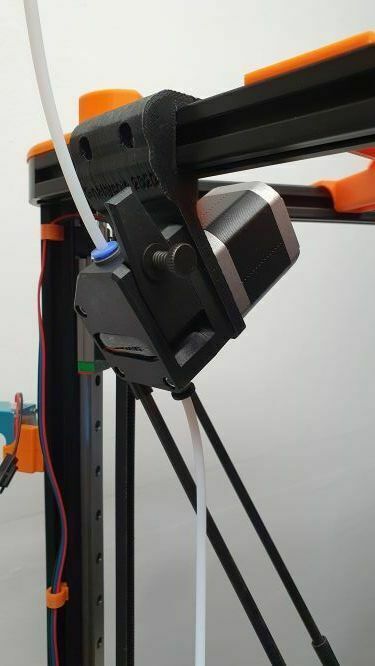

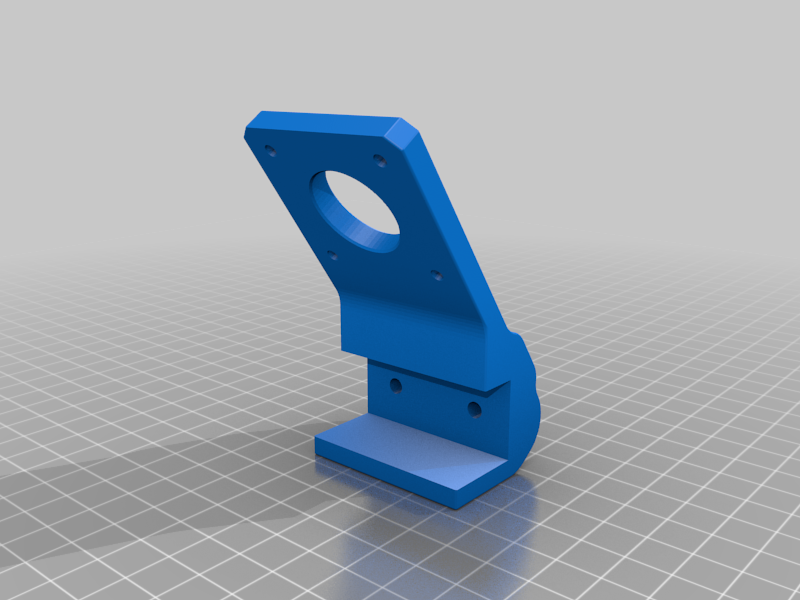

Bracket to mount extruder on the top rail of a delta printer with top spool holder. Gives a shorter and more direct bowden tube path.
Simple bracket to reduce the bend of the bowden tube and therefore reduce the lost motion due to slop in the tube and filament diameter. It also prevents the tube snagging on the tower carriages and neatens up the installation of a top spool mount.
I used the top spool mounting from the Kossel Mini and added the longer mounting arms to allow it to be fitted to the Kossel Linear Plus. Links below to the associated designs.

https://www.thingiverse.com/thing:454808

https://www.thingiverse.com/thing:865929

3D printing settings

-

  • 3D file format: STL
  • 3D model size: X 54.5 × Y 45 × Z 85.7 mm
  • Publication date: 2021/02/24 at 16:13

Tags

Creator

License

CC BY NC
