Knobs with Caps

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 6.4k views
  • 25 likes
  • 43 downloads

3D model description

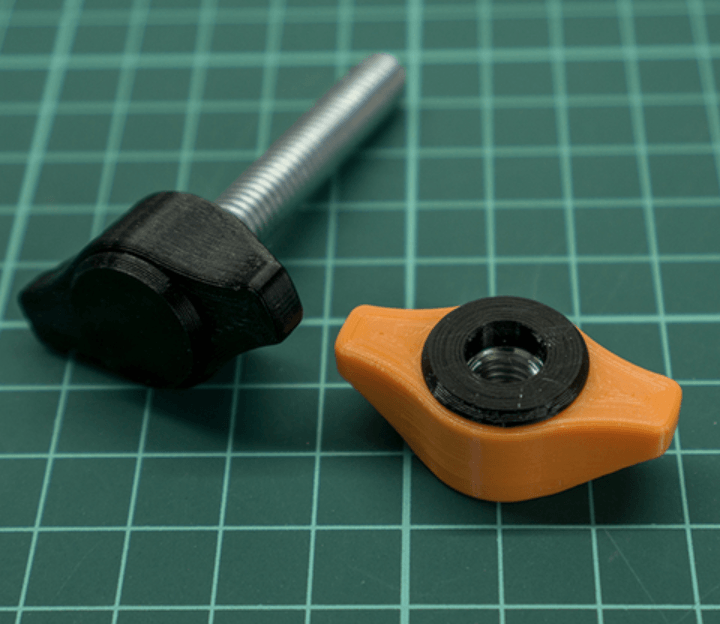

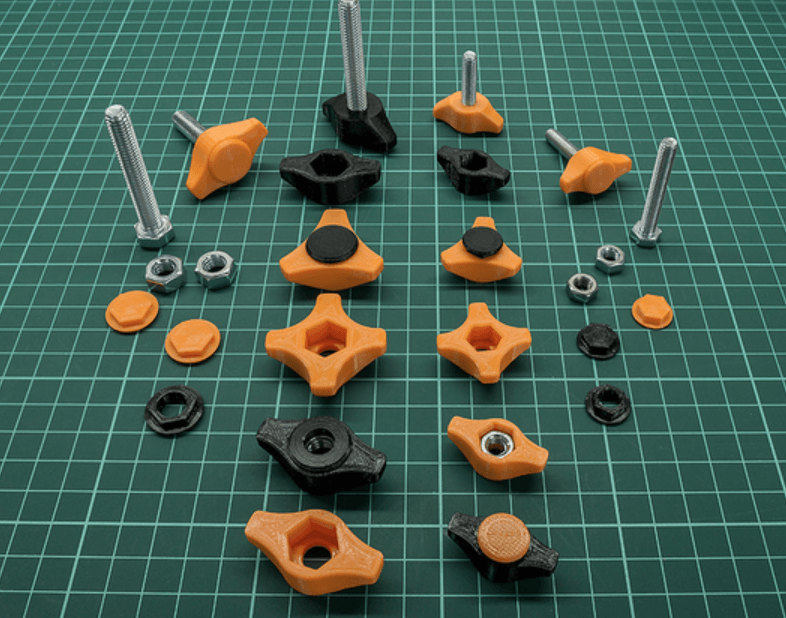

Yet another bunch of knobs for metric 6 (M6) and metric 8 (M8) bolts and nuts. Use caps with holes for nuts and others for bolts.

The housing for the hex head of bolt and nut is a bit tight by purpose. Do not hammer them into these printed parts. Instead, use the method of fastening them in opposite direction. This will pull them into its places. I have shown this method in an animated gif below. Caps are also coming little tight. Use a vice to push them into top openings. I used PETG on Prusa I3 Mk3 and utilised Ultimaker Cura 3.3.1 with 0 (zero) Horizontal Expansion setting. If you encounter loose fits, then you might consider to try Ultimaker Cura 3.3.1.

Happy printings.

3D printer file information

  • 3D design format: STL Folder details Close

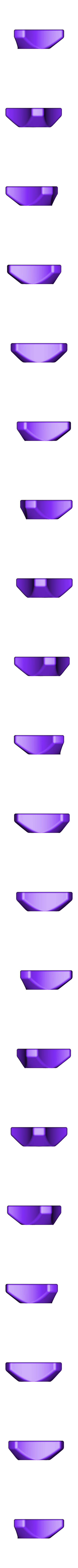

    • 2W_M6_Mk1.stl
    • 2W_M8_Mk1.stl

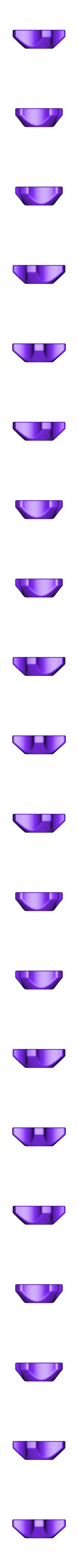

    • 3W_M6_Mk1.stl

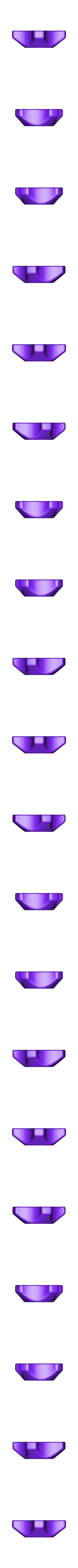

    • 3W_M8_Mk1.stl

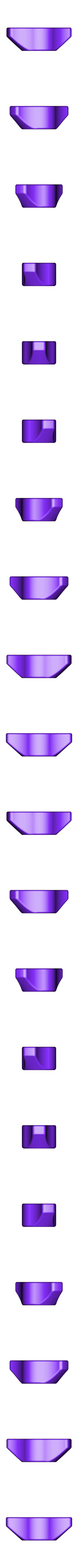

    • 4W_M6_Mk1.stl
    • 4W_M8_Mk1.stl

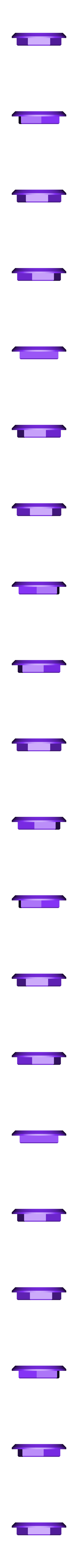

    • CapH_M6_Mk1.stl
    • CapH_M8_Mk1.stl

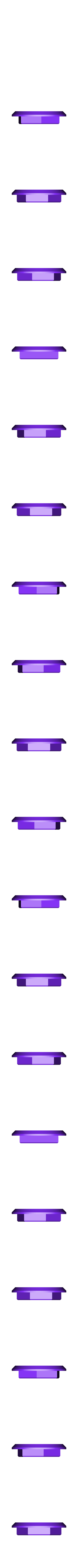

    • Cap_M6_Mk1.stl
    • Cap_M8_Mk1.stl

    Learn more about the formats

  • Last update: 2019/01/28 at 12:00
  • Publication date: 2018/07/05 at 14:51
