KIT Open Source effector convertion for DeltaWASP

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.4k views
  • 2 likes
  • 23 downloads

3D model description

Here you have the 3d printed parts we use for our Open Source convertion of the Delta WASP 3d printer family. We replace all the electronic and effector parts and the files you have here are necessary to mount one V6 E3D All Metal Jhead + freezing 30x30mm fan (in front of the aluminium exagone). Maybe someone else is thinking to convert his Delta WASP in a simple Open Source machine (RAMPS 1.4 + Arduino Mega 2560 + V6 Jhead) and this little KIT will be useful. All the best from ITALY!


3D printing settings

Printer:

3DBNZ ATLAS

Rafts:

No

Supports:

Yes

Resolution:

Nozzle 0.8 Layer 0.3

Infill:

100%

Notes:
Print in a good Anti warping ABS with a big nozzle to increase stiffness. 100% infill no problem with the printing time, they are all small parts.

Post-Printing

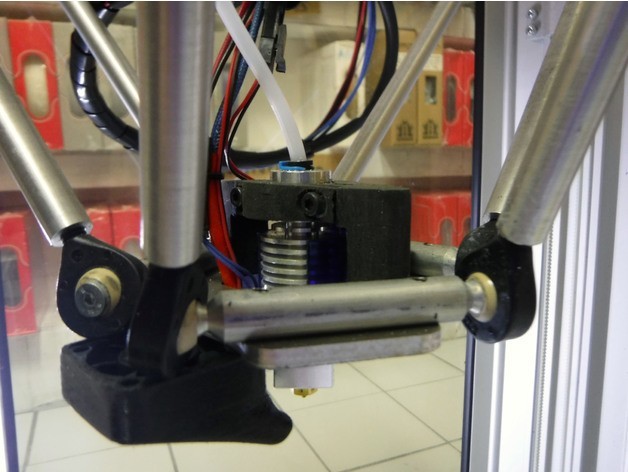

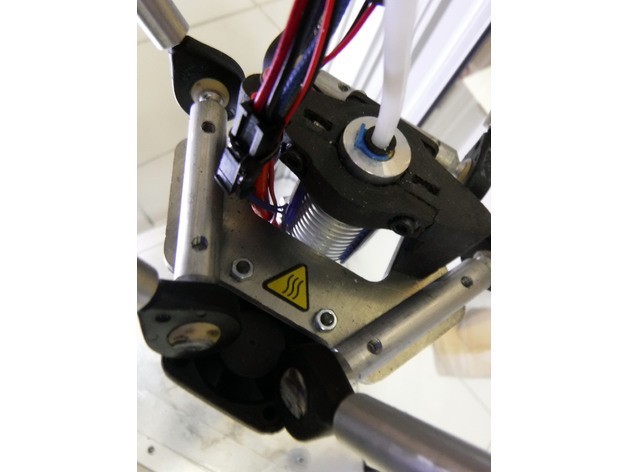

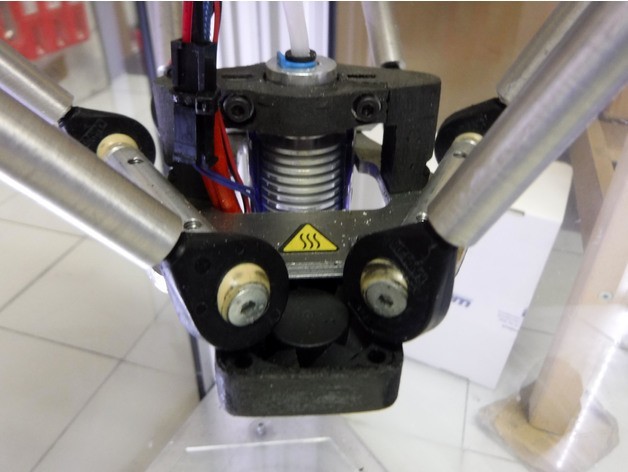

IMPORTANT: you have to cut the aluminium exagone to fit the original cool chamber E3D fan. Just make a rectangular hole back, as you see in the pictures.

The fan needs two little holes to be mounted in front of the exagone.

3D printer file information

  • 3D design format: STL Folder details Close
    • fan_duct.stl
    • supporto2040italy.stl

    Learn more about the formats

  • Publication date: 2018/03/19 at 14:21

License

CC BY

Tags

Creator

ITALYmaker born in 2013 from a free blog online, creating the first 3D printing Open Source Laboratory in Milan, Italy. The target is the creation of a Lab partner network in Italy, based on Open Source technologies and sharing economy, to diffuse and increase the Italian products, both machines FDM and filaments, to share coworking and productions and develop our online community.
More information on: www.italymaker.com
