Jet Engine; Geared Turbofan (GTF), Optional-Fan
:still():format(webp)/https://files.cults3d.com/uploaders/13344378/illustration-file/c3025094-7909-4d39-8fe8-a4bf06835358/P1060569as.jpg)
?
Creation quality:
4.3/5
(2 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 8.6k views
- 31 likes
- 581 downloads
- <span class="text--light">0</span> comments
- <span class="text--light">0</span> makes
Designer
3D model description

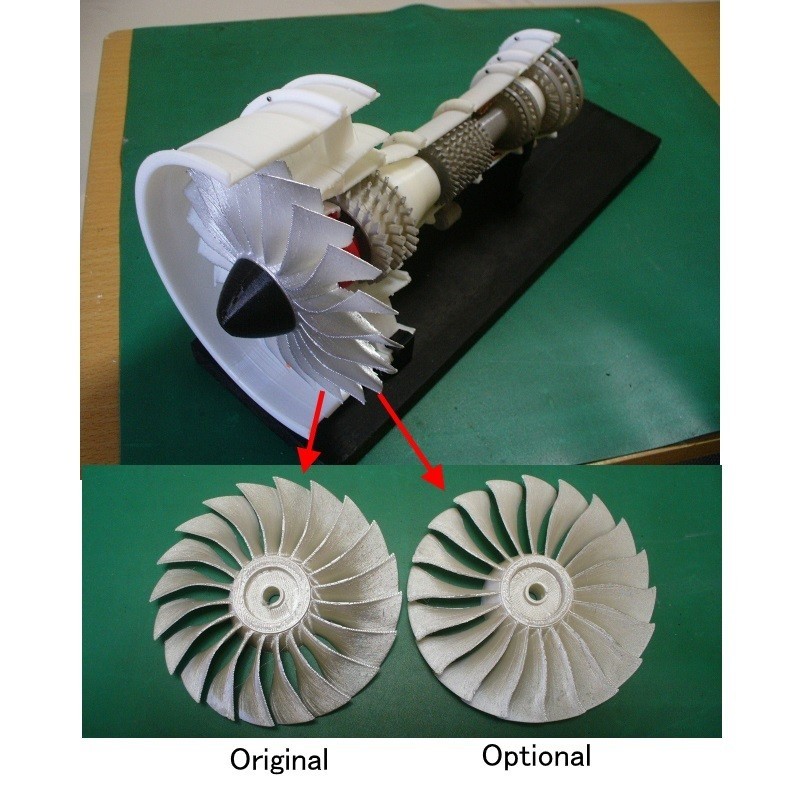

This is an Optional Fan with New Shape Blades for "Jet Engine; Geared Turbofan (GTF) (thing: 2462343)".
https://cults3d.com/en/3d-model/tool/jet-engine-geared-turbofan-gtf
This is designed to simulate for the latest engine's fan.
The Rotor Assy can be replaceable.
STL File (ws: with Special Support)
- Fan-New-Blade-CW01ws.stl (Original: Fan-Blade201ws.stl)
- Note: Fan-Shaft-Hub101.stl is not changed.
Printer setting (Recommendation) (used PLA):
- infill: 100%, Layer Height: 0.2mm, No support
Post printing:
- Take care to remove the Special Support for damaging of the blade.
- Finish blade edges and surfaces as required.
3D printing settings
See above
3D printer file information
- Design number: 21331
-
3D design format: STL Folder details Close
- Fan-New-Blade-CW01ws.stl
- Fan-Shaft-Hub101.stl
