Jet Engine; Geared Turbofan (GTF), Modified Parts

Mod-Support-Rotor01.jpg Free STL file Jet Engine; Geared Turbofan (GTF), Modified Parts・3D printable object to download, konchan77
Mod-Rotor-Support01.jpg Free STL file Jet Engine; Geared Turbofan (GTF), Modified Parts・3D printable object to download, konchan77
HPC-Rotor901ws.stl Free STL file Jet Engine; Geared Turbofan (GTF), Modified Parts・3D printable object to download, konchan77
LPC-Rotor901ws.stl Free STL file Jet Engine; Geared Turbofan (GTF), Modified Parts・3D printable object to download, konchan77
Share
Add to
Make
?
Creation quality: 4.3/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This Modifcation is for;
https://cults3d.com/en/3d-model/tool/jet-engine-geared-turbofan-gtf

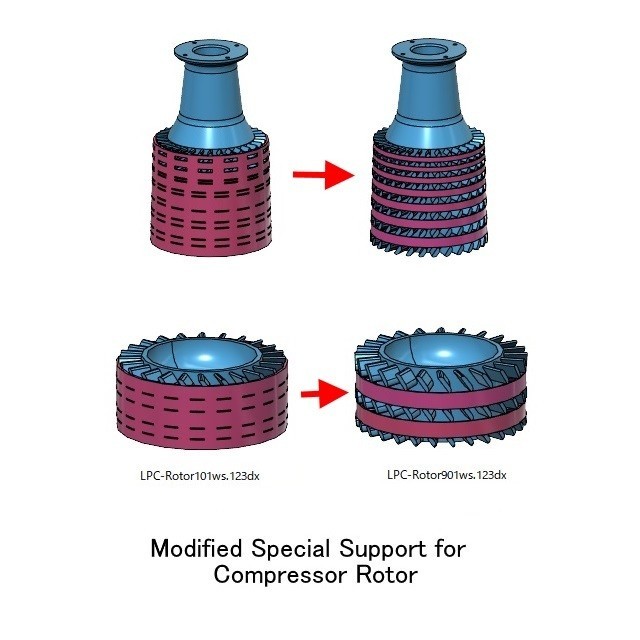

In order to make removal of "Special Support" easy, the support design was changed.
The part itself is the same.
The affected STL Files are as follows;
- HPC-Rotor901ws (Original: HPC-Rotor101ws.stl)
- LPC-Rotor901ws (Original: LPC-Rotor101ws.stl)

Printer setting (Recommendation) (1.75mm PLA, 0.4mm Nozzle):
- infill: 100%, Layer Height: 0.2mm, No support, No raft

Post printing:
- Take care to remove the Special Support for damaging of the blade.
- Finish blade edges and surfaces as required.

I hope your work to be much improved.
