Jet Engine; 3-Spool, Modified Parts

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This Modifcation is for;

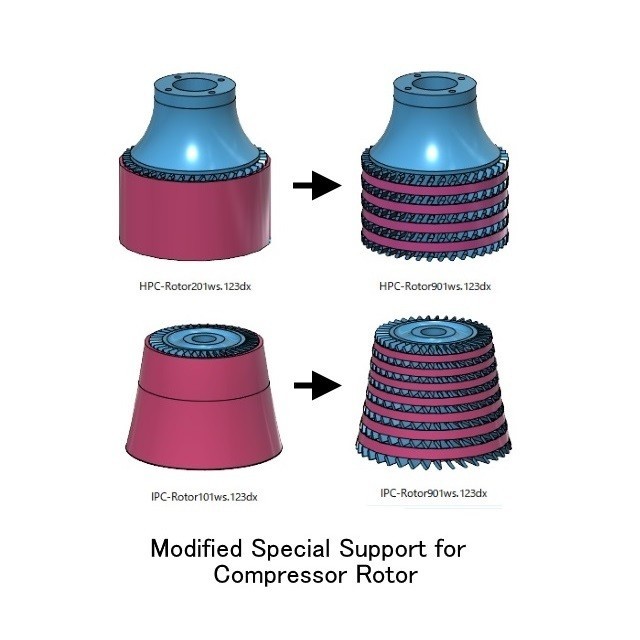

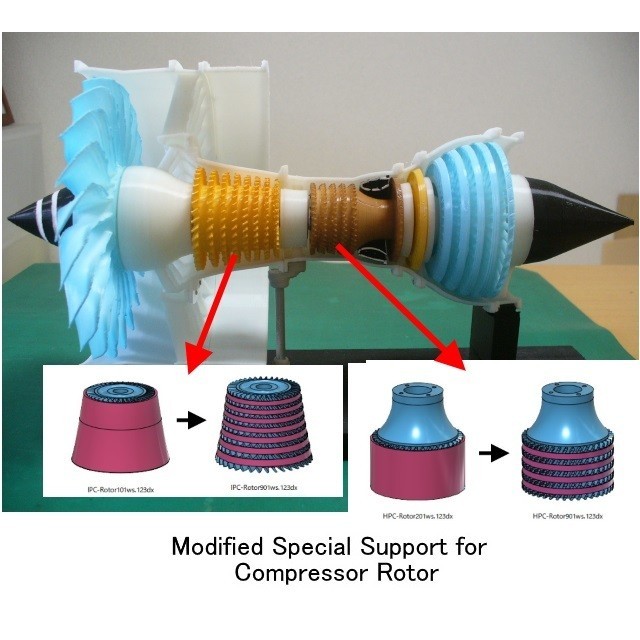

In order to make removal of "Special Support" easy, the support design was changed.
The part itself is the same.
The affected STL Files are as follows;
- HPC-Rotor901ws (Original: HPC-Rotor201ws.stl)
- IPC-Rotor901ws (Original: IPC-Rotor101ws.stl)

Printer setting (Recommendation) (1.75mm PLA, 0.4mm Nozzle):
- infill: 100%, Layer Height: 0.2mm, No support, No raft

Post printing:
- Take care to remove the Special Support for damaging of the blade.
- Finish blade edges and surfaces as required.

I hope your work to be much improved.

3D printing settings

See above

  • 3D file format: STL
  • Publication date: 2018/03/21 at 01:24
