Insta-tripod and monopod - 3d printed tripod

3D model description

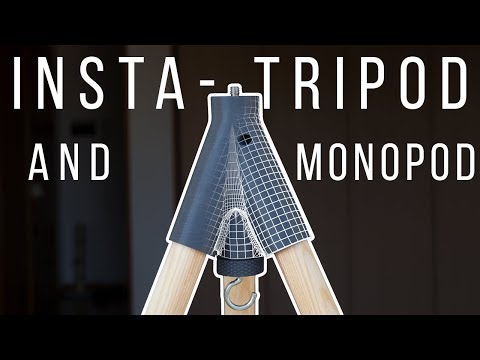

Insta-tripod and monopod

Make sure to read "instructions.pdf"

It's a really portable and compact tripod or monopod, depending on your needs, which you can assemble in a fraction of a second. It's available in both the American and European versions.
For this project is also required a special screw which you can find on Amazon for very cheap (5$) and a 3m/10 ft string. Whether you need extra stability, you may need to get a wall hook 4cm/1.5in long and 3mm/0.12in in diameter on which you can hang a weight. -Every component must be printed without supports and requires only minor clean up(poking the bridge on the bottom of the screw).
For the main head, I strongly recommend using a raft (only for the head), to ensure stability during printing.

I hope you find it useful and easy to use, in case you have any sort of problem, drop a comment and I'll try to be as helpful as I can.

Parts Required
--Screw
https://www.amazon.co.uk/SMALLRIG-Male-Threaded-Screw-Adapter/dp/B00SY3I20A
https://www.amazon.com/SmallRig-Double-Head-Stud-Microphone/dp/B007LTH1X2
For other Countries---> instructions.pdf
--Wall hook (Optional)
Local hardware store

https://youtu.be/z9wZF0mzDm8

3D printing settings

The head should be printed upside down. Use a raft if needed.
10% gyroid / 20%grid Infill
3/4 perimeters
Adaptive down to 0.12 for the head / 0.2mm for everything else
Read instructions.pdf

  • 3D model format: STL and ZIP
