Indicator Mount-MakerBot Replicator 2

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This is my Remix for the indicator holder.

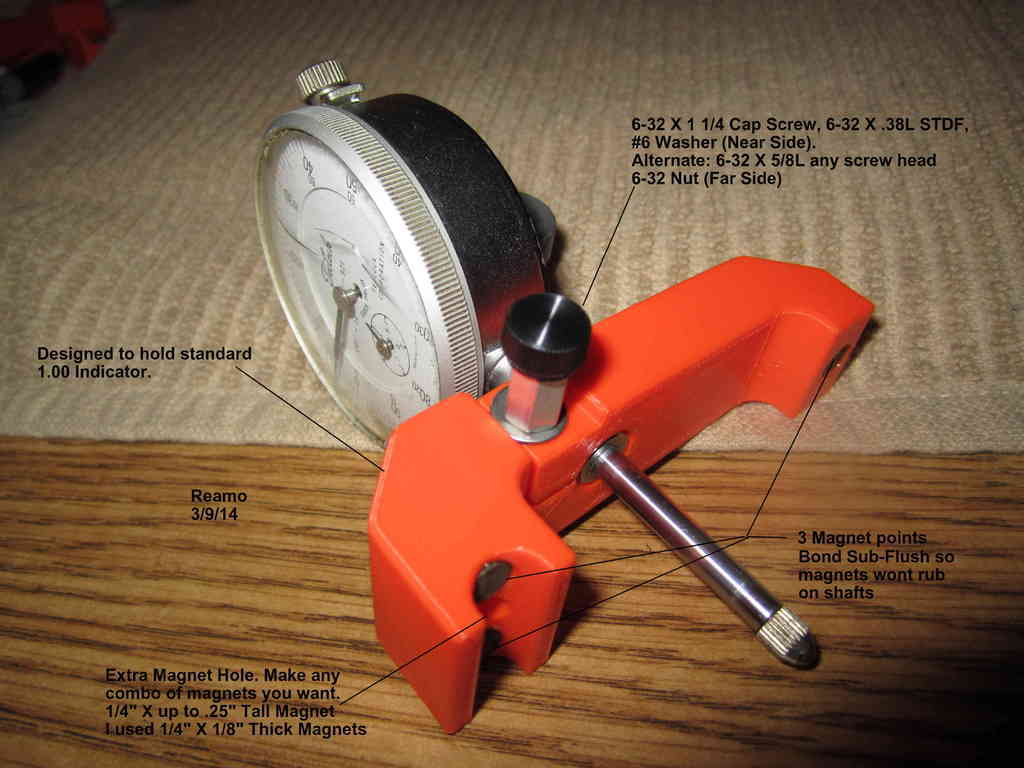

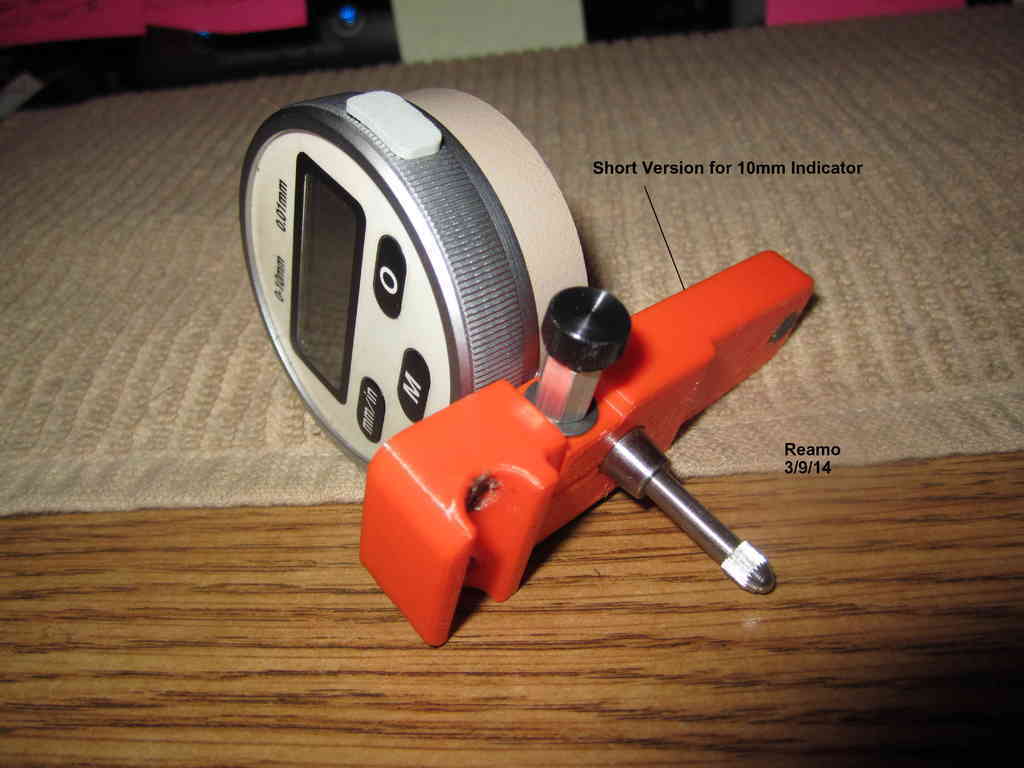

I made two versions; one to hold a standard 1 inch indicator and one to hold a 10mm import indicator. The Import indicator has a smaller mounting shaft so; so height and hole size are different.

Since it can be hard to print and maintain a press fit I elected to go with a Thumb Screw Clamp.

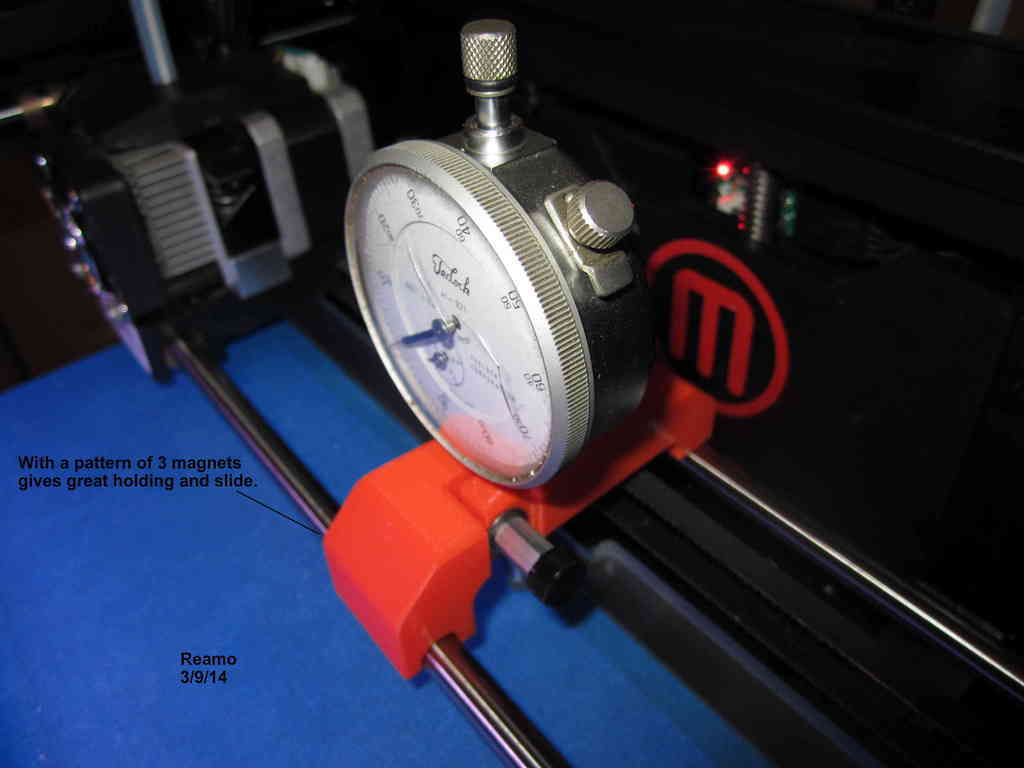

Also found that a narrower version with just to magnets wasn’t stable enough so widened one end and went to a pattern of three magnets. I over sized the holes for the magnets and used Epoxy to bond in place.

3D printer file information

  • 3D design format: STL Folder details Close
    • DialIndicatorMount-4TD_003a.STL
    • DialIndicatorMount-4TD_003a_Import.STL

    Learn more about the formats

  • Publication date: 2018-12-07 at 15:54
    ?
    Published to Thingiverse on: 2014-03-10 at 20:03

License

CC BY SA
