Improved MMU Filament Guide for LACK IKEA table

20181217_141106.jpg Free STL file Improved MMU Filament Guide for LACK IKEA table・3D printer model to download
20181217_141143.jpg Free STL file Improved MMU Filament Guide for LACK IKEA table・3D printer model to download
20181217_141432.jpg Free STL file Improved MMU Filament Guide for LACK IKEA table・3D printer model to download
20181217_141334.jpg Free STL file Improved MMU Filament Guide for LACK IKEA table・3D printer model to download
20180708_175652.jpg Free STL file Improved MMU Filament Guide for LACK IKEA table・3D printer model to download
20180708_231144.jpg Free STL file Improved MMU Filament Guide for LACK IKEA table・3D printer model to download
1abb88c348a18e85a5ae75fb51f16fa1.png Free STL file Improved MMU Filament Guide for LACK IKEA table・3D printer model to download
a5df04ad330c77481f5bf72564557cda.png Free STL file Improved MMU Filament Guide for LACK IKEA table・3D printer model to download
Bottem_Guide.stl Free STL file Improved MMU Filament Guide for LACK IKEA table・3D printer model to download
Top_Guide.stl Free STL file Improved MMU Filament Guide for LACK IKEA table・3D printer model to download
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

AcE-Craft

AcE-Craft

3D model description

Fillament / PFTE-tube (for MMU2) guide.

This filament guide should solve the 90degree angle filament path problem for higher prints inside the IKEA LACK enclosures. It allows filament to move around and rotate more to prevent it bending in sharp angels making it harder to get pulled from the spindle, get jammed or even break.

I designing this to be wide enough to pass PTFE-tubes as I'm planning to get the Prusa MMU2 and put it on top of the 3D printer enclosure but all the filament spindles, passing just 1 ptfe-tube through the bottom enclosure toward the 3D printer.

I designed it to use M3 nuts and bolts.

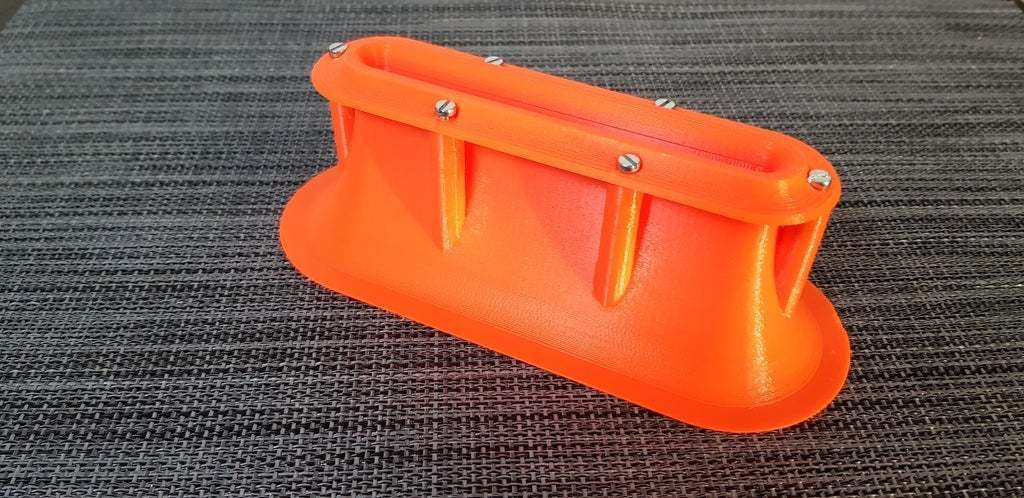

Printed from Prusa orange (Colorfabb) nGen filament without support.
Use a screw driver to holed the nuts in place while screwing in the bolts from the top.

3D printer file information

  • Design number: 169187
  • 3D design format: STL Folder details Close
    • Bottem_Guide.stl
    • Top_Guide.stl

    Learn more about the formats

  • Publication date: 2020-07-07 at 12:22
    ?
    Published to Thingiverse on: 2018-12-17 at 15:21

License

CC BY-SA - Attribution - Share alike
