Improved Anet A8 Fan Duct.

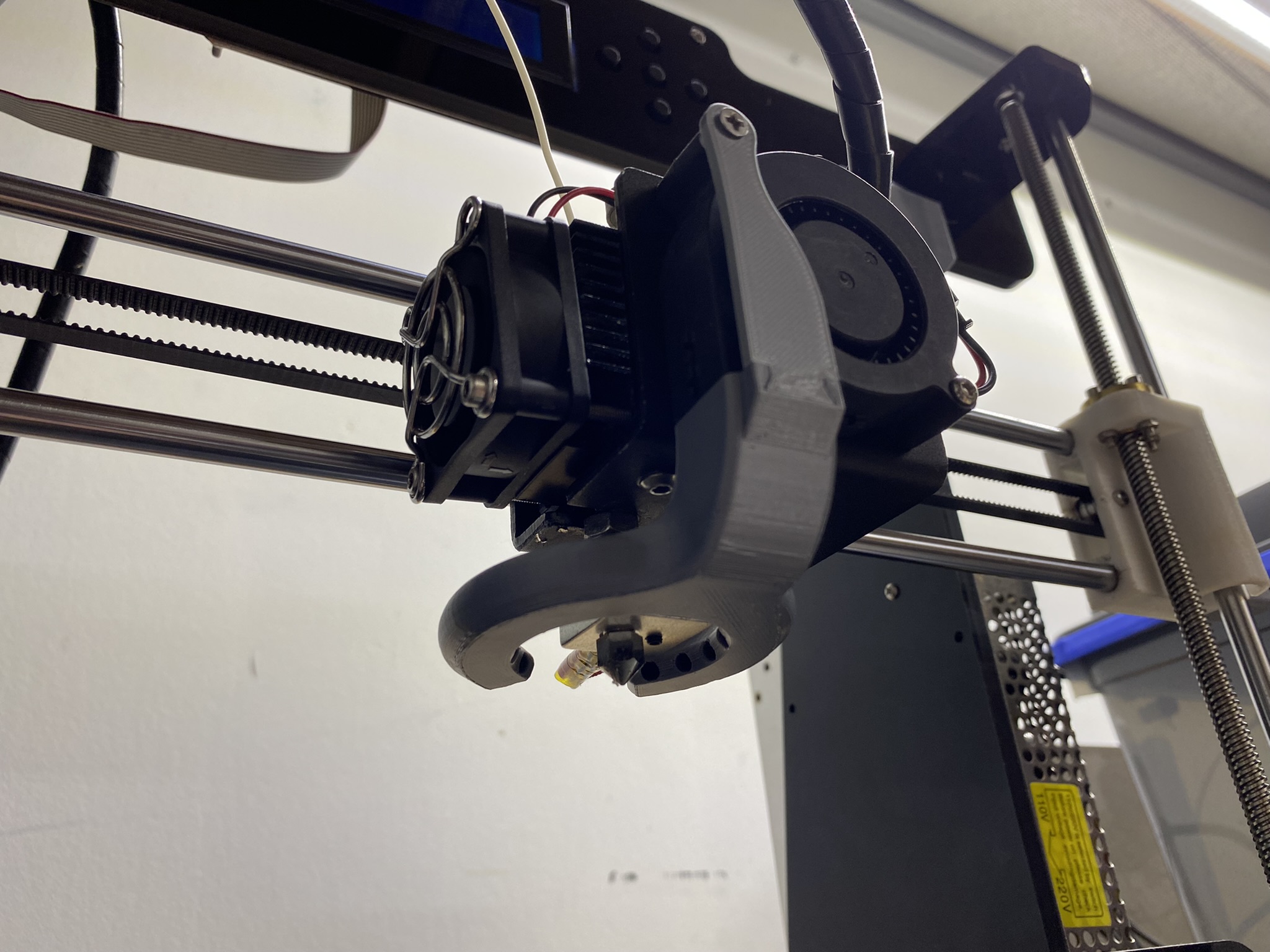

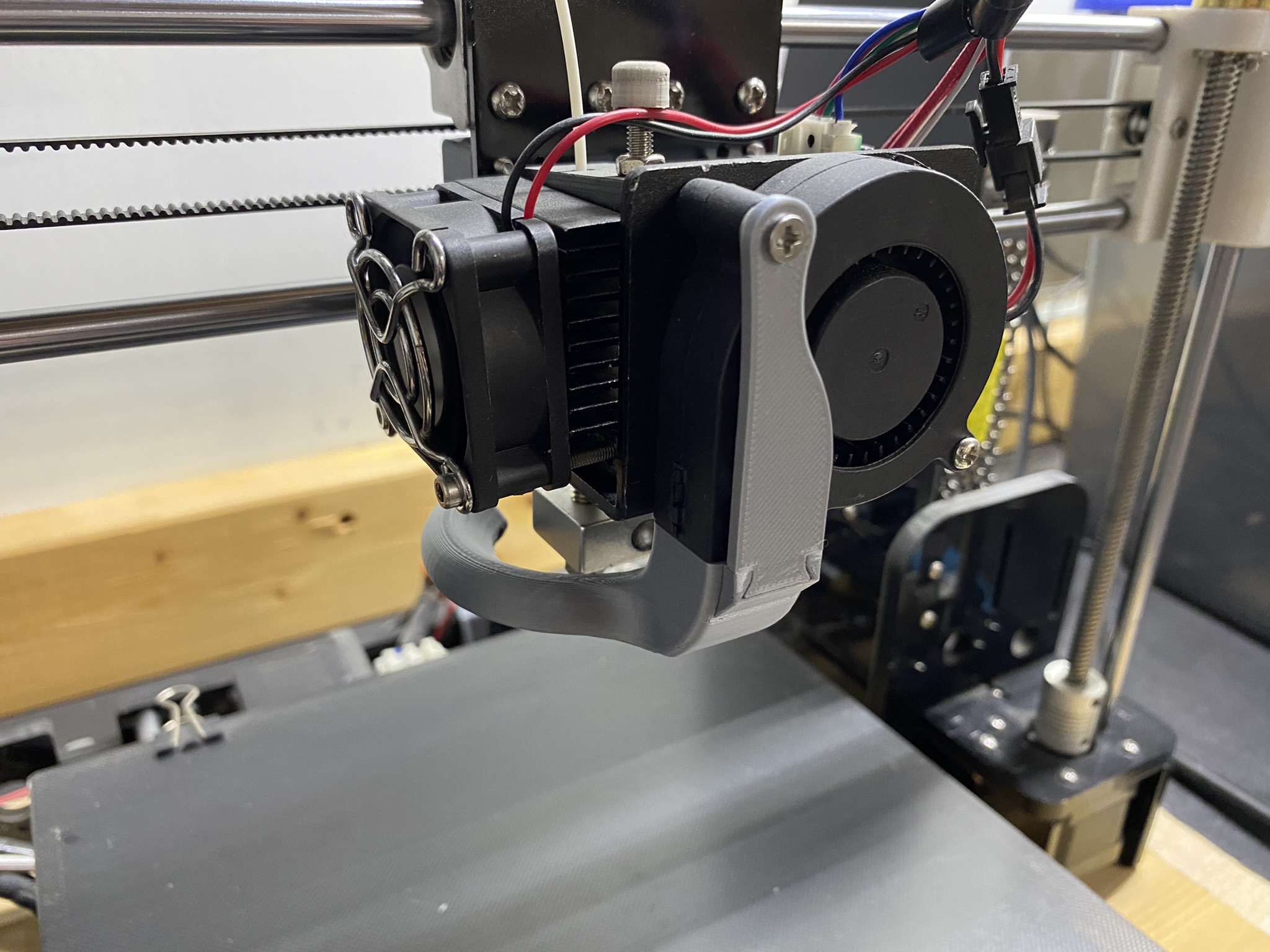

This has a semi-circular design in order to not interfere with the heater block wires, and an optional stem that prevents the fan duct from falling off mid print.
Tolerances around the stem join are 0.1mm, so it is a tight fit. Glue is recommended for attaching it. Ensure that the stem is correctly oriented before gluing!
If you enjoy my creations, please consider buying me a coffee (https://buymeacoffee.com/SirRumblethump). Thanks so much!
3D printing settings
Printed on the Prusa Mini in Grey PETG.
Layer Height - 0.15mm
Perimeters - 3
Infill - Gyroid @ 25%
Brim - 3mm
Supports - buildplate only; recommended but optional depending on the capabilities of your printer.
3D printer file information
- Design number: 642009
-
3D design format: STL Folder details Close
- AnetA8_FanDuct v5_Stem.stl
- AnetA8_FanDuct v6_Duct.stl
- Publication date: 2022-02-17 at 22:15
