Idler Pulley for 624 Bearing and GT2 belt

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This is an idler pulley to suit a 624 bearing (4x13x5mm). The pulley outer diameter is 18mm, internal diameter 13mm and overall height is 8.4mm. The pulley outer channel is 6.4mm high by 1.5mm deep.

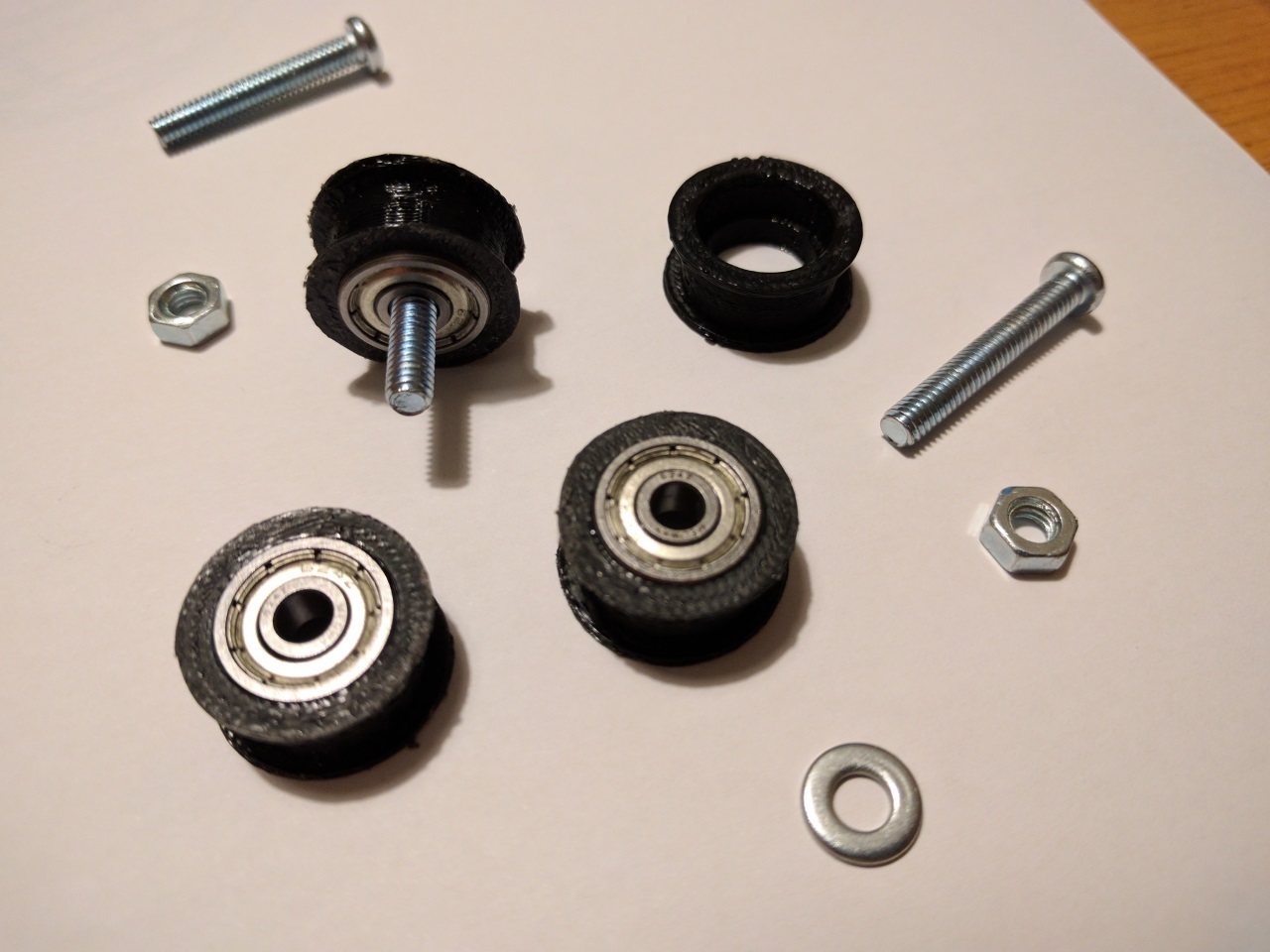

Assemble with a 624 bearing, M4 machine screw and an M4 washer to give some clearance for the bearing to rotate.

I made this pulley to stop the belt from slipping off the bearings in this drawing robot:

There's also a spacer included with 8mm OD x 4mm ID x 3.5mm height, which was needed with the drawing robot, to add a bit of clearance to fit the new pulleys.

3D printer file information

  • 3D design format: SKP and STL Folder details Close
    • idler_18x13x6_01.skp
    • idler_18x13x6_01.stl
    • spacer_8x4x3-5.stl

    Learn more about the formats

  • Publication date: 2020/01/29 at 21:50
