Hyperpower Sports 2000w Capitan Scooter Mods and Upgrades

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 6 likes
  • 34 downloads

3D model description

After purchasing our 2000w Brushless Capitan electric scooter from Hyperpower Sports for our Banana Science YouTube 1000 subscriber special, we just couldn't help ourselves when it came to designing all the super handy mods for it. The first thing we designed was an easy-to-install front mud flap to prevent water from spraying all over your face when you drive through a puddle. Next, we noticed that the edges of the our wooden deck began to get progressively more scratched and damaged after a bunch of small scrapes. To fix this, we designed handy TPU deck bumpers which you can easily install with high temp hot glue to keep your deck edges looking nice and clean. Lastly, we designed small TPU plugs to fill the ventilation holes in the bottom of the battery compartment to protect your battery and ensure it doesn't get wet if you run through puddles. IMPORTANT: ONLY INSTALL THE TPU PLUGS IF YOU ARE USING THE LITHIUM BATTERY! The lead acid battery version of the scooter requires those holes to be open for ventilation. The plugs simply press fit into the holes with a lip to keep them in place. They are a bit tricky to install but that way they won't come out. Though these are the only current mods we've designed, stay tuned for a rear mud flap design and many more cool mods as well as a detailed instruction video on how to install them this summer!

Make sure to also check out our in-depth review and unboxing video the the Capitan 2000w electric scooter. (coming soon)

Don't own a 3D printer? Purchase all of these mods with free shipping within the United States from eBay? (also coming soon)

Note: We are neither sponsored nor supported by HyperPower Sports in any way nor do they support or have verified any of these modifications. We've just designed these to make your scooter even more awesome!

3D printing settings

Printer:

Flashforge Creator Pro/ Creadily CR10

Rafts:

Yes

Supports:

Yes

Resolution:

Use your default settings

Infill:

30-100%

Notes:
Print the front mud flap in PLA with supports and rafts. You can do any infill or shell count you like but we suggest using between 20% and 50% infill with at least 3 shells.

Print the TPU deck bumpers in a semi-stiff TPU like FoxSmart's 1.75mm TPU For best results, use a lower infill between 15% and 30% with three shells.

Also print the TPU plugs in a semi-stiff TPU like FoxSmart's 1.75mm TPU. These must be printed with 90%-100% infill or they will fall out.

How I Designed This
Onshape FTW

If you're looking to make an easy remix, make sure to check out our public Onshape document for easy editing.

Mud Flap Installation
Introduction

Since we haven't released our YouTube modding tutorial yet, we've created these handy few steps to show you how to install the front mud flap which can be pretty confusing just by looking at the photos. All tools necessary should be included in the mini tool kit that comes with the scooter.

Step 1: Preparation

Before you can begin installing the mud flap, it's a good idea to use one or two extremely heavy duty 200 pound cable ties to connect the front shock to the stem to the wheel (refer to photos for more info). If you don't install this cable tie, when you remove the lower front bolt to install your mud flap, the wheel will roll forward and it will cause you a lot of unnecessary time, pain, and suffering (trust us, we would know).

Install a super heavy duty cable tie to prevent the front wheel from rolling forward during installation.

Step 2: Unscrew Lower Front Bolt

Now that you have the heavy duty cable tie in place, you can unscrew the lower front bolt which goes through the bottom hole of the steering stem. When removing this, make sure to be careful not to lose both washers, the bolt, the nut, and both metal spacers. Once removed, set these aside where you won't lose them.

Remove this bolt

Don't lose these parts!

Step 3: Install Front Mud Flap

The front mud flap now simply slides into the bottom threaded part of the steering stem. Don't forget to install the black metal spacer before the mud flap as well since it most likely fell out when you removed the bolt.

Now comes the tricky part, you need to hold the mud flap into the steering stem so it doesn't fall out while you reinstall your bolt. Remember to also reinstall your washers and metal spacers! You may need to slightly rotate the mud flap, but the bolt should slide right through the mounting hole of the mudflap and through the other side. Once again, please refer to photos below for details!

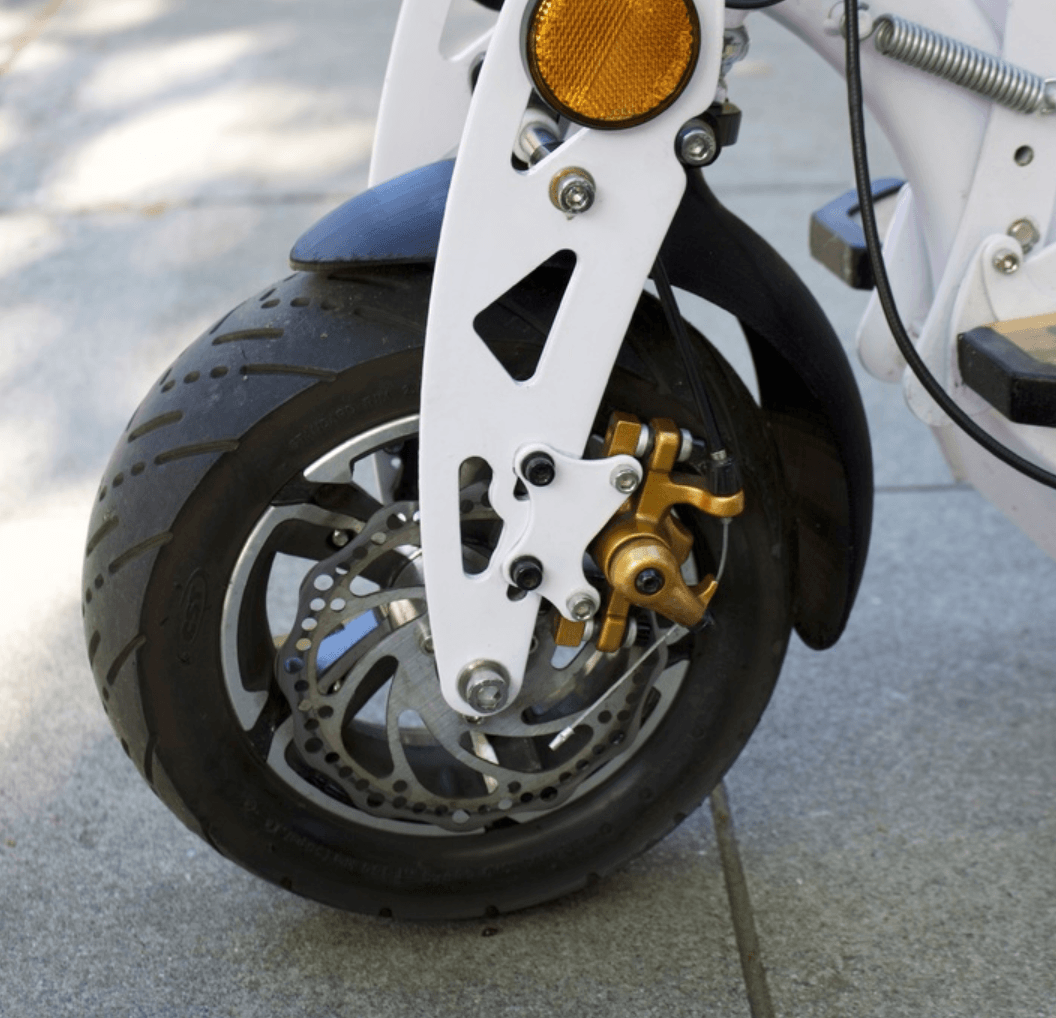

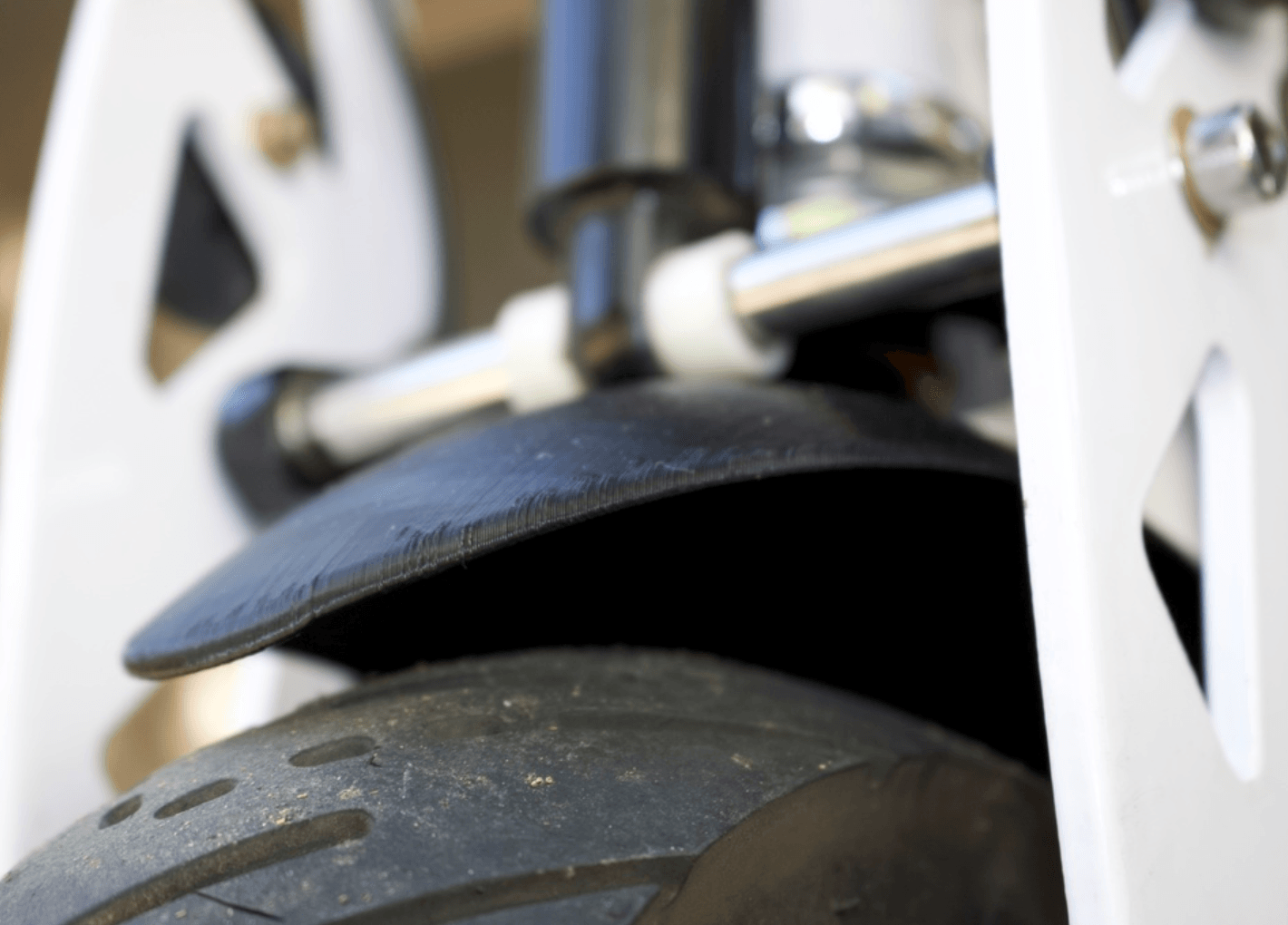

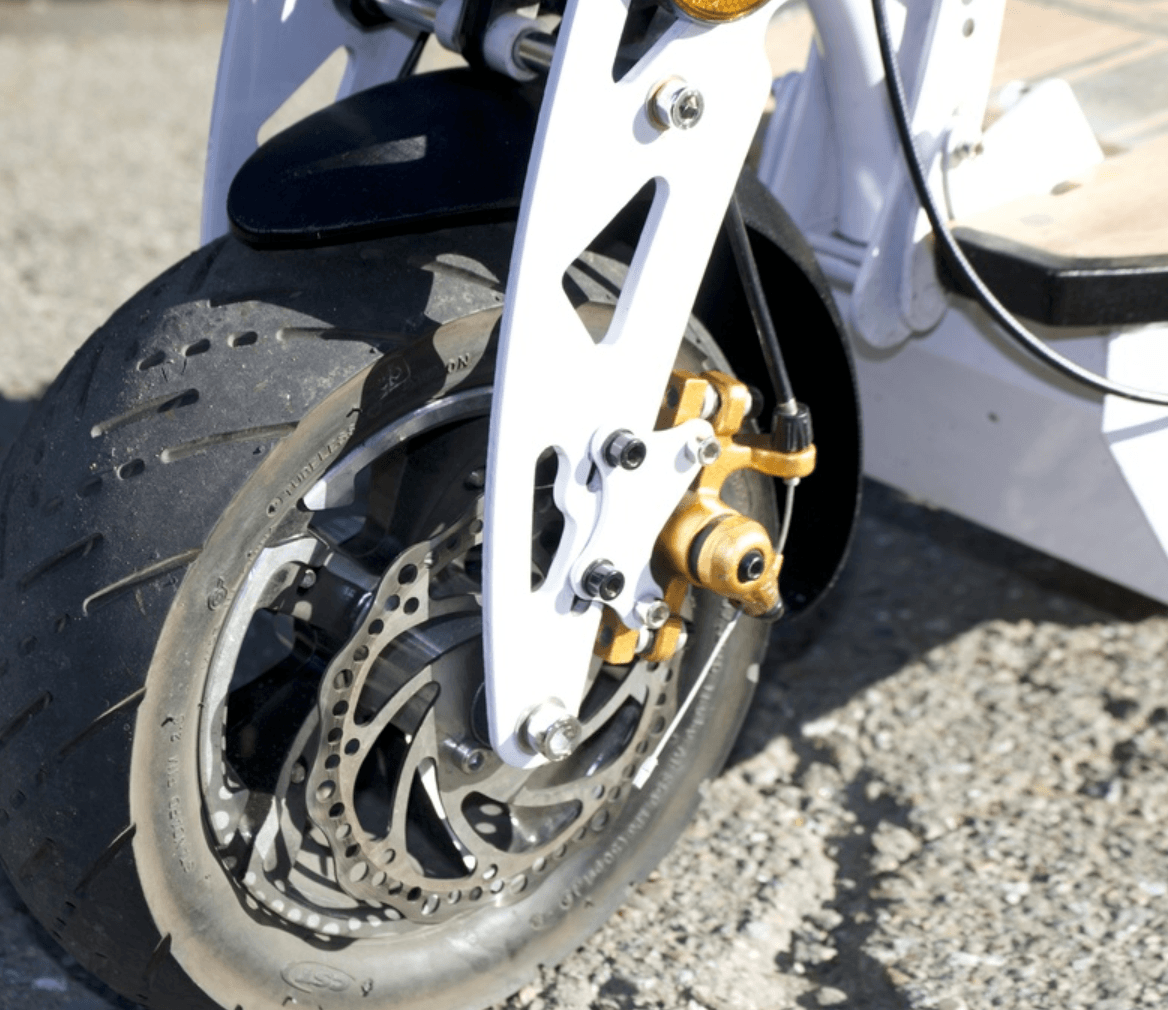

The mud flap installs over threaded section of steering stem and under the black metal spacer.

Don't forget to reinstall your washer!

Make sure the long part of the mud flap faces backward ;)

Step 4: Install the Nut and Finish

Now all you have to do is install your last washer and nut and you're done! Wipe all the grease off your hands, take your scooter for a spin, and run through some puddles!

All done!

  • 3D file format: STL
  • Publication date: 2018/04/27 at 12:02

Tags

Creator

Designs 45
Downloads 3.8k
Followers 23

We're a team of young makers who like cool (and sometimes dangerous) weekend projects. Make sure to check out our youtube channel!

YouTube Channel

License

CC BY NC
