Hydrogen Generator

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Safety:
First off, a hydrogen generator can be very dangerous if you are not taking the proper safety considerations.The tube producing hydrogen must be kept away from flames. I always keep a five-gallon bucket with water to place the tube in (as an added safety precaution). If safety precautions are not taken properly there is a potential risk of blowing up and sending PVC shrapnel everywhere. So safety glasses are required. Hydrogen is a useful tool but is very dangerous. You have been warned.

Disclaimer:
If you make a hydrogen generator from what I provided, I take no responsibility if you hurt yourself, others, or destroy property. Make at your own risk.

I plan to use this for an experiment to either run my generator off of hydrogen or create a hybrid system to see if my generator runs longer.

YouTube: https://youtu.be/7NqaH3yWsJw

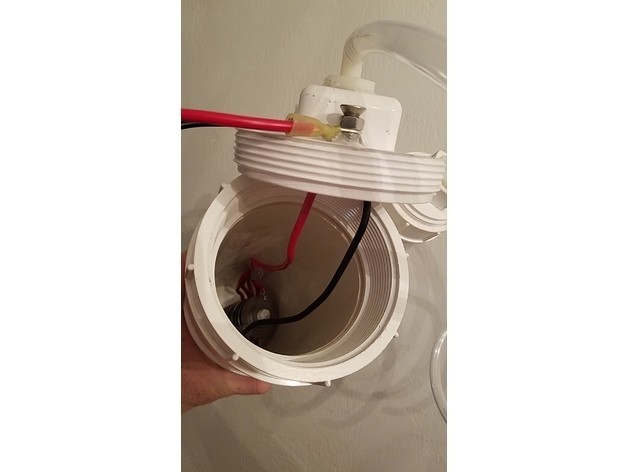

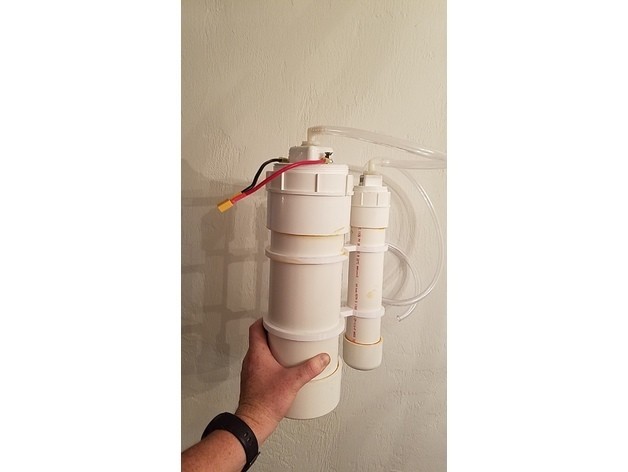

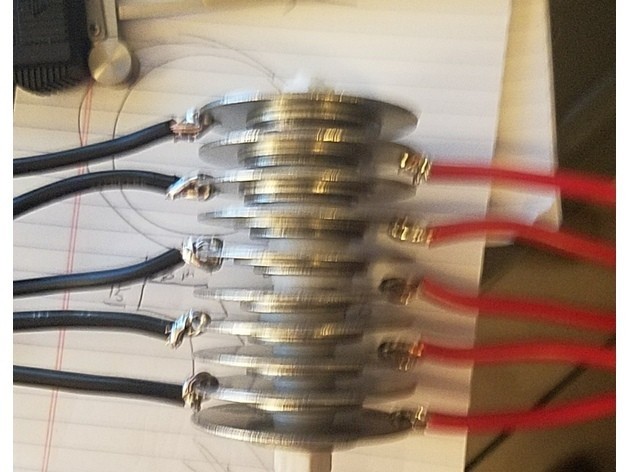

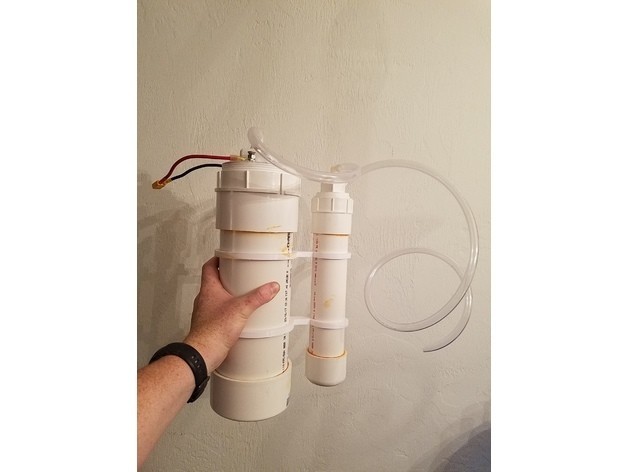

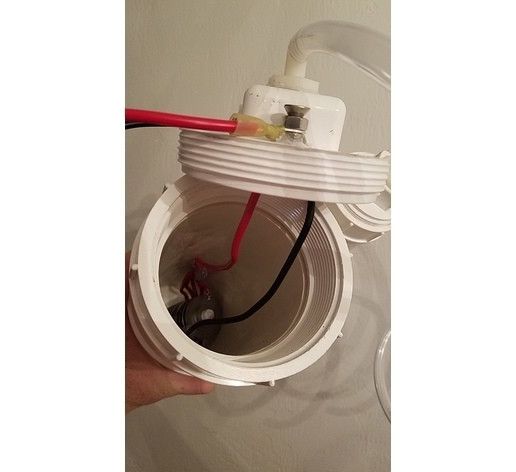

I designed a hydrogen generator that I can run on my solar panels or on my solar generator. I used stainless steel washers and each 2 in washer alternated from positive to negative. I 3D printed a bolt to hold all the washers together. The hydrogen chamber is 4 inch PVC and the safety chamber is 2 in PVC They are held together with 2 3D printed pipe holders and there is a 3D printed stand. I use potassium carbonate as my catalyst.


3D printing settings

Printer Brand:

Robo 3D

Printer:

R1 ABS + PLA Model

Rafts:

Doesn't Matter

Supports:

Doesn't Matter

Resolution:

.2

Infill:

30%

Notes:
PETG

3D printer file information

  • 3D design format: STL Folder details Close
    • Pipe_holder.stl
    • stand_v1.0.stl

    Learn more about the formats

  • Publication date: 2018-07-05 at 10:45

License

CC BY NC
