Huion Drawing Tablet Inclined Table (Made for model 430P)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.6k views
  • 2 likes

3D model description

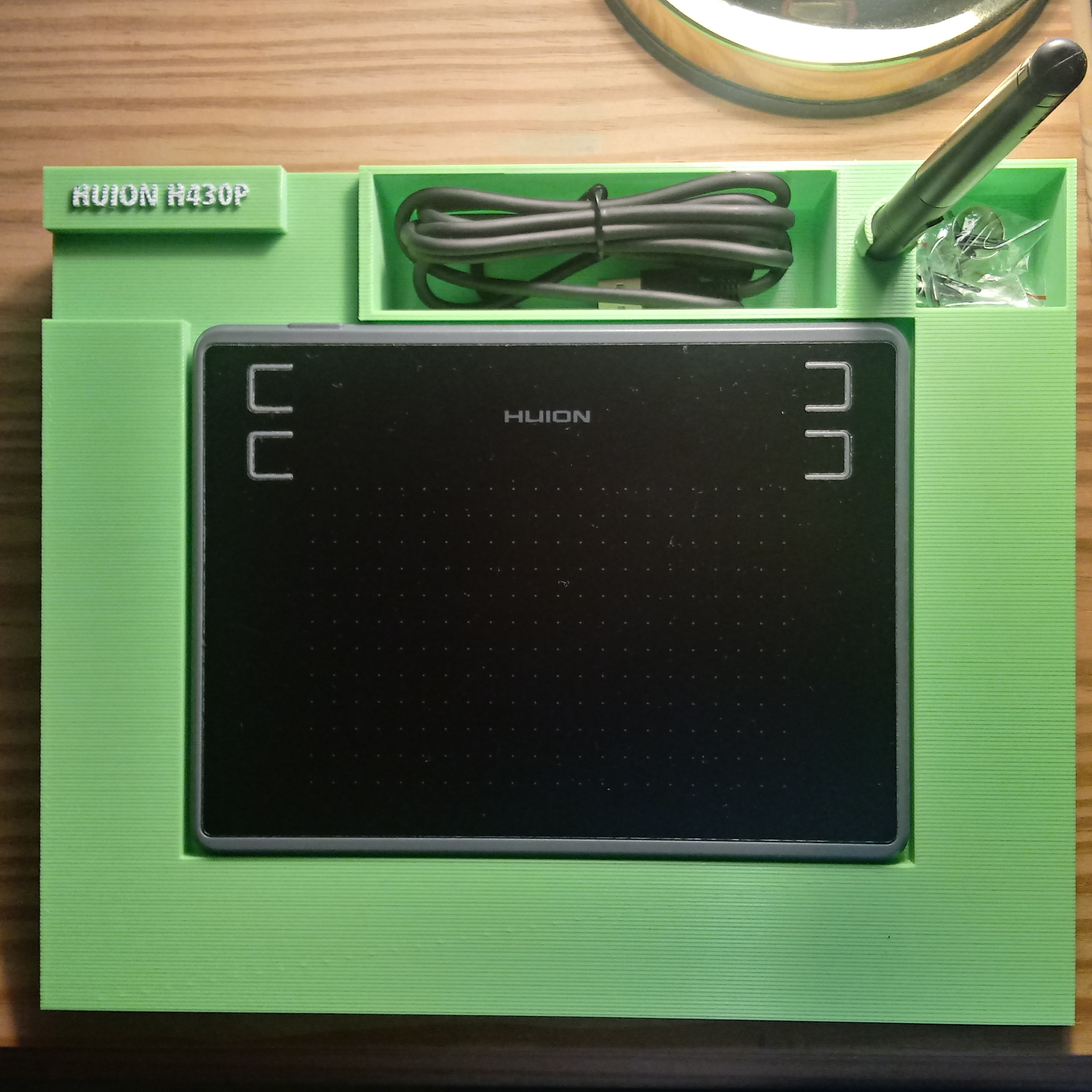

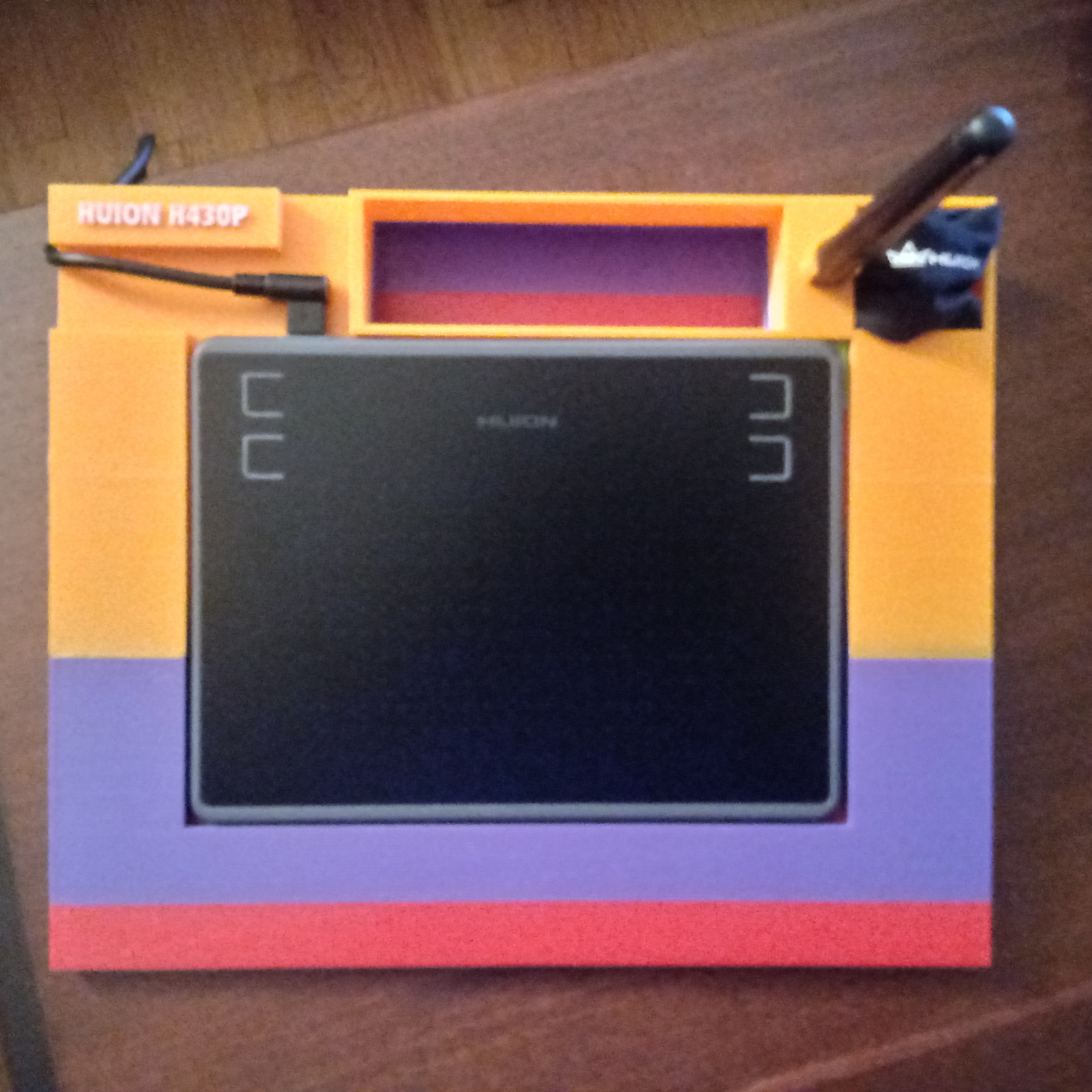

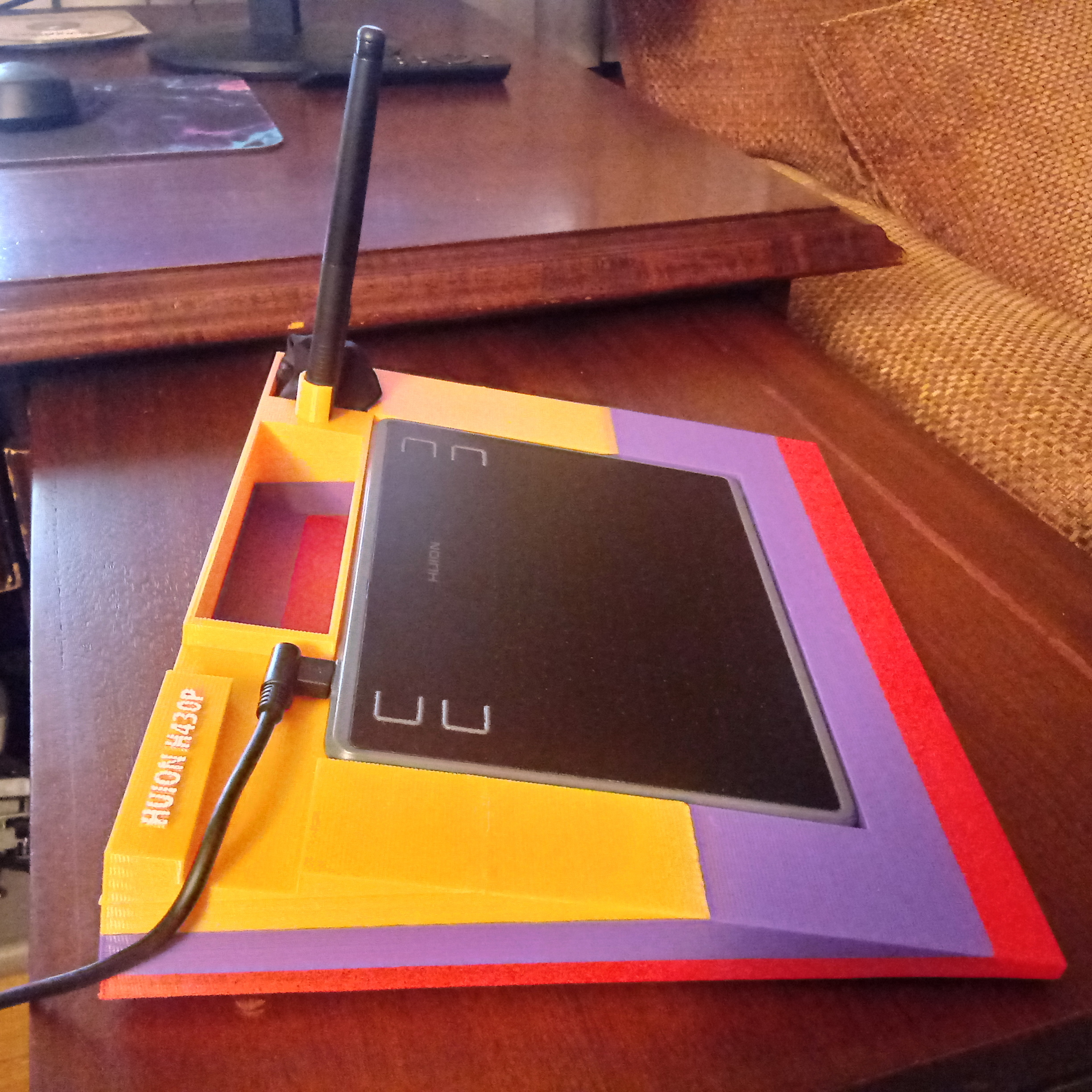

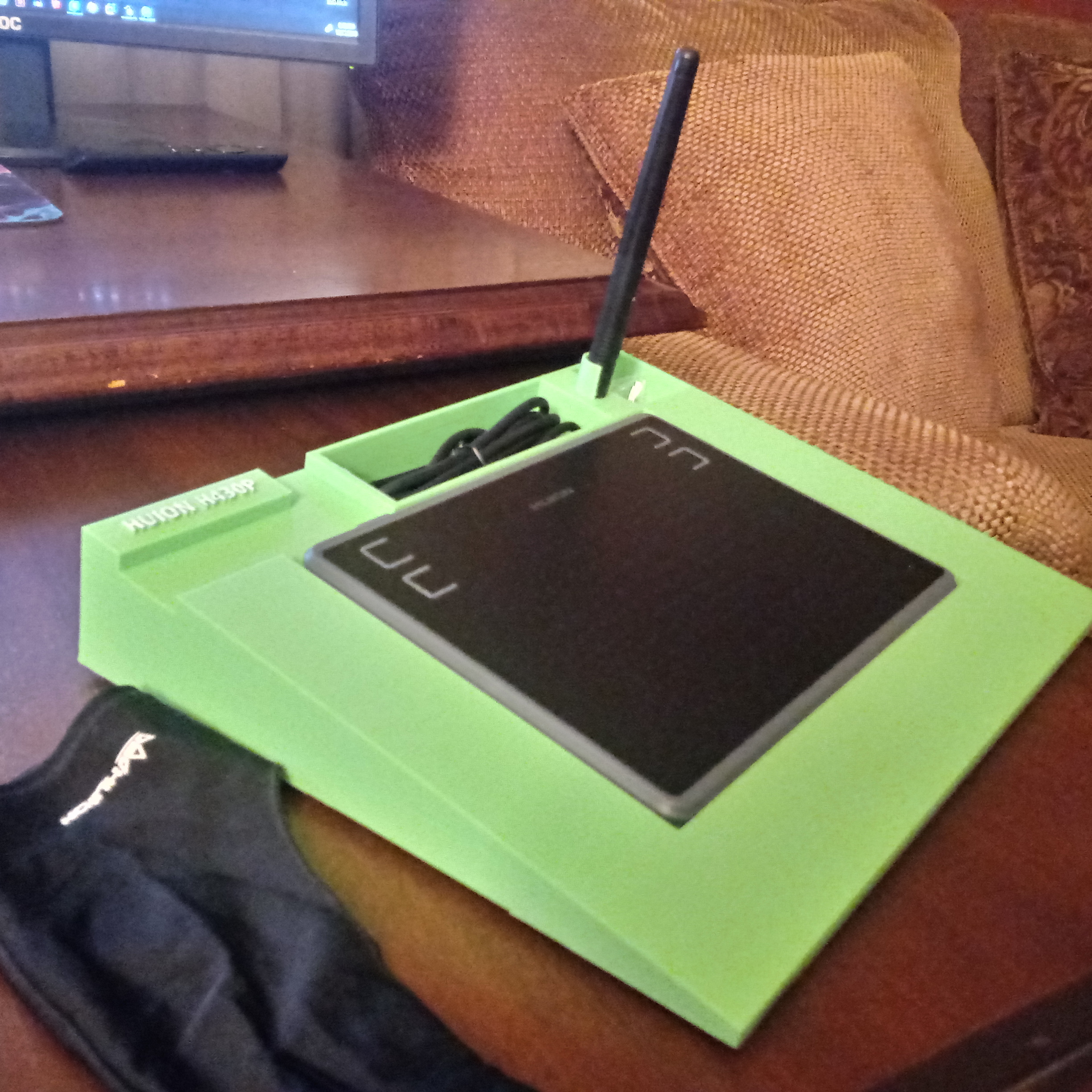

I created this 3D Model specifically for the Huion 430P Drawing Tablet. It places the tablet at a comfortable incline facilitating drawing and hand placement. I created separate compartments on the table that can be used to store the Huion Tablet's USB cable as well as a smaller compartment that can be used to store an artist glove or the pen nibs and nib clip. It also has an integrated digital pen holder, this will hold your battery free pen in an upright position for your convenience. I have printed two for myself using my Creality CR-10S, I was very happy with the prints, both were very clean prints that look amazing.


3D printing settings

Recommendations:
Slicer Ultimaker Cura.
I used Creality PLA (nozzle temp settings at 215and 60plate temp settings)
Infill Desity 50% or higher making the table very sturdy.
Infill Pattern Cubic.
Quality Standard 0.2mm
Build Plate at your discretion, I used raft on one model and Skirt on the other both prints were amazing.
No Supports are needed.
Use Self Adhesive Clear Rubber Feet. Stick on the bottom of the table so that it stays put on any surface without slipping or sliding.
Print flat on your print bed the size of the table is:
220mm X 266mm X 62mm

3D printer file information

  • 3D design format: STL Folder details Close
    • H430PTableRevised.stl

    Learn more about the formats

  • 3D model size: X 220 × Y 266 × Z 62 mm
  • Last update: 2020/05/11 at 21:34
  • Publication date: 2020/01/01 at 01:17
