Improved Hyundai Head Lamp Light Dust Cap Cover

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

  • 1 collection

Licence CULTS - Private Use
Last update 2020-05-18 at 14:48
Publication date 2020-04-03 at 01:58
Design number 127552
3D design format
STL Folder details Close
  • Headlight Dust Cover.stl

Learn more about the formats

3D printer file info

3D model description

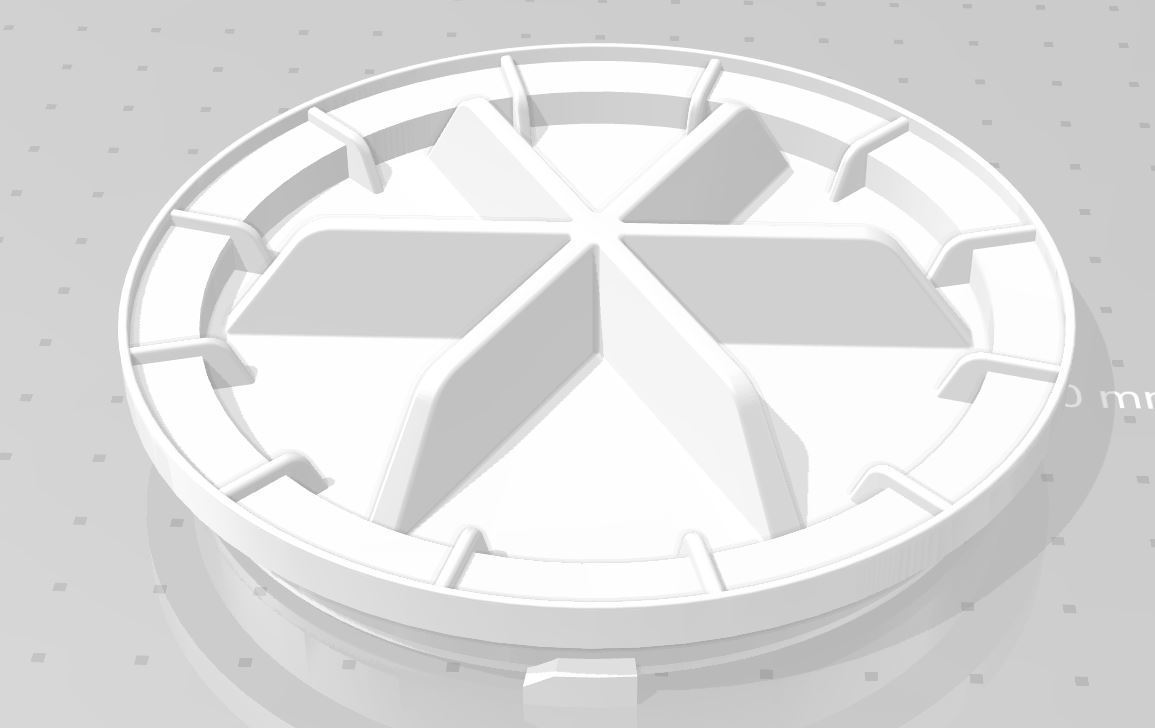

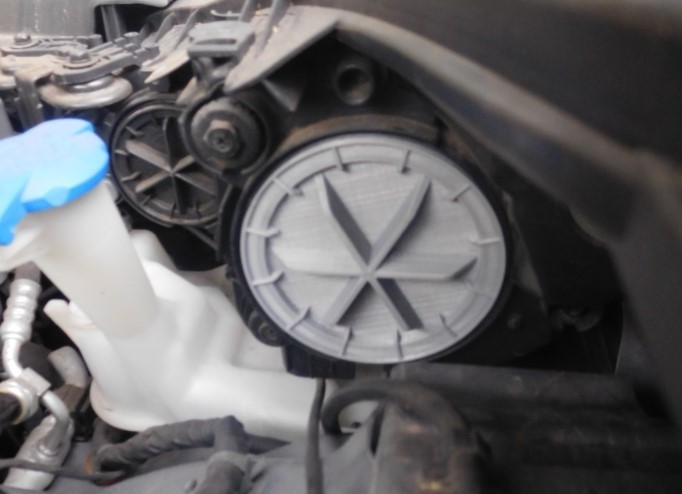

This is a model for a Head Lamp Light Dust Cap.

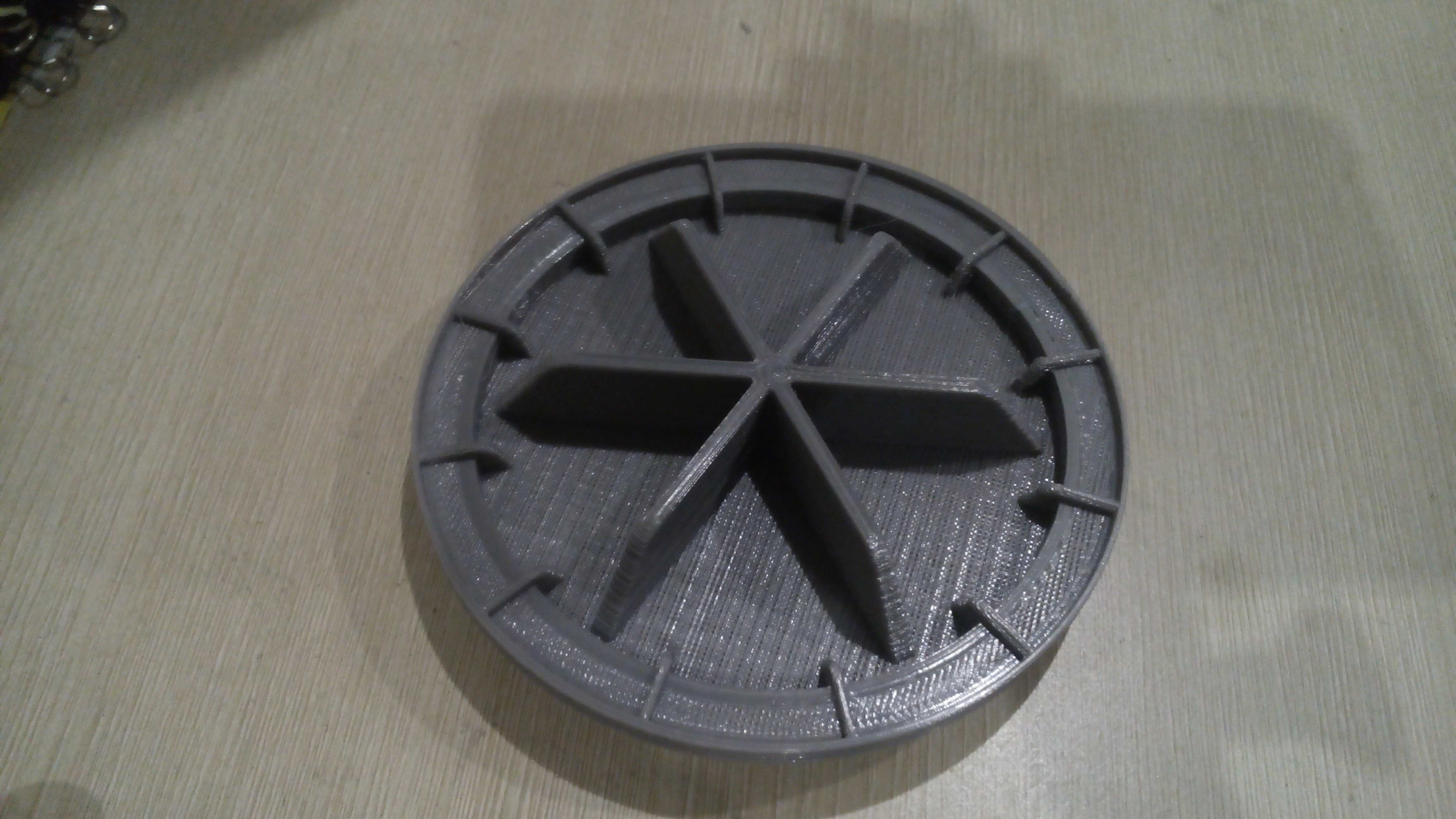

The original part broke, so I modelled and 3D-printed one with improved thicker walls.

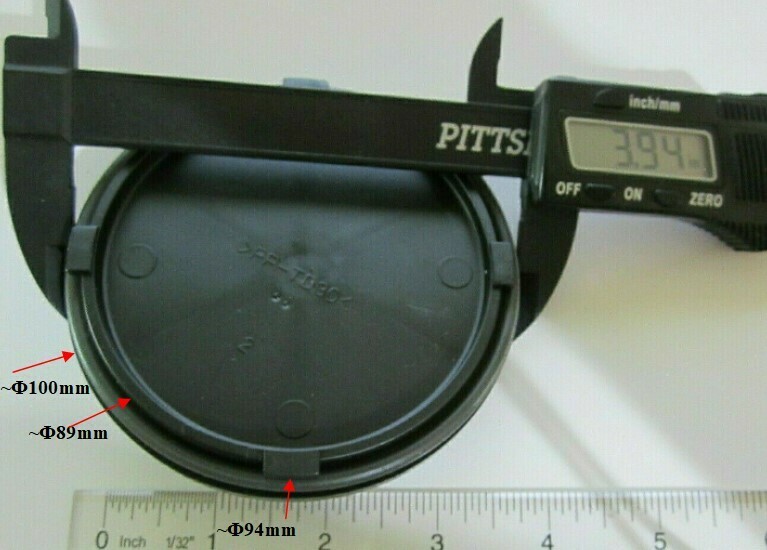

The outer shape has not changed. The largest OD of this part it still measures 100mm. This one fits several models of Hyundai from 2009 to 2017, including:
-Elantra GT--2017, 2015, 2014, 2013
-Genesis --2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009
-Elantra- -2015, 2014, 2013, 2012, 2011
-Elantra Coupe 2014, 2013
-Equus --2015, 2014, 2013, 2012, 2011
-Santa Fe --2014, 2013
-Sonata-- 2014, 2013, 2012, 2011
-Azera --2013, 2012, 2011
-Gradeur 2010

and also some models of Kia from Rondo 2013 onward

Part number 92140 3m000 / 92140 3X000

3D printing settings

*0.4mm nozzle size
*Needs supports.
*Infill between 20% to 100%
*I printed mine in PETG, and used 235C of nozzle temp, and 85C
for the glass bed.
