Handle and Camera Mount for Creality Ender 3 Modular R2 Y Carriage Plate

Download free 3D printing designs Handle and Camera Mount for Creality Ender 3 Modular R2 Y Carriage Plate, gulfcoastroboticsDownload free 3D printing designs Handle and Camera Mount for Creality Ender 3 Modular R2 Y Carriage Plate, gulfcoastroboticsDownload free 3D printing designs Handle and Camera Mount for Creality Ender 3 Modular R2 Y Carriage Plate, gulfcoastroboticsDownload free 3D printing designs Handle and Camera Mount for Creality Ender 3 Modular R2 Y Carriage Plate, gulfcoastroboticsDownload free 3D printing designs Handle and Camera Mount for Creality Ender 3 Modular R2 Y Carriage Plate, gulfcoastrobotics

Did you 3D print this model?

3D model description

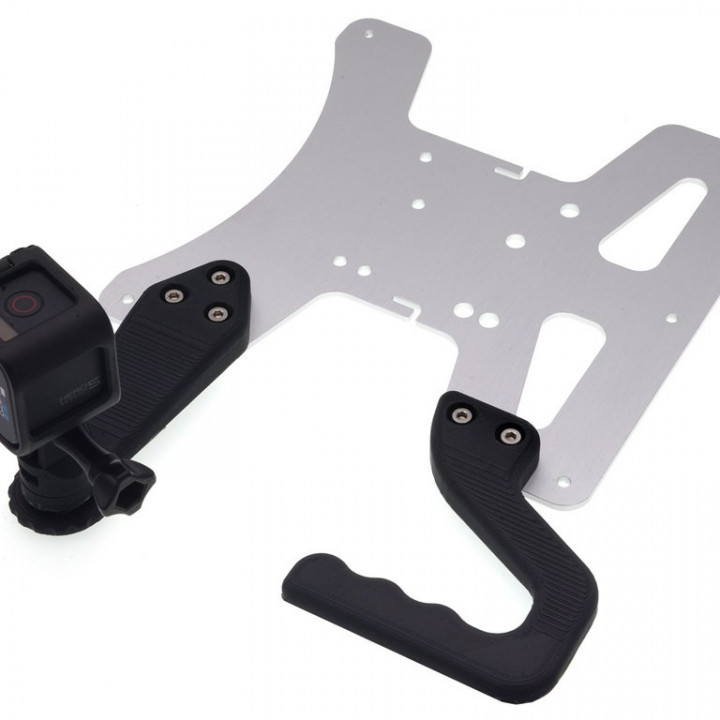

The new [Gulfcoast Robotics] Creality Ender-3 Modular Y Carriage Plate features additional bolt holes for mounting 3D printed accessories.

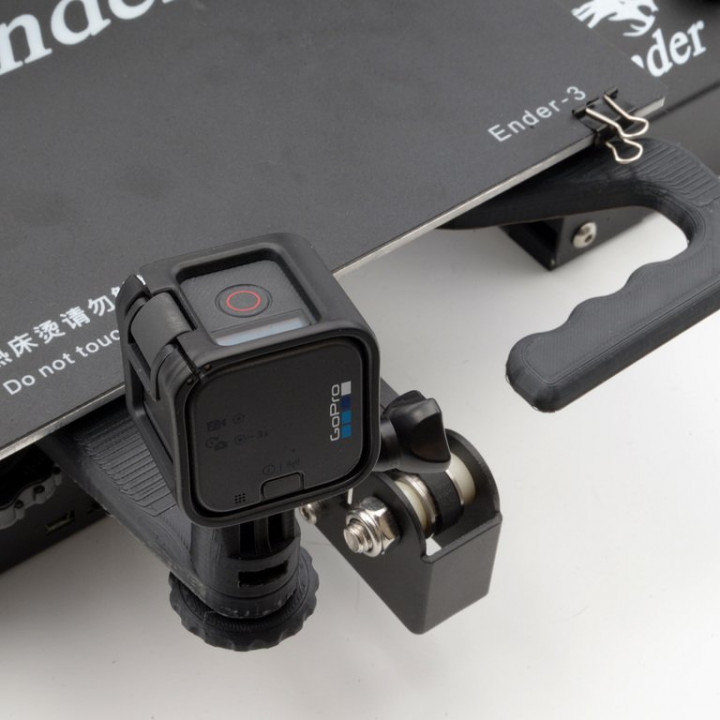

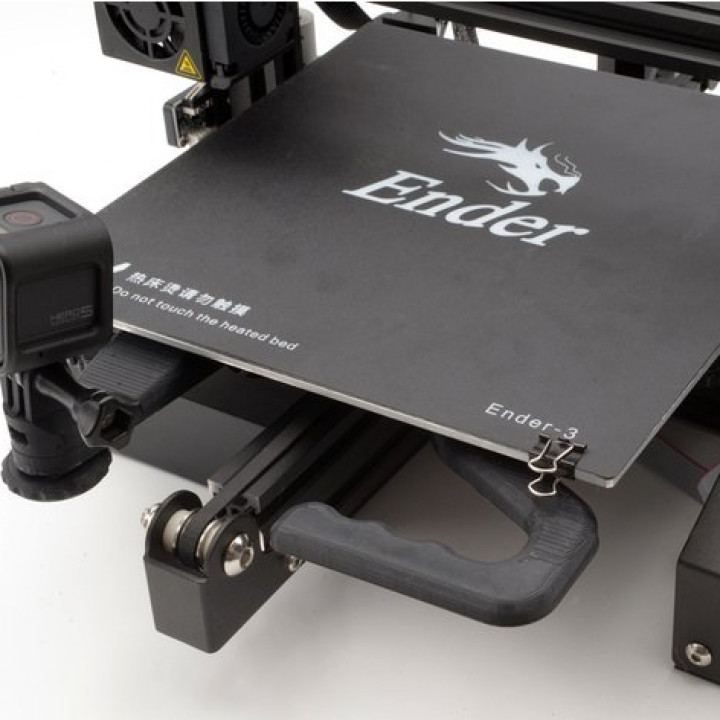

The Camera Mount is perfect for timelapse videos or live streaming on Octoprint. Designed to fit GoPro cameras, it mounts to the Modular Ender-3 Y Carriage Plate, using the standard GoPro frame mount and fixed tilt screw.

The half-width Handle Bar is for convenience. Making it easy to slide the heated bed while it's hot, preventing burns and other injuries during use.

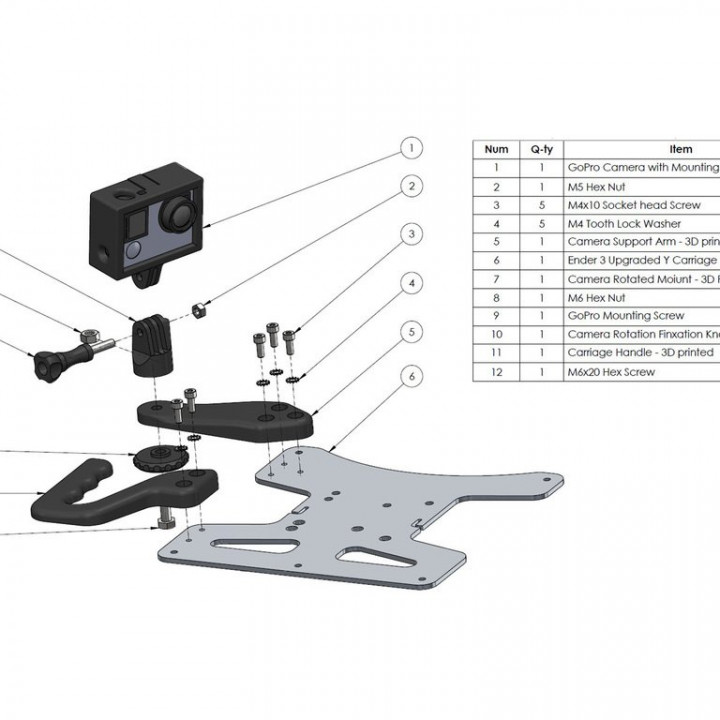

Please see supplied drawings for mounting hole pattern, dimensions and other details. Fits the Creality Ender 3, Ender 3 Pro and some clone 3D printers.

The full width Handle Bar design is also available

Camera Mount Hardware

(1) M6x20 HEX Head Screw
(1) M6 HEX Nut
(1) M5 HEX Nut
(3) M4 Socket Head Screw
(3) M4 Toothlock Washers

Handle Hardware

(2) M4x10 Socket Head Screws
(2) M4 Tooth Lock Washers

More Information

This an example design for the Modular Ender 3 Y Carriage, intended to showcase potential add-on options. We encourage enthusiasts and designers to develop and share their own ideas!

For additional information about this product, you can visit our store
https://gulfcoast-robotics.com

  • 3D model format: PDF and STL
