Hadron (ORD Bot) X-Motor Bracket

?
Creation's quality: 4.5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 838 views
  • 4 likes
  • 31 downloads

3D model description

The collection of the Motor- and Idler Pulley -Brackets is completed. This is the last piece of the puzzle. The goal of the X-Motor Bracket is to reduce the X-Wobble.

Update 22 Jan, 2013:

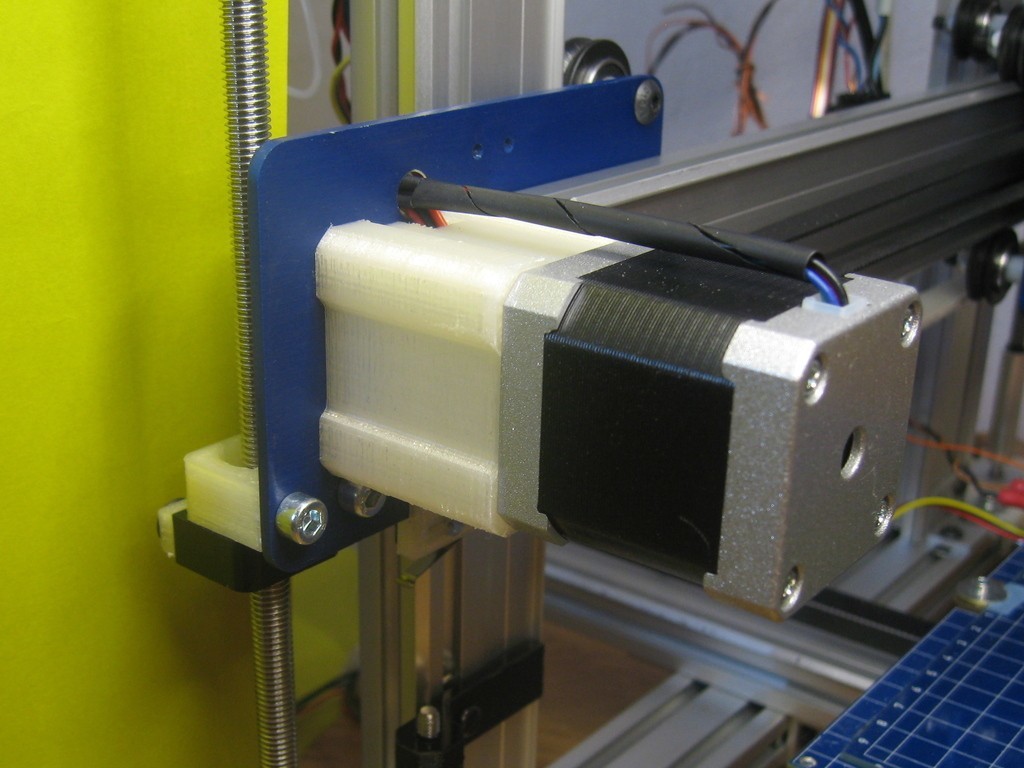

The X-MotorBracketV2 is 42x42x38mm (the first one is 44x44x38).

Update 23 Jan, 2013:
X-MotorBracketV3 has a second "cut out" in order to hide the motor wiring.

Updade 24 Jan, 2013:
An alternative solution as fma proposed.

3D printing settings

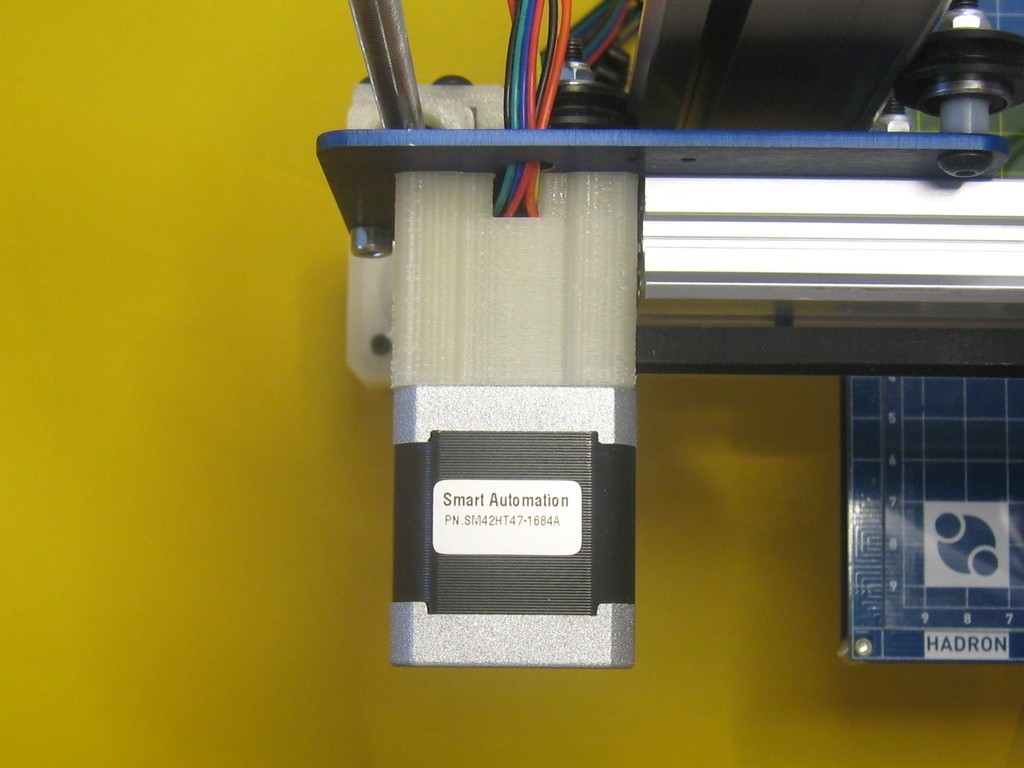

Using the X-Motor Bracket V3 you can mount the motor with the wiring on the bottom and conduct the wiring thru the cut out to the top one.

Update 24 Jan, 2013

Fma-Option: Print 2 X-AxisBracketVfma (I didn't print it yet).
