Angular guide for saw (band or oscillating)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.6k views
  • 13 likes
  • 1 download

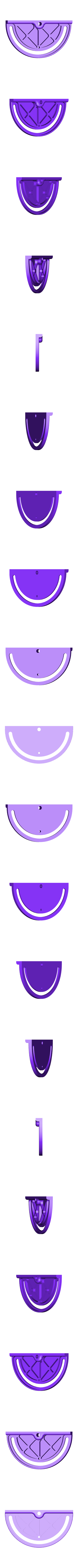

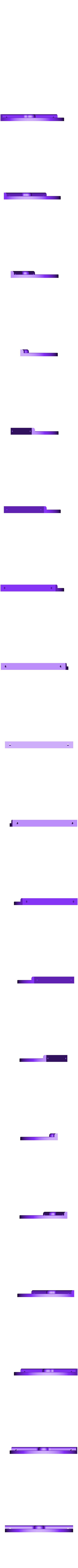

3D model description

This tool exists on ALIBABA at 25 $, but at this price the Belgian customs charges a VAT 21% on the price and the expenses of sending!!!!! then B-POST takes 15 € of expenses of file.

So I decided to print it, the most difficult thing is to find the aluminium profile that slides in the original groove.

For my saw it is a 20 x 10 mm aluminium U-profile, the height of 10 mm has been filed down to 7 mm.

The bolts or nuts under the profile are embedded in 2-component glue (green paste on the picture)

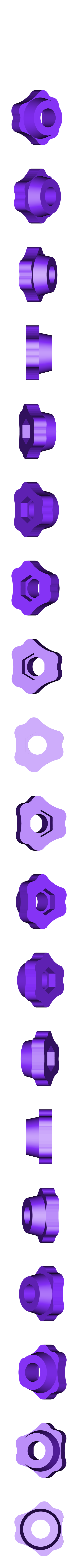

I added the nut holder for printing.

The two holes on the vertical part allow to screw a martyr or longer part.

I used a square head bolt M6, a bolt M5, 2 nuts and 2 washers...with the small ALU profile and the printing all comes back to less than 5 € :)

Small remark at the time of my personal impression: there was a power cut, I thus resumed the impression thereafter, but my printer shifted the axis Y has the resumption...or the small staircase...as it works well...pfffffff had not the courage to remake an impression.

3D printing settings

Set the printing scale to 160 mm (the largest dimension), this implies a distance of at least 80 mm between the center and the blade. example: if the saw is 50 mm from the groove...set the scale to 100 mm, you will have to switch to M4 or 5 bolts

I put a STL and OBJ version and a very light price for all
