Gripping Vacuum Adapter for Bosch Orbital Sander (Customizable)

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

3D model description

This is a vacuum adapter for Bosch GEX 125-150 AVE orbital sander.

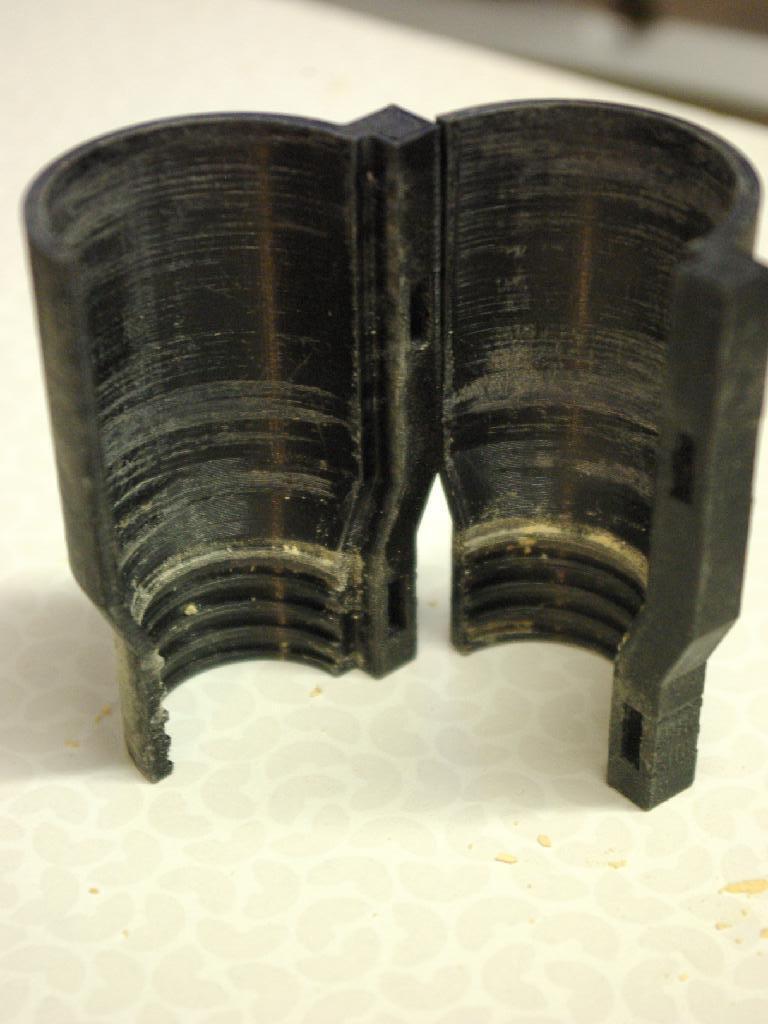

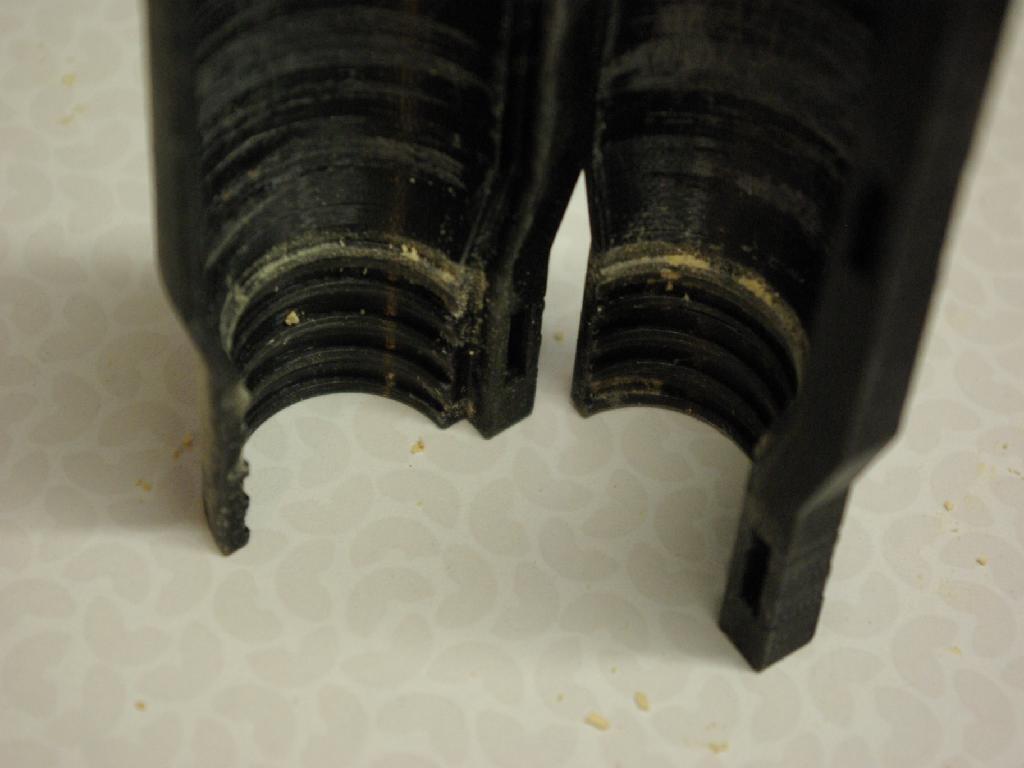

I used to use a rubber adapter to connect my vacuum cleaner to the Bosch sander, but it rapidly loosened and came off. Therefore I designed this adapter which has groves on the inside that directly fit on the windings of the dust outlet of the sander.

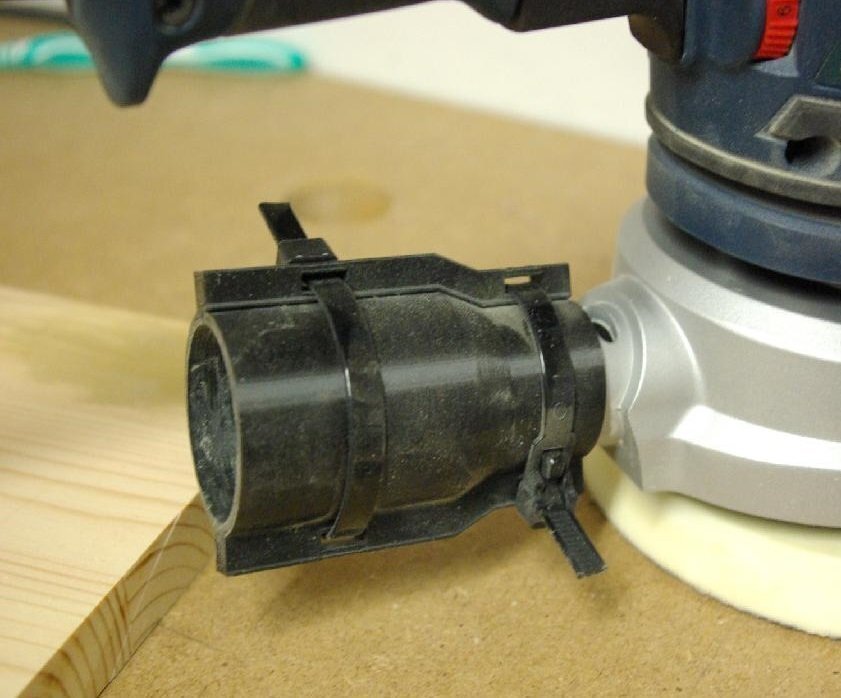

Print the adapter 2x. The adapter halves fit together and can be fixed by means of a cable tie. I am using reclosable cable ties, to be able to take the adapter off.

I cannot say whether this design fits on other (Bosch) orbital sanders or tools. Maybe you could provide some feedback if it does.

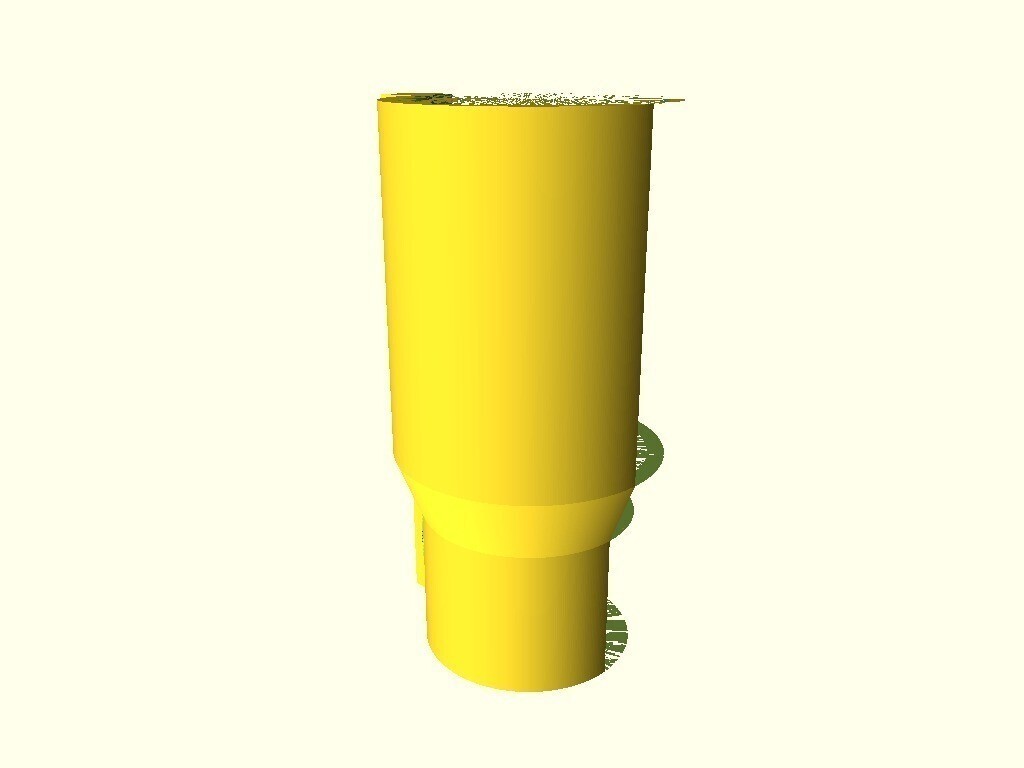

If you want to adapt the parametric design for other vacuum diameters unpack the .scad archive file and open in OpenSCAD.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • Vacuum_Adapter_Bosch_Orbital_Sander.scad.zip
    • Vacuum_Adapter_Bosch_Orbital_Sander.stl

    Learn more about the formats

  • Last update: 2019-04-09 at 18:04
  • Publication date: 2019-04-08 at 12:21
    ?
    Published to Thingiverse on: 2019-02-17 at 18:53

License

CC BY-NC - Attribution - Non commercial
