Greg3d BMG + V6 for Geeetech A10

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 68 views

3D model description

Current work in progress and modified for the Geeetech A10. Expect tolerance differences and possible fitment issues as I figure it out.

Shoutout to Greg3d for making an absolute unit of an extruder/hotend setup!

I decided to adapt this to the A10 but made some minor changes:

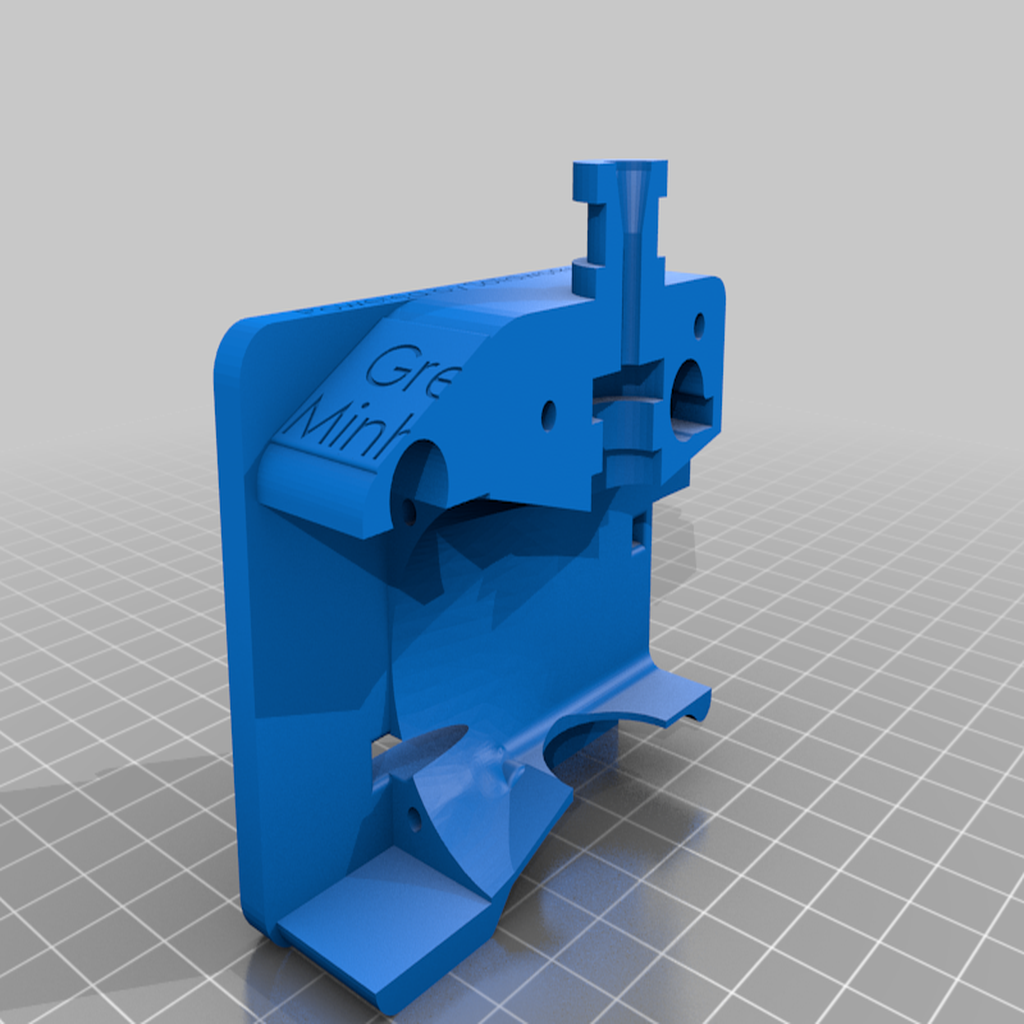

One piece back mounted through hole to the bearings

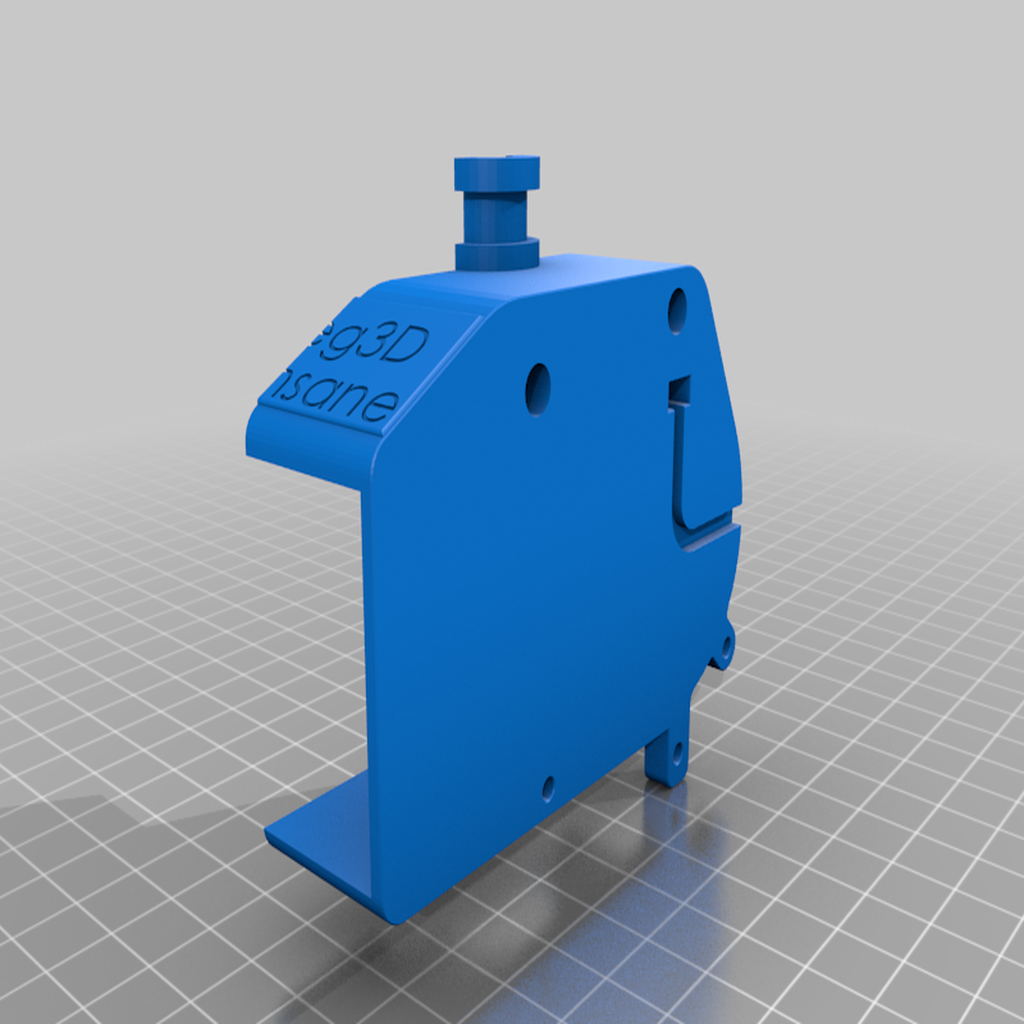

M3 nuts used to secure the front half on
Generous cutouts to aid fan and wire management.

With these changes, I kept the original fan shroud geometry and profiles for the extruder.
Offset from original Greg3d extruder by 5mm on the y-axis towards you. Use stock bolts without washers on the two upper carriage mounts, bottom hole will need a washer to fit properly. Reason for this is to facilitate installation while keeping the duct geometry intact.

PLS note, this is NOT finished and may have fitment issues. Print at your own risk. Step and SLDPRT files to be posted once fitment is verified.

Update for 2/11/2020
The part fits well on the bracket so I'll release the SLDPRT and STEP files later.

Update for 2/19/2020
Step files uploaded. Project is now considered done and archived. No additional work or features planned but comment of any discrepancies found.

3D printing settings

-

  • 3D file format: STEP and STL
  • Publication date: 2021/06/11 at 01:16

License

CC BY
